Enumerations in NextMesh. More...

#include <common/CoordT.hpp>
#include <cstddef>
#include <cstdint>
#include <string>
#include <topology/TopoShape.hpp>
#include <vector>

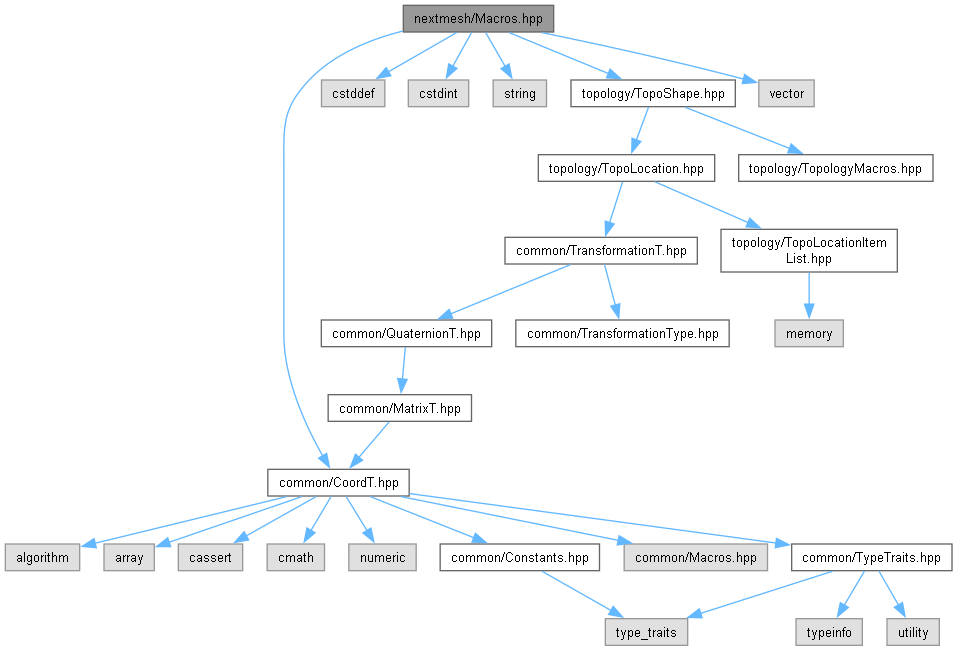

Include dependency graph for Macros.hpp:

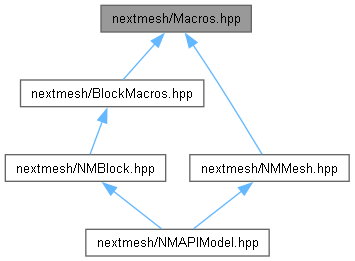

This graph shows which files directly or indirectly include this file:

Classes
struct	AMCAX::NextMesh::TaggedShape
	Shape with tag. More...

struct	AMCAX::NextMesh::ShapeData
	Input geometry with tags. More...

struct	AMCAX::NextMesh::NMPolyLine

struct	AMCAX::NextMesh::NMPolyMesh
	only support tri or quad mesh More...

struct	AMCAX::NextMesh::OutParams
	Control parameters for exporting file. More...

Namespaces
namespace	AMCAX
	Namespace of all interface in the AMCAX kernel.

namespace	AMCAX::NextMesh
	Namespace of all interface in the AMCAX NextMesh module.

Typedefs
using	AMCAX::NextMesh::NMMeshElem = void *

using	AMCAX::NextMesh::NMMeshNode = void *

using	AMCAX::NextMesh::NMEntity = void *

using	AMCAX::NextMesh::Indext = uint32_t

using	AMCAX::NextMesh::EntTag = uint32_t

using	AMCAX::NextMesh::NMPoint3 = AMCAX::Coord3d
	Type of point/vector.

using	AMCAX::NextMesh::NMVector3 = NMPoint3

using	AMCAX::NextMesh::NMShape = AMCAX::TopoShape
	Shape.

typedef void	AMCAX::NextMesh::PBCallBackFunc(int, const std::string &)
	Type of callback function.

Enumerations
enum class	AMCAX::NextMesh::Orientation { Forward , Reversed , Internal , External }
	Type of orientation.

enum class	AMCAX::NextMesh::DimType { DAll = -1 , D0 = 0 , D1 = 1 , D2 = 2 , D3 = 3 }
	Type of dimension.

enum class	AMCAX::NextMesh::ElemType { Node_1 = 1 , Line_2 = 2 , Tri_3 = 3 , Tet_4 = 4 , Quad_4 = 5 , Hex_8 = 6 , Pyramid_5 = 7 , Prism_6 = 8 , Line_3 = 9 , Tri_6 = 10 , Tet_10 = 11 , Quad_8 = 12 , Hex_20 = 13 , Prism_15 = 14 , Pyramid_13 = 15 , Quad_9 = 16 , Hex_27 = 17 , Prism_18 = 18 , Pyramid_14 = 19 , Poly = 20 }
	Type of mesh element.

enum class	AMCAX::NextMesh::OutFileType { AUTO , OBJ , VTK , FLUENT_MSH }
	Type of output file.

enum class	AMCAX::NextMesh::CommercialSoftware { HyperMesh , ANSYS , Fluent , Nastran , UnSet }
	Type of commercial software.

enum class	AMCAX::NextMesh::QualityType { MinLength , MaxLength , MinHeight , MinNormalizedHeight , CharacteristicLength , ElementQuality , SkewnessByVolume , SkewnessByEquiangular , MaxAngle2d , MinAngle2d , AspectRatio , JacobianRatioByCorner , JacobianRatioByGauss , Collapse , ChordalDeviation , WarpingAngle , WarpingFactor , ParallelDeviation , Taper , Gamma , Eta , MaxDihedraAngle , MinDihedraAngle }
	Type of mesh quality.

Detailed Description

Enumerations in NextMesh.
