Class used for carrying data the progress of the STEP process. More...

#include <cstdint>
#include <functional>
#include <memory>
#include <string>
#include <common/Macros.hpp>

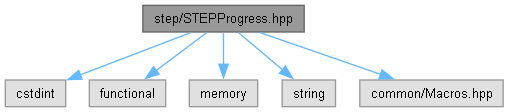

Include dependency graph for STEPProgress.hpp:

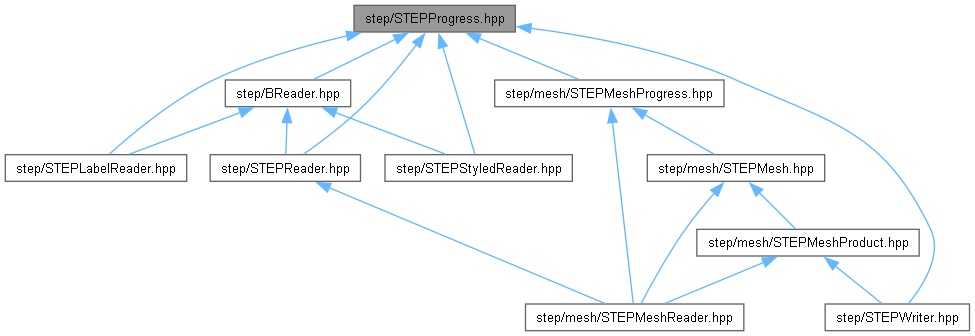

This graph shows which files directly or indirectly include this file:

Classes
struct	AMCAX::STEP::STEPProgressMessage
	Message object used to report progress values in the STEP process. More...

union	AMCAX::STEP::STEPProgressMessage::Payload

class	AMCAX::STEP::STEPProgressState
	Encapsulates a specific state value in the STEP process (reader or writer). More...

Namespaces
namespace	AMCAX
	Namespace of all interface in the AMCAX kernel.

namespace	AMCAX::STEP
	Namespace of all interface in the AMCAX STEP module.

Typedefs
using	AMCAX::STEP::STEPProgressCallback
	Callback type for reporting progress.

template<typename T>
using	AMCAX::STEP::STEPDataCallback = std::function<void(STEPDataEvent event, std::shared_ptr<T> product, size_t index)>
	Callback type invoked when data events occur. The callback may be executed in concurrent threads. This may change in future releases.

Enumerations
enum class	AMCAX::STEP::STEPDataEvent { AMCAX::STEP::Unspecified , AMCAX::STEP::ProductReady , AMCAX::STEP::ShapeReady , AMCAX::STEP::LabelReady , AMCAX::STEP::DataCompleted , AMCAX::STEP::Error = -1 }
	Event type for STEP data reading progress. More...

Detailed Description

Class used for carrying data the progress of the STEP process.
