NextMesh 中的枚举类型更多...

#include <common/CoordT.hpp>
#include <cstddef>
#include <cstdint>
#include <string>
#include <topology/TopoShape.hpp>
#include <vector>

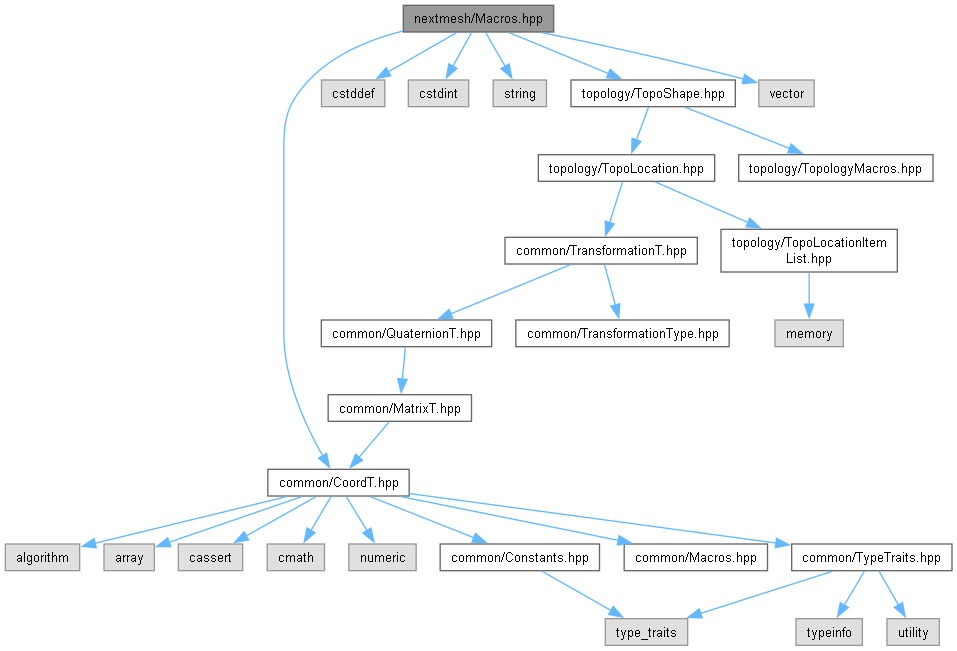

Macros.hpp 的引用(Include)关系图:

此图展示该文件被哪些文件直接或间接地引用了:

命名空间
namespace	AMCAX
	AMCAX 内核提供的所有接口所在的命名空间。

namespace	AMCAX::NextMesh
	AMCAX NextMesh 模块提供的所有接口所在的命名空间。

类型定义
using	AMCAX::NextMesh::NMMeshElem = void *

using	AMCAX::NextMesh::NMMeshNode = void *

using	AMCAX::NextMesh::NMEntity = void *

using	AMCAX::NextMesh::Indext = uint32_t

using	AMCAX::NextMesh::EntTag = uint32_t

using	AMCAX::NextMesh::NMPoint3 = AMCAX::Coord3d
	点/向量类型

using	AMCAX::NextMesh::NMVector3 = NMPoint3

using	AMCAX::NextMesh::NMShape = AMCAX::TopoShape
	形状

typedef void	AMCAX::NextMesh::PBCallBackFunc(int, const std::string &)
	回调函数类型

枚举
enum class	AMCAX::NextMesh::Orientation { Forward , Reversed , Internal , External }
	方向类型

enum class	AMCAX::NextMesh::DimType { DAll = -1 , D0 = 0 , D1 = 1 , D2 = 2 , D3 = 3 }
	维度类型

enum class	AMCAX::NextMesh::ElemType { Node_1 = 1 , Line_2 = 2 , Tri_3 = 3 , Tet_4 = 4 , Quad_4 = 5 , Hex_8 = 6 , Pyramid_5 = 7 , Prism_6 = 8 , Line_3 = 9 , Tri_6 = 10 , Tet_10 = 11 , Quad_8 = 12 , Hex_20 = 13 , Prism_15 = 14 , Pyramid_13 = 15 , Quad_9 = 16 , Hex_27 = 17 , Prism_18 = 18 , Pyramid_14 = 19 }
	网格单元类型

enum class	AMCAX::NextMesh::OutFileType { AUTO , OBJ , VTK , FLUENT_MSH }
	输出文件类型

enum class	AMCAX::NextMesh::CommercialSoftware { HyperMesh , ANSYS , Fluent , Nastran , UnSet }
	商业软件类型

enum class	AMCAX::NextMesh::QualityType { MinLength , MaxLength , MinHeight , MinNormalizedHeight , CharacteristicLength , ElementQuality , SkewnessByVolume , SkewnessByEquiangular , MaxAngle2d , MinAngle2d , AspectRatio , JacobianRatioByCorner , JacobianRatioByGauss , Collapse , ChordalDeviation , WarpingAngle , WarpingFactor , ParallelDeviation , Taper , Gamma , Eta , MaxDihedraAngle , MinDihedraAngle }
	网格质量类型

详细描述

NextMesh 中的枚举类型

类
