Mesh Generation Example

Overview

This tutorial outlines the basic usage of mesh generation. It involves the process of importing STEP format files and automatic generation of the volumetric mesh, which is controlled by parameters specified by a JSON file.

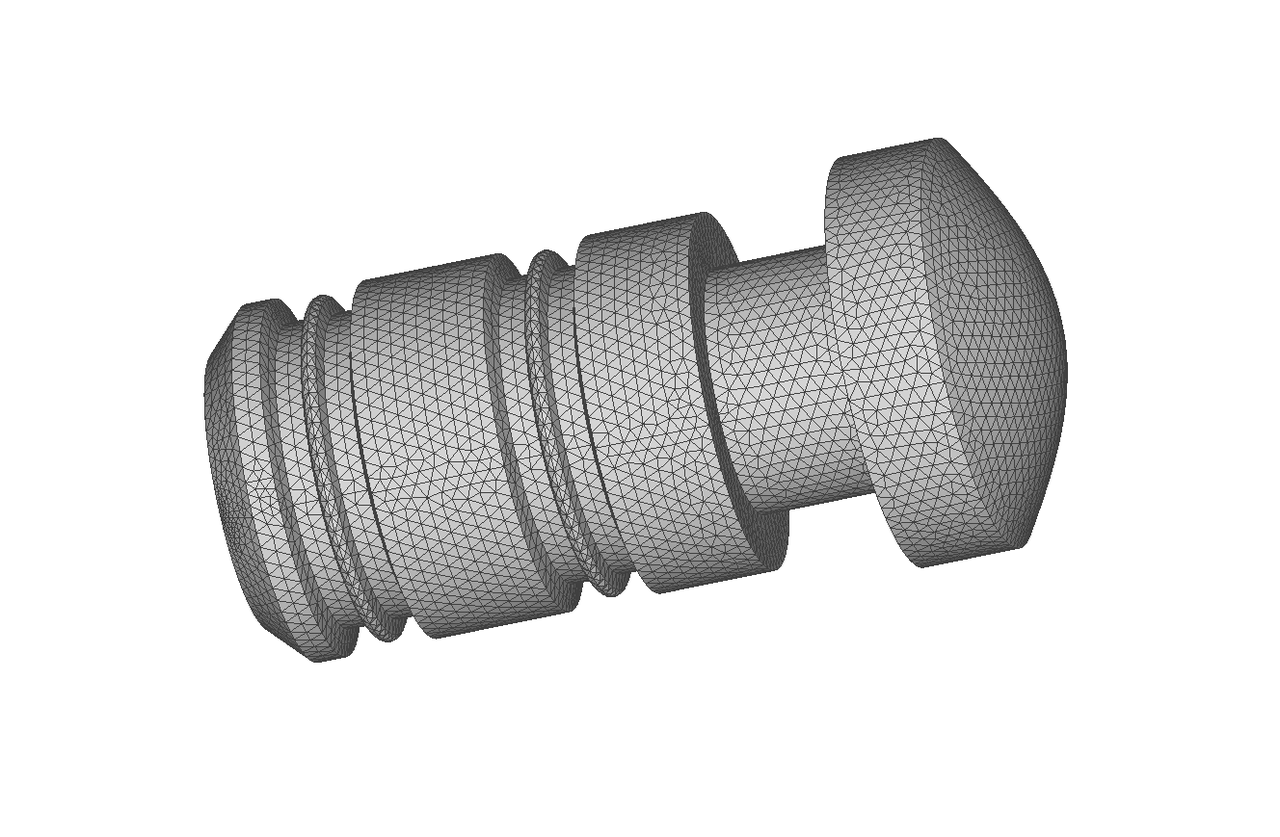

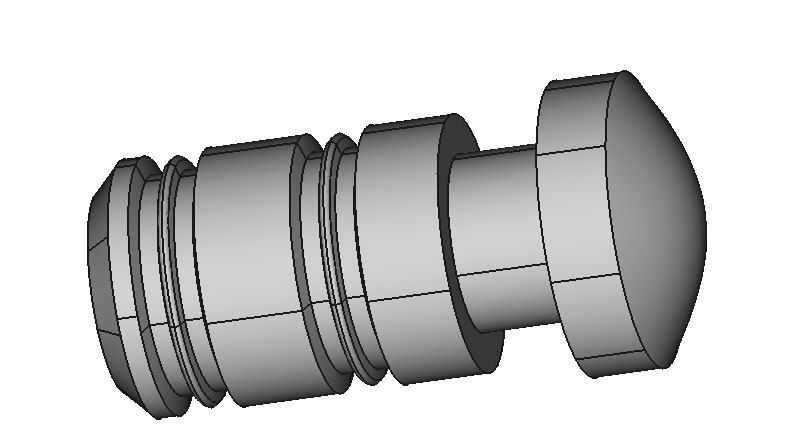

Preview of CAD Model and the generated mesh

The left image shows the imported CAD model, while the right image displays the final generated mesh model.

Namespaces

using namespace AMCAX::NextMesh;

Preparation

Set the log format, provide the cad file and the mesh generation control JSON file.

const std::string cadstr   = "./data/qiuwotaojian.stp";
const std::string jsonPath = "./data/mesh_para-mesh000.json";
NMAPIModel::InitLogger();

Json example

Control mesh generation by setting the following partitioning parameters: the dimension of the entity to be partitioned, MeshingDim; the maximum and minimum size of the mesh elements, MaxSize/MinSize (absolute size), which can be the bounding box diagonal length bblen of the geometric model multiplied by a certain ratio r, such as [0.01, 0.1]*bblen; the mesh growth rate, GrowthRate; the sequence of tags of the entities to be partitioned, SelectedEntities; the curvature factor, CurvatureFactor; the type of mesh elements, ElementType; the mesh partitioning method, MeshingMethod; and the number of parallel threads, ThreadNum.

{
"MeshSize": [
{
"CurvatureFactor": 0.6,
"GrowthRate": 1.0,
"MaxSize": 0.5,
"MeshingDim": 3,
"MinSize": 0.1,
"ElementType": "Tri",
"MeshingMethod": "D2AFT",
"SelectedEntities": []
}
],
"ThreadNum": 1
}

JSON example - Planar boundary layer

This example generates a planar boundary layer hybrid mesh for a two-dimensional airfoil.

{
  "BoundaryLayer": [
    {
      "DistributionType": "Separation",
      "EntityType": "Edge",
      "EFPairs": [
        {
          "E": 5,
          "F": 1
        },
        {
          "E": 6,
          "F": 1
        }
      ],
      "Basic": {
        "GrowthRate": {
          "Constant": 1.2
        },
        "InitLayerHeight": {
          "Absolute": 0.01
        },
        "NLayers": 20,
        "ProblematicAreasTreatment": "STOP"
      }
    }
  ],
  "MeshSize": [
    {
      "CurvatureFactor": 0.2,
      "GrowthRate": 1.1,
      "MaxSize": 0.2,
      "MeshingDim": 1,
      "MinSize": 0.1,
      "SelectedEntities": [ 5, 6 ]
    },
    {
      "CurvatureFactor": 0.2,
      "GrowthRate": 1.0,
      "MaxSize": 2,
      "MeshingDim": 2,
      "MinSize": 1,
      "SelectedEntities": []
    }
  ],
  "ThreadNum": 1
}

Class	Key	Required	Value Range	Default Value	Remarks
MeshSize	CurvatureFactore	No	[0, 1.0]	0	0 means off; 1.0 means partitioning a full circle into 3 segments
MeshSize	GrowthRate	No	[1.0, inf]	1.0
MeshSize	MaxSize	No	[eps, inf]	inf	Absolute size
MeshSize	MinSize	否	[0, inf]	0	Absolute size，MinSize<=MaxSize
MeshSize	MeshingDim	Yes	[1,2,3]	——
MeshSize	SelectedEntities	Yes	Subset of entity tags under MeshingDim dimension	——	Empty value means all entities under the specified dimension
MeshSize	ElementType	No	[Tri, Quad, Mixed, RTri]	Tri	Only valid when MeshingDim=2, otherwise ignored; Tri for triangles; Quad for all quadrilaterals; RTri for right-angled triangles; Mixed for mixed triangle and quadrilateral meshes
MeshSize	MeshingMethod	No	[Transfinite，D2Delaunay，D2AFT]	Default "D2AFT" when ElementType="Tri"	Only valid when MeshingDim=2, otherwise ignored; Transfinite method generates structured grids, only effective for faces with 2/3/4 edges; D2Delaunay generates triangles using Delaunay method; D2AFT generates triangles using advancing front method

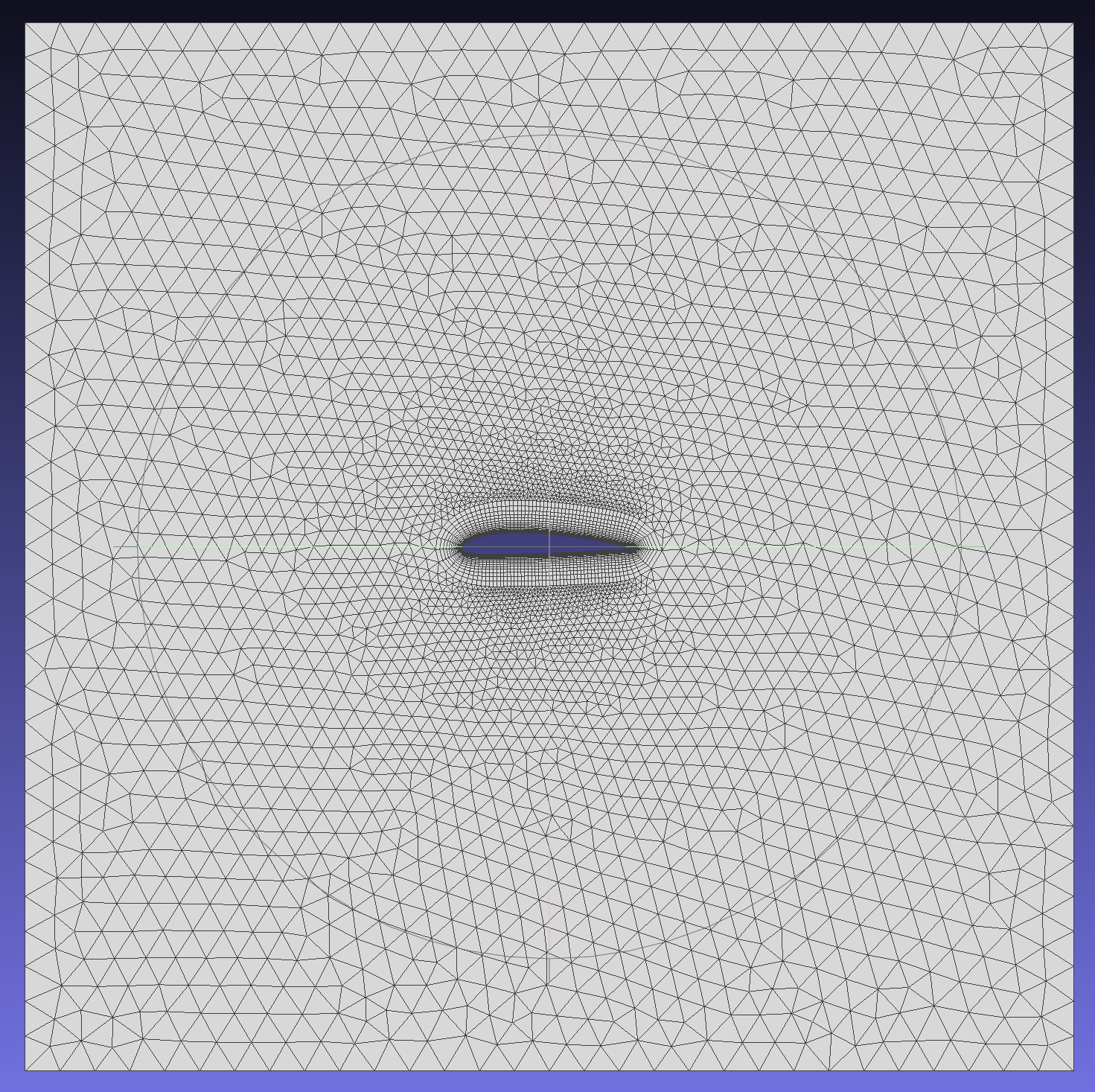

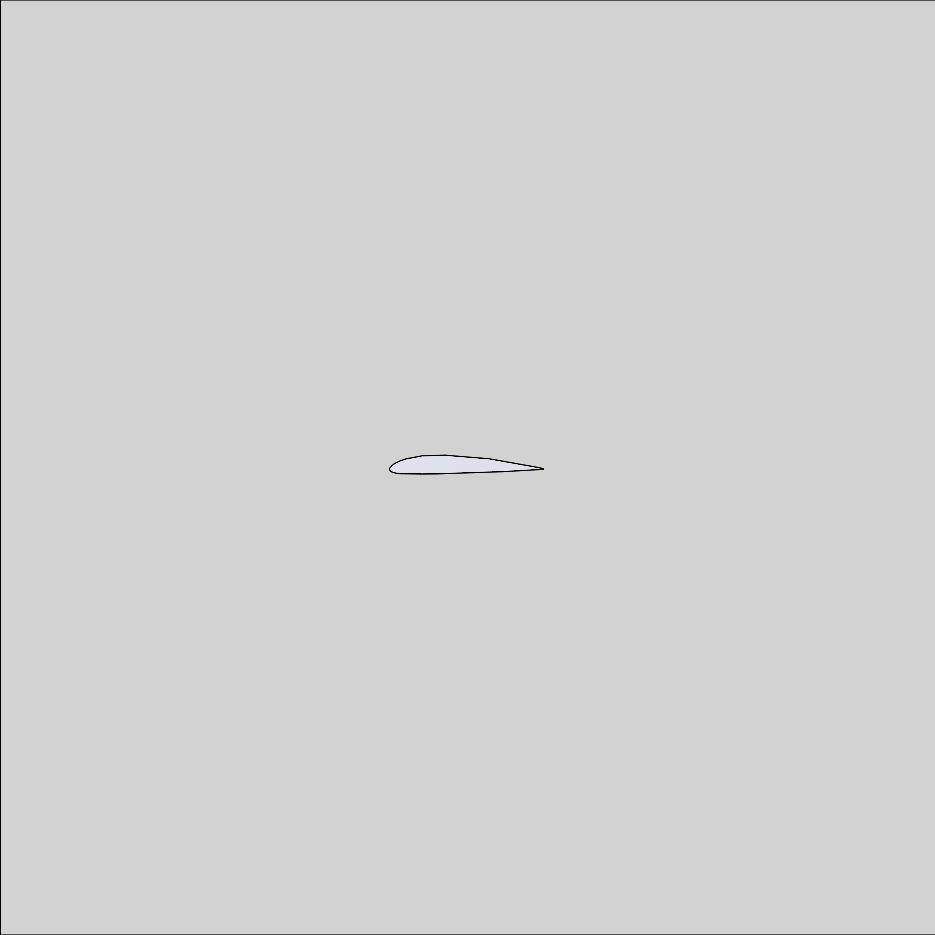

The following are the imported CAD model and the final generated mesh model.

For more complex configurations, please refer to 2D Boundary Layer Detailed JSON Example

JSON Example - Spatial boundary layer

This example generates a spatial boundary layer hybrid mesh for a three-dimensional airfoil.

{
    "Distribution": [],
    "BoundaryLayer": [
       {
        "DistributionType": "Separation",
        "EntityType": "Edge",
        "EFPairs":
        [
          {
            "E": 2,
            "F": 7
          },
          {
            "E": 17,
            "F": 7
          }
        ],
        "Basic":
        {
          "GrowthRate":
          {
            "Constant": 1.2
          },
          "InitLayerHeight":
          {
            "Absolute": 0.002
          },
          "NLayers": 20,
          "ProblematicAreasTreatment": "STOP"
        }
      },
      {
        "GrowthRate": 1.2,
        "InitLayerHeight": 0.002,
        "NLayers": 20,
        "DistributionType": "Separation",
        "SelectedEntities": [ 1, 8, 9 ],
        "EntityType": "Face"
      }
    ],
    "MeshSize": [
      {
        "CurvatureFactor": 0.2,
        "GrowthRate": 1.3,
        "MaxSize": 0.2,
        "MeshingDim": 1,
        "MinSize": 0.1,
        "SelectedEntities": [ 1, 2, 3, 4, 17, 18 ]
       },
       {
        "CurvatureFactor": 0.2,
        "GrowthRate": 1.1,
        "MaxSize": 5,
        "MeshingDim": 2,
        "MinSize": 1,
        "SelectedEntities": [ 2, 3, 4, 5, 6, 7 ]
      },
      {
        "CurvatureFactor": 0.2,
        "GrowthRate": 1.1,
        "MaxSize": 5,
        "MeshingDim": 2,
        "MinSize": 0.1,
        "SelectedEntities": [ 1, 8, 9 ]
      },
      {
        "CurvatureFactor": 0.2,
        "GrowthRate": 1.1,
        "MaxSize": 5,
        "MeshingDim": 3,
        "MinSize": 1,
        "SelectedEntities": []
      }
    ],
    "ThreadNum": 1
  }

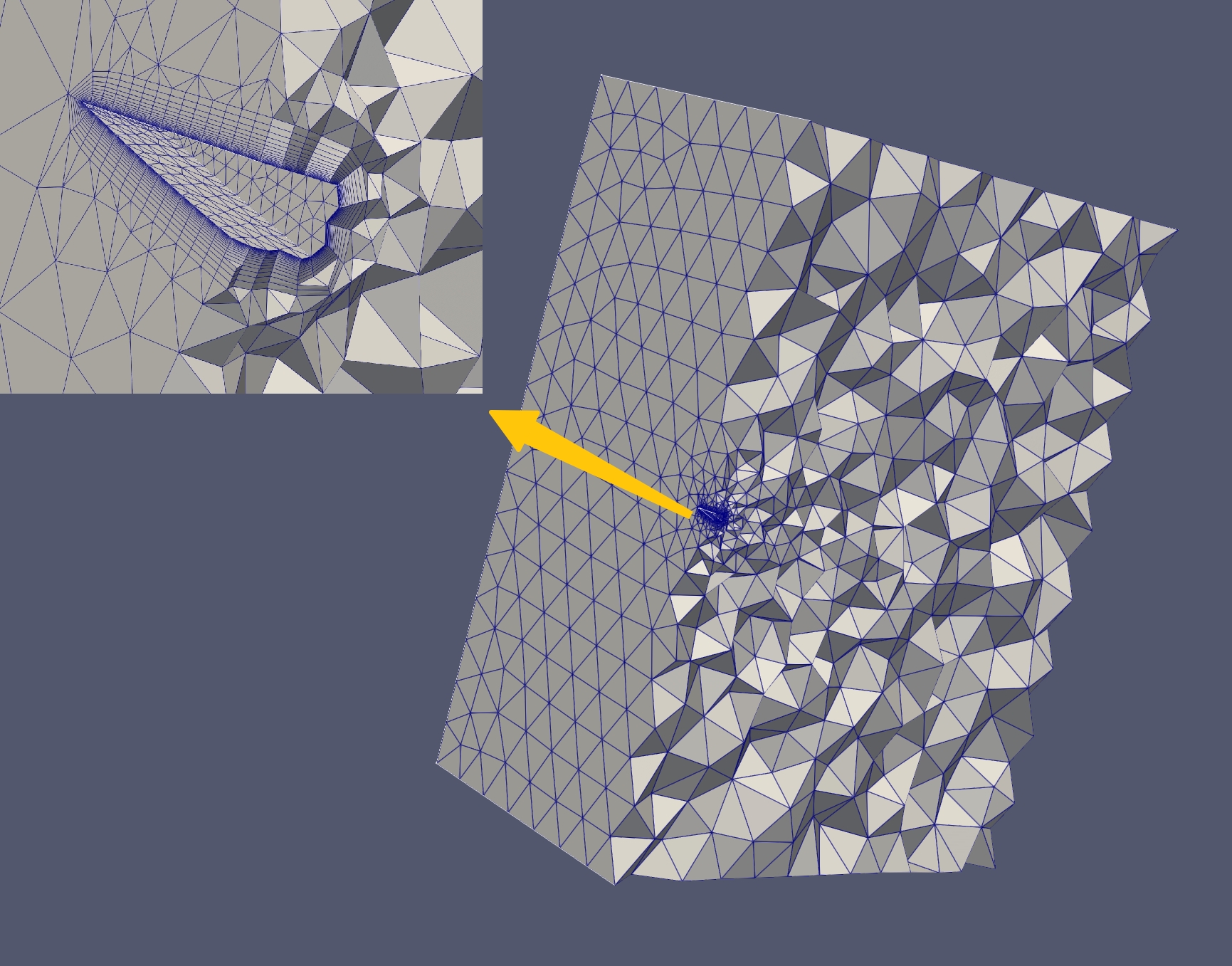

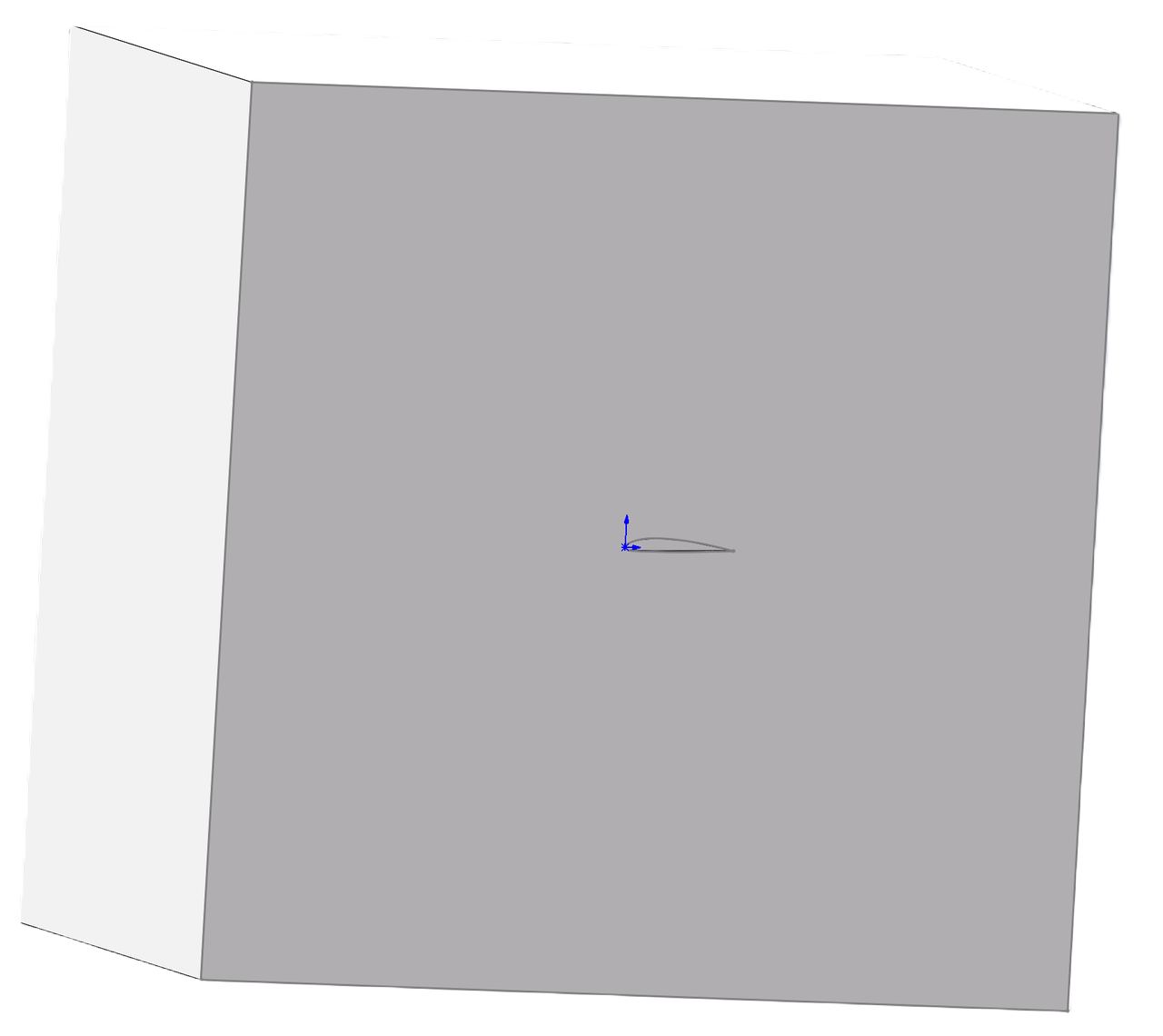

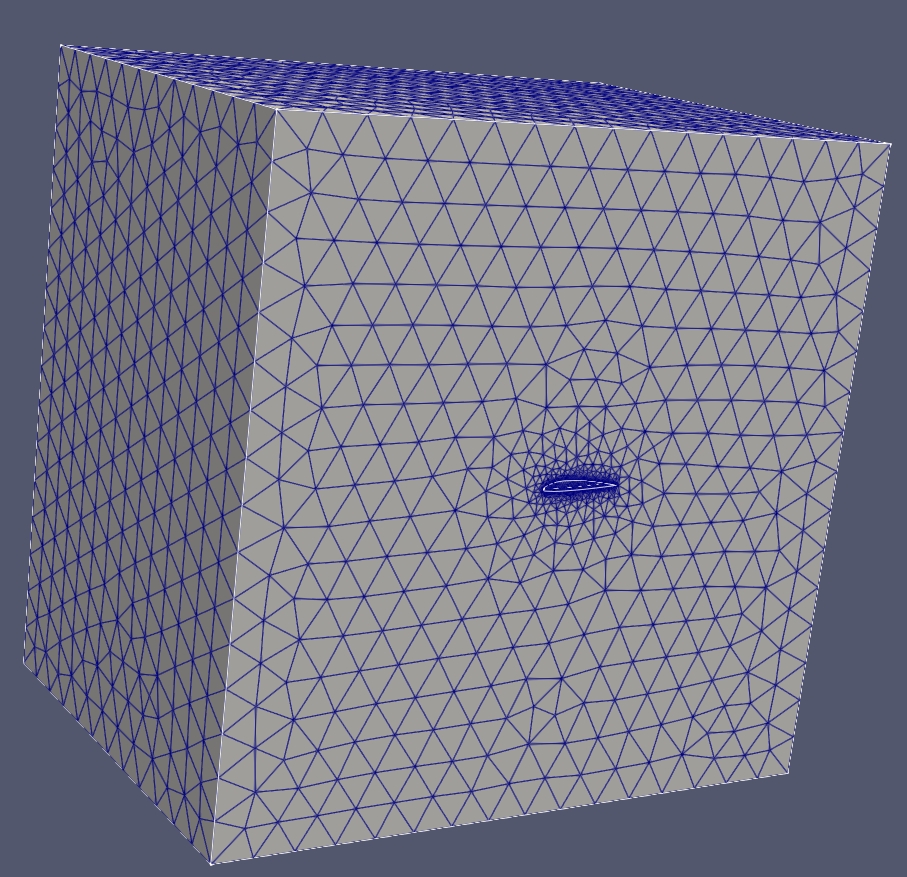

The following are the imported CAD model and the final generated mesh model, along with the section view.

JSON example - Sweep mesh

Sweep meshing only supports a single sweep body, the source surface may consist of multiple faces, while the target surface can only include a single face. The side faces must be either 2-sided, 3-sided, or 4-sided faces.

{
  "Sweep": [
    {
      "EntityType": "Face",
      "Domain": 1,
      "Source": [9],
      "Target": [10]
    }
  ],
  "MeshSize": [
    {
      "CurvatureFactor": 0.2,
      "GrowthRate": 1.0,
      "MaxSize": 1,
      "MeshingDim": 3,
      "MinSize": 0.1,
      "SelectedEntities": []
    }
  ],
  "ThreadNum": 1
}

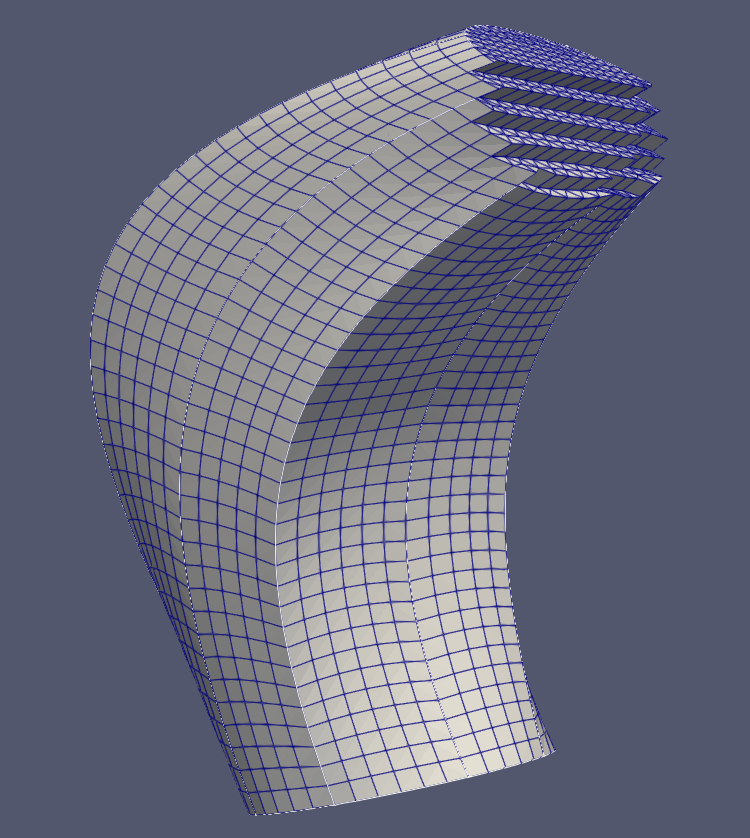

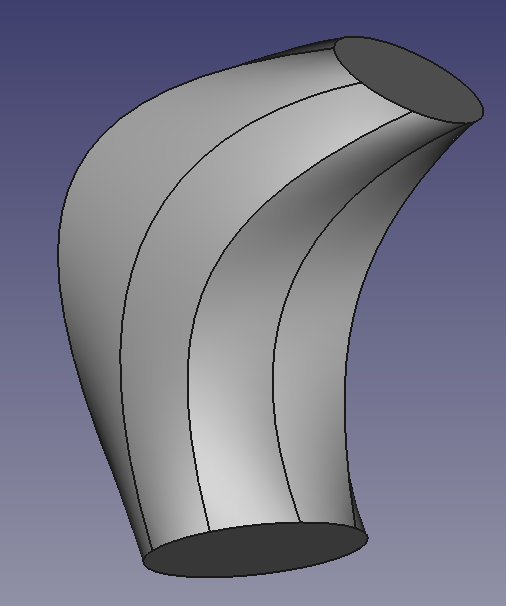

The following are the imported CAD model and the generated mesh model.

JSON Example - Copy mesh

The mesh of one or multiple entities (edges or faces) can be copied onto a single target entity. This is applicable in scenarios where the mesh topology of the source and target must be completely consistent, such as in periodic meshes.Important Notes:The source can include multiple entities, but the target must consist of only a single entity;The topological structure of the source and target must be entirely consistent;When copying face meshes, if the source face and target face have consistent topology, it is not necessary to specify the boundary correspondence "EdgeCorrespondence";If multiple boundary edges correspond to a single boundary edge, the correspondence of the boundary edges must be correctly specified.

{
  "Copy": [
    {
      "EntityType": "Face",
      "Source": [ 43 ],
      "Target": [ 47 ]
    }
  ],

  "MeshSize": [
    {
      "CurvatureFactor": 0,
      "GrowthRate": 1.0,
      "MaxSize": 3,
      "MeshingDim": 2,
      "MinSize": 1,
      "SelectedEntities": [ 43, 47 ]
    }
  ],
  "ThreadNum": 1
}

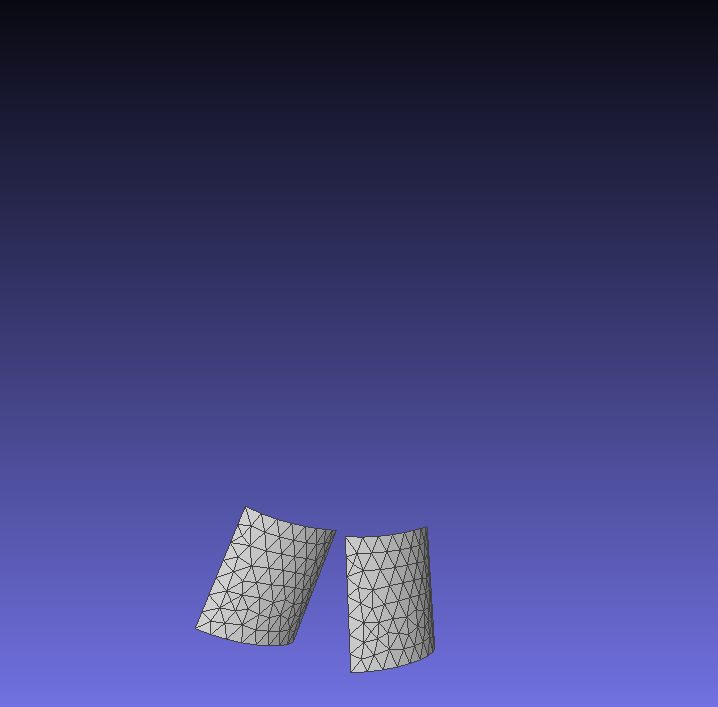

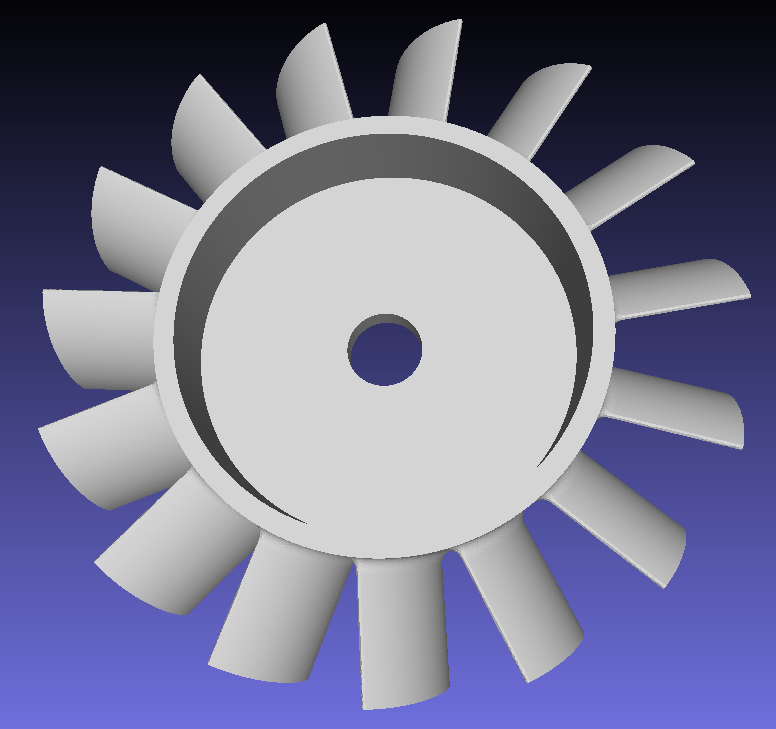

Using "Entity" as a face, the following are the imported CAD model and the copied mesh.

JSON Example - Multiple line mesh generation methods

Method 1: Specify the number of elements on an edge;

Method 2: Explicitly specify the length ratio of each segment of elements on the edge;

Method 3: Partition based on a pre-defined function (Linear/Geometric);

{
  "Distribution": [
    {
      "EntityType": "Edge",
      "SelectedEntities": [ 1 ],
      "DistributionType": "NumberOfElements",
      "NElement": 20
    },
    {
      "EntityType": "Edge",
      "SelectedEntities": [ 2 ],
      "DistributionType": "Explicit",
      "Orientation": "Forward",
      "DistributionPara": [ 0.1, 0.3, 0.6, 0.8 ]
    },
    {
      "EntityType": "Edge",
      "SelectedEntities": [ 3 ],
      "DistributionType": "Linear",
      "Orientation": "Forward",
      "Symmetric": true,
      "NElement": 9,
      "EndBeginElementRatio": 5
    },
    {
      "EntityType": "Edge",
      "SelectedEntities": [ 4 ],
      "DistributionType": "Geometric",
      "Orientation": "Forward",
      "Symmetric": false,
      "NElement": 9,
      "EndBeginElementRatio": 5
    }
  ],

  "MeshSize": [
    {
      "CurvatureFactor": 1,
      "GrowthRate": 1.0,
      "MaxSize": 5,
      "MeshingDim": 2,
      "MinSize": 0.1,
      "SelectedEntities": [1]
    }
  ],
  "ThreadNum": 1
}

Class	Key	Required	Value Range	Default Value	Notes
Distribution	EntityType	Yes	Edge	–
Distribution	SelectedEntities	Yes	Can be empty	–	Edge tags
Distribution	DistributionType	Yes	NumberOfElements, Explicit, Linear, Geometric	–	Distribution type
Distribution	Orientation	No	Forward, Reverse	Forward	Orientation
Distribution	Symmetric	No	true, false	false	Symmetric distribution
Distribution	NElement	Yes	>=1	–	Number of segments
Distribution	EndBeginElementRatio	Yes	>0	–	Ratio of the length of the last segment to the first segment
Distribution	DistributionPara	Yes	(0.0, 1.0)	–	Strictly increasing sequence

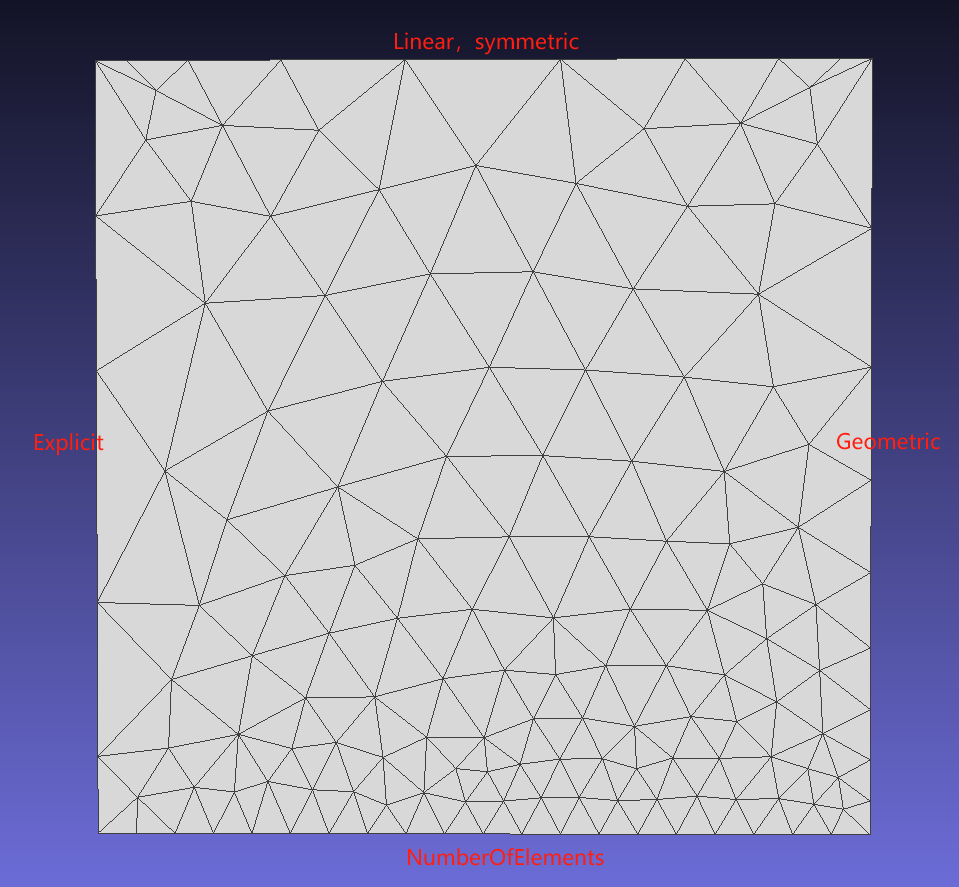

The following are the results of various line mesh mesh generation methods.

JSON Example - High-Order Mesh

Supports the generation of second-order high-order meshes and exports files in VTK or Gmsh format.

{
  "MeshSize": [
    {
      "CurvatureFactor": 0.2,
      "GrowthRate": 1.0,
      "MaxSize": 5.0,
      "MeshingDim": 3,
      "MinSize": 2.0,
      "SelectedEntities": []
    }
  ],
  "ElementOrder": {
    "Order": 2
  },
  "ThreadNum": 1
}

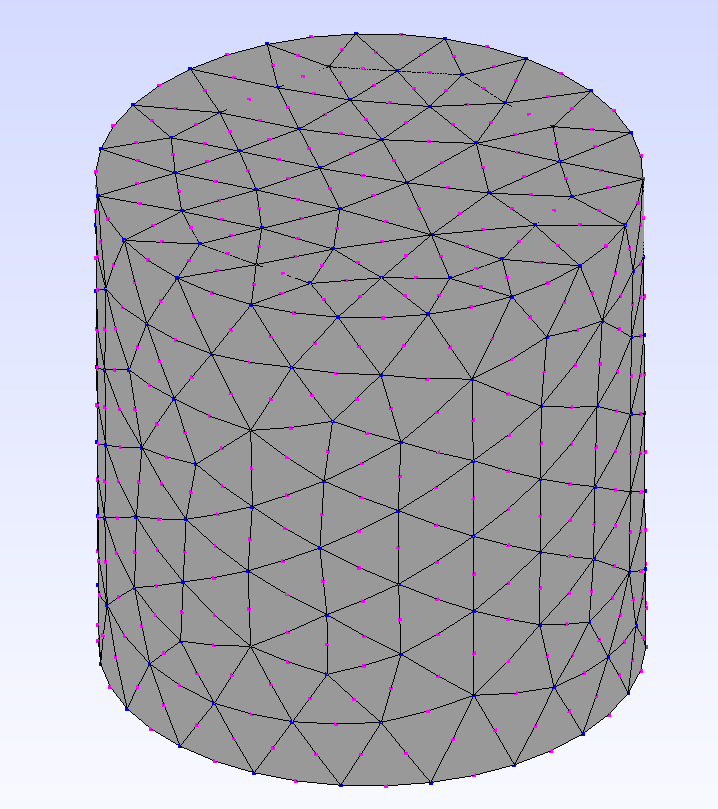

Below is an example of a high-order mesh.

Build the model

Import the cad file and build the model.

NMAPIModel nmapi;
nmapi.ImportModel(cadstr);

Generate/get mesh

generate mesh by importing mesh generation control parameter via JSON file.

nlohmann::json paraJ = nlohmann::json::parse(std::ifstream(jsonPath));
nmapi.GenerateMesh(paraJ.dump());
auto meshapi = nmapi.GetMesh();

Get mesh and geometry information

Get the model's entity list, the BRep (boundary representation) relationships of entities, and their boundingboxes. For each entity, obtain the types of meshes it contains, the mesh elements, vertices, and the global IDs of the mesh elements and vertices, along with other related information.

for (DimType dim : {DimType::D0, DimType::D1, DimType::D2, DimType::D3})
{
    std::vector<NMEntity> etVec;
    // get all entities in the dim-dimensional space.
    nmapi.GetEntities(etVec, dim);
    for (auto ent : etVec)
    {
        auto eTag = nmapi.EntityGetTag(ent);
        auto dim = nmapi.EntityGetDim(ent);

        // get the sequence of dim+1-dimensional entities containing the specified Entity.
        std::vector<NMEntity> parentVec;
        nmapi.GetParentAdjacentEntities(parentVec, ent);

        // get the sequence of dim-1-dimensional entities contained in the specified Entity.
        std::vector<NMEntity>    childVec;
        std::vector<Orientation> ories;
        nmapi.GetChildAdjacentEntities(childVec, ories, ent);

        // traverse the Element contained in the specified Entity.
        auto entElemNum = meshapi.EntityGetElementCount(ent);
        for (size_t i = 0; i < entElemNum; i++)
        {
            auto elem = meshapi.EntityGetElementByIndex(ent, i);
        }
        // traverse the Node contained in the specified Entity.
        auto entNodeNum = meshapi.EntityGetNodeCount(ent);
        for (size_t i = 0; i < entNodeNum; i++)
        {
            auto node = meshapi.EntityGetNodeByIndex(ent, i);
        }
    }
}

NMPoint3 pmin, pmax;
// get the boundingbox of the entire model.
nmapi.GetBBox(pmin, pmax);

// traverse all Element in the Mesh.
auto elemTotalNum = meshapi.GetElementCount();
for (size_t i = 0; i < elemTotalNum; i++)
{
    // get the i-th Element.
    auto elem = meshapi.GetElementByIndex(i);
    // get the global ID, element type, and the number of Node in the Element.
    auto elemId = meshapi.ElementGetID(elem);
    auto elemType = meshapi.ElementGetType(elem);
    auto nodeCount = meshapi.ElementGetNodeCount(elem);
    // traverse all Node on the specified Element.
    for (size_t in = 0; in < nodeCount; in++)
    {
        // get the i-th node on the Element.
        auto   node = meshapi.ElementGetNode(elem, in);
        // get the node's global ID, associated Entity, spatial location, and parameters.
        auto   nodeId = meshapi.NodeGetID(node);
        auto   nodeEnt = meshapi.NodeGetEntity(node);
        auto   nodePos = meshapi.NodeGetPosition(node);
        // valid only for Node on edges and faces.
        if (nmapi.EntityGetDim(nodeEnt) == DimType::D1 ||
            nmapi.EntityGetDim(nodeEnt) == DimType::D2)
            double u = meshapi.NodeGetFirstParameter(node);
        // valid only for Node on faces.
        if (nmapi.EntityGetDim(nodeEnt) == DimType::D2)
            double v = meshapi.NodeGetSecondParameter(node);
    }
}
// traverse all Node in the entire Mesh.
auto nodeTotalNum = meshapi.GetNodeCount();
for (size_t i = 0; i < nodeTotalNum; i++)
{
    auto node = meshapi.GetNodeByIndex(i);
}

Set the face groups

Add, delete, modify, and query of the face groups.

nmapi.CreatePhysicalSet(DimType::D2, { 1, 2 }, "inlet");
nmapi.CreatePhysicalSet(DimType::D2, { 3, 4 }, "outlet");
nmapi.CreatePhysicalSet(DimType::D2, { 5 }, "symmetry");

std::vector<EntTag> entTags;
nmapi.GetEntitiesInPhysicalSet(entTags, DimType::D2, "outlet");

std::set<std::string> pNames;
nmapi.GetPhysicalSets(pNames, DimType::D2);

Output mesh files

Output mesh files in user-specified formats, such as OBJ/VTK/Fluent MSH/Gmsh MSH.

meshapi.Write("result.vtk", OutFileType::VTK);
meshapi.Write("result.obj", OutFileType::OBJ);
meshapi.Write("result.msh", OutFileType::FLUENT_MSH);
meshapi.WriteGmsh4("result.msh", false, true);

Click here example01 to get the full source code of the mesh partitioning example. Everyone can download it as needed.

Appendix

The complete code for this example is listed below:

#include <fstream>
#include <nlohmann/json.hpp>
#include <nextmesh/NMAPIModel.hpp>
#include <set>

using namespace AMCAX::NextMesh;

void GenMesh()
{
    // the cad file
    const std::string cadstr = "./data/qiuwotaojian.stp";
    // the json file containing mesh generation control parameters
    const std::string jsonPath = "./data/mesh_para-mesh000.json";

    // set the log format
    NMAPIModel::InitLogger();

    // import the cad file and create a new NMAPIModel object
    NMAPIModel nmapi;
    nmapi.ImportModel(cadstr);

    nlohmann::json paraJ = nlohmann::json::parse(std::ifstream(jsonPath));

    // mesh generation controlled by the parameters in the json
    nmapi.GenerateMesh(paraJ.dump());

    // get the generated mesh
    auto meshapi = nmapi.GetMesh();

    for (DimType dim : {DimType::D0, DimType::D1, DimType::D2, DimType::D3})
    {
        std::vector<NMEntity> etVec;
        // get all entities in the dim-dimensional space.
        nmapi.GetEntities(etVec, dim);
        for (auto ent : etVec)
        {
            auto eTag = nmapi.EntityGetTag(ent);
            auto dim = nmapi.EntityGetDim(ent);

            // get the sequence of dim+1-dimensional entities containing the specified Entity.
            std::vector<NMEntity> parentVec;
            nmapi.GetParentAdjacentEntities(parentVec, ent);

            // get the sequence of dim-1-dimensional entities contained in the specified Entity.
            std::vector<NMEntity>    childVec;
            std::vector<Orientation> ories;
            nmapi.GetChildAdjacentEntities(childVec, ories, ent);

            // traverse the Element contained in the specified Entity.
            auto entElemNum = meshapi.EntityGetElementCount(ent);
            for (size_t i = 0; i < entElemNum; i++)
            {
                auto elem = meshapi.EntityGetElementByIndex(ent, i);
            }
            // traverse the Node contained in the specified Entity.
            auto entNodeNum = meshapi.EntityGetNodeCount(ent);
            for (size_t i = 0; i < entNodeNum; i++)
            {
                auto node = meshapi.EntityGetNodeByIndex(ent, i);
            }
        }
    }

    NMPoint3 pmin, pmax;
    // get the boundingbox of the entire model.
    nmapi.GetBBox(pmin, pmax);

    // traverse all Element in the Mesh.
    auto elemTotalNum = meshapi.GetElementCount();
    for (size_t i = 0; i < elemTotalNum; i++)
    {
        // get the i-th Element.
        auto elem = meshapi.GetElementByIndex(i);
        // get the global ID, element type, and the number of Node in the Element.
        auto elemId = meshapi.ElementGetID(elem);
        auto elemType = meshapi.ElementGetType(elem);
        auto nodeCount = meshapi.ElementGetNodeCount(elem);
        // traverse all Node on the specified Element.
        for (size_t in = 0; in < nodeCount; in++)
        {
            // get the i-th node on the Element.
            auto   node = meshapi.ElementGetNode(elem, in);
            // get the node's global ID, associated Entity, spatial location, and parameters.
            auto   nodeId = meshapi.NodeGetID(node);
            auto   nodeEnt = meshapi.NodeGetEntity(node);
            auto   nodePos = meshapi.NodeGetPosition(node);
            // valid only for Node on edges and faces.
            if (nmapi.EntityGetDim(nodeEnt) == DimType::D1 ||
                nmapi.EntityGetDim(nodeEnt) == DimType::D2)
                double u = meshapi.NodeGetFirstParameter(node);
            // valid only for Node on faces.
            if (nmapi.EntityGetDim(nodeEnt) == DimType::D2)
                double v = meshapi.NodeGetSecondParameter(node);
        }
    }
    // traverse all Node in the entire Mesh.
    auto nodeTotalNum = meshapi.GetNodeCount();
    for (size_t i = 0; i < nodeTotalNum; i++)
    {
        auto node = meshapi.GetNodeByIndex(i);
    }

    // Set the face groups
    nmapi.CreatePhysicalSet(DimType::D2, { 1, 2 }, "inlet");
    nmapi.CreatePhysicalSet(DimType::D2, { 3, 4 }, "outlet");
    nmapi.CreatePhysicalSet(DimType::D2, { 5 }, "symmetry");

    std::vector<EntTag> entTags;
    nmapi.GetEntitiesInPhysicalSet(entTags, DimType::D2, "outlet");

    std::set<std::string> pNames;
    nmapi.GetPhysicalSets(pNames, DimType::D2);

    // Export the mesh file
    meshapi.Write("result.vtk", OutFileType::VTK);
    meshapi.Write("result.obj", OutFileType::OBJ);
    meshapi.Write("result.msh", OutFileType::FLUENT_MSH);
    meshapi.WriteGmsh4("result.msh", false, true);
}
