The class of fillet. More...

#include <fillet/MakeFillet.hpp>

Inheritance diagram for AMCAX::MakeFillet:

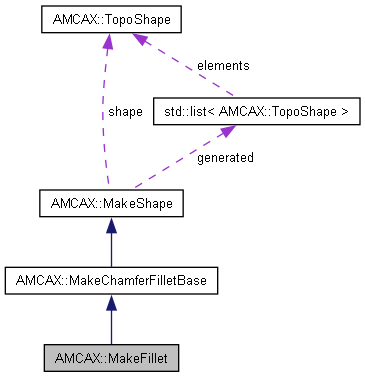

Collaboration diagram for AMCAX::MakeFillet:

[legend]

Public Member Functions
AMCAX_API	MakeFillet (const TopoShape &s, FilletShapeType fiShape=FilletShapeType::Rational)
	Initialize the algorithm by setting a given shape and the type of fillet. More...

AMCAX_API void	SetParams (double tolang, double tolesp, double tol2d, double tolApp3d, double tolApp2d, double fleche)
	Set the tolerance parameters. More...

AMCAX_API void	SetContinuity (ContinuityType internalContinuity, double angularTolerance)
	Set the continuity and tolerace. More...

AMCAX_API void	Add (const TopoEdge &e) override
	Add an edge to the fillet. More...

AMCAX_API void	Add (double r, const TopoEdge &e)
	Add an edge with a radius to the fillet. More...

AMCAX_API void	Add (double r1, double r2, const TopoEdge &e)
	Add an edge with a linear varying radius. More...

AMCAX_API void	Add (const std::vector< Point2 > &UandR, const TopoEdge &e)
	Add an edge with a varying radius control by the parameter-radius pairs. More...

AMCAX_API void	SetRadius (double r, int ic, int idxInSpine)
	Set the radius of the contour at given index. More...

AMCAX_API void	SetRadius (double r1, double r2, int ic, int idxInSpine)
	Set the linear varying radius of the contour at given index. More...

AMCAX_API void	SetRadius (const std::vector< Point2 > &UandR, int ic, int idxInSpine)
	Set the radius of the contour at a given index with parameter-radius pairs. More...

AMCAX_API void	ResetContour (int ic) override
	Reset the contour at a given index. More...

AMCAX_API bool	IsConstant (int ic)
	Is the contour has a constant radius. More...

AMCAX_API double	Radius (int ic)
	Get the radius of the contour at a given index. More...

AMCAX_API bool	IsConstant (int ic, const TopoEdge &e)
	Is the edge in a contour has a constant radius. More...

AMCAX_API double	Radius (int ic, const TopoEdge &e)
	Get the radius of edge in the contour of given index. More...

AMCAX_API void	SetRadius (double radius, int ic, const TopoEdge &e)
	Set the radius of edge in the contour of given index. More...

AMCAX_API void	SetRadius (double radius, int ic, const TopoVertex &v)
	Set the radius of a vertex in the contour of given index. More...

AMCAX_API bool	GetBounds (int ic, const TopoEdge &e, double &f, double &l)
	Get the radius bounds of the radius of an edge in a contour. More...

AMCAX_API void	SetFilletShape (FilletShapeType fShape)
	Set the type of fillet shape. More...

AMCAX_API FilletShapeType	GetFilletShape () const
	Get the type of fillet shape. More...

AMCAX_API int	NContours () const override
	Get the number of contours. More...

AMCAX_API int	Contour (const TopoEdge &e) const override
	Get the index of contour that contains a given edge, if the edge does not belong to any contour, return -1. More...

AMCAX_API int	NEdges (int i) const override
	Get the number of edges in the i-th contour. More...

AMCAX_API const TopoEdge &	Edge (int i, int j) const override
	Get the j-th edge in the i-th contour. More...

AMCAX_API void	Remove (const TopoEdge &e) override
	Remove the contour containing a given edge. More...

AMCAX_API double	Length (int ic) const override
	Get the length of the i-th contour. More...

AMCAX_API TopoVertex	FirstVertex (int ic) const override
	Get the first vertex of the i-th contour. More...

AMCAX_API TopoVertex	LastVertex (int ic) const override
	Get the last vertex of the i-th contour. More...

AMCAX_API double	Abscissa (int ic, const TopoVertex &v) const override
	Get the abscissa of a vertex on the i-th contour. More...

AMCAX_API double	RelativeAbscissa (int ic, const TopoVertex &v) const override
	Get the relative abscissa of a vertex on the i-th contour, range in [0, 1]. More...

AMCAX_API bool	ClosedAndTangent (int ic) const override
	Get the status that whether the i-th contour is closed and tangent. More...

AMCAX_API bool	Closed (int ic) const override
	Get the status that whether the i-th contour is closed. More...

AMCAX_API void	Build () override
	Perform the algorithm. More...

AMCAX_API void	Reset () override
	Reset the building state. More...

AMCAX_API const std::list< TopoShape > &	Generated (const TopoShape &s) override
	Get the shapes generated from the given shape. More...

AMCAX_API const std::list< TopoShape > &	Modified (const TopoShape &s) override
	Get the shapes modified from the given shape. More...

AMCAX_API bool	IsDeleted (const TopoShape &s) override
	Is the given shape deleted. More...

AMCAX_API int	NSurfaces () const
	Get the number of generated surfaces of the fillet. More...

AMCAX_API const std::list< TopoShape > &	NewFaces (int i)
	Get the faces for the surface of a given index. More...

AMCAX_API void	Simulate (int ic) override
	Simulate the i-th contour computation for fast preview. More...

AMCAX_API int	NSurf (int ic) const override
	Get the number of surfaces in the i-th contour. More...

AMCAX_API int	NFaultyContours () const
	Get the number of contours failed to perform fillet. More...

AMCAX_API int	FaultyContour (int i) const
	Get the contour failed to perform fillet at a given index. More...

AMCAX_API int	NComputedSurfaces (int ic) const
	Get the number of computed surfaces on the given index of contour. More...

AMCAX_API std::shared_ptr< Geom3Surface >	ComputedSurface (int ic, int isurf) const
	Get the computed surface of given index. More...

AMCAX_API int	NFaultyVertices () const
	Get the number of vertices failed to perform fillet. More...

AMCAX_API TopoVertex	FaultyVertex (int iv) const
	Get the vertex failed to perform fillet of a given index. More...

AMCAX_API bool	HasResult () const
	Are some partial results generated. More...

AMCAX_API TopoShape	BadShape () const
	Get the bad partial result. More...

AMCAX_API ChamferFilletErrorStatus	StripeStatus (int ic) const
	Get the error status of the contour of given index. More...

virtual AMCAX_API void	Add (const TopoEdge &e)=0
	Add an edge and build a contour. More...

virtual AMCAX_API void	ResetContour (int i)=0
	Reset the i-th contour. More...

virtual AMCAX_API int	NContours () const =0
	Get the number of contours. More...

virtual AMCAX_API int	Contour (const TopoEdge &e) const =0
	Get the index of contour that contains a given edge, if the edge does not belong to any contour, return -1. More...

virtual AMCAX_API int	NEdges (int i) const =0
	Get the number of edges in the i-th contour. More...

virtual AMCAX_API const TopoEdge &	Edge (int i, int j) const =0
	Get the j-th edge in the i-th contour. More...

virtual AMCAX_API void	Remove (const TopoEdge &e)=0
	Remove the contour containing a given edge. More...

virtual AMCAX_API double	Length (int i) const =0
	Get the length of the i-th contour. More...

virtual AMCAX_API TopoVertex	FirstVertex (int i) const =0
	Get the first vertex of the i-th contour. More...

virtual AMCAX_API TopoVertex	LastVertex (int i) const =0
	Get the last vertex of the i-th contour. More...

virtual AMCAX_API double	Abscissa (int i, const TopoVertex &v) const =0
	Get the abscissa of a vertex on the i-th contour. More...

virtual AMCAX_API double	RelativeAbscissa (int i, const TopoVertex &v) const =0
	Get the relative abscissa of a vertex on the i-th contour, range in [0, 1]. More...

virtual AMCAX_API bool	ClosedAndTangent (int i) const =0
	Get the status that whether the i-th contour is closed and tangent. More...

virtual AMCAX_API bool	Closed (int i) const =0
	Get the status that whether the i-th contour is closed. More...

virtual AMCAX_API void	Reset ()=0
	Reset the building state. More...

virtual AMCAX_API void	Simulate (int i)=0
	Simulate the i-th contour computation for fast preview. More...

virtual AMCAX_API int	NSurf (int i) const =0
	Get the number of surfaces in the i-th contour. More...

Public Member Functions inherited from AMCAX::MakeShape
virtual	~MakeShape ()=default
	Destructor.

virtual AMCAX_API bool	IsDone () const
	Is the construction algorithm done. More...

virtual AMCAX_API void	Build ()
	Perform the algorithm. More...

virtual AMCAX_API const TopoShape &	Shape ()
	Get the resulting shape. More...

AMCAX_API	operator TopoShape ()
	Get the resulting shape. More...

virtual AMCAX_API const std::list< TopoShape > &	Generated (const TopoShape &s)
	Get the shapes generated from the given shape. More...

virtual AMCAX_API const std::list< TopoShape > &	Modified (const TopoShape &s)
	Get the shapes modified from the given shape. More...

virtual AMCAX_API bool	IsDeleted (const TopoShape &s)
	Is the given shape deleted. More...

Additional Inherited Members
Protected Member Functions inherited from AMCAX::MakeShape
	MakeShape ()=default
	Default constructor.

void	Done ()
	Set the status by done.

void	NotDone ()
	Set the status by not done.

Protected Attributes inherited from AMCAX::MakeShape
TopoShape	shape
	The resulting shape.

std::list< TopoShape >	generated
	The generated sub-shapes.

Detailed Description

The class of fillet.

Constructor & Destructor Documentation

◆ MakeFillet()

AMCAX_API AMCAX::MakeFillet::MakeFillet	(	const TopoShape &	s,
		FilletShapeType	fiShape = `FilletShapeType::Rational`
	)

explicit

Initialize the algorithm by setting a given shape and the type of fillet.

Parameters

s	The given shape
fiShape	Type of fillet shape

Member Function Documentation

◆ Abscissa()

AMCAX_API double AMCAX::MakeFillet::Abscissa	(	int	i,
		const TopoVertex &	v
	)		const

overridevirtual

Get the abscissa of a vertex on the i-th contour.

Parameters

i	The index of contour
v	The given vertex

Returns: The abscissa of vertex

Implements AMCAX::MakeChamferFilletBase.

◆ Add() [1/4]

AMCAX_API void AMCAX::MakeFillet::Add	(	const std::vector< Point2 > &	UandR,
		const TopoEdge &	e
	)

Add an edge with a varying radius control by the parameter-radius pairs.

Parameters

UandR	The pair values of parameter and radius
e	The edge

◆ Add() [2/4]

AMCAX_API void AMCAX::MakeFillet::Add ( const TopoEdge & e )

overridevirtual

Add an edge to the fillet.

The radius must be set later

Parameters

e The edge

Implements AMCAX::MakeChamferFilletBase.

◆ Add() [3/4]

AMCAX_API void AMCAX::MakeFillet::Add	(	double	r,
		const TopoEdge &	e
	)

Add an edge with a radius to the fillet.

Parameters

r	The radius
e	The edge

◆ Add() [4/4]

AMCAX_API void AMCAX::MakeFillet::Add	(	double	r1,
		double	r2,
		const TopoEdge &	e
	)

Add an edge with a linear varying radius.

Parameters

r1	The start radius
r2	The end radius
e	The edge to be fillet

◆ BadShape()

AMCAX_API TopoShape AMCAX::MakeFillet::BadShape ( ) const

Get the bad partial result.

Returns: The partial result

◆ Build()

AMCAX_API void AMCAX::MakeFillet::Build ( )

overridevirtual

Perform the algorithm.

Reimplemented from AMCAX::MakeShape.

◆ Closed()

AMCAX_API bool AMCAX::MakeFillet::Closed ( int i ) const

overridevirtual

Get the status that whether the i-th contour is closed.

Parameters

i	The index of contour

Returns: Whether the contour is closed

Implements AMCAX::MakeChamferFilletBase.

◆ ClosedAndTangent()

AMCAX_API bool AMCAX::MakeFillet::ClosedAndTangent ( int i ) const

overridevirtual

Get the status that whether the i-th contour is closed and tangent.

Parameters

i	The index of contour

Returns: Whether the contour is closed and tangent

Implements AMCAX::MakeChamferFilletBase.

◆ ComputedSurface()

AMCAX_API std::shared_ptr< Geom3Surface > AMCAX::MakeFillet::ComputedSurface	(	int	ic,
		int	isurf
	)		const

Get the computed surface of given index.

Parameters

ic	The index of contour
isurf	The index of surface in the contour

Returns: The computed surface

◆ Contour()

AMCAX_API int AMCAX::MakeFillet::Contour ( const TopoEdge & e ) const

overridevirtual

Get the index of contour that contains a given edge, if the edge does not belong to any contour, return -1.

Parameters

e	The given edge

Returns: The index of contour

Implements AMCAX::MakeChamferFilletBase.

◆ Edge()

AMCAX_API const TopoEdge & AMCAX::MakeFillet::Edge	(	int	i,
		int	j
	)		const

overridevirtual

Get the j-th edge in the i-th contour.

Parameters

i	The index of edge
j	The index of contour

Returns: The j-th edge in the i-th contour

Implements AMCAX::MakeChamferFilletBase.

◆ FaultyContour()

AMCAX_API int AMCAX::MakeFillet::FaultyContour ( int i ) const

Get the contour failed to perform fillet at a given index.

Parameters

i	The index of failed contour

Returns: The index of contour

◆ FaultyVertex()

AMCAX_API TopoVertex AMCAX::MakeFillet::FaultyVertex ( int iv ) const

Get the vertex failed to perform fillet of a given index.

Parameters

iv	The index of failed vertex

Returns: The failed vertex

◆ FirstVertex()

AMCAX_API TopoVertex AMCAX::MakeFillet::FirstVertex ( int i ) const

overridevirtual

Get the first vertex of the i-th contour.

Parameters

i	The index of contour

Returns: The first vertex of contour

Implements AMCAX::MakeChamferFilletBase.

◆ Generated()

AMCAX_API const std::list< TopoShape > & AMCAX::MakeFillet::Generated ( const TopoShape & s )

overridevirtual

Get the shapes generated from the given shape.

Parameters

s	The given shape

Returns: The list of generated shapes

Reimplemented from AMCAX::MakeShape.

◆ GetBounds()

AMCAX_API bool AMCAX::MakeFillet::GetBounds	(	int	ic,
		const TopoEdge &	e,
		double &	f,
		double &	l
	)

Get the radius bounds of the radius of an edge in a contour.

Parameters

ic	The index of contour
e	The edge
f	The first radius
l	The last radius

Returns: True if the edge has a radius bound

◆ GetFilletShape()

AMCAX_API FilletShapeType AMCAX::MakeFillet::GetFilletShape ( ) const

Get the type of fillet shape.

Returns: Type of fillet shape

◆ HasResult()

AMCAX_API bool AMCAX::MakeFillet::HasResult ( ) const

Are some partial results generated.

Returns: True if the algorithm has some intermediate result

◆ IsConstant() [1/2]

AMCAX_API bool AMCAX::MakeFillet::IsConstant ( int ic )

Is the contour has a constant radius.

Parameters

ic	The index of contour

Returns: True if the contour has a constant radius

◆ IsConstant() [2/2]

AMCAX_API bool AMCAX::MakeFillet::IsConstant	(	int	ic,
		const TopoEdge &	e
	)

Is the edge in a contour has a constant radius.

Parameters

ic	The index of contour
e	The edge

Returns: True if the edge is in the contour and has a constant radius

◆ IsDeleted()

AMCAX_API bool AMCAX::MakeFillet::IsDeleted ( const TopoShape & s )

overridevirtual

Is the given shape deleted.

Parameters

s	The given shape

Returns: True if the given shape is deleted

Reimplemented from AMCAX::MakeShape.

◆ LastVertex()

AMCAX_API TopoVertex AMCAX::MakeFillet::LastVertex ( int i ) const

overridevirtual

Get the last vertex of the i-th contour.

Parameters

i	The index of contour

Returns: The last vertex of contour

Implements AMCAX::MakeChamferFilletBase.

◆ Length()

AMCAX_API double AMCAX::MakeFillet::Length ( int i ) const

overridevirtual

Get the length of the i-th contour.

Parameters

i	The index of contour

Returns: The length of contour

Implements AMCAX::MakeChamferFilletBase.

◆ Modified()

AMCAX_API const std::list< TopoShape > & AMCAX::MakeFillet::Modified ( const TopoShape & s )

overridevirtual

Get the shapes modified from the given shape.

Parameters

s	The given shape

Returns: The list of modified shapes

Reimplemented from AMCAX::MakeShape.

◆ NComputedSurfaces()

AMCAX_API int AMCAX::MakeFillet::NComputedSurfaces ( int ic ) const

Get the number of computed surfaces on the given index of contour.

Parameters

ic	The index of contour

Returns: The number of computed surfaces

◆ NContours()

AMCAX_API int AMCAX::MakeFillet::NContours ( ) const

overridevirtual

Get the number of contours.

Returns: The number of contours

Implements AMCAX::MakeChamferFilletBase.

◆ NEdges()

AMCAX_API int AMCAX::MakeFillet::NEdges ( int i ) const

overridevirtual

Get the number of edges in the i-th contour.

Parameters

i	The index of contour

Returns: The number of edges

Implements AMCAX::MakeChamferFilletBase.

◆ NewFaces()

AMCAX_API const std::list< TopoShape > & AMCAX::MakeFillet::NewFaces ( int i )

Get the faces for the surface of a given index.

Parameters

i	The index of surface

Returns: The list of face

◆ NFaultyContours()

AMCAX_API int AMCAX::MakeFillet::NFaultyContours ( ) const

Get the number of contours failed to perform fillet.

Returns: The number of failed contours

◆ NFaultyVertices()

AMCAX_API int AMCAX::MakeFillet::NFaultyVertices ( ) const

Get the number of vertices failed to perform fillet.

Returns: The number of failed vertices

◆ NSurf()

AMCAX_API int AMCAX::MakeFillet::NSurf ( int i ) const

overridevirtual

Get the number of surfaces in the i-th contour.

Parameters

i	The index of contour

Returns: The number of surfaces

Implements AMCAX::MakeChamferFilletBase.

◆ NSurfaces()

AMCAX_API int AMCAX::MakeFillet::NSurfaces ( ) const

Get the number of generated surfaces of the fillet.

Returns: The number of generated surfaces

◆ Radius() [1/2]

AMCAX_API double AMCAX::MakeFillet::Radius ( int ic )

Get the radius of the contour at a given index.

Parameters

ic	The index of contour

Returns: The radius

◆ Radius() [2/2]

AMCAX_API double AMCAX::MakeFillet::Radius	(	int	ic,
		const TopoEdge &	e
	)

Get the radius of edge in the contour of given index.

Parameters

ic	The index of contour
e	The edge

Returns: The radius

◆ RelativeAbscissa()

AMCAX_API double AMCAX::MakeFillet::RelativeAbscissa	(	int	i,
		const TopoVertex &	v
	)		const

overridevirtual

Get the relative abscissa of a vertex on the i-th contour, range in [0, 1].

Parameters

i	The index of contour
v	The given vertex

Returns: The relative abscissa of vertex

Implements AMCAX::MakeChamferFilletBase.

◆ Remove()

AMCAX_API void AMCAX::MakeFillet::Remove ( const TopoEdge & e )

overridevirtual

Remove the contour containing a given edge.

Parameters

e	The given edge

Implements AMCAX::MakeChamferFilletBase.

◆ Reset()

AMCAX_API void AMCAX::MakeFillet::Reset ( )

overridevirtual

Reset the building state.

Implements AMCAX::MakeChamferFilletBase.

◆ ResetContour()

AMCAX_API void AMCAX::MakeFillet::ResetContour ( int ic )

overridevirtual

Reset the contour at a given index.

Parameters

ic	The index of contour

Implements AMCAX::MakeChamferFilletBase.

◆ SetContinuity()

AMCAX_API void AMCAX::MakeFillet::SetContinuity	(	ContinuityType	internalContinuity,
		double	angularTolerance
	)

Set the continuity and tolerace.

Parameters

internalContinuity	The continuity of fillet
angularTolerance	The tolerance used for G1 continuity

◆ SetFilletShape()

AMCAX_API void AMCAX::MakeFillet::SetFilletShape ( FilletShapeType fShape )

Set the type of fillet shape.

Parameters

fShape Type of fillet shape

◆ SetParams()

AMCAX_API void AMCAX::MakeFillet::SetParams	(	double	tolang,
		double	tolesp,
		double	tol2d,
		double	tolApp3d,
		double	tolApp2d,
		double	fleche
	)

Set the tolerance parameters.

Parameters

tolang	Angle tolerance
tolesp	3d tolerance
tol2d	2d tolerance
tolApp3d	3d tolerance in approximation
tolApp2d	2d tolerance in approximation
fleche

◆ SetRadius() [1/5]

AMCAX_API void AMCAX::MakeFillet::SetRadius	(	const std::vector< Point2 > &	UandR,
		int	ic,
		int	idxInSpine
	)

Set the radius of the contour at a given index with parameter-radius pairs.

Parameters

UandR	The pair values of parameter and radius
ic	The index of contour
idxInSpine	The index of edge in the contour

◆ SetRadius() [2/5]

AMCAX_API void AMCAX::MakeFillet::SetRadius	(	double	r,
		int	ic,
		int	idxInSpine
	)

Set the radius of the contour at given index.

Parameters

r	The radius
ic	The index of contour
idxInSpine	The index of edge in the contour

◆ SetRadius() [3/5]

AMCAX_API void AMCAX::MakeFillet::SetRadius	(	double	r1,
		double	r2,
		int	ic,
		int	idxInSpine
	)

Set the linear varying radius of the contour at given index.

Parameters

r1	The start radius
r2	The end radius
ic	The index of contour
idxInSpine	The index of edge in the contour

◆ SetRadius() [4/5]

AMCAX_API void AMCAX::MakeFillet::SetRadius	(	double	radius,
		int	ic,
		const TopoEdge &	e
	)

Set the radius of edge in the contour of given index.

Parameters

radius	the radius
ic	The index of contour
e	The edge

◆ SetRadius() [5/5]

AMCAX_API void AMCAX::MakeFillet::SetRadius	(	double	radius,
		int	ic,
		const TopoVertex &	v
	)

Set the radius of a vertex in the contour of given index.

Parameters

radius	The radius
ic	The index of contour
v	The vertex

◆ Simulate()

AMCAX_API void AMCAX::MakeFillet::Simulate ( int i )

overridevirtual

Simulate the i-th contour computation for fast preview.

Parameters

i	The index of contour

Implements AMCAX::MakeChamferFilletBase.

◆ StripeStatus()

AMCAX_API ChamferFilletErrorStatus AMCAX::MakeFillet::StripeStatus ( int ic ) const

Get the error status of the contour of given index.

Parameters

ic	The index of contour

Returns: The error status

The documentation for this class was generated from the following file:

fillet/MakeFillet.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MakeFillet()

Member Function Documentation

◆ Abscissa()

◆ Add() [1/4]

◆ Add() [2/4]

◆ Add() [3/4]

◆ Add() [4/4]

◆ BadShape()

◆ Build()

◆ Closed()

◆ ClosedAndTangent()

◆ ComputedSurface()

◆ Contour()

◆ Edge()

◆ FaultyContour()

◆ FaultyVertex()

◆ FirstVertex()

◆ Generated()

◆ GetBounds()

◆ GetFilletShape()

◆ HasResult()

◆ IsConstant() [1/2]

◆ IsConstant() [2/2]

◆ IsDeleted()

◆ LastVertex()

◆ Length()

◆ Modified()

◆ NComputedSurfaces()

◆ NContours()

◆ NEdges()

◆ NewFaces()

◆ NFaultyContours()

◆ NFaultyVertices()

◆ NSurf()

◆ NSurfaces()

◆ Radius() [1/2]

◆ Radius() [2/2]

◆ RelativeAbscissa()

◆ Remove()

◆ Reset()

◆ ResetContour()

◆ SetContinuity()

◆ SetFilletShape()

◆ SetParams()

◆ SetRadius() [1/5]

◆ SetRadius() [2/5]

◆ SetRadius() [3/5]

◆ SetRadius() [4/5]

◆ SetRadius() [5/5]

◆ Simulate()

◆ StripeStatus()
