Constants Class File 更多...

#include "Macros.h"
#include <string>
#include <vector>
#include <functional>

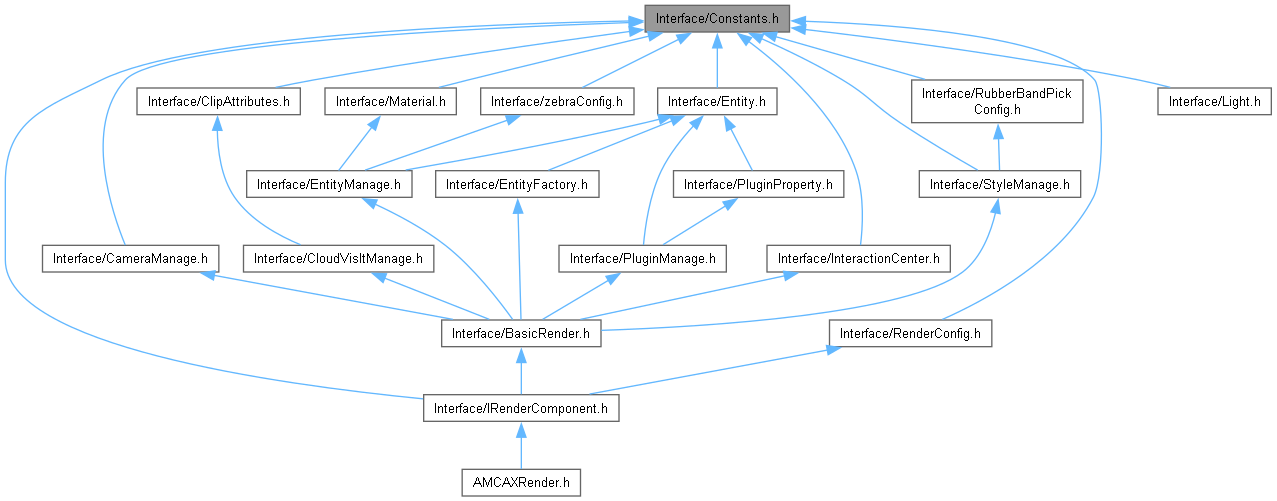

Constants.h 的引用(Include)关系图:

此图展示该文件被哪些文件直接或间接地引用了:

宏定义
#define	renderGetMacro(name, type)

#define	renderSetMacro(name, type)

#define	renderGetSetMacro(name, type)

类型定义
typedef std::string	AMCAXRender::EntityId

typedef int	AMCAXRender::EventId

using	AMCAXRender::Command = std::function<void(EntityId, EntityId, PickType, int, int*)>
	Pick Callback Function

using	AMCAXRender::MarkerCommand = std::function<void(MarkerType)>
	Marker Callback

using	AMCAXRender::MoveAxesCommand = std::function<void(EntityId,double* matrix)>
	Movable Coordinate System Component Callback

using	AMCAXRender::ShapeCommand = std::function<void(EntityId, EntityId, PickType, const AMCAX::TopoShape& shape, int*)>
	TopoShape Pick Callback Function

using	AMCAXRender::PluginCallback = std::function<void(EntityId, PickType, int, double*)>
	Plugin Pick Callback Function

using	AMCAXRender::RubberBandZoomCallback = std::function<void()>
	Rubber Band Zoom Callback

using	AMCAXRender::RubberBandPickCallback = std::function<void(std::unordered_map<EntityId, std::unordered_map<PickType, std::vector<int>>>)>
	Rubber Band Pick Callback

using	AMCAXRender::MouseCommand = std::function<void(MouseEventType)>
	Mouse Event Callback

using	AMCAXRender::FocusCommand = std::function<void()>
	Focus Event Callback

枚举
enum class	AMCAXRender::ViewType { MAIN , TOP , FRONT , RIGHT }
	CTR Window Type 更多...

enum class	AMCAXRender::EntityDimension { UNKNOWN , D0 , D1 , D2 , D3 , GROUP }
	Entity Data Type 更多...

enum class	AMCAXRender::CoordStyle { none , cubeView , sailView , cubeView2 , cubeView3 }
	Coordinate System Style 更多...

enum class	AMCAXRender::InteractonStyle { interaction_1 , interaction_2 , imageStyle , unknown }
	Mouse Interaction Style 更多...

enum class	InteractionOperation { None , Rotate , Pan , Zoom }

enum class	InteractionHotKey { LeftButton , MiddleButton , RightButton }

enum class	RotationCenter { Default , Origin , BoundingBoxCenter }

enum class	AMCAXRender::EventType { mouse_hovered , mouse_hovered_out , mouse_click , mouse_double_click , mouse_click_null }
	Pick Event Type 更多...

enum class	AMCAXRender::MouseEventType { mouse_move , mouse_leftDown , mouse_leftUp }
	Mouse Event Type 更多...

enum class	AMCAXRender::PickType { unknown = 1 << 0 , vert = 1 << 1 , point = 1 << 2 , edge = 1 << 3 , face = 1 << 4 , body = vert \| point \| edge \| face , all = 1 << 5 \| body }
	Pick Type 更多...

enum class	AMCAXRender::MarkerEvent { sailViewEvent , cubeViewEvent }
	Coordinate System Marker Event Type 更多...

enum class	AMCAXRender::MarkerType { unknown , sailXY , sailXZ , sailYZ , CUBE_UP , CUBE_DOWN , CUBE_RIGHT , CUBE_LEFT , CUBE_FRONT , CUBE_BACK , CUBE_FRONT_RIGHT_UP , CUBE_RIGHT_BACK_UP , CUBE_LEFT_FRONT_UP , CUBE_BACK_LEFT_UP , CUBE_FRONT_RIGHT_DOWN , CUBE_RIGHT_BACK_DOWN , CUBE_LEFT_FRONT_DOWN , CUBE_BACK_LEFT_DOWN , CUBE_FRONT_RIGHT , CUBE_RIGHT_BACK , CUBE_LEFT_FRONT , CUBE_BACK_LEFT , CUBE_FRONT_UP , CUBE_BACK_UP , CUBE_FRONT_DOWN , CUBE_BACK_DOWN , CUBE_RIGHT_UP , CUBE_LEFT_UP , CUBE_RIGHT_DOWN , CUBE_LEFT_DOWN }
	Marker Type

enum class	AMCAXRender::CameraMode { k3d , k2d }
	Camera Mode 更多...

enum class	AMCAXRender::PlaneStyle { none , standardPlane }
	Standard Plane Style

enum class	AMCAXRender::CameraView { UP = 0 , DOWN , RIGHT , LEFT , FRONT , BACK , FRONT_RIGHT_UP , RIGHT_BACK_UP , LEFT_FRONT_UP , BACK_LEFT_UP , FRONT_RIGHT_DOWN , RIGHT_BACK_DOWN , LEFT_FRONT_DOWN , BACK_LEFT_DOWN , FRONT_RIGHT , RIGHT_BACK , LEFT_FRONT , BACK_LEFT , FRONT_UP , BACK_UP , FRONT_DOWN , BACK_DOWN , RIGHT_UP , LEFT_UP , RIGHT_DOWN , LEFT_DOWN }
	Camera View

enum class	AMCAXRender::PluginType { kUnkown = 0 , kEntity , kTextLabel , kArrow , kCoordinate , kDistance , kBoundAnno , kArrowAnnocation , kBoundsAnnocation , kMeasureMent , k2dTextLabel , kEntityClip , kTextureProp , kTexture2D , kLinearDimension , kAngleDimension }
	Plugin Type 更多...

enum class	AMCAXRender::CoordinatePluginStyle { Default = 0 , NoArrowHead , OpenArrowHead , SolidArrowHead , Planes }
	Coordinate Plugin Style 更多...

enum class	AMCAXRender::RubberBandStatus { Disable = 0 , ZoomPermanent , ZoomOnce , PickPermanent , PickOnce }
	Rubber Band Status 更多...

enum class	AMCAXRender::LineThickness { Thickest = 6 , Thick = 5 , Medium = 4 , Normal = 3 , Thin = 2 , Thinner = 1 , Thinnest = 0 }
	Zebra Line Thickness

enum class	AMCAXRender::ColorMapType { CellLinearColorByCellScalar = 0 , CellStepColorByCellScalar , CellLinearColorByPointScalar , CellStepColorByPointScalar }
	Color Map Type 更多...

enum class	AMCAXRender::RenderMode { Normal = 0 , Shaded , Edge , Wireframe , NoFrame , Transparent }
	Render Mode Type 更多...

enum class	AMCAXRender::LightType { Directional = 0 , Point , Spot }
	Light type 更多...

函数
PickType	AMCAXRender::operator\| (PickType lhs, PickType rhs)

PickType &	AMCAXRender::operator\|= (PickType &lhs, PickType rhs)

PickType	AMCAXRender::operator& (PickType lhs, PickType rhs)

PickType &	AMCAXRender::operator&= (PickType &lhs, PickType rhs)

PickType	AMCAXRender::operator~ (PickType lhs)

详细描述

Constants Class File

This file defines the Constants class

版权所有: Copyright (c) 2023 Hefei Jiushuo Intelligent Technology Co., Ltd. All rights reserved.

This file is part of AMCAXRender

宏定义说明

◆ renderGetMacro

#define renderGetMacro	(		name,
			type )

值:

public: \

type Get##name() const { return this->name; }

◆ renderGetSetMacro

#define renderGetSetMacro	(		name,
			type )

值:

renderGetMacro(name, type) \

renderSetMacro(name, type)

◆ renderSetMacro

#define renderSetMacro	(		name,
			type )

值:

public: \

void Set##name(type value) { this->name = value; }

类型定义说明

◆ Command

using AMCAXRender::Command = std::function<void(EntityId, EntityId, PickType, int, int*)>

Pick Callback Function

参数

EntityId	Parent Entity ID
EntityId	Child Entity ID
PickType	Pick Type, e.g., Point, Line, Face...
int	Pick Index, e.g., Which Face, Which Point...
int*	Mouse Pixel Coordinates

◆ MarkerCommand

using AMCAXRender::MarkerCommand = std::function<void(MarkerType)>

Marker Callback

参数

MarkerType Returns Current Direction

◆ MoveAxesCommand

using AMCAXRender::MoveAxesCommand = std::function<void(EntityId,double* matrix)>

Movable Coordinate System Component Callback

参数

EntityId	Entity ID
matrix	Transformation Matrix, The Matrix Structure is 4x4

◆ PluginCallback

using AMCAXRender::PluginCallback = std::function<void(EntityId, PickType, int, double*)>

Plugin Pick Callback Function

参数

EntityId	Plugin ID
PickType	Pick Type, e.g., Point, Line, Face...
int	Pick Index, e.g., Which Face, Which Point...
double*	Specific World Coordinates Closest to Mouse Position (Located on the Currently Selected Plugin)

◆ ShapeCommand

using AMCAXRender::ShapeCommand = std::function<void(EntityId, EntityId, PickType, const AMCAX::TopoShape& shape, int*)>

TopoShape Pick Callback Function

参数

EntityId	Parent Entity ID
EntityId	Child Entity ID
PickType	Pick Type, e.g., Point, Line, Face...
shape	TopoShape Data
int*	Mouse Pixel Coordinates

枚举类型说明

◆ CameraMode

enum class AMCAXRender::CameraMode

strong

Camera Mode

枚举值
k3d	3D Mode
k2d	2D Mode

◆ ColorMapType

enum class AMCAXRender::ColorMapType

strong

Color Map Type

枚举值
CellLinearColorByCellScalar	Apply color to cells based on cell scalars, with linear color mapping. Formerly known as: rampToLinear
CellStepColorByCellScalar	Apply color to cells based on cell scalars, with step color mapping. Formerly known as: rampToStep
CellLinearColorByPointScalar	Apply color to cells based on point scalars, with linear color mapping. Formerly known as: beforeRrampToLinear
CellStepColorByPointScalar	Apply color to cells based on point scalars, with step color mapping. Formerly known as: beforeRampToStep

◆ CoordinatePluginStyle

enum class AMCAXRender::CoordinatePluginStyle

strong

Coordinate Plugin Style

枚举值
Default	Default
NoArrowHead	NoArrowHead
OpenArrowHead	OpenArrowHead
SolidArrowHead	SolidArrowHead
Planes	Planes

◆ CoordStyle

enum class AMCAXRender::CoordStyle

strong

Coordinate System Style

枚举值
cubeView	Cube Style
sailView	Sail Style
cubeView2	Cube Style 2
cubeView3	Cube Style 3

◆ EntityDimension

enum class AMCAXRender::EntityDimension

strong

Entity Data Type

枚举值
D0	Point
D1	Curve, Lines
D2	Face
D3	Body
GROUP	Group

◆ EventType

enum class AMCAXRender::EventType

strong

Pick Event Type

枚举值
mouse_hovered	Hovered
mouse_hovered_out	Hovered Out
mouse_click	Left Click
mouse_double_click	Left Double Click
mouse_click_null	Null Click

◆ InteractonStyle

enum class AMCAXRender::InteractonStyle

strong

Mouse Interaction Style

枚举值
interaction_1	Style 1
interaction_2	Style 2
imageStyle	ImageStyle
unknown	unknown

◆ LightType

enum class AMCAXRender::LightType

strong

Light type

枚举值
Directional	directional light
Point	point light
Spot	spot light

◆ MarkerEvent

enum class AMCAXRender::MarkerEvent

strong

Coordinate System Marker Event Type

枚举值
sailViewEvent	Sail
cubeViewEvent	Cube

◆ MouseEventType

enum class AMCAXRender::MouseEventType

strong

Mouse Event Type

枚举值
mouse_move	Mouse Move
mouse_leftDown	Left Button Down
mouse_leftUp	Left Button Up

◆ PickType

enum class AMCAXRender::PickType

strong

Pick Type

枚举值
vert	Vertex Pick
point	Point Pick
edge	Edge Pick
face	Face Pick
body	Body Pick
all	All Pick

◆ PluginType

enum class AMCAXRender::PluginType

strong

Plugin Type

枚举值
kEntity	Entity
kTextLabel	Text
kArrow	Arrow
kCoordinate	Coordinate System
kDistance	Distance Ruler
kBoundAnno	Bounding Box Plugin
kArrowAnnocation	Arrow Annotation, Supports Single and Double Arrow
kBoundsAnnocation	Bounding Box Annotation Plugin
kMeasureMent	Measure Plugin
k2dTextLabel	2dTextLabel
kEntityClip	EntityClip
kTextureProp	TextureProp
kTexture2D	Texture2D
kLinearDimension	LinearDimension
kAngleDimension	AngleDimension

◆ RenderMode

enum class AMCAXRender::RenderMode

strong

Render Mode Type

枚举值
Normal	Normal Mode
Shaded	Shading Mode
Edge	Edge Mode
Wireframe	Wireframe Mode
NoFrame	No Frame Mode
Transparent	Transparent Mode

◆ RubberBandStatus

enum class AMCAXRender::RubberBandStatus

strong

Rubber Band Status

枚举值
ZoomPermanent	Zoom Permanent
ZoomOnce	Zoom Once
PickPermanent	Pick Permanent
PickOnce	Pick Once

◆ ViewType

enum class AMCAXRender::ViewType

strong

CTR Window Type

枚举值
MAIN	MAIN Rendering Window
TOP	TOP Rendering Window
FRONT	FRONT Rendering Window
RIGHT	RIGHT Rendering Window
