Surface Modeling

To simplify the example code, the following helper functions are encapsulated.

// Read point
Point3 ReadBRepPoint(const std::string& file)
{
    TopoShape s;
    OCCTIO::OCCTTool::Read(s, file);
    TopoExplorer ex(s, ShapeType::Vertex);
    TopoVertex v = static_cast<const TopoVertex&>(ex.Value());
    return TopoTool::Point(v);
}

// Read curve
shared_ptr<Geom3BSplineCurve> ReadBRepCurve(const string& file)
{
    TopoShape s;
    OCCTIO::OCCTTool::Read(s, file);
    TopoExplorer ex(s, ShapeType::Edge);
    TopoEdge e = static_cast<const TopoEdge&>(ex.Value());
    shared_ptr<Geom3Curve> curve = NURBSAPIGetGeometry::GetCurve(e);
    if (curve->Type() != CurveType::BSplineCurve)
    {
        auto profile = NURBSAPIConvert::ToBSpline(curve);
        return profile;
    }
    else
    {
        return dynamic_pointer_cast<Geom3BSplineCurve>(curve);
    }
}

// Read surface
shared_ptr<Geom3BSplineSurface> ReadBRepSurface(const string& file)
{
    TopoShape s;
    OCCTIO::OCCTTool::Read(s, file);
    TopoExplorer ex(s, ShapeType::Face);
    TopoFace face = static_cast<const TopoFace&>(ex.Value());
    //shared_ptr< Geom3Surface > surf = TopoTool::Surface(face);
    shared_ptr< Geom3Surface > surf = NURBSAPIGetGeometry::GetSurface(face);
    if (surf->Type() != SurfaceType::BSplineSurface)
    {
        auto surface = NURBSAPIConvert::ToBSpline(surf);
        return surface;
    }
    else
    {
        return dynamic_pointer_cast<Geom3BSplineSurface>(surf);
    }
}

Free-form Curve and Surface Creation

Free-form curve and surface creation functions include sweeping, lofting, Coons surfaces, curve construction, and surface construction from surface boundaries.

Sweeping

Sweeping functions include single-rail sweep, double-rail sweep, explicit sweep, linear sweep, circular sweep, conic sweep, and rotational sweep.

Single-rail Sweep

A method to construct a surface by taking several u-isoparametric curves as section curves and one v-isoparametric curve as a guide rail is called single-rail sweep.

Principle

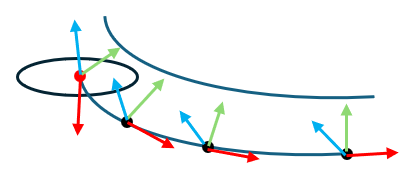

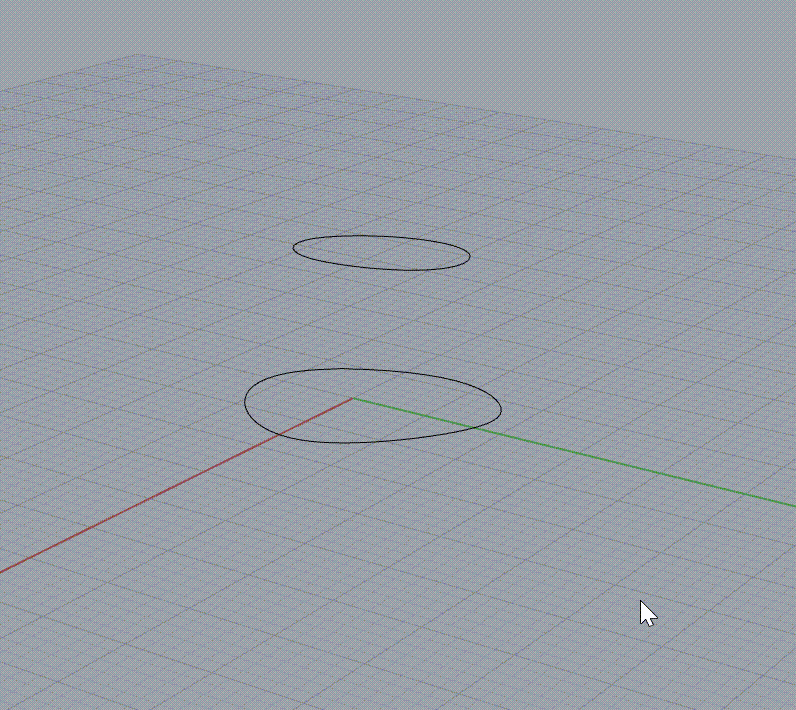

Sweeping constructs as many new section curves as possible along the guide rail, and then builds the surface based on all section curves and the guide rail. The method for constructing new section curves involves rotating and translating the original section to new positions, which requires defining a 3D rigid transformation via a frame. The specific implementation is as follows:

1.Find the corresponding point of the section curve on the guide rail, i.e., the position of the red point in the figure below:

2.Sample multiple points on the guide rail and construct a frame at each sample point. The z-axis of the frame is the tangent direction of the guide rail at the sample point.

3.Every two frames define a transformation. Applying the transformation to the section curve yields a new section curve.

4.Construct the surface using the section curves and the guide rail.

The AMCAX::NURBSAPISweep class provides the functionality to obtain a swept surface by sweeping a section curve along a single guide rail.

// Make a profile
AMCAX::Point3 point(0., 0., 2.);
AMCAX::Direction3 dir(1., 1., 1.);
AMCAX::Frame3 frame(point, dir);
double radius = 0.5;
AMCAX::Circle3 circle = AMCAX::Circle3(frame, radius);
AMCAX::TopoEdge edge = AMCAX::MakeEdge(circle);
auto curve = AMCAX::NURBSAPIGetGeometry::GetCurve(edge);
auto profile = AMCAX::NURBSAPIConvert::ToBSpline(curve);

// Make a spine
std::vector<AMCAX::Point3> points;
points.push_back(AMCAX::Point3(0., 0., 0.));
points.push_back(AMCAX::Point3(-1., 0., 1.));
points.push_back(AMCAX::Point3(0., 0., 2.));
points.push_back(AMCAX::Point3(1., 0., 3.));
points.push_back(AMCAX::Point3(0., 0., 4.));
int degree = 2.;
bool IsClosed = false;
std::shared_ptr<AMCAX::Geom3BSplineCurve> spine = AMCAX::NURBSAPIInterpolate::InterpolatePoints(points, degree, IsClosed, AMCAX::ApproxParameterizationType::Centripetal);

// Sweep a profile along a spine
bool isParallel = false;
double spineRefParam = spine->FirstParameter();
auto result = AMCAX::NURBSAPISweep::SweepOneRail(profile, spine, spineRefParam, isParallel);

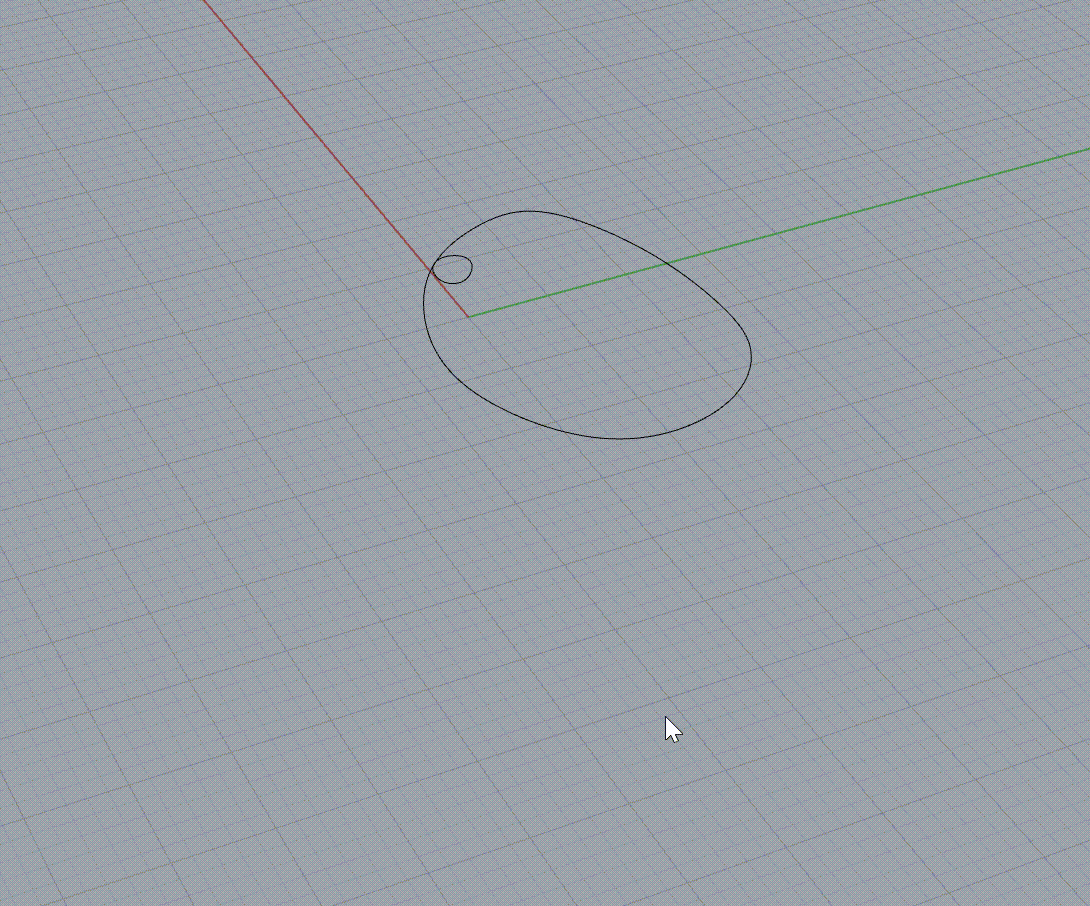

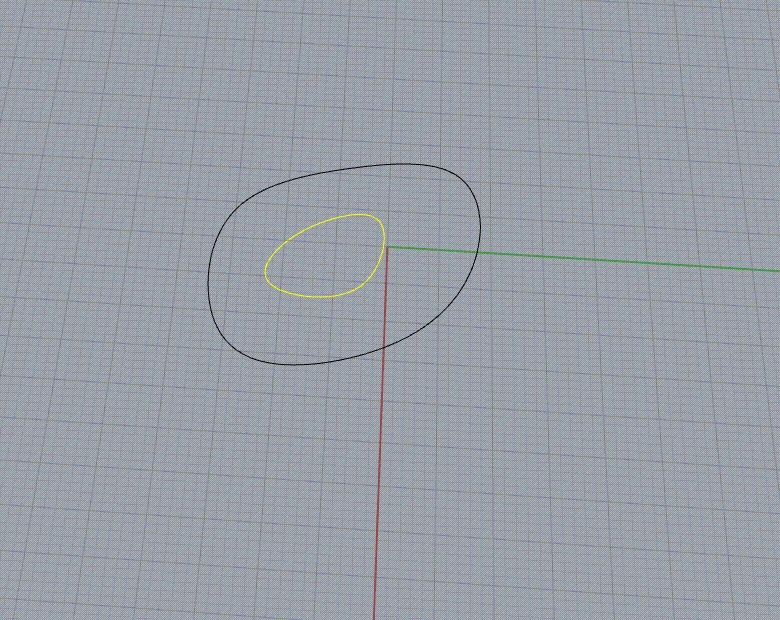

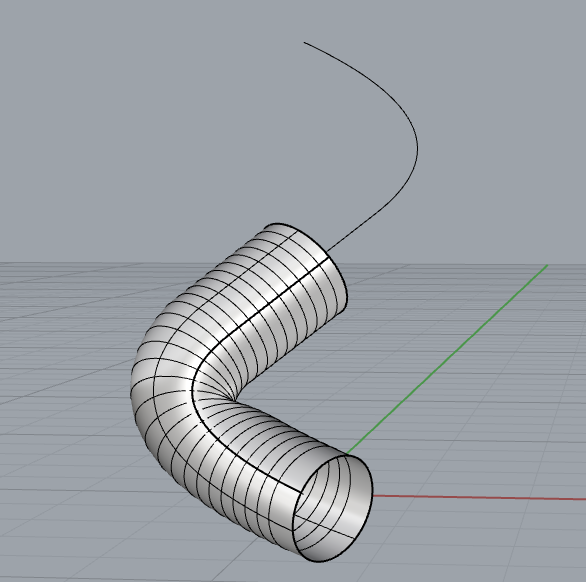

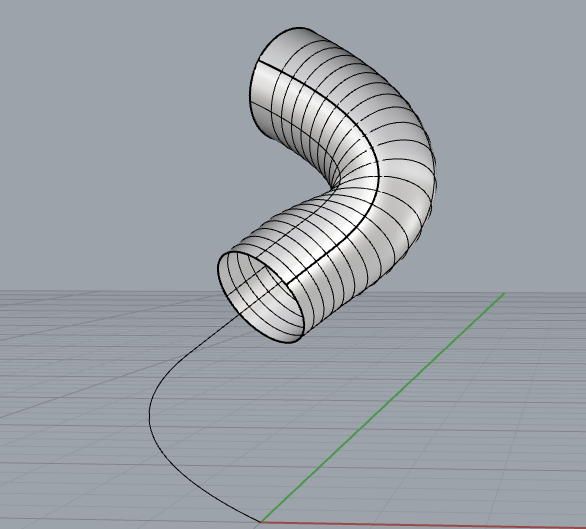

The result is shown in the figure below:

The spineRefParam parameter is used to determine which part of the curve to keep. In the example above, it's the first half. If you want the second half, spineRefParam can be set to spine->LastParameter(). The result is shown in the figure below:

Here is a brief introduction to the other input parameters:

1.spineCorrParams is used to provide the corresponding parameters of the section curves on the guide rail.

2.isClosedSweep only takes effect when the guide rail is a periodic curve. When True, it constructs the entire surface of the periodic guide rail; when False, it only constructs part of the surface. The selection rules are as follows:

• If there is 1 section curve, it selects [t0, section] or [section, t1] based on spineRefParam (t0 is the start parameter of the guide rail, t1 is the end parameter of the guide rail);
• If there are 2 section curves, it selects [section 1, section 2] or [section 2, section 1] based on spineRefParam;
• If there are 3 or more section curves, it selects the range based on the input order of the section curves and spineRefParam.

3.isAutoTwist takes effect when there are straight segments and C0 points in the guide rail.

Double-rail Sweep

A method to construct a surface by taking several u-isoparametric curves as section curves and two v-isoparametric curves as guide rails is called double-rail sweep. Compared to single-rail sweep, double-rail sweep offers stronger control over the surface shape.

The AMCAX::NURBSAPISweep2 class provides the functionality to obtain a swept surface by sweeping profile curves along two guide rails.

std::string filedir = "./data/NURBSAPISweep2/";

std::vector<NURBSCurveSection> profiles;
for (int i = 0; i <= 3; i++)
{
    auto p = ReadBRepCurve(filedir + "profile" + std::to_string(i) + ".brep");
    profiles.push_back(NURBSCurveSection(p));
}

std::shared_ptr<Geom3BSplineCurve> spine1 = ReadBRepCurve(filedir + "spine" + std::to_string(1) + ".brep");
std::shared_ptr<Geom3BSplineCurve> spine2 = ReadBRepCurve(filedir + "spine" + std::to_string(2) + ".brep");
//std::shared_ptr<Geom3BSplineCurve> profile1 = ReadBRepCurve(filedir + "profile0.brep");
//std::shared_ptr<Geom3BSplineCurve> profile2 = ReadBRepCurve(filedir + "profile1.brep");
//std::shared_ptr<Geom3BSplineCurve> profile3 = ReadBRepCurve(filedir + "profile2.brep");
//std::shared_ptr<Geom3BSplineCurve> profile4 = ReadBRepCurve(filedir + "profile3.brep");

// The param on spine1 which is verified when the user chooses the spine to judge which part of curve is deman
double spine1RefParam = 0.5 * (spine1->FirstParameter() + spine1->LastParameter());

// Params of spine1/spine2 which profile is located on
std::vector<std::pair<int, double>> spine1CorrParams, spine2CorrParams;

// Sweep profiles along two spines
bool isAutoTwist = true;
bool isClosedSweep = false;
auto surfaces = NURBSAPISweep2::SweepTwoRails(profiles, spine1, spine2, spine1RefParam, spine1CorrParams, spine2CorrParams, isClosedSweep, isAutoTwist);

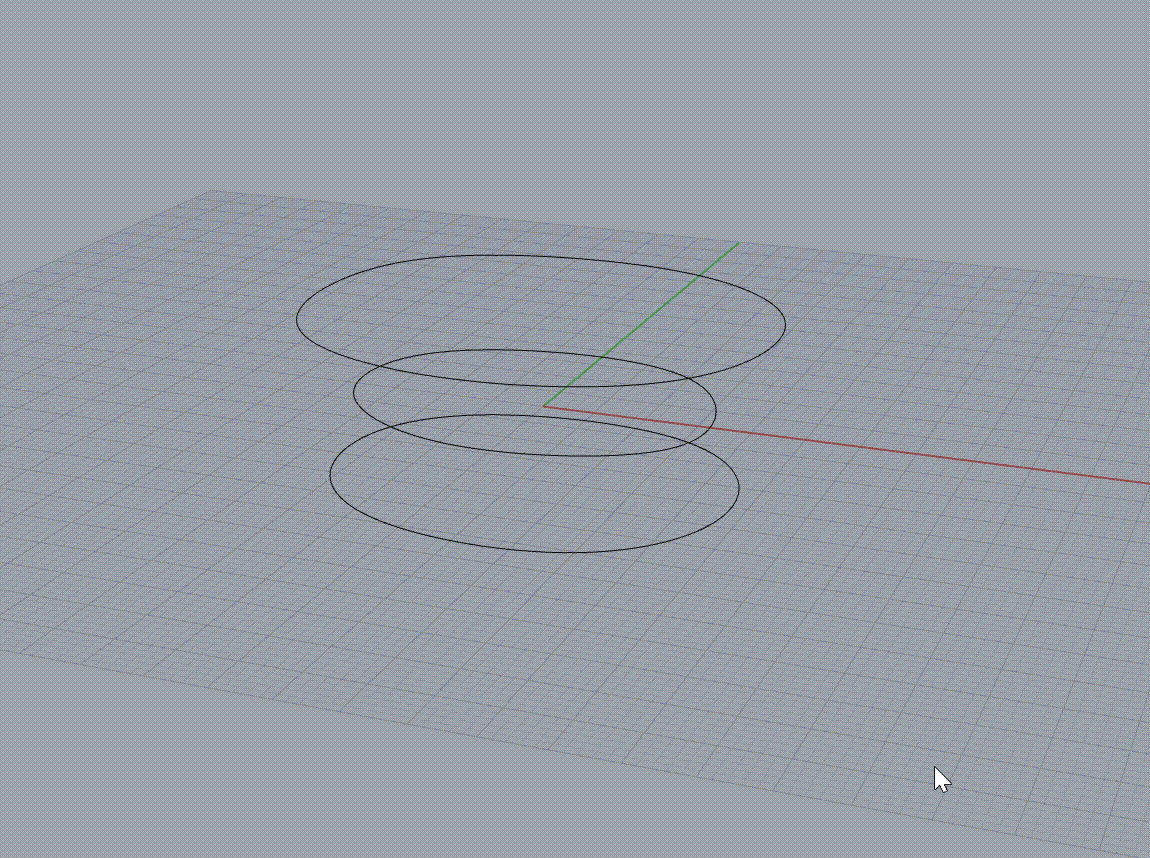

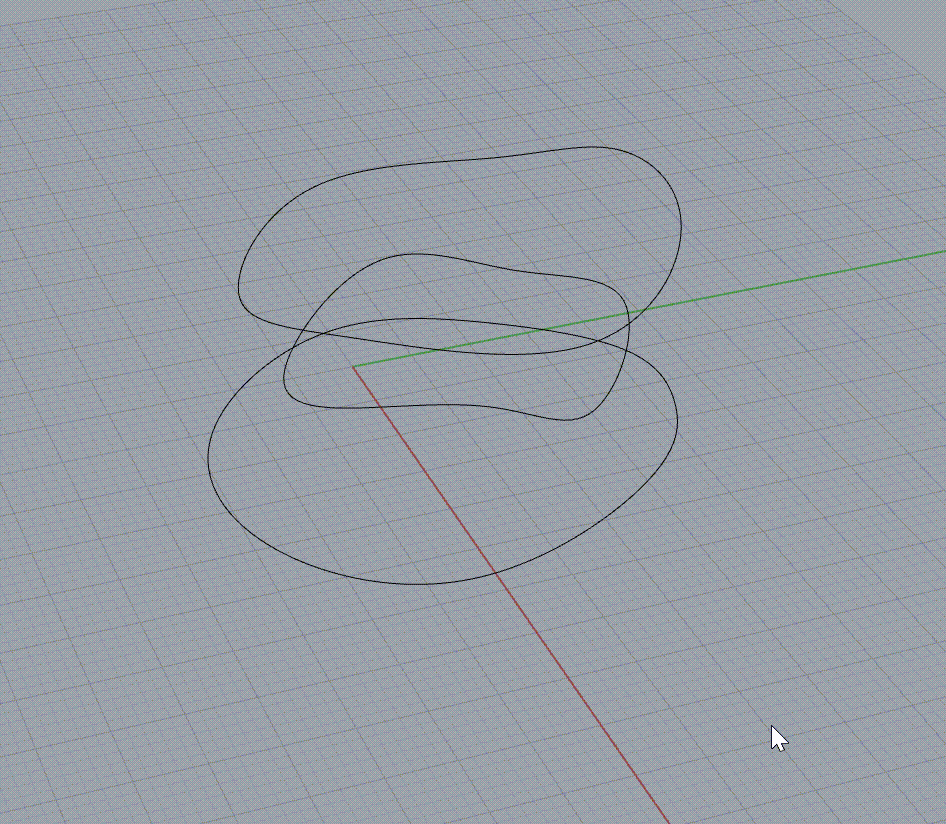

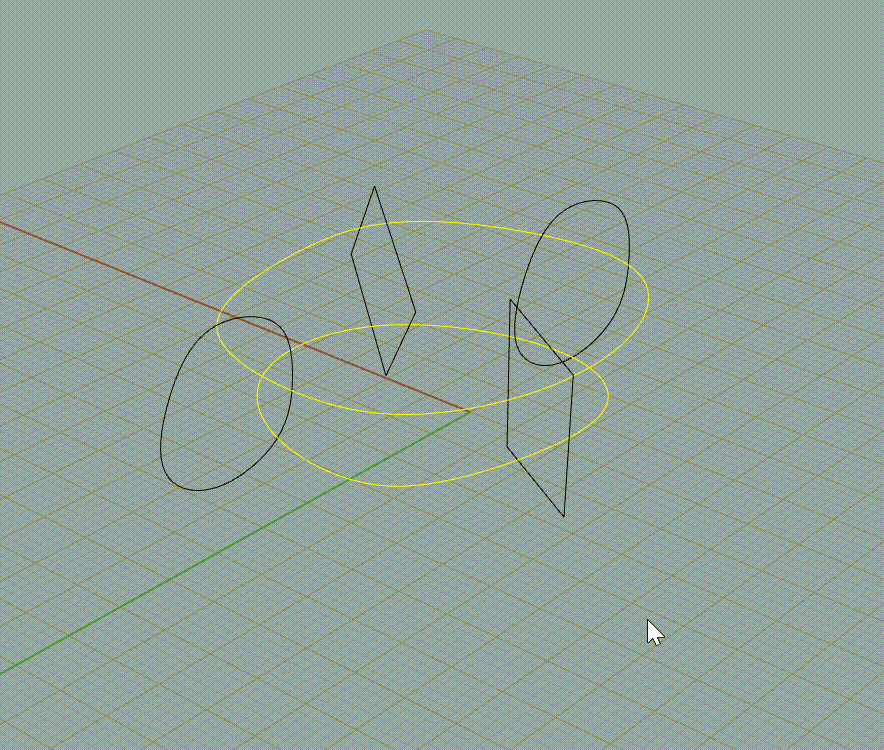

The result is shown in the figure below:
There is 1 B-spline surface in total.

Explicit Sweep

The AMCAX::NURBSAPIExplicitSweep class provides explicit sweep functionality.

Using a Reference Surface

The AMCAX::NURBSAPIExplicitSweep::SweepWithReferenceSurface class is used to construct a swept surface based on a section curve and a guide curve on a reference surface.

std::string filedir = "./data/ExplicitSweepWithReferenceSurface/";

auto profile = ReadBRepCurve(filedir + "profile.brep");
auto guide = ReadBRepCurve(filedir + "guide.brep");
auto reference = ReadBRepSurface(filedir + "surface.brep");
auto spine = guide;

// The angle law function of section rotation
LawConstant angleLawFunc;
angleLawFunc.Set(0.0, 0.0, 1.0);

// Sweep the profile along a guide on the reference surface
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPIExplicitSweep::SweepWithReferenceSurface(profile, guide, reference, angleLawFunc, guide, spineLeftBound, spineRightBound);

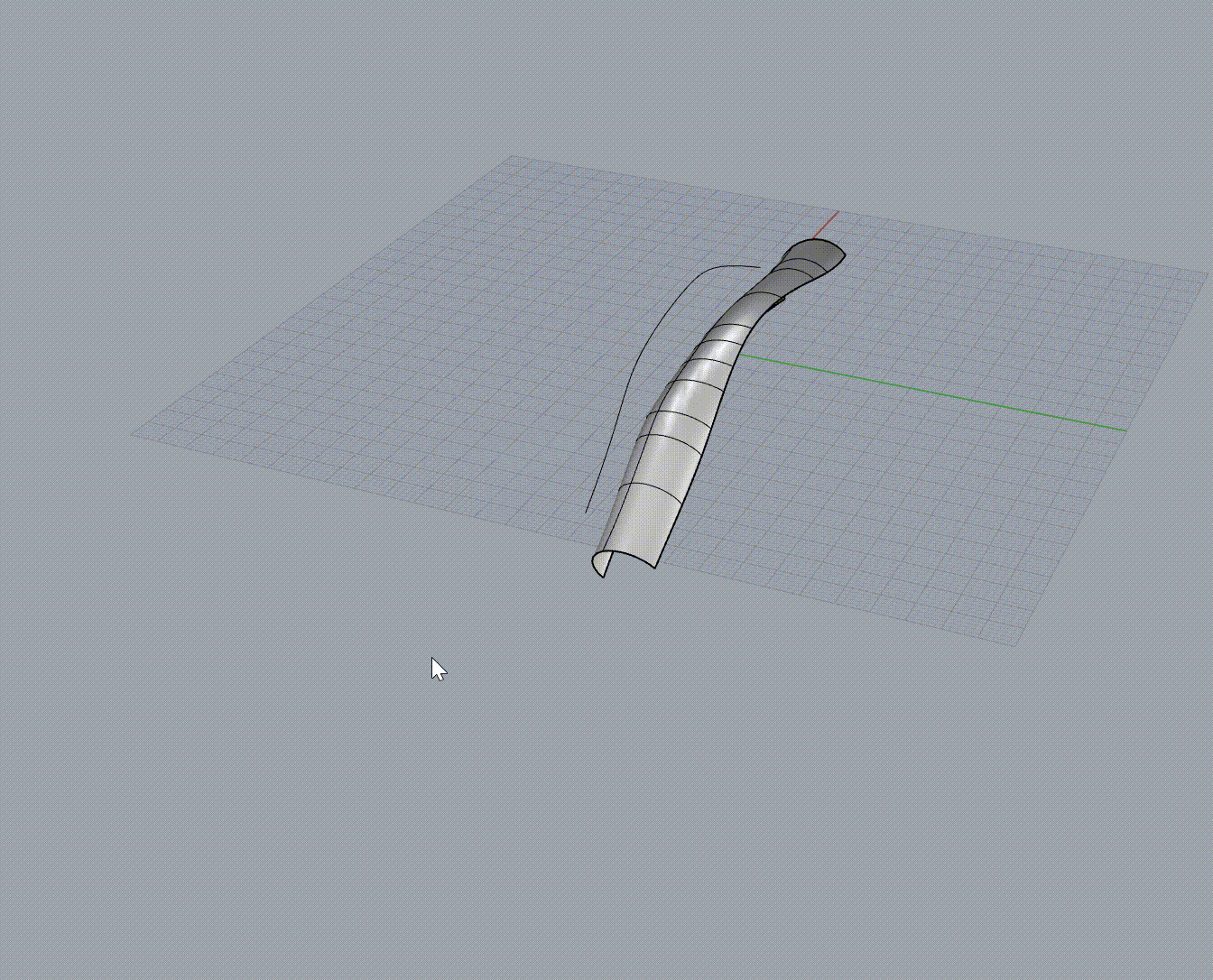

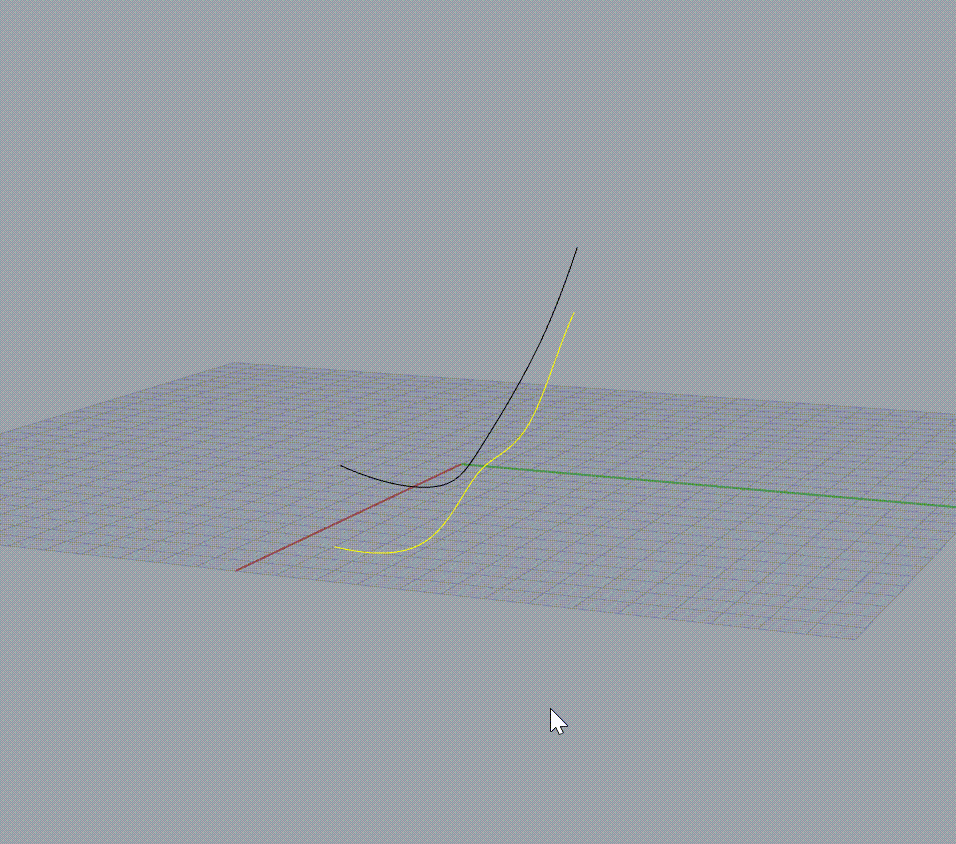

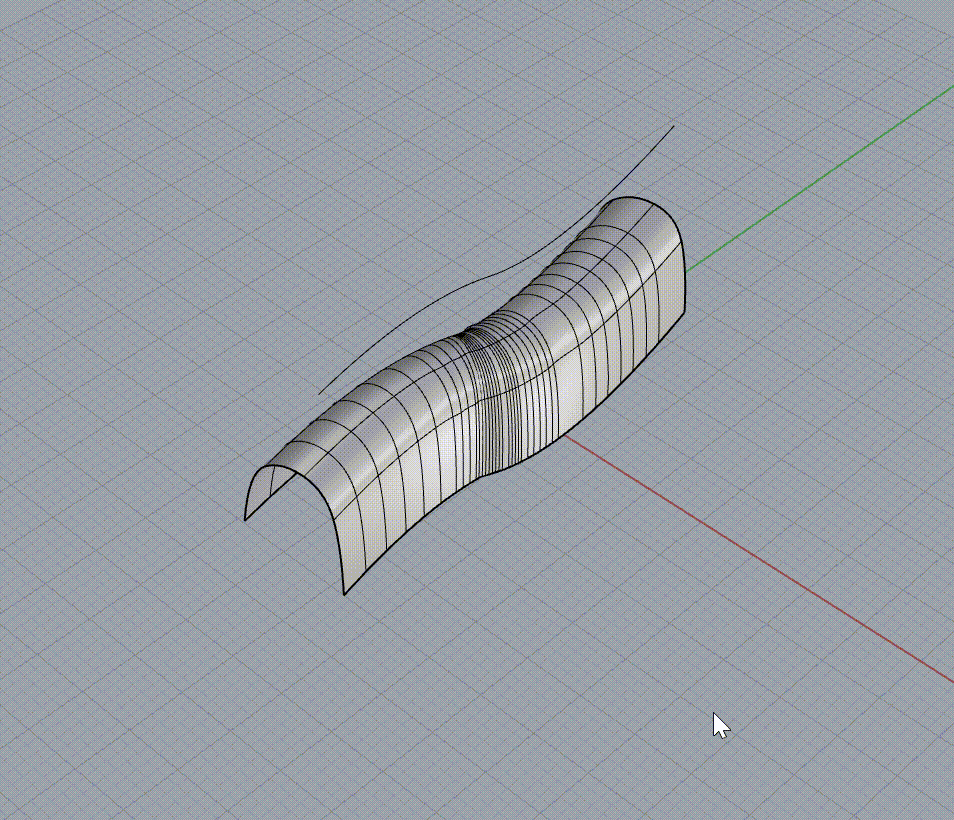

The result is shown in the figure below:
There are 4 B-spline surfaces in total (the section curve rotates around the guide rail, possible rotations: clockwise/counterclockwise/rotate 180 degrees then clockwise/rotate 180 degrees then counterclockwise).

Using Two Guide Curves

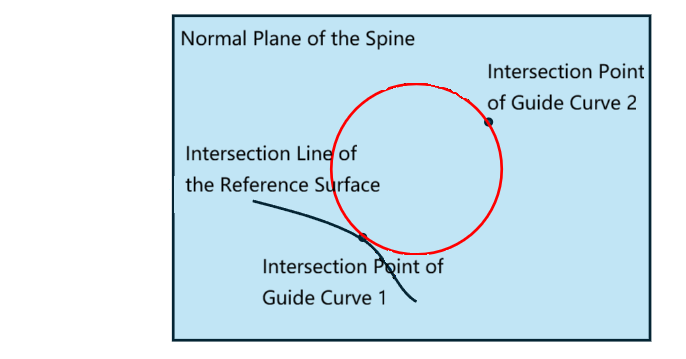

The AMCAX::NURBSAPIExplicitSweep::SweepWithTwoGuideCurves class is used to construct a swept surface based on a section curve and two guide curves. Two modes are supported: selecting two anchor points or selecting one anchor point and one direction.

Selecting Two Anchor Points

Both anchor points are on the section curve. The section curve is transformed (rotated, translated, scaled) so that the anchor points lie on the guide curves, and then the sweep is performed.

std::string filedir = "./data/ExplicitSweepWithTwoGuideCurvesTwoPoints/";

auto profile = ReadBRepCurve(filedir + "profile.brep");
auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");

// The first anchor point on the profile that will be matched to the first guide curve
auto anchorPoint1 = ReadBRepPoint(filedir + "point1.brep");
// The second anchor point on the profile that will be matched to the second cuide curve
auto anchorPoint2 = ReadBRepPoint(filedir + "point2.brep");
auto spine = guide1;

// Sweep the profile along two guides with two anchor points
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPIExplicitSweep::SweepWithTwoGuideCurves(profile, guide1, guide2, anchorPoint1, anchorPoint2, guide1, spineLeftBound, spineRightBound);

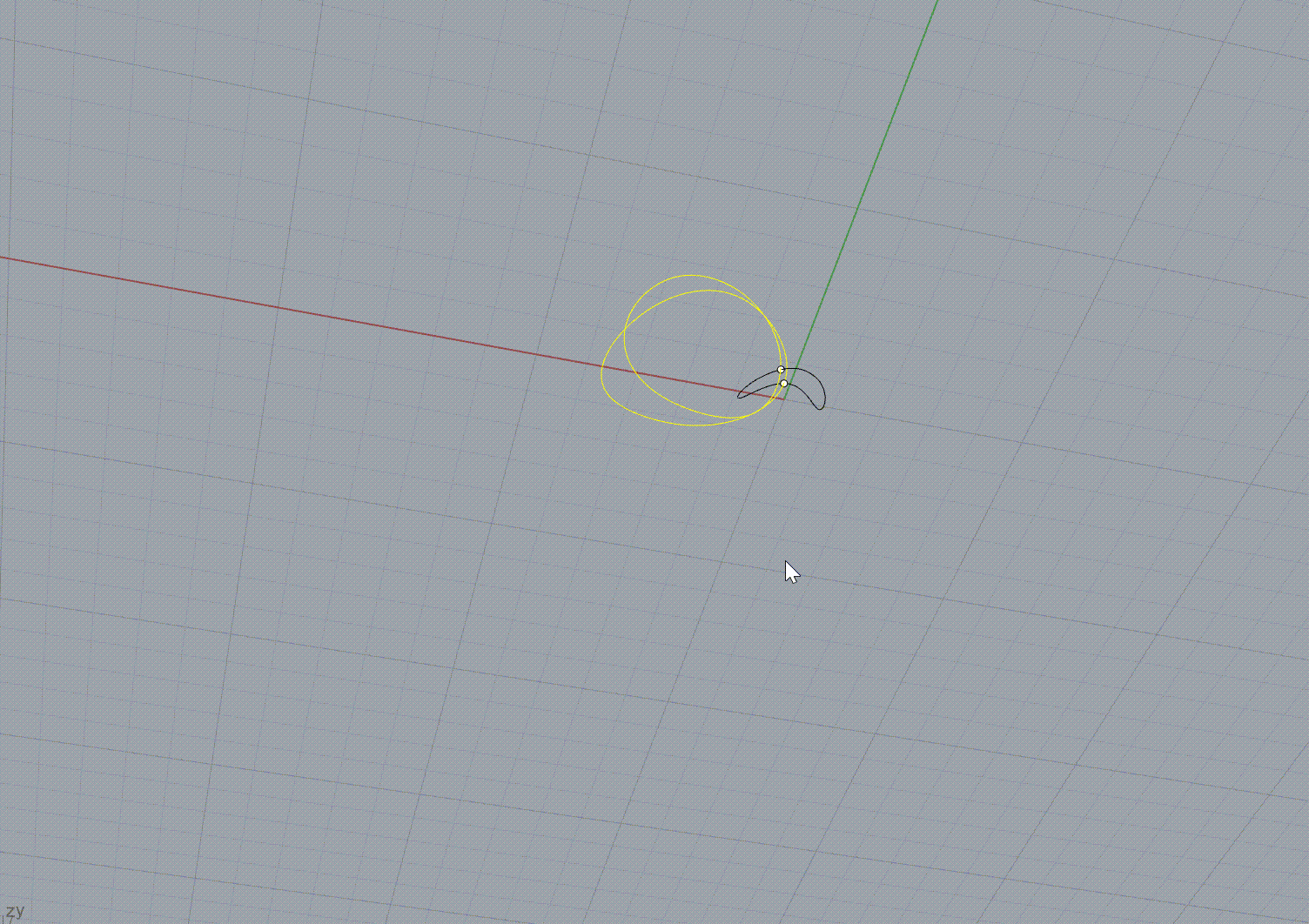

The result is shown in the figure below:
There is 1 B-spline surface in total (the yellow curves are the guide curves).

Selecting One Anchor Point and One Direction

The transformation of the section curve is: first translate the section curve so that the anchor point lies on the first guide curve, then rotate it so that its direction aligns with the direction between the guide curves.

std::string filedir = "./data/ExplicitSweepWithTwoGuideCurvesPointDirection/";

auto profile = ReadBRepCurve(filedir + "profile.brep");
auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto spine = guide1;

// The anchor point on the profile that will be matched to the first guide curve
auto anchorPoint = ReadBRepPoint(filedir + "point1.brep");

// The anchor direction
Direction3 anchorDirection(0.0294018, -0.0429342, -0.998645);

// Sweep the profile along two guides with two anchor points
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPIExplicitSweep::SweepWithTwoGuideCurves(profile, guide1, guide2, anchorPoint, anchorDirection, spine, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There is 1 B-spline surface in total (the yellow curves are the guide curves).

Using a Draft Direction

The AMCAX::NURBSAPIExplicitSweep::SweepWithPullingDirection class is used to construct a swept surface based on a section curve, a guide curve, and a draft direction.

std::string filedir = "./data/ExplicitSweepWithPullingDirection/";

auto profile = ReadBRepCurve(filedir + "profile.brep");
auto guide = ReadBRepCurve(filedir + "guide.brep");
auto spine = guide;

// The pulling direction
Direction3 pullingDirection(0.0, 0.0, 1.0);

// The angle law function of section rotation
LawConstant angleLawFunc;
angleLawFunc.Set(0.0, 0.0, 1.0);

// Sweep the profile along one guide curve with one pulling direction which is used to control the final shape of the swept surface
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPIExplicitSweep::SweepWithPullingDirection(profile, guide, pullingDirection, angleLawFunc, spine, spineLeftBound, spineRightBound);

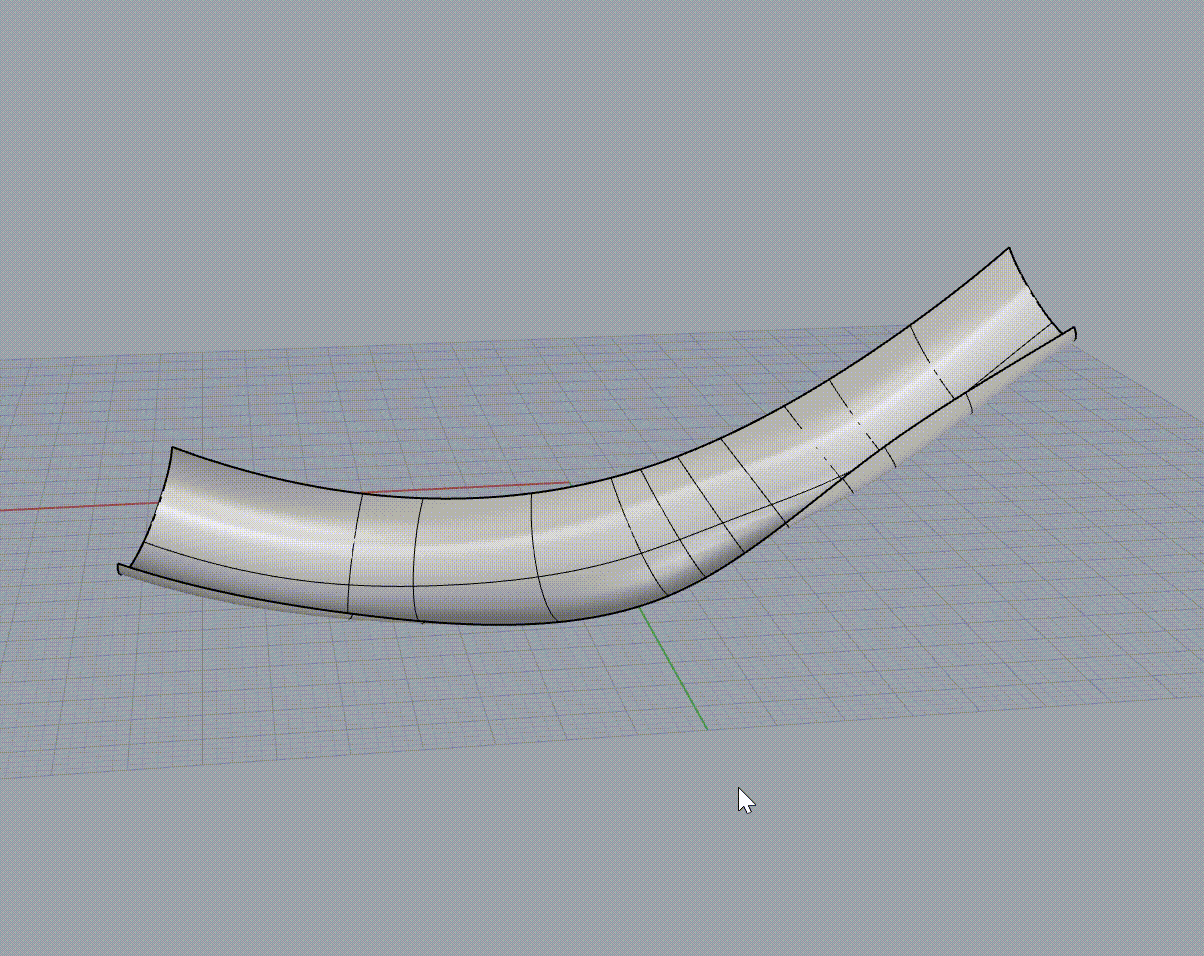

The result is shown in the figure below:
There are 4 B-spline surfaces in total (the section curve rotates around the guide rail, possible rotations: clockwise/counterclockwise/rotate 180 degrees then clockwise/rotate 180 degrees then counterclockwise).

Linear Sweep

The AMCAX::NURBSAPILinearSweep class provides linear sweep functionality.

Two Limits

The AMCAX::NURBSAPILinearSweep::SweepWithTwoLimits class is used to construct a linear-section swept surface between two guide curves, where the two guide curves are the surface boundaries.

std::string filedir = "./data/SweepWithTwoLimits/";

auto guide1 = ReadBRepCurve(filedir + "guide1.brep");// The first guide curve
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");// The second guide curve

// The spine
auto spine = guide1;

// The guide additional length law function
LawConstant length1Law;
length1Law.Set(0., 0., 1.);
LawConstant length2Law;
length2Law.Set(0., 0., 1.);

// Sweep with two guide curves as surface limit boundaries
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = AMCAX::NURBSAPILinearSweep::SweepWithTwoLimits(guide1, guide2, spine, spineLeftBound, spineRightBound, length1Law, length2Law);

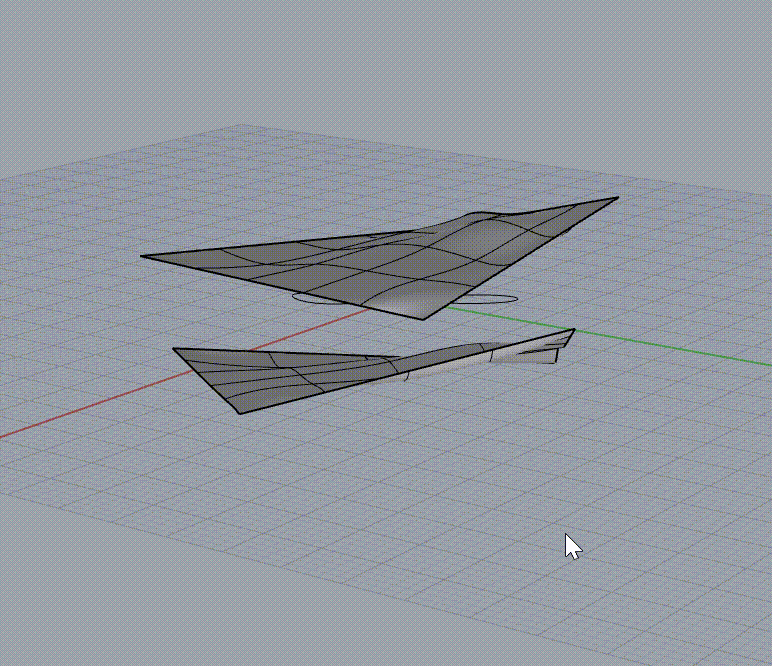

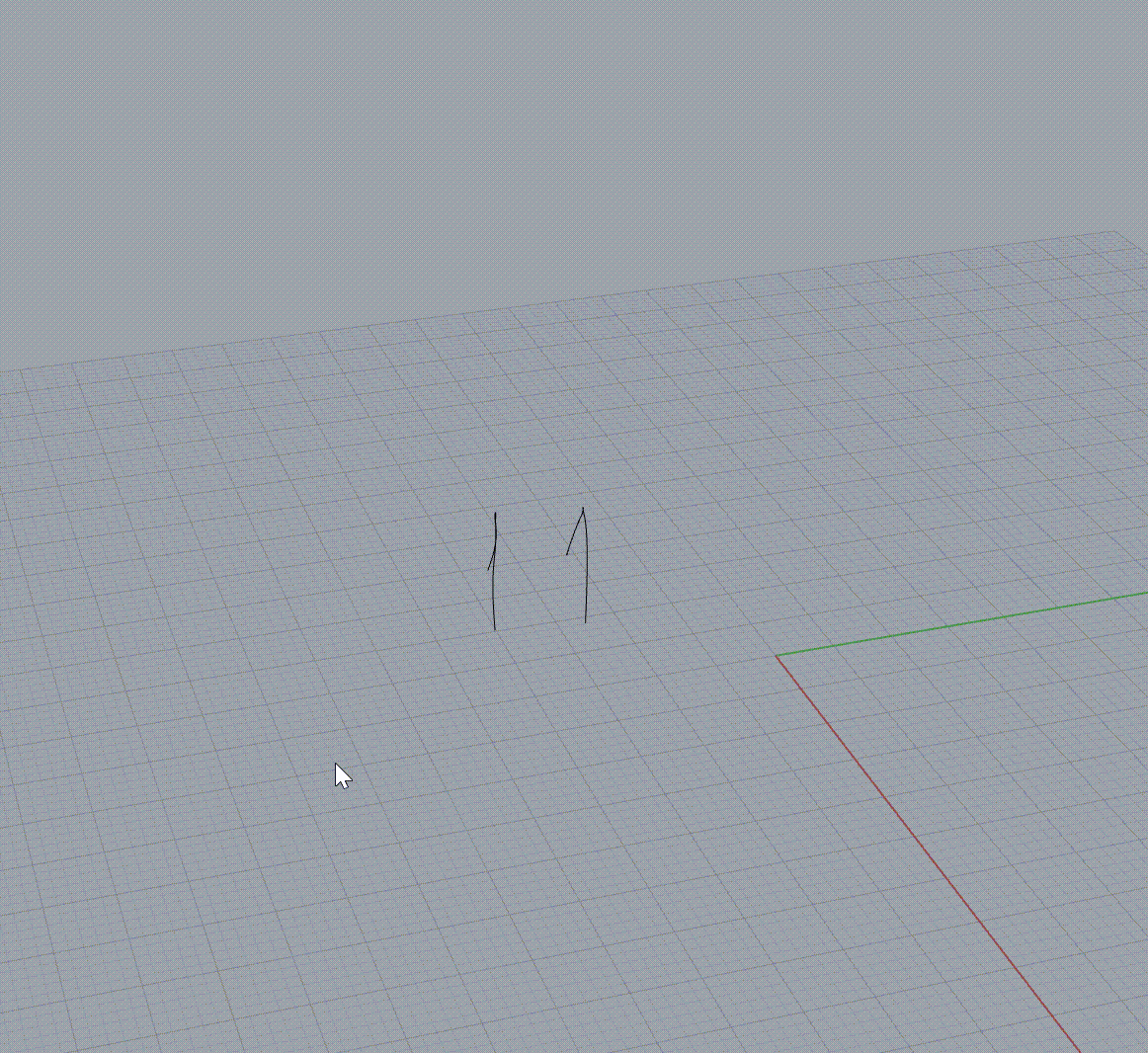

The result is shown in the figure below:
There is 1 B-spline surface in total.

Although the two guide curves are nominally the surface boundaries, the interface provides a LawFunction for length to further extend the linear section segments. For example:

// The guide additional length law function
LawConstant length1Law;
length1Law.Set(20., 0., 1.);
LawConstant length2Law;
length2Law.Set(10., 0., 1.);

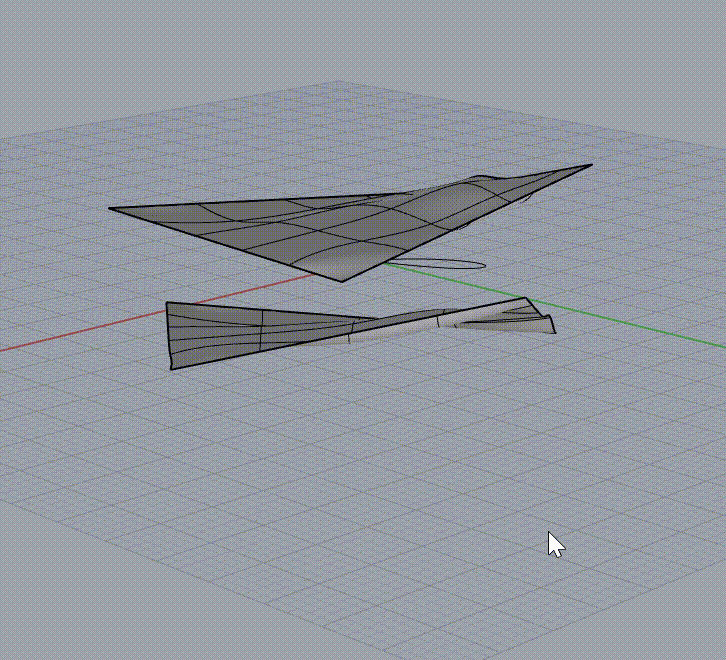

The result is shown in the figure below:

Limit and Middle

The AMCAX::NURBSAPILinearSweep::SweepWithLimitAndMiddle class is used to construct a linear-section swept surface between two guide curves, where one curve is the surface boundary and the other is the surface centerline.

std::string filedir = "./data/SweepWithLimitAndMiddle/";
auto guide1 = ReadBRepCurve(filedir + "guide1.brep");// The first guide curve
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");// The second guide curve

// The spine
auto spine = guide2;

// Sweep with a guide curve as surface limit boundary and another guide curve as surface middle curve
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPILinearSweep::SweepWithLimitAndMiddle(guide1, guide2, spine, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There is 1 B-spline surface in total.

Using a Draft Direction

The AMCAX::NURBSAPILinearSweep::SweepWithDraftDirection class is used to construct a linear-section swept surface based on a guide curve and a draft direction. The direction of the linear section is consistent with the draft direction.

// The guide curve
std::string filedir = "./data/SweepWithDraftDirection/";
auto guide = ReadBRepCurve(filedir + "curve.brep");

// The draft direction
Direction3 draftDirection(0., 0., 1.);

// The angle law function of section rotation around the guide
LawConstant angleLaw;
angleLaw.Set(0.0, 0.0, 1.0);

auto type = NURBSLinearSweepWithDraftDirectionLengthType::FromTo;
double length = 1.;
auto relimitingSurface1 = ReadBRepSurface(filedir + "surf1.brep");
auto relimitingSurface2 = ReadBRepSurface(filedir + "surf2.brep");
NURBSLinearSweepWithDraftDirectionLength length1(type, length, relimitingSurface1);// The draft length against the draft direction
NURBSLinearSweepWithDraftDirectionLength length2(type, length, relimitingSurface2);// The draft length along the draft direction

// Sweep with a guide curve and a draft direction
auto [status, result] = NURBSAPILinearSweep::SweepWithDraftDirection(guide, draftDirection, angleLaw, length1, length2);

In the above example, the length mode is set to FromTo (automatically extended to the specified reference surfaces). The result is shown in the figure below (the upper and lower surfaces are the input reference surfaces, and the middle one is the generated linear-section swept surface):

In addition, there are three other modes:

1. FromCurve
Length is 0, the length and relimitingSurface parameters are not used. The result is shown in the figure below:

2. Standard
Length is the specified length. The result is shown in the figure below:

3. FromExtremum
Length is extended to the farthest point of the guide curve in the draft direction. The result is shown in the figure below:

Using a Reference Curve

The AMCAX::NURBSAPILinearSweep::SweepWithReferenceCurve class is used to construct a linear-section swept surface based on two guide curves, where one is the surface centerline and the other is a reference curve, providing the direction of the linear section (the direction from the guide curve to the reference curve is the direction of the linear section segment).

std::string filedir = "./data/SweepWithReferenceCurve/";
// The guide curve
auto guide = ReadBRepCurve(filedir + "guide.brep");

// The reference curve
auto reference = ReadBRepCurve(filedir + "reference.brep");

// The spine
auto spine = guide;

// The angle law function of section rotation around the guide
LawConstant angleLaw;
angleLaw.Set(Constants::pi / 3.0, 0.0, 1.0);
// The additional length law function with the direction from the reference to the guide
LawConstant length1Law;
length1Law.Set(3, 0.0, 1.0);
// The additional length law function with the direction from the guide to the reference
LawConstant length2Law;
length2Law.Set(3, 0.0, 1.0);

// Sweep with a guide curve and a reference curve
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPILinearSweep::SweepWithReferenceCurve(guide, reference, angleLaw, length1Law, length2Law, spine, spineLeftBound, spineRightBound);

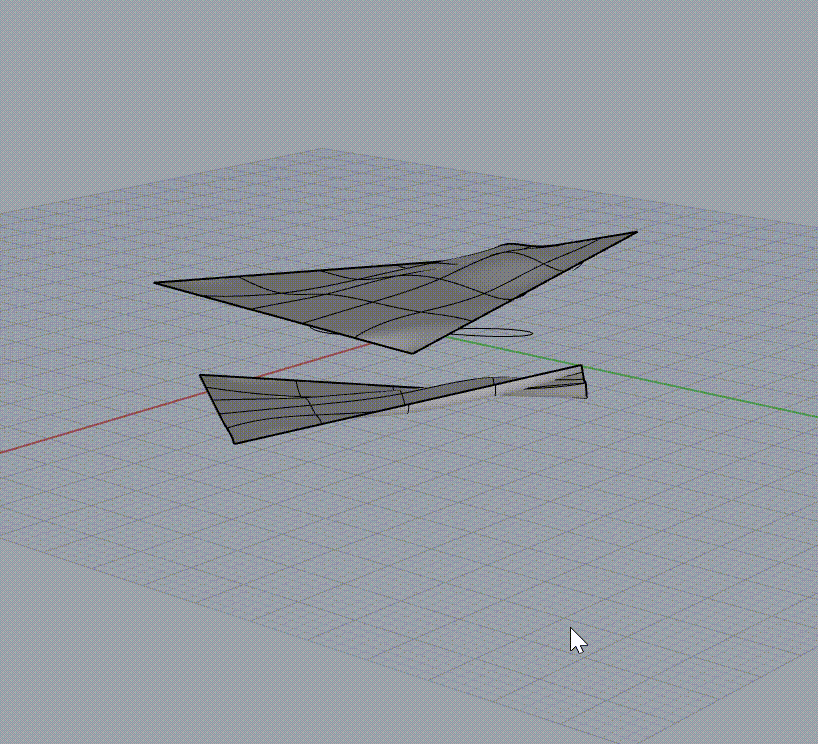

The result is shown in the figure below:
There are 4 B-spline surfaces in total (the section curve rotates around the guide rail, possible rotations: clockwise/counterclockwise/rotate 180 degrees then clockwise/rotate 180 degrees then counterclockwise). The yellow curve is the surface centerline.

Using a Reference Surface

The AMCAX::NURBSAPILinearSweep::SweepWithReferenceSurface class is used to construct a swept surface based on a guide curve on a reference surface. The normal direction of the reference surface is the direction of the linear section segment.

std::string filedir = "./data/SweepWithReferenceSurface/";
// The guide curve on the reference surface
auto guide = ReadBRepCurve(filedir + "guide.brep");

// The reference surface
auto reference = ReadBRepSurface(filedir + "surface.brep");

// The spine
auto spine = guide;

// The angle law function of section rotation around the guide
LawConstant angleLaw;
angleLaw.Set(Constants::quarter_pi, 0.0, 1.0);
// The additional length law function along the surface normal
LawConstant length1Law;
length1Law.Set(3, 0.0, 1.0);
// The additional length law function against the surface normal
LawConstant length2Law;
length2Law.Set(5, 0.0, 1.0);

// Sweep with a guide curve on the reference surface
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPILinearSweep::SweepWithReferenceSurface(guide, reference, angleLaw, length1Law, length2Law, guide, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There are 4 B-spline surfaces in total (the section curve rotates around the guide rail, possible rotations: clockwise/counterclockwise/rotate 180 degrees then clockwise/rotate 180 degrees then counterclockwise).

Using a Tangency Surface

The AMCAX::NURBSAPILinearSweep::SweepWithTangencySurface class is used to construct a linear-section swept surface (passing through the guide curve and tangent to the surface) based on a surface and a guide curve.

std::string filedir = "./data/SweepWithTangencySurface/";
// The guide curve
auto guide = ReadBRepCurve(filedir + "curve.brep");

// The tangency surface
auto tangencySurface = ReadBRepSurface(filedir + "surface.brep");

// The spine
auto spine = guide;

// Sweep with a guide curve and a surface with which the swept surface is tangent
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPILinearSweep::SweepWithTangencySurface(guide, tangencySurface, spine, spineLeftBound, spineRightBound);

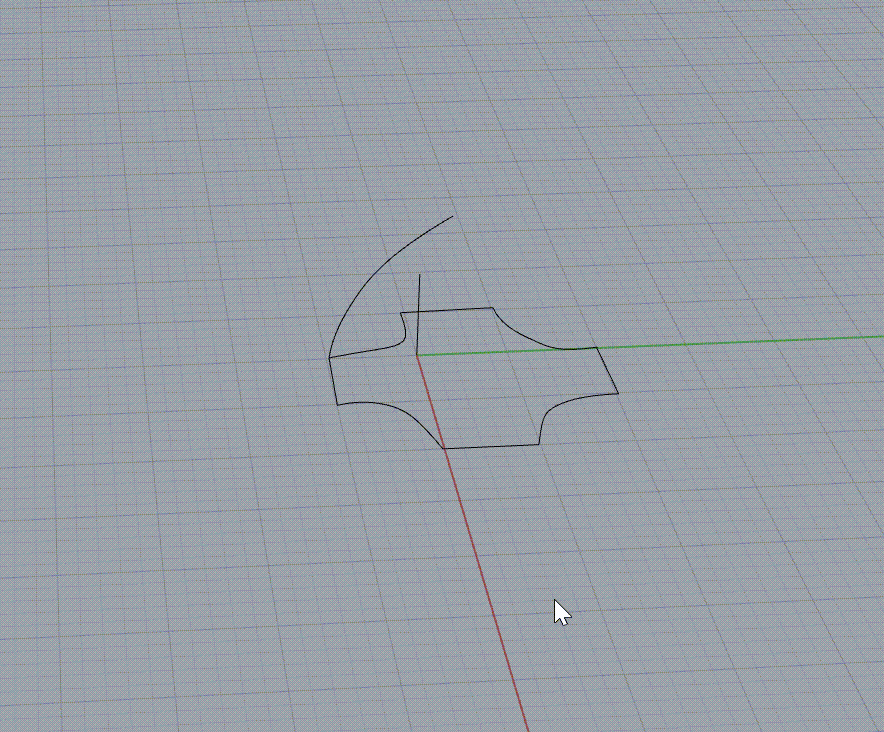

The result is shown in the figure below:
There are 2 B-spline surfaces in total.

Using Two Tangency Surfaces

The AMCAX::NURBSAPILinearSweep::SweepWithTwoTangencySurfaces class is used to construct a linear-section swept surface (tangent to the two input surfaces) based on two surfaces and a spine.

std::string filedir = "./data/SweepWithTwoTangencySurfaces/";
auto spine = ReadBRepCurve(filedir + "spine.brep");
auto tangencySurface1 = ReadBRepSurface(filedir + "surface1.brep");
auto tangencySurface2 = ReadBRepSurface(filedir + "surface2.brep");

// Build a swept surface tangency to two surfaces
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, result] = AMCAX::NURBSAPILinearSweep::SweepWithTwoTangencySurfaces(spine, tangencySurface1, tangencySurface2, spineLeftBound, spineRightBound);

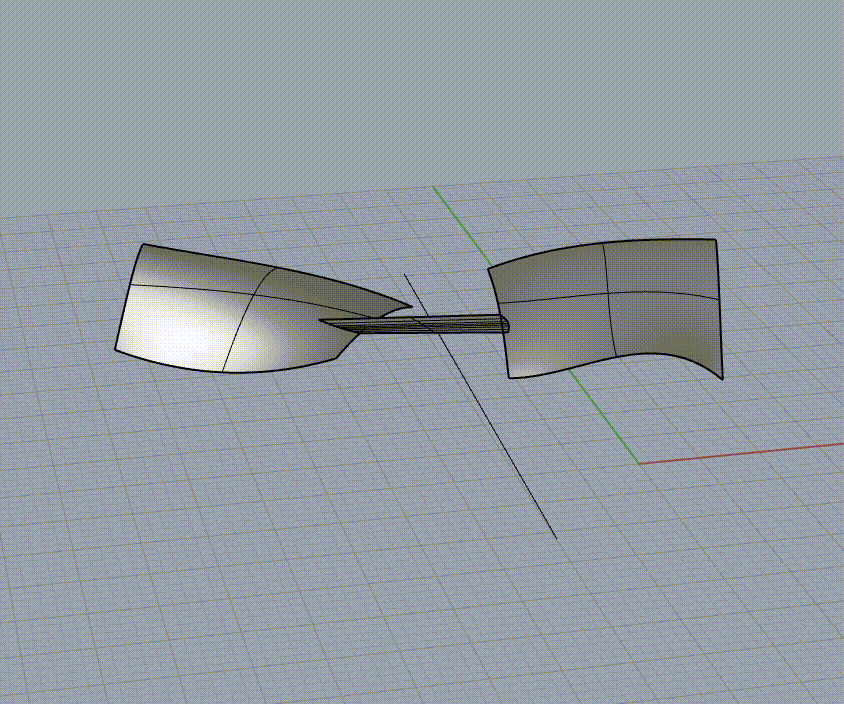

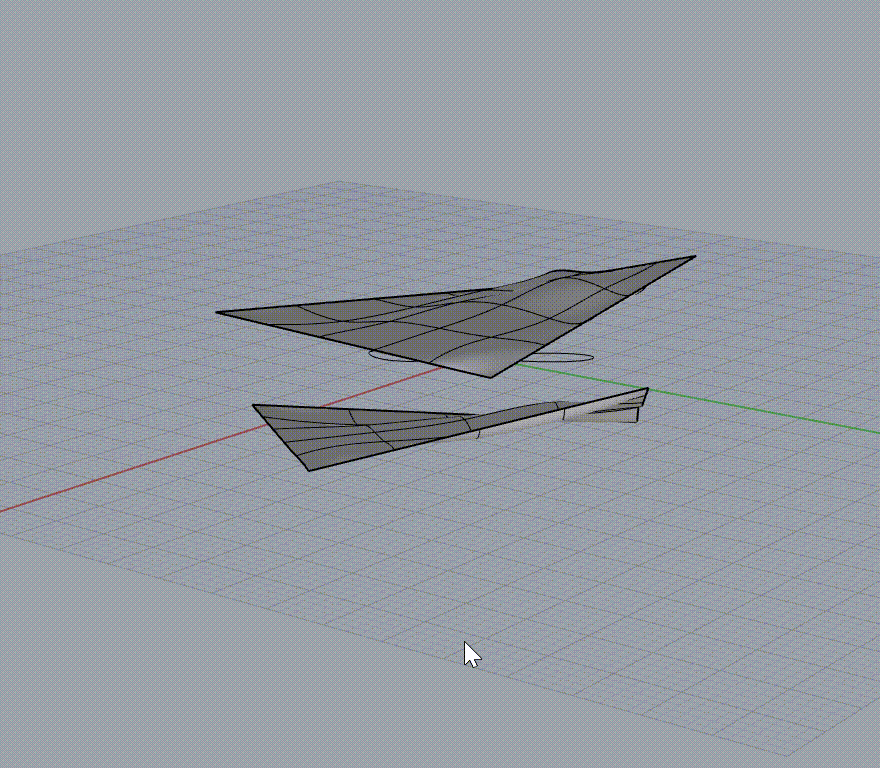

The result is shown in the figure below:
The left and right surfaces are the two input surfaces, and the middle surface is the linear-section swept surface.

Circular Sweep

The AMCAX::NURBSAPICircularSweep class provides circular sweep functionality.

Using Three Guide Curves

The AMCAX::NURBSAPICircularSweep::SweepWithThreeGuides class is used to construct a circular-section swept surface between three guide curves, where two guide curves are the surface boundaries and the other guide curve lies on the circular section.

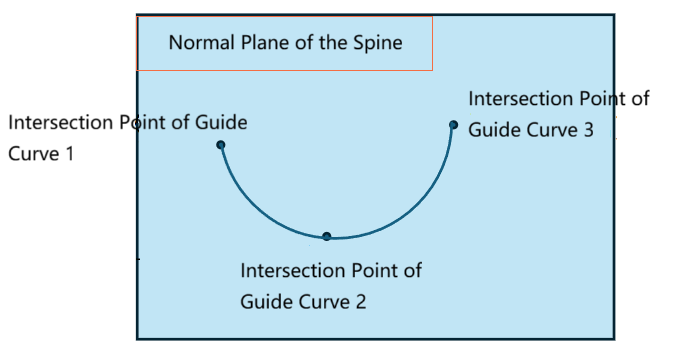

Three points on a plane determine a circle. The arc is trimmed in the order 1->2->3.

std::string filedir = "./data/SweepWithThreeGuides/";
auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto guide3 = ReadBRepCurve(filedir + "guide3.brep");
auto spine = guide1;

// Sweep with circular profile defined by three guide curves, the first guide and the last guide are the swept surface boundaries
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPICircularSweep::SweepWithThreeGuides(guide1, guide2, guide3, spine, spineLeftBound, spineRightBound);

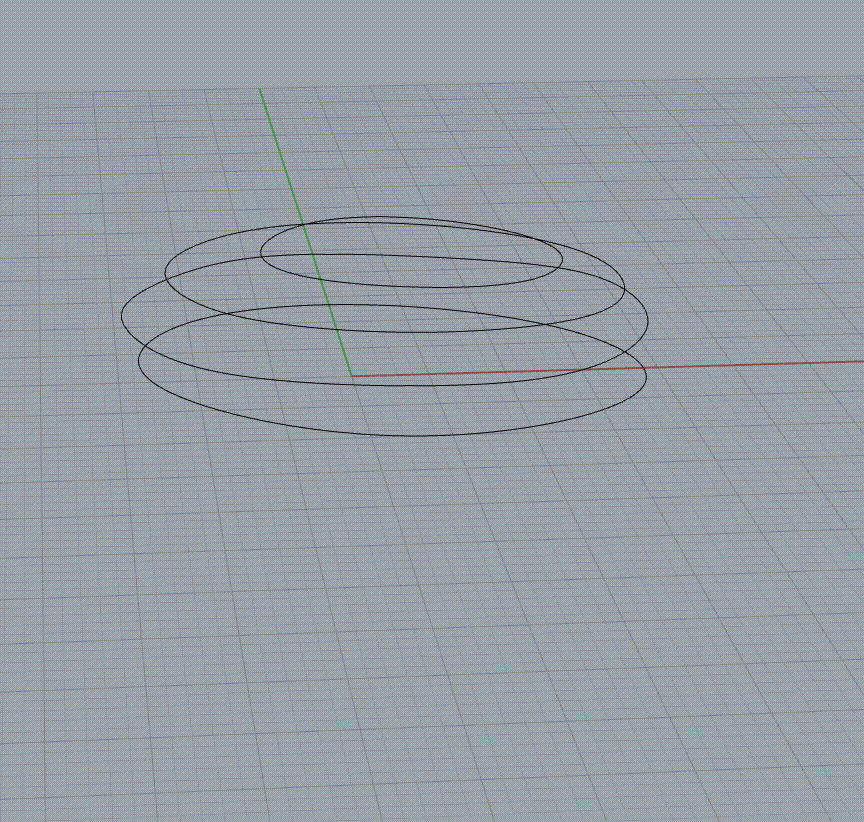

The result is shown in the figure below:
There is 1 B-spline surface in total.

Two Guide Curves and Radius

The AMCAX::NURBSAPICircularSweep::SweepWithTwoGuidesAndRadius class is used to construct a circular-section swept surface with a given radius between two guide curves, where the two guide curves are the boundaries of the swept surface.

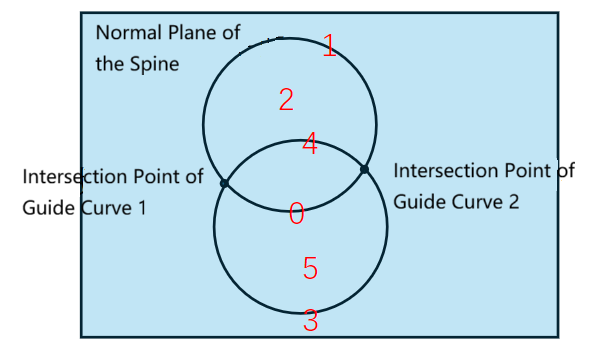

Two points on a plane + a radius determine 2 circles.

Returns 6 B-spline surfaces:

• Counterclockwise arc from guide 1 to guide 2 of circle 1
• Counterclockwise arc from guide 2 to guide 1 of circle 1
• Circle 1
• Counterclockwise arc from guide 1 to guide 2 of circle 2
• Counterclockwise arc from guide 2 to guide 1 of circle 2
• Circle 2

std::string filedir = "./data/SweepWithTwoGuidesAndRadius/";
auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto spine = ReadBRepCurve(filedir + "spine.brep");

// The law function of the radius
LawConstant radiusLaw;
radiusLaw.Set(5.0, 0.0, 1.0);

// Sweep with circular profile defined by two guide curves and the radius, the guides are the swept surface boundaries
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPICircularSweep::SweepWithTwoGuidesAndRadius(guide1, guide2, radiusLaw, spine, spineLeftBound, spineRightBound);

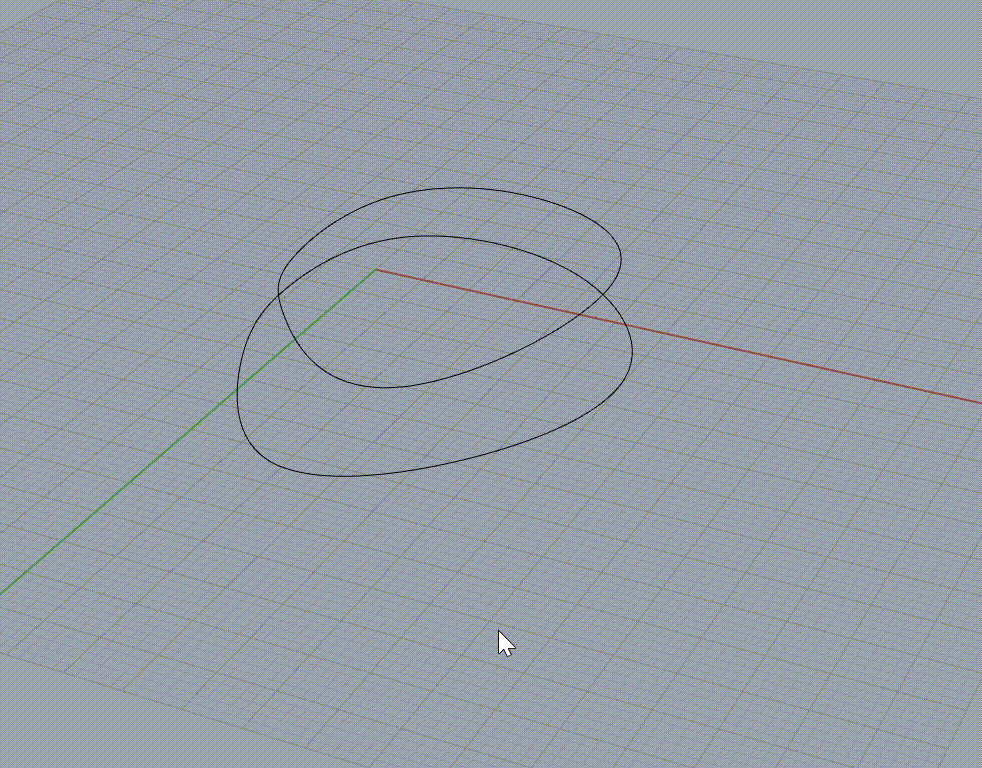

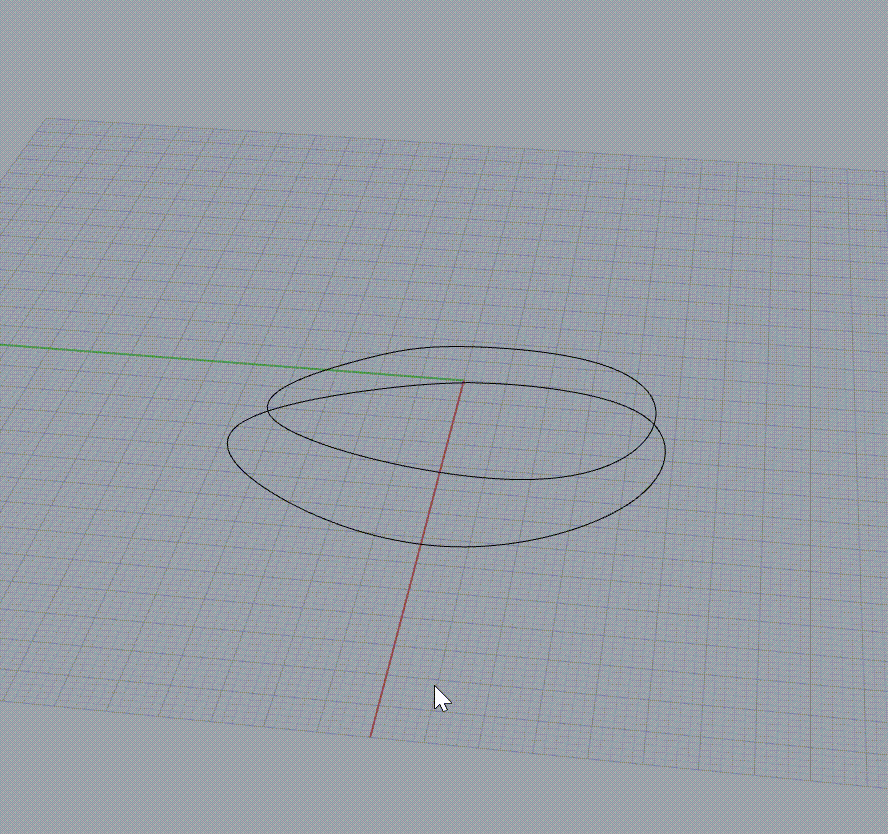

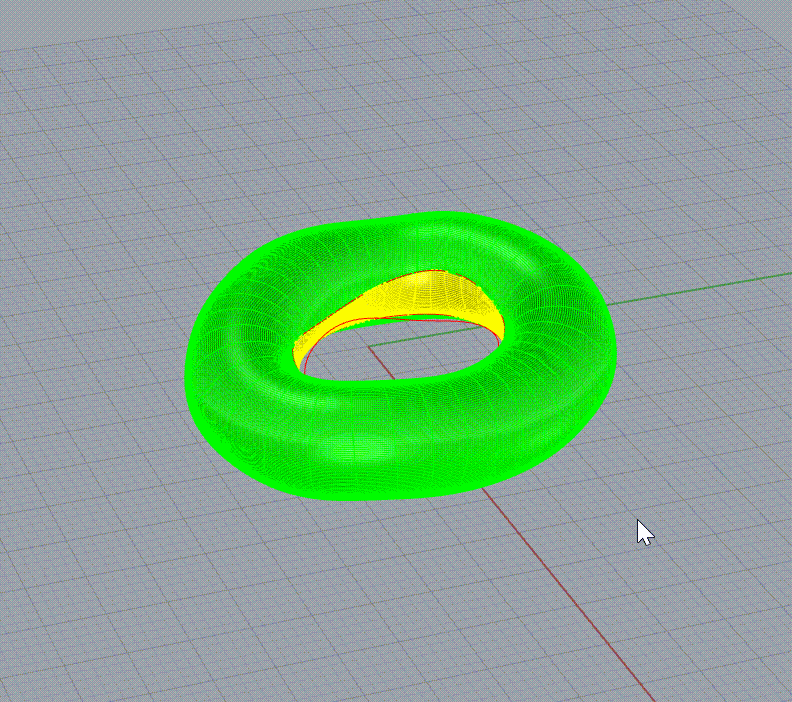

The result is shown in the figure below:
There are 6 B-spline surfaces in total.

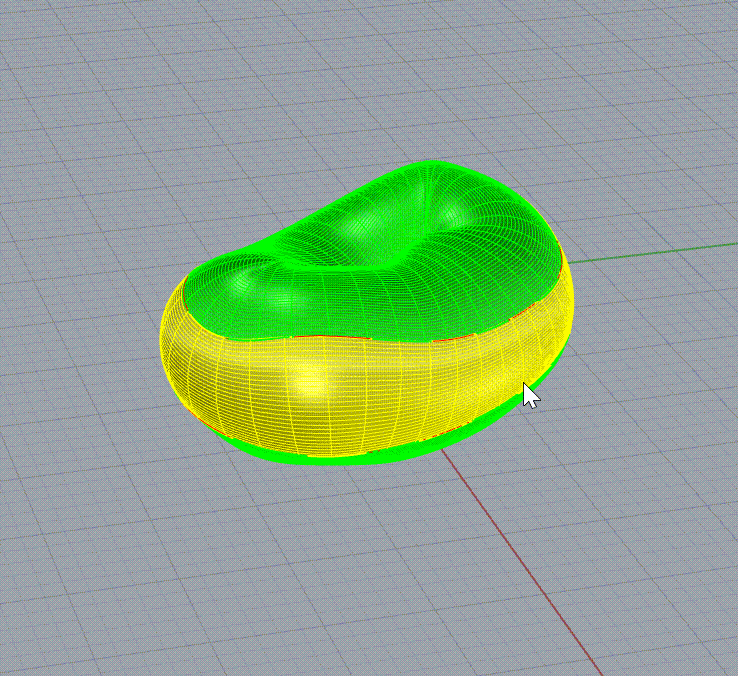

The 1st and 2nd surfaces are (different colors represent one curve):

The 3rd surface is:

The 4th and 5th surfaces are (different colors represent one curve):

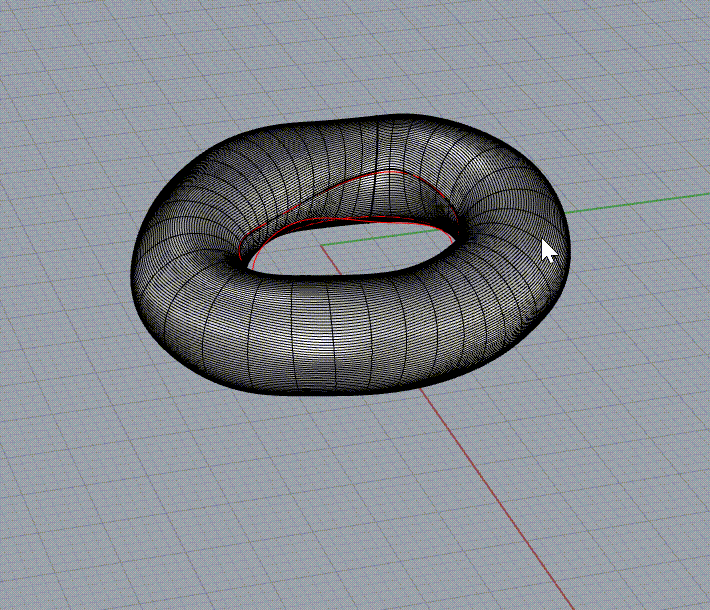

The 6th surface is:

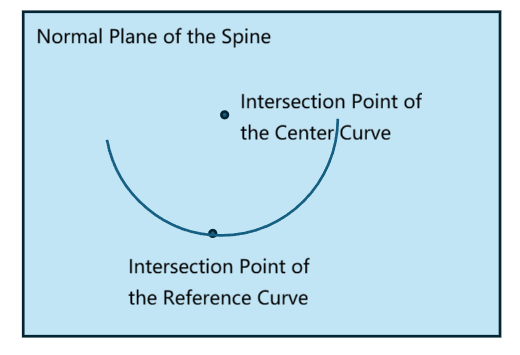

Center and Two Angles

The AMCAX::NURBSAPICircularSweep::SweepWithCenterAndTwoAngles class is used to construct a circular-section swept surface based on two guide curves and two angles, where the first guide curve is the center of the circular section, the other guide curve lies on the circular section, and the two angles represent the rotation angles of the circular section on the second guide curve.

std::string filedir = "./data/SweepWithCenterAndTwoAngles/";
auto centerCurve = ReadBRepCurve(filedir + "center.brep");
auto referenceCurve = ReadBRepCurve(filedir + "ref.brep");
auto spine = centerCurve;

//  The beginning angle of the circular profile
LawConstant angleLaw1;
angleLaw1.Set(-Constants::quarter_pi, 0.0, 1.0);

// The ending angle of the circular profile
LawConstant angleLaw2;
angleLaw2.Set(Constants::quarter_pi, 0.0, 1.0);

// Sweep with circular profile defined by a center curve, a reference curve to determine the radius and two angles to determine swept surface span
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPICircularSweep::SweepWithCenterAndTwoAngles(centerCurve, referenceCurve, angleLaw1, angleLaw2, spine, spineLeftBound, spineRightBound);

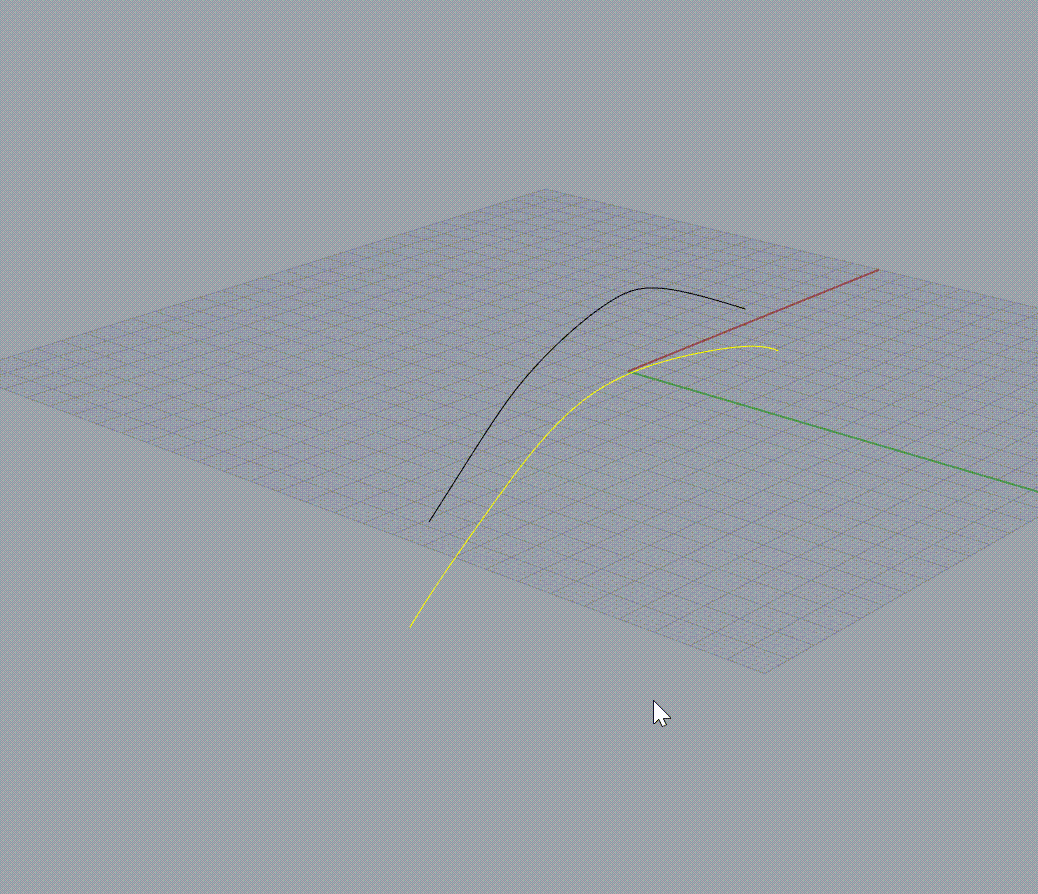

The result is shown in the figure below:
There is 1 B-spline surface in total (the yellow curve is the center curve).

Center and Radius

The AMCAX::NURBSAPICircularSweep::SweepWithCenterAndRadius class is used to construct a circular-section swept surface based on a center curve and a radius, where the radius is constructed using a LawFunction.

std::string filedir = "./data/SweepWithCenterAndRadius/";

auto centerCurve = ReadBRepCurve(filedir + "center.brep");
auto spine = centerCurve;

//  The law function of the radius
LawConstant radiusLaw;
radiusLaw.Set(5.0, 0.0, 1.0);

// Sweep with circular profile defined by a center curve and a radius
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPICircularSweep::SweepWithCenterAndRadius(centerCurve, radiusLaw, spine, spineLeftBound, spineRightBound);

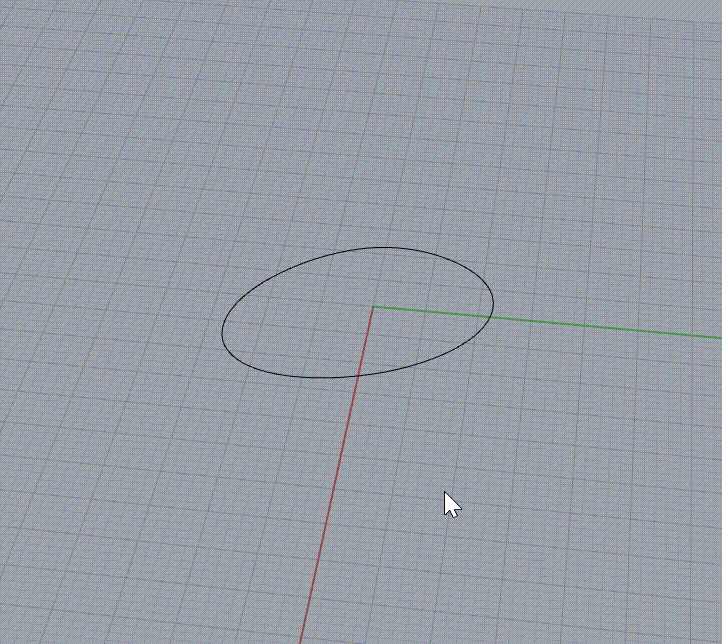

The result is shown in the figure below:
There is 1 B-spline surface in total.

Two Guide Curves and a Tangency Surface

The AMCAX::NURBSAPICircularSweep::SweepWithTwoGuidesAndTangencySurface class is used to construct a circular-section swept surface between two guide curves based on a guide curve on a reference surface and another guide curve, where the two guide curves are the surface boundaries, and the swept surface is tangent to the reference surface.

std::string filedir = "./data/SweepWithTwoGuidesAndTangencySurface/";

auto limitCurveWithTangency = ReadBRepCurve(filedir + "guide1.brep");// The guide curve on the tangency surface
auto limitCurve = ReadBRepCurve(filedir + "guide2.brep");// The guide curve not on the tangency surface
auto tangencySurface = ReadBRepSurface(filedir + "surface.brep");
auto spine = ReadBRepCurve(filedir + "spine.brep");

// Sweep with circular profile defined by two guide (or limit) curves and a tangency surface
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPICircularSweep::SweepWithTwoGuidesAndTangencySurface(limitCurveWithTangency, tangencySurface, limitCurve, spine, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There are 2 B-spline surfaces in total, which are the swept surfaces from guide curve 1 to guide curve 2 and from guide curve 2 to guide curve 1, both tangent to the reference surface. The yellow curve is the first guide curve.

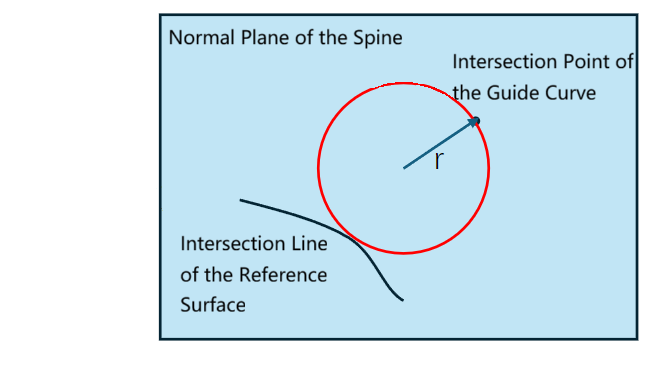

One Guide Curve and a Tangency Surface

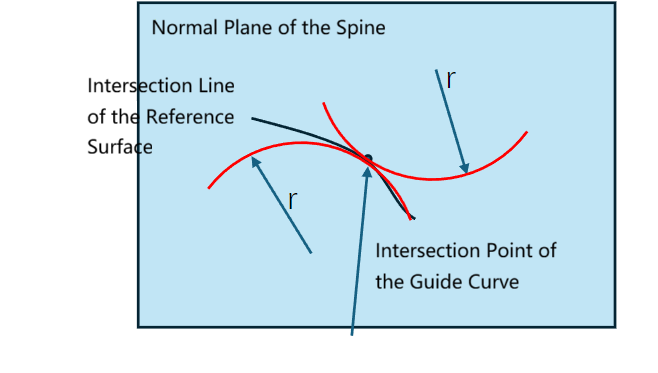

The AMCAX::NURBSAPICircularSweep::SweepWithOneGuideAndTangencySurface class is used to construct a circular-section swept surface based on one guide curve, a reference surface, and a radius, where the guide curve is the surface boundary (not on the given reference surface), the other end of the circular section lies on the reference surface, and the swept surface is tangent to the reference surface.

std::string filedir = "./data/SweepWithOneGuideAndTangencySurface/";

auto guide = ReadBRepCurve(filedir + "guide.brep");
auto tangencySurface = ReadBRepSurface(filedir + "surface.brep");
auto spine = guide;

// The law function of the radius
LawConstant radiusLaw;
radiusLaw.Set(10.0, 0.0, 1.0);

// Sweep with circular profile defined by a guide (or limit) curve and a tangency surface
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPICircularSweep::SweepWithOneGuideAndTangencySurface(guide, tangencySurface, radiusLaw, spine, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There will be several resulting surfaces. In this example, there are 4 B-spline surfaces in total, all tangent to the reference surface.

Limit Curve and Tangency Surface

The AMCAX::NURBSAPICircularSweep::SweepWithCurveOnTangencySurface class is used to construct a circular-section swept surface based on a guide curve on a reference surface, the arc radius, and the start and end angles of the arc. The surface boundaries are set by two angle LawFunctions, representing the start and end angles of the arc.

std::string filedir = "./data/SweepWithCurveOnTangencySurface/";

auto guide = ReadBRepCurve(filedir + "guide.brep");
auto tangencySurface = ReadBRepSurface(filedir + "surface.brep");
auto spine = ReadBRepCurve(filedir + "spine.brep");

// The law function of the radius
LawConstant radiusLaw;
radiusLaw.Set(10.0, 0.0, 1.0);

// The beginning angle of the circular profile
LawConstant angleLaw1;
angleLaw1.Set(0.0, 0.0, 1.0);

//  The ending angle of the circular profile
LawConstant angleLaw2;
angleLaw2.Set(Constants::pi, 0.0, 1.0);

// Sweep with circular profile defined by a guide (or limit) curve on a tangency surface
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surfaces] = NURBSAPICircularSweep::SweepWithCurveOnTangencySurface(guide, tangencySurface, radiusLaw, angleLaw1, angleLaw2, spine, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There are 2 B-spline surfaces in total, curving upwards and downwards respectively (the yellow curve is the guide curve).

Conical Sweep

The AMCAX::NURBSAPIConicalSweep class provides conic sweep functionality.

Using Two Guide Curves

The AMCAX::NURBSAPIConicalSweep::SweepWithTwoGuides class is used to construct a conic-section swept surface between two guide curves on two reference surfaces and a shape parameter (value range (0.0,1.0)), where the swept surface is tangent to the two reference surfaces.
The shape parameter represents the curvature of the conic section; the larger the value, the more curved. When the value is in the interval (0.0,0.5), it is an ellipse; when the value equals 0.5, it is a parabola; when the value is in the interval (0.5,1.0), it is a hyperbola.

std::string filedir = "./data/SweepWithTwoGuides/";

auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto spine = guide1;

auto tangencySurface1 = ReadBRepSurface(filedir + "tangency1.brep");// The first tangency surface which the first guide lies on
auto tangencySurface2 = ReadBRepSurface(filedir + "tangency2.brep");//  The second tangency surface which the second guide lies on

// The angle law function of section rotation of the first tangency direction
LawConstant angleLaw1;
angleLaw1.Set(0.0, 0.0, 1.0);

// The angle law function of section rotation of the second tangency direction
LawConstant angleLaw2;
angleLaw2.Set(0.0, 0.0, 1.0);

// The law function of parameter
LawConstant parameter;
parameter.Set(0.3, 0.0, 1.0);

// Sweep with two guides lie on two tangency surfaces
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPIConicalSweep::SweepWithTwoGuides(guide1, tangencySurface1, angleLaw1, guide2, tangencySurface2, angleLaw2, parameter, spine, spineLeftBound, spineRightBound);

The result is shown in the figure below:
There is 1 B-spline surface in total.

Using Three Guide Curves

The AMCAX::NURBSAPIConicalSweep::SweepWithThreeGuides class is used to construct a conic-section swept surface between the first and third guide curves based on two guide curves on reference surfaces and one reference curve, where the swept surface passes through each reference curve and is tangent to the two reference surfaces (the surfaces on which the first and third guide curves lie).

std::string filedir = "./data/SweepWithThreeGuides/";

auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto guide3 = ReadBRepCurve(filedir + "guide3.brep");
auto spine = guide1;

// The first tangency surface which the first guide lies on
auto tangencySurface1 = ReadBRepSurface(filedir + "surface1.brep");
// The last tangency surface which the last guide lies on
auto tangencySurface3 = ReadBRepSurface(filedir + "surface2.brep");

// The angle law function of section rotation of the first tangency direction
LawConstant angleLaw1;
angleLaw1.Set(10.0 * Constants::pi / 180.0, 0.0, 1.0);
// The angle law function of section rotation of the last tangency direction
LawConstant angleLaw3;
angleLaw3.Set(10.0 * Constants::pi / 180.0, 0.0, 1.0);

// Sweep with three guides
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPIConicalSweep::SweepWithThreeGuides(guide1, tangencySurface1, angleLaw1, guide2, guide3, tangencySurface3, angleLaw3, spine, spineLeftBound, spineRightBound);

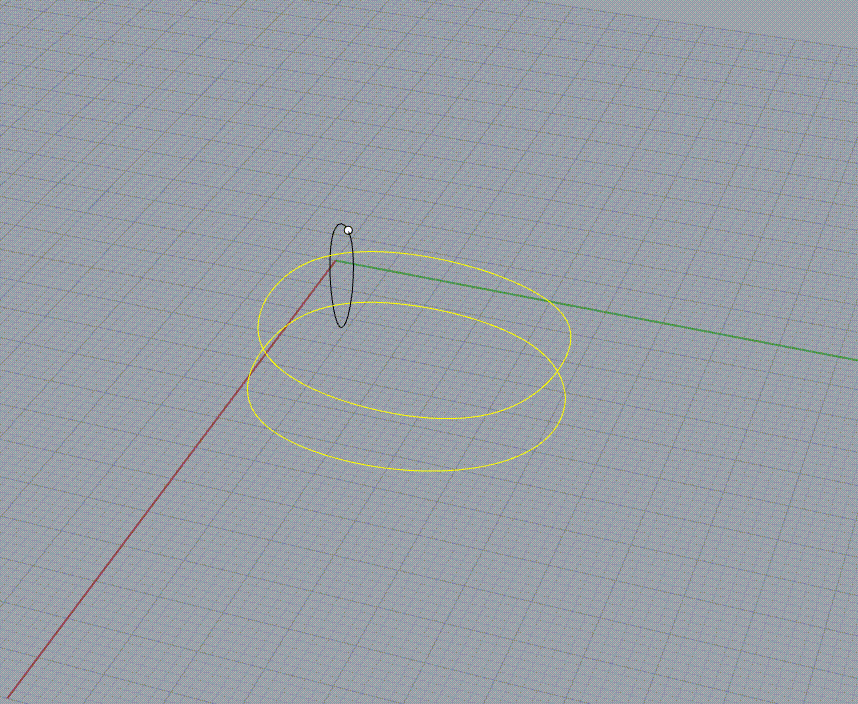

The result is shown in the figure below:
There is 1 B-spline surface in total.

Using Four Guide Curves

The AMCAX::NURBSAPIConicalSweep::SweepWithFourGuides class is used to construct a conic-section swept surface between the first and fourth reference curves based on one guide curve on a reference surface and three reference curves, where the swept surface passes through each reference curve and is tangent to the reference surface (the surface on which the first guide curve lies).

std::string filedir = "./data/SweepWithFourGuides/";

auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto guide3 = ReadBRepCurve(filedir + "guide3.brep");
auto guide4 = ReadBRepCurve(filedir + "guide4.brep");
auto spine = guide2;

// The first tangency surface which the first guide lies on
auto tangencySurface = ReadBRepSurface(filedir + "surface.brep");

// The angle law function of section rotation of the first tangency direction
LawConstant angleLaw;
angleLaw.Set(0.0, 0.0, 1.0);

// Sweep with four guides
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPIConicalSweep::SweepWithFourGuides(guide1, tangencySurface, angleLaw, guide2, guide3, guide4, spine, spineLeftBound, spineRightBound);

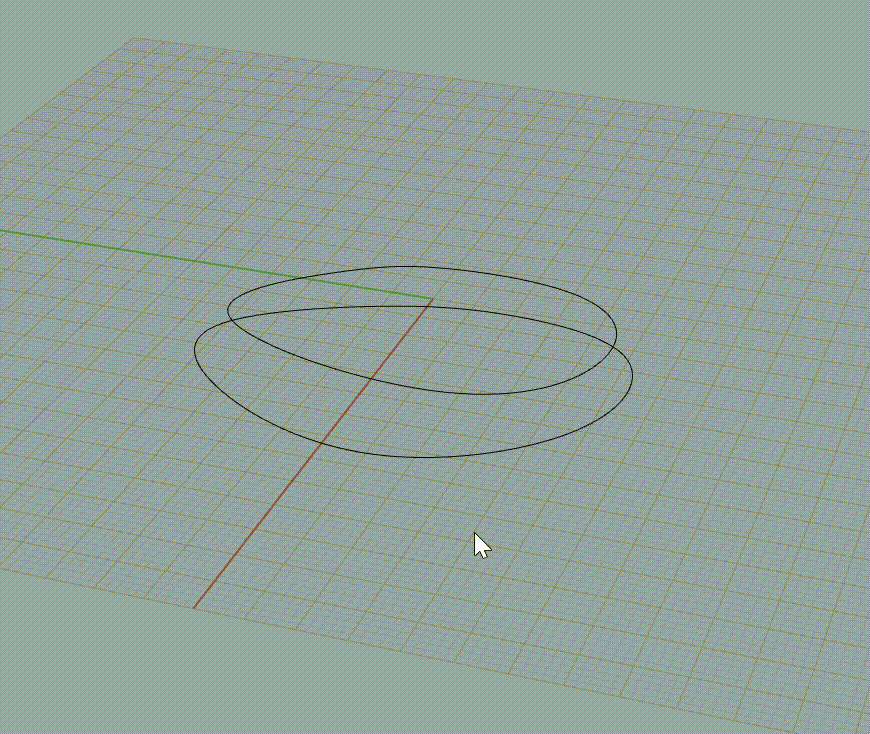

The result is shown in the figure below:
There is 1 B-spline surface in total.

Using Five Guide Curves

The AMCAX::NURBSAPIConicalSweep::SweepWithFiveGuides class is used to construct a conic-section swept surface between the first and fifth reference curves based on five reference curves, where the swept surface passes through each reference curve.

std::string filedir = "./data/SweepWithFiveGuides/";

auto guide1 = ReadBRepCurve(filedir + "guide1.brep");
auto guide2 = ReadBRepCurve(filedir + "guide2.brep");
auto guide3 = ReadBRepCurve(filedir + "guide3.brep");
auto guide4 = ReadBRepCurve(filedir + "guide4.brep");
auto guide5 = ReadBRepCurve(filedir + "guide5.brep");
auto spine = guide2;

// Sweep with five guides
double spineLeftBound = spine->FirstParameter();
double spineRightBound = spine->LastParameter();
auto [status, surface] = NURBSAPIConicalSweep::SweepWithFiveGuides(guide1, guide2, guide3, guide4, guide5, spine, spineLeftBound, spineRightBound);

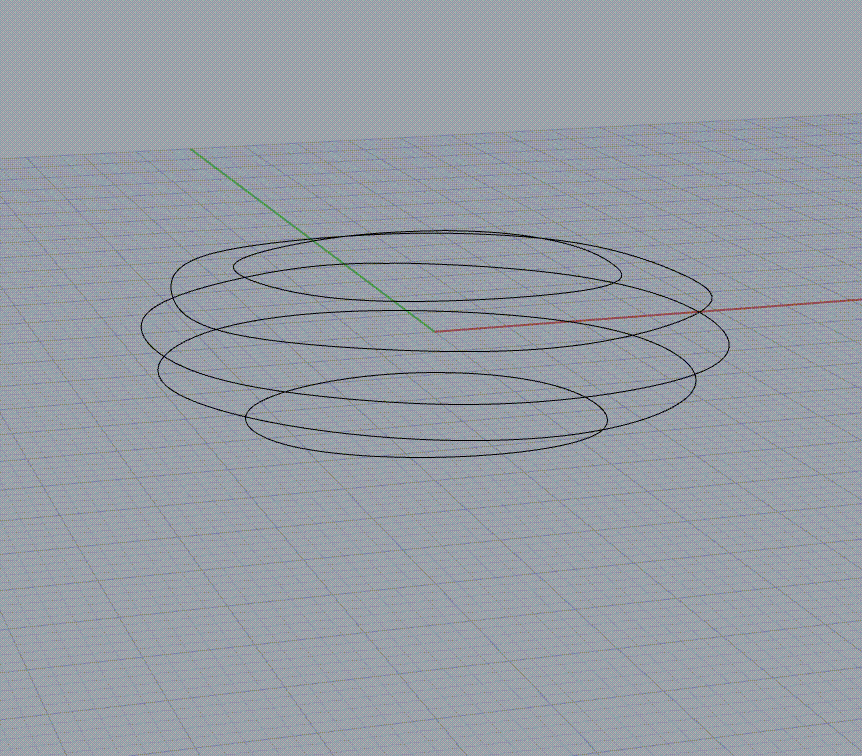

The result is shown in the figure below:
There is 1 B-spline surface in total.

Rotational Sweep

The AMCAX::NURBSAPISweepRotation::RotationSweep class is used to obtain a swept surface by rotating the profile curve around an axis while sweeping it along a rail.

std::string filedir = "./data/RotationSweep/";

std::shared_ptr<Geom3BSplineCurve> spine = ReadBRepCurve(filedir + "spine.brep");
std::shared_ptr<Geom3BSplineCurve> profile = ReadBRepCurve(filedir + "profile.brep");

// The axis
AMCAX::Point3 p(0.0, 0.0, 0.0);
AMCAX::Direction3 dir(0.0, 0.0, 5.0);
AMCAX::Axis3 axis(p, dir);

// Sweep the profile along the spine and rotate and scale around the axis
auto surface = AMCAX::NURBSAPISweepRotation::RotationSweep(profile, spine, axis);

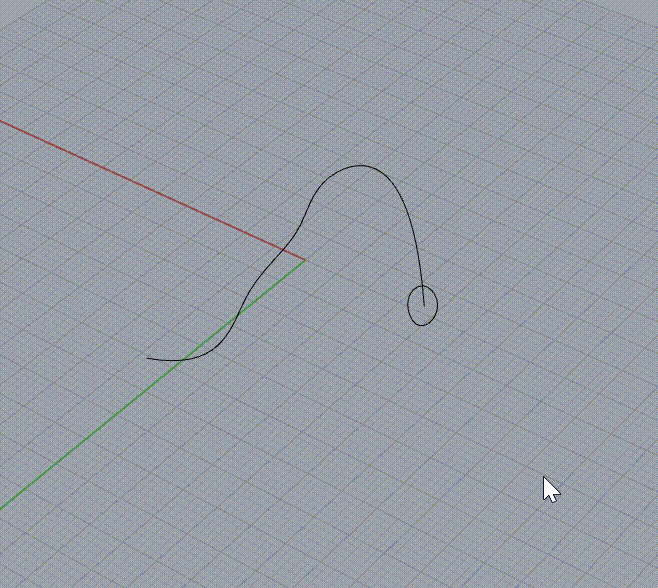

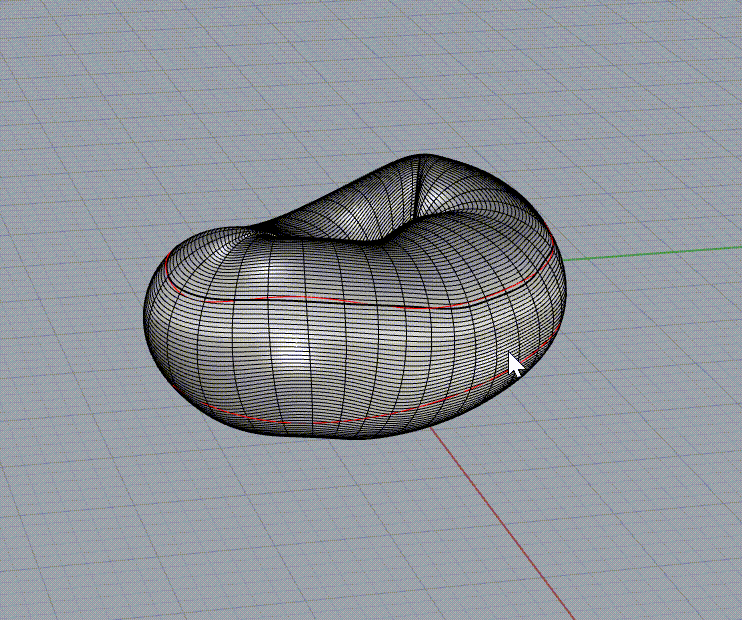

The result is shown in the figure below:
There is 1 B-spline surface in total.

Freeform Curve and Surface Edit

The freeform curve and surface edit functions include rebuil, combine, explode, trim, untrim, extend, approx, interpolation, and conversion.
To be down.

Freeform Modeling

The freeform modeling functions include blend, join, offset on surfaces, edge replacement, and more.

Blend

The AMCAX::NURBSAPIBlend class provides blending functionality. Blending includes:
AMCAX::NURBSAPIBlend::BlendCurves constructs a blend curve between two curves.
AMCAX::NURBSAPIBlend::BlendSurfaces constructs a blend surface between two surfaces.
AMCAX::NURBSAPIBlend::BlendFaces selects two edges from TopoFace (trimmed or untrimmed) and constructs a blended face. The result is similar to BlendSurfaces, except the input changes from geometry to TopoFace.

Blend Curve

To be down.

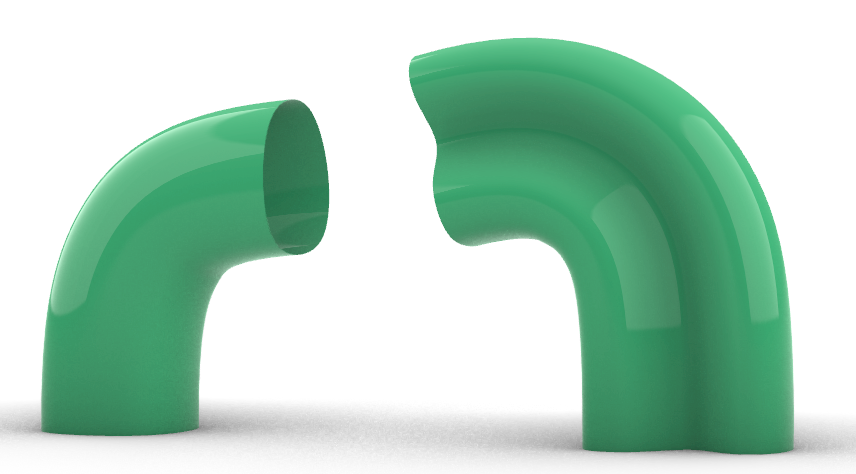

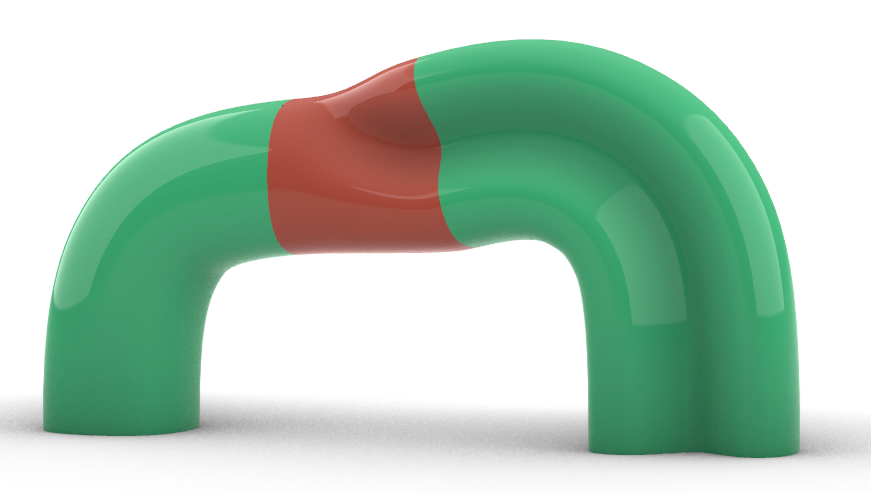

Blend Surface

To be down.

Join

AMCAX::NURBSAPIJoin class provides join functionality

Join Curve

AMCAX::NURBSAPIJoin::JoinCurvePrepare sorts the input curves in sequence based on their connection and divides them into groups, determining whether each curve in the group should be reversed and whether the curves can form a closed loop. This function supports sorting and grouping both 3D curves and their corresponding pcurves simultaneously.
AMCAX::NURBSAPIJoin::JoinCurves combines several groups of curves into multiple curves or combines one group into a single curve.
To be down.

Join Surface

AMCAX::NURBSAPIJoin::JoinSurfacesPrepare sorts the input surfaces in a sequential order, connecting them end-to-end, and determines whether the connecting edges of the surfaces are U-isoparametric curves or V-isoparametric curves, whether the surfaces should be reversed in the front-to-back direction, whether the direction of the isoparametric curves along the edges should be reversed, and whether these surfaces can be joined to form periodic surfaces in the U and V directions.

AMCAX::NURBSAPIJoin::JoinSurfaces combines several sets of surfaces into multiple surfaces or combines one set of surfaces into a single surface.
To be down.

Offset on Surface

The AMCAX::NURBSAPIOffsetCurveOnSurface class provides the functionality to offset on surfaces. Among them, AMCAX::NURBSAPIOffsetCurveOnSurface::OffsetCurveOnSurface offsets a curve on a surface by a certain length while keeping the result on the surface;
AMCAX::NURBSAPIOffsetCurveOnSurface::OffsetCurveOnSurfaceToPoint offsets a curve on a surface while keeping it on the surface and through a point on the surface.
To be down.

Edge Replacement

The AMCAX::NURBSAPIReplaceEdge class provides edge replacement functionality. AMCAX::NURBSAPIReplaceEdge::ReplaceEdgeWithCurve replaces multiple edges of a face with curves; AMCAX::NURBSAPIReplaceEdge::ReplaceEdgeWithLine replaces multiple edges of a face with straight lines.
To be down.
