Geometry modeling

Construction of Curves and Surfaces

Abstract Curves and Surfaces

Curves

Lines

The AMCAX::MakeLine2 class is used to create a two-dimensional line.

AMCAX::Point2 point(1., 2.);
AMCAX::Direction2 dir(1., 0.);
// Construct a line
AMCAX::MakeLine2 ml(point, dir);

// Get the constructed line
AMCAX::Line2 l = ml.Value();

// Make a 2d edge
double p1 = 0.;
double p2 = 1.;
AMCAX::TopoShape line2d = AMCAX::MakeEdge2d(l, p1, p2);

The AMCAX::MakeLine3 class is used to create a three-dimensional line.

AMCAX::Point3 point(1., 2., 3.);
AMCAX::Direction3 dir(1., 1., 1.);
// Construct a line
AMCAX::MakeLine3 ml(point, dir);

// Get the constructed line
AMCAX::Line3 l = ml.Value();

// Make a 3d edge
double p1 = 0.;
double p2 = 1.;
AMCAX::TopoShape line3d = AMCAX::MakeEdge(l, p1, p2);

Circles

The AMCAX::MakeCircle2 class is used to create a two-dimensional circle.

AMCAX::Frame2 frame;
double radius = 2.;
// Make a 2D circle
AMCAX::MakeCircle2 mc(frame, radius);

// Get the constructed circle
AMCAX::Circle2 c = mc.Value();

// Make a 2d edge
AMCAX::TopoShape circle2d = AMCAX::MakeEdge2d(c);

The AMCAX::MakeCircle3 class is used to create a three-dimensional circle.

AMCAX::Frame3 frame;
double radius = 3.;
// Make a 3D circle
AMCAX::MakeCircle3 mc(frame, radius);

// Get the constructed circle
AMCAX::Circle3 c = mc.Value();

// Make a 3d edge
AMCAX::TopoShape circle3d = AMCAX::MakeEdge(c);

A circle can also be constructed from three points, as shown in the 2D example below.

// Define three points
AMCAX::Point2 A(1., 0.);
AMCAX::Point2 B(0., 1.);
AMCAX::Point2 C(0., -1.);

// Make a 2d circle
AMCAX::MakeCircle2 mc(A, B, C);

// Get the constructed circle
AMCAX::Circle2 c = mc.Value();

// Make a 2d edge
AMCAX::TopoShape circle2d = AMCAX::MakeEdge2d(c);

In two-dimensional space, if a point on the arc, the center of the circle, and the radius are known, the arc can be constructed as follows: first determine the radius from the center and the point on the arc, then calculate the endpoint of the arc through rotational transformation.

// Define points
AMCAX::Point2 A(1., 0.);
AMCAX::Point2 center(0., 0.);

// Calculate radius
double radius = center.Distance(A);

// Rotate point A around center by theta degree to get point B
double theta = 270.;
double thetaRad = theta * AMCAX::Constants::pi / 180.0;// Convert angle from degree to radian
AMCAX::Transformation2 transform;
transform.SetRotation(center, thetaRad);
AMCAX::Point2 B = A.Transformed(transform);

// Make a 2d circle
AMCAX::MakeCircle2 mc(center, radius);

// Get the constructed circle
AMCAX::Circle2 c = mc.Value();

// Make a 2d edge
AMCAX::TopoEdge circle2d = AMCAX::MakeEdge2d(c, A, B);

Ellipses

The AMCAX::MakeEllipse2 class is used to create a two-dimensional ellipse.

AMCAX::Frame2 frame;
double majorRadius = 2.;
double minorRadius = 1.;
// Make a 2d ellipse
AMCAX::MakeEllipse2 me(frame, majorRadius, minorRadius);

// Get the constructed ellipse
AMCAX::Ellipse2 e = me.Value();

// Make a 2d edge
AMCAX::TopoShape ellipse2d = AMCAX::MakeEdge2d(e);

The AMCAX::MakeEllipse3 class is used to create a three-dimensional ellipse.

AMCAX::Frame3 frame;
double majorRadius = 4.;
double minorRadius = 2.;
// Make a 3d ellipse
AMCAX::MakeEllipse3 me(frame, majorRadius, minorRadius);

// Get the constructed ellipse
AMCAX::Ellipse3 e = me.Value();

// Make a 3d edge
AMCAX::TopoShape ellipse3d = AMCAX::MakeEdge(e);

Hyperbolas

The AMCAX::MakeHyperbola2 class is used to create a two-dimensional hyperbola.

AMCAX::Frame2 frame;
double majorRadius = 2.;
double minorRadius = 1.;
// Make a 2d hyperbola
AMCAX::MakeHyperbola2 mh(frame, majorRadius, minorRadius);

// Get the constructed hyperbola
AMCAX::Hyperbola2 h = mh.Value();

// Make a 2d edge
double p1 = -1.;
double p2 = 1.;
AMCAX::TopoShape hyperbola2d = AMCAX::MakeEdge2d(h, p1, p2);

The AMCAX::MakeHyperbola3 class is used to create a three-dimensional hyperbola.

AMCAX::Frame3 frame;
double majorRadius = 4.;
double minorRadius = 2.;
// Make a 3d hyperbola
AMCAX::MakeHyperbola3 mh(frame, majorRadius, minorRadius);

// Get the constructed hyperbola
AMCAX::Hyperbola3 h = mh.Value();

// Make a 3d edge
double p1 = -1.;
double p2 = 1.;
AMCAX::TopoShape hyperbola3d = AMCAX::MakeEdge(h, p1, p2);

Parabolas

The AMCAX::MakeParabola2 class is used to create a two-dimensional parabola.

AMCAX::Frame2 frame;
double focal = 2.;
// Make a 2d parabola
AMCAX::MakeParabola2 mp(frame, focal);

// Get the constructed parabola
AMCAX::Parabola2 p = mp.Value();

// Make a 2d edge
double p1 = -1.;
double p2 = 1.;
AMCAX::TopoShape parabola2d = AMCAX::MakeEdge2d(p, p1, p2);

The AMCAX::MakeParabola3 class is used to create a three-dimensional parabola.

AMCAX::Frame3 frame;
double focal = 3.;
// Make a 3d parabola
AMCAX::MakeParabola3 mp(frame, focal);

// Get the constructed parabola
AMCAX::Parabola3 p = mp.Value();

// Make a 3d edge
double p1 = -1.;
double p2 = 1.;
AMCAX::TopoShape Parabola3d = AMCAX::MakeEdge(p, p1, p2);

Surfaces

Planes

The AMCAX::MakePlane3 class is used to create a three-dimensional plane. Note: The plane is infinite, so to output to a file, use AMCAX::MakeFace and set the start and end parameters in the u and v directions.

AMCAX::Frame3 frame;
// Construct a plane
AMCAX::MakePlane3 mpl(frame);

// Get the constructed plane
AMCAX::Plane pl = mpl.Value();

// Make a face
double uMin = 0.;
double uMax = 2.;
double vMin = 0.;
double vMax = 2.;
AMCAX::TopoShape plane = AMCAX::MakeFace(pl, uMin, uMax, vMin, vMax);

Conical Surfaces

The AMCAX::MakeCone3 class is used to create a conical surface. Note: The conical surface is infinite along the axis direction, so to output to a file, use AMCAX::MakeFace and set the start and end parameters in the u and v directions.

AMCAX::Point3 p1(0., 0., 0.);// The first point of the axis
AMCAX::Point3 p2(1., 2., 3.);// The second point of the axis
double r1 = 2.;// The radius of the section circle at the first point
double r2 = 1.;// The radius of the section circle at the second point
// Construct a cone
AMCAX::MakeCone3 mco(p1, p2, r1, r2);

// Get the constructed cone
AMCAX::Cone co = mco.Value();

// Make a face
double uMin = 0.;
double uMax = 2.;
double vMin = 0.;
double vMax = 2.;
AMCAX::TopoShape cone = AMCAX::MakeFace(co, uMin, uMax, vMin, vMax);

Cylindrical Surfaces

The AMCAX::MakeCylinder3 class is used to create a cylindrical surface. Note: The cylindrical surface is infinite along the axis direction, so to output to a file, use AMCAX::MakeFace and set the start and end parameters in the u and v directions.

AMCAX::Frame3 frame;
double radius = 2.;
// Construct a cylinder
AMCAX::MakeCylinder3 mcy(frame, radius);

// Get the constructed cylinder
AMCAX::Cylinder cy = mcy.Value();

// Make a face
double uMin = 0.;
double uMax = 2.;
double vMin = 0.;
double vMax = 2.;
AMCAX::TopoShape cylinder = AMCAX::MakeFace(cy, uMin, uMax, vMin, vMax);

Complete Geometric Curves and Surfaces

Curves

Lines

The AMCAX::MakeGeom2Line class is used to create a two-dimensional geometric line.

AMCAX::Point2 point(0.0, 0.0);
AMCAX::Direction2 dir(1.0, 0.0);
// Construct a geometric line
AMCAX::MakeGeom2Line mgl(point, dir);

// Get the constructed line
std::shared_ptr<AMCAX::Geom2Line> geomline2d = mgl.Value();

// Make a 2d edge
double p1 = 0.;
double p2 = 1.;
AMCAX::TopoShape line2d = AMCAX::MakeEdge2d(geomline2d, p1, p2);

The AMCAX::MakeGeom3Line class is used to create a three-dimensional geometric line.

AMCAX::Point3 point(0.0, 0.0, 1.0);
AMCAX::Direction3 dir(1.0, 2.0, 3.0);
// Construct a geometric line
AMCAX::MakeGeom3Line mgl(point, dir);

// Get the constructed line
std::shared_ptr<AMCAX::Geom3Line> geomline3d = mgl.Value();

// Make a 3d edge
double p1 = 0.;
double p2 = 1.;
AMCAX::TopoShape line3d = AMCAX::MakeEdge(geomline3d, p1, p2);

Circles

The AMCAX::MakeGeom2Circle class is used to create a two-dimensional geometric circle.

AMCAX::Frame2 frame;
double radius = 3.;
// Construct a geometric circle
AMCAX::MakeGeom2Circle mgc(frame, radius);

// Get the constructed circle
std::shared_ptr<AMCAX::Geom2Circle> geomcircle2d = mgc.Value();

// Make a 2d edge
AMCAX::TopoShape circle2d = AMCAX::MakeEdge2d(geomcircle2d);

The AMCAX::MakeGeom3Circle class is used to create a three-dimensional geometric circle.

AMCAX::Frame3 frame;
double radius = 2.;
// Construct a geometric circle
AMCAX::MakeGeom3Circle mgc(frame, radius);

// Get the constructed circle
std::shared_ptr<AMCAX::Geom3Circle> geomcircle3d = mgc.Value();

// Make a 3d edge
AMCAX::TopoShape circle3d = AMCAX::MakeEdge(geomcircle3d);

Ellipses

The AMCAX::MakeGeom2Ellipse class is used to create a two-dimensional geometric ellipse.

AMCAX::Frame2 frame;
double majorRadius = 2.;
double minorRadius = 1.;
// Construct a geometric ellipse
AMCAX::MakeGeom2Ellipse mge(frame, majorRadius, minorRadius);

// Get the constructed ellipse
std::shared_ptr<AMCAX::Geom2Ellipse> geomellipse2d = mge.Value();

// Make a 2d edge
AMCAX::TopoShape ellipse2d = AMCAX::MakeEdge2d(geomellipse2d);

The AMCAX::MakeGeom3Ellipse class is used to create a three-dimensional geometric ellipse.

AMCAX::Frame3 frame;
double majorRadius = 4.;
double minorRadius = 2.;
// Construct a geometric ellipse
AMCAX::MakeGeom3Ellipse mge(frame, majorRadius, minorRadius);

// Get the constructed ellipse
std::shared_ptr<AMCAX::Geom3Ellipse> geomellipse3d = mge.Value();

// Make a 3d edge
AMCAX::TopoShape ellipse3d = AMCAX::MakeEdge(geomellipse3d);

Hyperbolas

The AMCAX::MakeGeom2Hyperbola class is used to create a two-dimensional geometric hyperbola.

AMCAX::Frame2 frame;
double majorRadius = 4.;
double minorRadius = 2.;
// Construct a geometric hyperbola
AMCAX::MakeGeom2Hyperbola mgh(frame, majorRadius, minorRadius);

// Get the constructed hyperbola
std::shared_ptr<AMCAX::Geom2Hyperbola> geomhyperbola2d = mgh.Value();

// Make a 2d edge
double p1 = -1.;
double p2 = 1.;
AMCAX::TopoShape hyperbola2d = AMCAX::MakeEdge2d(geomhyperbola2d, p1, p2);

The AMCAX::MakeGeom3Hyperbola class is used to create a three-dimensional geometric hyperbola.

AMCAX::Frame3 frame;
double majorRadius = 2.;
double minorRadius = 1.;
// Construct a geometric hyperbola
AMCAX::MakeGeom3Hyperbola mgh(frame, majorRadius, minorRadius);

// Get the constructed hyperbola
std::shared_ptr<AMCAX::Geom3Hyperbola> geomhyperbola3d = mgh.Value();

// Make a 3d edge
double p1 = -1.;
double p2 = 1.;
AMCAX::TopoShape hyperbola3d = AMCAX::MakeEdge(geomhyperbola3d, p1, p2);

Parabolas

The AMCAX::MakeGeom2Parabola class is used to create a two-dimensional geometric parabola.

AMCAX::Frame2 frame;
double focal = 2.;
// Construct a geometric parabola
AMCAX::MakeGeom2Parabola mgp(frame, focal);

// Get the constructed parabola
std::shared_ptr<AMCAX::Geom2Parabola> geomparabola2d = mgp.Value();

// Make a 2d edge
double p1 = -3.;
double p2 = 3.;
AMCAX::TopoShape parabola2d = AMCAX::MakeEdge2d(geomparabola2d, p1, p2);

The AMCAX::MakeGeom3Parabola class is used to create a three-dimensional geometric parabola.

AMCAX::Frame3 frame;
double focal = 4.;
// Construct a geometric parabola
AMCAX::MakeGeom3Parabola mgp(frame, focal);

// Get the constructed parabola
std::shared_ptr<AMCAX::Geom3Parabola> geomparabola3d = mgp.Value();

// Make a 3d edge
double p1 = -3.;
double p2 = 3.;
AMCAX::TopoShape parabola3d = AMCAX::MakeEdge(geomparabola3d, p1, p2);

Surfaces

Planes

The AMCAX::MakeGeom3Plane class is used to create a geometric plane. Note: The plane is infinite, so to output to a file, use AMCAX::MakeFace and set the start and end parameters in the u and v directions.

AMCAX::Point3 point(0.0, 0.0, 1.0);
AMCAX::Direction3 dir(1., 2., 3.);
// Construct a geometric plane
AMCAX::MakeGeom3Plane mgp(point, dir);

// Get the constructed plane
std::shared_ptr<AMCAX::Geom3Plane> geomplane = mgp.Value();

// Make a face
double uMin = -1.;
double uMax = 1.;
double vMin = -1.;
double vMax = 1.;
AMCAX::TopoShape plane = AMCAX::MakeFace(geomplane, uMin, uMax, vMin, vMax, AMCAX::Precision::Confusion());

Conical Surfaces

The AMCAX::MakeGeom3ConicalSurface class is used to create a geometric conical surface. Note: The conical surface is infinite along the axis direction, so to output to a file, use AMCAX::MakeFace and set the start and end parameters in the u and v directions.

AMCAX::Frame3 frame;
double radius = 2.;
double angle = AMCAX::Constants::quarter_pi;
// Construct a geometric conical surface
AMCAX::MakeGeom3ConicalSurface mgc(frame, radius, angle);

// Get the constructed conical surface
std::shared_ptr<AMCAX::Geom3ConicalSurface> geomconicalsurface = mgc.Value();

// Make a face
double uMin = 0.;
double uMax = 2 * AMCAX::Constants::pi * radius;
double vMin = 0.;
double vMax = 100.;
AMCAX::TopoShape conicalsurface = AMCAX::MakeFace(geomconicalsurface, uMin, uMax, vMin, vMax, AMCAX::Precision::Confusion());

Cylindrical Surfaces

The AMCAX::MakeGeom3CylindricalSurface class is used to create a geometric cylindrical surface. Note: The cylindrical surface is infinite along the axis direction, so to output to a file, use AMCAX::MakeFace and set the start and end parameters in the u and v directions.

AMCAX::Frame3 frame;
double radius = 2.;
// Construct a geometric cylindrical surface
AMCAX::MakeGeom3CylindricalSurface mgcy(frame, radius);

// Get the constructed cylindrical surface
std::shared_ptr<AMCAX::Geom3CylindricalSurface> geomcylindricalsurface = mgcy.Value();

// Make a face
double uMin = 0.;
double uMax = 2 * AMCAX::Constants::pi * radius;
double vMin = 0.;
double vMax = 3.;
AMCAX::TopoShape cylindricalsurface = AMCAX::MakeFace(geomcylindricalsurface, uMin, uMax, vMin, vMax, AMCAX::Precision::Confusion());

Parameter Domain Trimmed Curves and Surfaces

Curves

Line Segments

The AMCAX::MakeSegment2d class is used to create a two-dimensional line segment.

AMCAX::Point2 p1(0., 0.);
AMCAX::Point2 p2(1., 3.);
// Construct a line segment
AMCAX::MakeSegment2d ms2d(p1, p2);

// Get the constructed line segment
std::shared_ptr<AMCAX::Geom2TrimmedCurve> s2d = ms2d.Value();

// Make a 2d edge
AMCAX::TopoShape segment2d = AMCAX::MakeEdge2d(s2d);

The AMCAX::MakeSegment class is used to create a three-dimensional line segment.

AMCAX::Point3 p1(0., 0., 0.);
AMCAX::Point3 p2(1., 2., 3.);
// Construct a line segment
AMCAX::MakeSegment ms3d(p1, p2);

// Get the constructed line segment
std::shared_ptr<AMCAX::Geom3TrimmedCurve> s3d = ms3d.Value();

// Make a 3d edge
AMCAX::TopoShape segment3d = AMCAX::MakeEdge(s3d);

Circular Arcs

The AMCAX::MakeArcOfCircle2d class is used to create a two-dimensional circular arc.

AMCAX::Frame2 frame;
double radius = 2.;
AMCAX::Circle2 c(frame, radius);

// Construct an arc of circle
double alpha1 = 0.;
double alpha2 = 2.;
AMCAX::MakeArcOfCircle2d marc(c, alpha1, alpha2, true);

// Get the constructed arc of circle
std::shared_ptr<AMCAX::Geom2TrimmedCurve> arcofcircle = marc.Value();

// Make a 2d edge
AMCAX::TopoShape arcofcircle2d = AMCAX::MakeEdge2d(arcofcircle);

The AMCAX::MakeArcOfCircle class is used to create a three-dimensional circular arc.

AMCAX::Frame3 frame;
double radius = 3.;
AMCAX::Circle3 c(frame, radius);

// Construct an arc of circle
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfCircle marc(c, alpha1, alpha2, true);

// Get the constructed arc of circle
std::shared_ptr<AMCAX::Geom3TrimmedCurve> arcofcircle = marc.Value();

// Make a 2d edge
AMCAX::TopoShape arcofcircle3d = AMCAX::MakeEdge(arcofcircle);

Elliptical Arcs

The AMCAX::MakeArcOfEllipse2d class is used to create a two-dimensional elliptical arc.

AMCAX::Frame2 frame;
double majorRadius = 2.;
double minorRadius = 1.;
AMCAX::Ellipse2 e(frame, majorRadius, minorRadius);

// Construct an arc of ellipse
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfEllipse2d marce(e, alpha1, alpha2, true);

// Get the constructed arc of ellipse
std::shared_ptr<AMCAX::Geom2TrimmedCurve> arcofellipse = marce.Value();

// Make a 2d edge
AMCAX::TopoShape arcofellipse2d = AMCAX::MakeEdge2d(arcofellipse);

The AMCAX::MakeArcOfEllipse class is used to create a three-dimensional elliptical arc.

AMCAX::Frame3 frame;
double majorRadius = 3.;
double minorRadius = 2.;
AMCAX::Ellipse3 e(frame, majorRadius, minorRadius);

// Construct an arc of ellipse
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfEllipse marce(e, alpha1, alpha2, true);

// Get the constructed arc of ellipse
std::shared_ptr<AMCAX::Geom3TrimmedCurve> arcofellipse = marce.Value();

// Make a 3d edge
AMCAX::TopoShape arcofellipse3d = AMCAX::MakeEdge(arcofellipse);

Hyperbolic Arcs

The AMCAX::MakeArcOfHyperbola2d class is used to create a two-dimensional hyperbolic arc.

AMCAX::Frame2 frame;
double majorRadius = 2.;
double minorRadius = 1.;
AMCAX::Hyperbola2 h(frame, majorRadius, minorRadius);

// Construct an arc of hyperbola
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfHyperbola2d march(h, alpha1, alpha2, true);

// Get the constructed arc of hyperbola
std::shared_ptr<AMCAX::Geom2TrimmedCurve> arcofhyperbola = march.Value();

// Make a 2d edge
AMCAX::TopoShape arcofhyperbola2d = AMCAX::MakeEdge2d(arcofhyperbola);

The AMCAX::MakeArcOfHyperbola class is used to create a three-dimensional hyperbolic arc.

AMCAX::Frame3 frame;
double majorRadius = 3.;
double minorRadius = 2.;
AMCAX::Hyperbola3 h(frame, majorRadius, minorRadius);

// Construct an arc of hyperbola
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfHyperbola march(h, alpha1, alpha2, true);

// Get the constructed arc of hyperbola
std::shared_ptr<AMCAX::Geom3TrimmedCurve> arcofhyperbola = march.Value();

// Make a 3d edge
AMCAX::TopoShape arcofhyperbola3d = AMCAX::MakeEdge(arcofhyperbola);

Parabolic Arcs

The AMCAX::MakeArcOfParabola2d class is used to create a two-dimensional parabolic arc.

AMCAX::Frame2 frame;
double focal = 2.;
AMCAX::Parabola2 p(frame, focal);

// Construct an arc of parabola
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfParabola2d marcp(p, alpha1, alpha2, true);

// Get the constructed arc of parabola
std::shared_ptr<AMCAX::Geom2TrimmedCurve> arcofparabola = marcp.Value();

// Make a 2d edge
AMCAX::TopoShape arcofparabola2d = AMCAX::MakeEdge2d(arcofparabola);

The AMCAX::MakeArcOfParabola class is used to create a three-dimensional parabolic arc.

AMCAX::Frame3 frame;
double focal = 3.;
AMCAX::Parabola3 p(frame, focal);

// Construct an arc of parabola
double alpha1 = 0.;// The first parameter
double alpha2 = 2.;// The last parameter
AMCAX::MakeArcOfParabola marcp(p, alpha1, alpha2, true);

// Get the constructed arc of parabola
std::shared_ptr<AMCAX::Geom3TrimmedCurve> arcofparabola = marcp.Value();

// Make a 3d edge
AMCAX::TopoShape arcofparabola3d = AMCAX::MakeEdge(arcofparabola);

Surfaces

Trimmed Conical Surfaces

The AMCAX::MakeTrimmedCone class is used to create a trimmed conical surface.

AMCAX::Point3 p1(0., 0., 0.);// The first point of the axis
AMCAX::Point3 p2(0., 0., 1.);// The second point of the axis
double r1 = 2.;// The radius of the section circle at the first point
double r2 = 1.;// The radius of the section circle at the second point
// Construct a trimmed cone
AMCAX::MakeTrimmedCone mtc(p1, p2, r1, r2);

// Get the constructed trimmed cone
std::shared_ptr<AMCAX::Geom3TrimmedSurface> tc = mtc.Value();

// Make a face
AMCAX::TopoShape trimmedcone = AMCAX::MakeFace(tc, AMCAX::Precision::Confusion());

Trimmed Cylindrical Surfaces

The AMCAX::MakeTrimmedCylinder class is used to create a trimmed cylindrical surface.

AMCAX::Point3 p1(0., 0., 0.);// The first point on the axis
AMCAX::Point3 p2(0., 0., 2.);// The second point on the axis
AMCAX::Point3 p3(2., 0., 0.);// The point on the cylinder
// Construct a trimmed cylinder
AMCAX::MakeTrimmedCylinder mtc(p1, p2, p3);

// Get the constructed trimmed cylinder
std::shared_ptr<AMCAX::Geom3TrimmedSurface> tc = mtc.Value();

// Make a face
AMCAX::TopoShape trimmedcylinder = AMCAX::MakeFace(tc, AMCAX::Precision::Confusion());

Evaluation of Curves and Surfaces

Curves and surfaces can be evaluated using Value() or D0(). Taking a surface as an example:

AMCAX::Point3 p1(0., 0., 0.);// The first point on the axis
AMCAX::Point3 p2(0., 0., 2.);// The second point on the axis
AMCAX::Point3 p3(2., 0., 0.);// The point on the cylinder
// Construct a trimmed cylinder
AMCAX::MakeTrimmedCylinder mtc(p1, p2, p3);

// Get the constructed trimmed cylinder
std::shared_ptr<AMCAX::Geom3TrimmedSurface> tc = mtc.Value();

// Value
double u = 2., v = 0.9;
std::cout << tc->Value(u, v) << std::endl;// -0.832294 1.81859 0.9

// D0
AMCAX::Point3 p;
tc->D0(u, v, p);
std::cout << p << std::endl;// -0.832294 1.81859 0.9

Creating Parametric Curves and Surfaces through Interpolation and Fitting

Interpolation Curves

Two-dimensional Interpolation Curves

The AMCAX::GeomAPIInterpolate2 class is used to compute two-dimensional interpolation curves.

// Define points
std::vector<AMCAX::Point2> points = {
    AMCAX::Point2(0.0, 0.0),
    AMCAX::Point2(1.0, 1.0),
    AMCAX::Point2(2.0, 0.0),
    AMCAX::Point2(3.0, -1.0),
    AMCAX::Point2(4.0, 0.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
bool periodic = false;

// Compute a curve interpolating 2D points
AMCAX::GeomAPIInterpolate2 interpolate(points, parameters, periodic, AMCAX::Precision::Confusion());

interpolate.Perform();
if (interpolate.IsDone())
{
    // Get the interpolation curve
    std::shared_ptr<AMCAX::Geom2BSplineCurve> curve2d = interpolate.Curve();

    // Make a 2d edge
    AMCAX::Point2 p1(0., 0.);// The first point
    AMCAX::Point2 p2(4., 0.);// The second point
    AMCAX::TopoShape interpolate2d = AMCAX::MakeEdge2d(curve2d, p1, p2);
}
else
    std::cout << "error:interpolate failed" << std::endl;

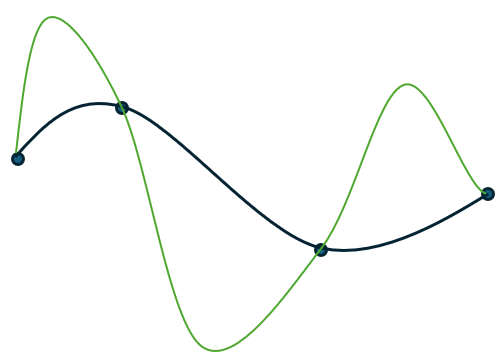

Additionally, tangent vector constraints can be added during interpolation using AMCAX::GeomAPIInterpolate2::Load to control the shape of the generated curve. Tangent vectors for all points can be added as constraints, or only the start and end points' tangent vectors can be added.

Adding tangent vectors for all points as constraints:

// Define points
std::vector<AMCAX::Point2> points = {
    AMCAX::Point2(0.0, 0.0),
    AMCAX::Point2(1.0, 1.0),
    AMCAX::Point2(2.0, 0.0),
    AMCAX::Point2(3.0, -1.0),
    AMCAX::Point2(4.0, 0.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
bool periodic = false;

// Compute a curve interpolating 2D points
AMCAX::GeomAPIInterpolate2 interpolate(points, parameters, periodic, AMCAX::Precision::Confusion());

// The tangent vectors
std::vector<AMCAX::Vector2> tangents = {
    AMCAX::Vector2(1.0, 0.0),
    AMCAX::Vector2(0.0, 1.0),
    AMCAX::Vector2(-1.0, 0.0),
    AMCAX::Vector2(0.0, -1.0),
    AMCAX::Vector2(1.0, 0.0)
};
std::vector<bool> tangentFlags = { true, true, true, true, true };
// Load the tangent vector at each point as constraints
interpolate.Load(tangents, tangentFlags, true);

interpolate.Perform();
if (interpolate.IsDone())
{
    // Get the interpolation curve
    std::shared_ptr<AMCAX::Geom2BSplineCurve> curve2d = interpolate.Curve();

    // Make a 2d edge
    AMCAX::Point2 p1(0., 0.);// The first point
    AMCAX::Point2 p2(4., 0.);// The second point
    AMCAX::TopoShape interpolate2d = AMCAX::MakeEdge2d(curve2d, p1, p2);
}
else
    std::cout << "error:interpolate failed" << std::endl;

Adding tangent vectors for start and end points as constraints:

// Define points
std::vector<AMCAX::Point2> points = {
    AMCAX::Point2(0.0, 0.0),
    AMCAX::Point2(1.0, 1.0),
    AMCAX::Point2(2.0, 0.0),
    AMCAX::Point2(3.0, -1.0),
    AMCAX::Point2(4.0, 0.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
bool periodic = false;

// Compute a curve interpolating 2D points
AMCAX::GeomAPIInterpolate2 interpolate(points, parameters, periodic, AMCAX::Precision::Confusion());

AMCAX::Vector2 initialTangent(1.0, 0.0);// The tangent vector at the start point
AMCAX::Vector2 finalTangent(0.0, -1.0);// The tangent vector at the end point
// Load the tangent vector at the start and end point as constraints
interpolate.Load(initialTangent, finalTangent, true);

interpolate.Perform();
if (interpolate.IsDone())
{
    // Get the interpolation curve
    std::shared_ptr<AMCAX::Geom2BSplineCurve> curve2d = interpolate.Curve();

    // Make a 2d edge
    AMCAX::Point2 p1(0., 0.);// The first point
    AMCAX::Point2 p2(4., 0.);// The second point
    AMCAX::TopoShape interpolate2d = AMCAX::MakeEdge2d(curve2d, p1, p2);
}
else
    std::cout << "error:interpolate failed" << std::endl;

Three-dimensional Interpolation Curves

The AMCAX::GeomAPIInterpolate3 class is used to compute three-dimensional interpolation curves.

// Define points
std::vector<AMCAX::Point3> points = {
    AMCAX::Point3(0.0, 0.0, 0.0),
    AMCAX::Point3(1.0, 1.0, 1.0),
    AMCAX::Point3(2.0, 0.0, 2.0),
    AMCAX::Point3(3.0, -1.0, 3.0),
    AMCAX::Point3(4.0, 0.0, 4.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
bool periodic = false;

// Compute a curve interpolating 3D points
AMCAX::GeomAPIInterpolate3 interpolate(points, parameters, periodic, AMCAX::Precision::Confusion());

interpolate.Perform();
if (interpolate.IsDone())
{
    // Get the interpolation curve
    std::shared_ptr<AMCAX::Geom3BSplineCurve> curve3d = interpolate.Curve();

    // Make a 3d edge
    AMCAX::Point3 p1(0., 0., 0.);// The first point
    AMCAX::Point3 p2(4.0, 0.0, 4.0);// The second point
    AMCAX::TopoShape interpolate3d = AMCAX::MakeEdge(curve3d, p1, p2);
}
else
    std::cout << "error: interpolate failed" << std::endl;

Additionally, tangent vector constraints can be added during interpolation using AMCAX::GeomAPIInterpolate3::Load to control the shape of the generated curve. Tangent vectors for all points can be added as constraints, or only the start and end points' tangent vectors can be added.

Adding tangent vectors for all points as constraints:

// Define points
std::vector<AMCAX::Point3> points = {
    AMCAX::Point3(0.0, 0.0, 0.0),
    AMCAX::Point3(1.0, 1.0, 1.0),
    AMCAX::Point3(2.0, 0.0, 2.0),
    AMCAX::Point3(3.0, -1.0, 3.0),
    AMCAX::Point3(4.0, 0.0, 4.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
bool periodic = false;

// Compute a curve interpolating 3D points
AMCAX::GeomAPIInterpolate3 interpolate(points, parameters, periodic, AMCAX::Precision::Confusion());

// The tangent vectors
std::vector<AMCAX::Vector3> tangents = {
    AMCAX::Vector3(1.0, 0.0, 0.0),
    AMCAX::Vector3(0.0, 1.0, 0.0),
    AMCAX::Vector3(0.0, 0.0, 1.0),
    AMCAX::Vector3(-1.0, 0.0, 0.0),
    AMCAX::Vector3(0.0, -1.0, 0.0)
};
std::vector<bool> tangentFlags = { true, true, true, true, true };
// Load the tangent vector at each point as constraints
interpolate.Load(tangents, tangentFlags, true);

interpolate.Perform();
if (interpolate.IsDone())
{
    // Get the interpolation curve
    std::shared_ptr<AMCAX::Geom3BSplineCurve> curve3d = interpolate.Curve();

    // Make a 3d edge
    AMCAX::Point3 p1(0., 0., 0.);// The first point
    AMCAX::Point3 p2(4.0, 0.0, 4.0);// The second point
    AMCAX::TopoShape interpolate3d = AMCAX::MakeEdge(curve3d, p1, p2);
}
else
    std::cout << "error: interpolate failed" << std::endl;

Adding tangent vectors for start and end points as constraints:

// Define points
std::vector<AMCAX::Point3> points = {
    AMCAX::Point3(0.0, 0.0, 0.0),
    AMCAX::Point3(1.0, 1.0, 1.0),
    AMCAX::Point3(2.0, 0.0, 2.0),
    AMCAX::Point3(3.0, -1.0, 3.0),
    AMCAX::Point3(4.0, 0.0, 4.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
bool periodic = false;

// Compute a curve interpolating 3D points
AMCAX::GeomAPIInterpolate3 interpolate(points, parameters, periodic, AMCAX::Precision::Confusion());

AMCAX::Vector3 initialTangent(1.0, 0.0, 0.0);// The tangent vector at the start point
AMCAX::Vector3 finalTangent(0.0, -1.0, 0.0);// The tangent vector at the end point
// Load the tangent vector at the start and end point as constraints
interpolate.Load(initialTangent, finalTangent, true);

interpolate.Perform();
if (interpolate.IsDone())
{
    // Get the interpolation curve
    std::shared_ptr<AMCAX::Geom3BSplineCurve> curve3d = interpolate.Curve();

    // Make a 3d edge
    AMCAX::Point3 p1(0., 0., 0.);// The first point
    AMCAX::Point3 p2(4.0, 0.0, 4.0);// The second point
    AMCAX::TopoShape interpolate3d = AMCAX::MakeEdge(curve3d, p1, p2);
}
else
    std::cout << "error: interpolate failed" << std::endl;

Fitting Curves

Two-dimensional Fitting Curves

The AMCAX::GeomAPIPointsToBSpline2 class is used to compute two-dimensional fitting curves.

// Define points
std::vector<AMCAX::Point2> points = {
    AMCAX::Point2(0.0, 0.0),
    AMCAX::Point2(1.0, 1.0),
    AMCAX::Point2(2.0, 0.0),
    AMCAX::Point2(3.0, -1.0),
    AMCAX::Point2(4.0, 0.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
int degMin = 3;// The minimal degree of B spline curve
int degMax = 8;// The maximal degree of B spline curve
AMCAX::ContinuityType continuity = AMCAX::ContinuityType::C2;
double tol = 1e-3;

// Compute a 2D B spline curve approximating 2D points
AMCAX::GeomAPIPointsToBSpline2 ptb(points, parameters, degMin, degMax, continuity, tol);

if (ptb.IsDone())
{
    // Get the result curve
    std::shared_ptr<AMCAX::Geom2BSplineCurve> BSplineCurve = ptb.Curve();

    // Make a 2d edge
    AMCAX::Point2 p1(0.0, 0.0);
    AMCAX::Point2 p2(4.0, 0.0);
    AMCAX::TopoShape BSplineCurve2d = AMCAX::MakeEdge2d(BSplineCurve, p1, p2);
}
else
    std::cout << "error: Bspline curve fitting failed" << std::endl;

Additionally, a B-spline curve can be fitted based on the starting point's x-coordinate, constant increment of x-coordinate, and a set of y-coordinate points. In the following example, the starting point's x-coordinate is 0.0, the constant increment of x-coordinate is 1.0, and the number of y-coordinate points is 5, so the ending point's x-coordinate can be inferred as 4.0.

// Define points
std::vector<AMCAX::Point2> points = {
    AMCAX::Point2(0.0, 0.0),
    AMCAX::Point2(1.0, 1.0),
    AMCAX::Point2(2.0, 0.0),
    AMCAX::Point2(3.0, -1.0),
    AMCAX::Point2(4.0, 0.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
int degMin = 3;// The minimal degree of B spline curve
int degMax = 8;// The maximal degree of B spline curve
AMCAX::ContinuityType continuity = AMCAX::ContinuityType::C2;
double tol = 1e-6;
std::vector<double> yValues = { 0.0, 1.0, 0.5, 2.0, 1.5 };// The y coordinates of points
double x0 = 0.;// The x coordinate of the first point
double dx = 1.;// The incremental value of x coordinate

// Compute a 2D B spline curve approximating 2D points
AMCAX::GeomAPIPointsToBSpline2 ptb(yValues, x0, dx, degMin, degMax, continuity, tol);

if (ptb.IsDone())
{
    // Get the result curve
    std::shared_ptr<AMCAX::Geom2BSplineCurve> BSplineCurve = ptb.Curve();

    // Make a 2d edge
    AMCAX::Point2 p1(0.0, 0.0);
    AMCAX::Point2 p2(4.0, 0.0);
    AMCAX::TopoShape BSplineCurve2d = AMCAX::MakeEdge2d(BSplineCurve, p1, p2);
}
else
    std::cout << "error: Bspline curve fitting failed" << std::endl;

Three-dimensional Fitting Curves

The AMCAX::GeomAPIPointsToBSpline3 class is used to compute three-dimensional fitting curves.

// Define points
std::vector<AMCAX::Point3> points = {
    AMCAX::Point3(0.0, 0.0, 0.0),
    AMCAX::Point3(1.0, 1.0, 1.0),
    AMCAX::Point3(2.0, 0.0, 2.0),
    AMCAX::Point3(3.0, -1.0, 3.0),
    AMCAX::Point3(4.0, 0.0, 4.0)
};
std::vector<double> parameters = { 0.0, 0.25, 0.5, 0.75, 1.0 };
int degMin = 3;// The minimal degree of B spline curve
int degMax = 8;// The maximal degree of B spline curve
AMCAX::ContinuityType continuity = AMCAX::ContinuityType::C2;
double tol = 1e-3;

// Compute a 3D B spline curve approximating 2D points
AMCAX::GeomAPIPointsToBSpline3 ptb(points, parameters, degMin, degMax, continuity, tol);

if (ptb.IsDone()) {
    // Get the result curve
    std::shared_ptr<AMCAX::Geom3BSplineCurve> BSplineCurve = ptb.Curve();

    // Make a 3d edge
    AMCAX::Point3 p1(0.0, 0.0, 0.0);
    AMCAX::Point3 p2(4.0, 0.0, 4.0);
    AMCAX::TopoShape BSplineCurve3d = AMCAX::MakeEdge(BSplineCurve, p1, p2);
}
else
    std::cout << "error: Bspline curve fitting failed" << std::endl;

Fitting Surfaces

AMCAX::GeomAPIPointsToBSplineSurface is used to compute fitting surfaces.

// Define points
AMCAX::Array2<AMCAX::Point3> controls(4, 4);
controls(0, 0) = AMCAX::Point3(-6., -6., 0.);
controls(0, 1) = AMCAX::Point3(-3., -6., -2.);
controls(0, 2) = AMCAX::Point3(3., -6., -2.);
controls(0, 3) = AMCAX::Point3(6., -6., 0.);
controls(1, 0) = AMCAX::Point3(-6., -3., -2.);
controls(1, 1) = AMCAX::Point3(-3., -3., -2.);
controls(1, 2) = AMCAX::Point3(3., -3., 2.);
controls(1, 3) = AMCAX::Point3(6., -3., 2.);
controls(2, 0) = AMCAX::Point3(-6., 3., -2.);
controls(2, 1) = AMCAX::Point3(-3., 3., 2.);
controls(2, 2) = AMCAX::Point3(3., 3., -2.);
controls(2, 3) = AMCAX::Point3(6., 3., 2.);
controls(3, 0) = AMCAX::Point3(-6., 6., 0.);
controls(3, 1) = AMCAX::Point3(-3., 6., 2.);
controls(3, 2) = AMCAX::Point3(3., 6., 2.);
controls(3, 3) = AMCAX::Point3(6., 6., 0.);
int degMin = 3;// The minimal degree of B spline curve
int degMax = 8;// The maximal degree of B spline curve
AMCAX::ContinuityType continuity = AMCAX::ContinuityType::C2;
double tol = 1e-3;

// Compute a B spline surface approximating points
AMCAX::GeomAPIPointsToBSplineSurface ptbs(controls, degMin, degMax, continuity, tol);

if (ptbs.IsDone())
{
    // Get the result surface
    std::shared_ptr<AMCAX::Geom3BSplineSurface> bsurface = ptbs.Surface();

    // Make a face
    AMCAX::TopoShape BsplineSurface = AMCAX::MakeFace(bsurface, AMCAX::Precision::Confusion());
}
else
    std::cout << "error: Bspline surface fitting failed" << std::endl;

Additionally, a B-spline surface can be fitted based on the starting point's x and y coordinates, constant increments of x and y coordinates, and a set of z-coordinate points.

AMCAX::Array2<double> zPoints(3, 3);// The z coordinates of points
zPoints(0, 0) = 0.0; zPoints(0, 1) = 1.0; zPoints(0, 2) = 0.0;
zPoints(1, 0) = 1.0; zPoints(1, 1) = 2.0; zPoints(1, 2) = 1.0;
zPoints(2, 0) = 0.0; zPoints(2, 1) = 1.0; zPoints(2, 2) = 0.0;

double x0 = 0.0;// The x coordinate of the first point
double dx = 1.0;// The incremental value of x coordinate
double y0 = 0.0;// The y coordinate of the first point
double dy = 1.0;// The incremental value of y coordinate

int degMin = 3;// The minimal degree of B spline curve
int degMax = 8;// The maximal degree of B spline curve
AMCAX::ContinuityType continuity = AMCAX::ContinuityType::C2;
double tol = 1e-3;

// Compute a B spline surface approximating points
AMCAX::GeomAPIPointsToBSplineSurface ptbs(zPoints, x0, dx, y0, dy, degMin, degMax, continuity, tol);

if (ptbs.IsDone())
{
    // Get the result surface
    std::shared_ptr<AMCAX::Geom3BSplineSurface> bsurface = ptbs.Surface();

    // Make a face
    AMCAX::TopoShape BsplineSurface = AMCAX::MakeFace(bsurface, AMCAX::Precision::Confusion());
}
else
    std::cout << "error: Bspline surface fitting failed" << std::endl;

Intersections of 2D Curves, Curve-Surface Intersections, and Surface-Surface Intersections

2D Curve Intersections

The AMCAX::GeomAPIIntCurveCurve2 class is used to compute intersections between two 2D curves, which may be intersection points or segments.
Example with intersection points as results:

// Construct a B spline curve
std::vector<AMCAX::Point2> pts = {
AMCAX::Point2(0.0, 2.0),
AMCAX::Point2(1.0, 3.0),
AMCAX::Point2(2.0, 1.0),
AMCAX::Point2(3.0, 3.0),
AMCAX::Point2(4.0, 1.0),
AMCAX::Point2(5.0, 3.0),
AMCAX::Point2(6.0, 2.0)
};
std::vector<double> knots = { 0.0, 0.2, 0.4, 0.6, 0.8, 1.0 };
std::vector<int> multiplicities = { 4, 1, 1, 1, 1, 4 };
int degree = 4;
auto bspline = std::make_shared<AMCAX::Geom2BSplineCurve>(pts, knots, multiplicities, degree);

// Construct a circle
AMCAX::Point2 point(3., 3.);
AMCAX::Direction2 dir_x(1., 0.);
AMCAX::Direction2 dir_y(0., 1.);
AMCAX::Frame2 frame(point, dir_x, dir_y);
double radius = 1.;
auto circle = std::make_shared<AMCAX::Geom2Circle>(frame, radius);

// Compute intersection points for two 2D curves
AMCAX::GeomAPIIntCurveCurve2 cc(bspline, circle, AMCAX::Precision::Confusion());
std::cout << cc.NPoints() << std::endl;// 2
std::cout << cc.Point(0) << std::endl;// 2.59489 2.08573
std::cout << cc.Point(1) << std::endl;// 3.40511 2.08573
std::cout << cc.ParamOnCurve1(0) << std::endl;// 0.420769
std::cout << cc.ParamOnCurve1(1) << std::endl;// 0.579231
std::cout << cc.ParamOnCurve2(0) << std::endl;// 4.29529
std::cout << cc.ParamOnCurve2(1) << std::endl;// 5.12949

Example with intersection segments as results:

// Construct a line
AMCAX::Point2 point(0., 0.);
AMCAX::Direction2 dir(1., 0.);
auto line = std::make_shared<AMCAX::Geom2Line>(point, dir);

// Construct a trimmed line
double u1 = 0., u3 = 2.;// The lower bound of the parameter
double u2 = 3., u4 = 4.;// The upper bound of the parameter
auto trimline1 = std::make_shared<AMCAX::Geom2TrimmedCurve>(line, u1, u2);
auto trimline2 = std::make_shared<AMCAX::Geom2TrimmedCurve>(line, u3, u4);

// Compute intersection segments for two 2D curves
AMCAX::GeomAPIIntCurveCurve2 cc(trimline1, trimline2, AMCAX::Precision::Confusion());
std::cout << cc.NSegments() << std::endl;//1
std::pair<double, double> paramOnCurve1;
std::pair<double, double> paramOnCurve2;

// Get the intersection segments at a given index
cc.Segment(0, paramOnCurve1, paramOnCurve2);
std::cout << paramOnCurve1.first << std::endl;// 2
std::cout << paramOnCurve1.second << std::endl;// 3
std::cout << paramOnCurve2.first << std::endl;// 2
std::cout << paramOnCurve2.second << std::endl;// 3

Additionally, AMCAX::GeomAPIIntCurveCurve2 can be used to determine if a 2D curve self-intersects and compute the number of self-intersection points.

// Construct a B spline curve
std::vector<AMCAX::Point2> pts = {
    AMCAX::Point2(0.5, 0.5),
    AMCAX::Point2(1.0, 3.0),
    AMCAX::Point2(3.0, 1.0),
    AMCAX::Point2(3.8,2.0),
    AMCAX::Point2(2.5,3.5),
    AMCAX::Point2(1.0,0.5),
    AMCAX::Point2(0.3,2.0)
};
std::vector<double> knots = { 0.0, 0.25, 0.5,0.75,1.0 };
std::vector<int> multiplicities = { 4, 1, 1,1,4 };
int degree = 3;
auto bspline = std::make_shared<AMCAX::Geom2BSplineCurve>(pts, knots, multiplicities, degree);

// Compute intersection points
AMCAX::GeomAPIIntCurveCurve2 cc(bspline, AMCAX::Precision::Confusion());
std::cout << cc.NPoints() << std::endl;// 2

Curve-Surface Intersections

AMCAX::GeomAPIIntCurveSurface is used to compute intersections between a curve and a surface, which may be intersection points or segments.
Example with intersection points as results:

// Construct a bezier curve
std::vector<AMCAX::Point3> pts = {
AMCAX::Point3(0.0, 0.0,0.0),
AMCAX::Point3(2.0, 2.0,2.0),
AMCAX::Point3(4.0, 3.0,5.0),
AMCAX::Point3(6.0,2.0,4.0)
};
auto bezier = std::make_shared<AMCAX::Geom3BezierCurve>(pts);

// Construct a cylindrical surface
AMCAX::Frame3 frame;
double radius = 3.;
std::shared_ptr<AMCAX::Geom3CylindricalSurface> CylindricalSurface = std::make_shared<AMCAX::Geom3CylindricalSurface>(frame, radius);

// Construct a trimmed surface
double param1 = 0.;
double param2 = 5.;
bool uTrim = false;// trimmed along v direction
std::shared_ptr<AMCAX::Geom3TrimmedSurface> TrimmedSurface = std::make_shared<AMCAX::Geom3TrimmedSurface>(CylindricalSurface, param1, param2, uTrim);

// Compute intersection points for a curve and a surface
AMCAX::GeomAPIIntCurveSurface cs(bezier, TrimmedSurface);
cs.Perform(bezier, TrimmedSurface);
if (cs.IsDone())
{
    std::cout << cs.NPoints() << std::endl;// 1

    // Get the parameters of the intersection point at a given index
    double u = 0., v = 0., w = 0.;
    cs.Parameters(0, u, v, w);
    std::cout << u << std::endl;// 0.660279
    std::cout << v << std::endl;// 2.52939
    std::cout << w << std::endl;// 0.394911
    std::cout << cs.Point(0) << std::endl;// 2.36946 1.84001 2.52939
}

Surface-Surface Intersections

The AMCAX::GeomAPIIntSurfaceSurface class is used to compute intersections between surfaces.

// Construct a cylindrical surface
AMCAX::Frame3 frame;
double radius = 3.;
std::shared_ptr<AMCAX::Geom3CylindricalSurface> CylindricalSurface = std::make_shared<AMCAX::Geom3CylindricalSurface>(frame, radius);

// Construct a trimmed surface
double param1 = 0.;
double param2 = 5.;
bool uTrim = false;// trimmed along v direction
std::shared_ptr<AMCAX::Geom3TrimmedSurface> trimcylinder = std::make_shared<AMCAX::Geom3TrimmedSurface>(CylindricalSurface, param1, param2, uTrim);

// Construct a plane
auto plane = std::make_shared<AMCAX::Geom3Plane>(frame);

// Construct a trimmed surface
double u1 = 0.;// The lower bound of u parameter
double u2 = 5.;// The upper bound of u parameter
double v1 = 0.;// The lower bound of v parameter
double v2 = 5.;// The upper bound of v parameter
std::shared_ptr<AMCAX::Geom3TrimmedSurface> trimplane = std::make_shared<AMCAX::Geom3TrimmedSurface>(plane, u1, u2, v1, v2);

// Compute intersection curves for two surfaces
AMCAX::GeomAPIIntSurfaceSurface ss(trimcylinder, trimplane, AMCAX::Precision::Confusion());
ss.Perform(trimcylinder, trimplane, AMCAX::Precision::Confusion());
if (ss.IsDone())
{
    std::cout << ss.NLines() << std::endl;// 1

    // Get the intersection curve at a given index
    std::shared_ptr<AMCAX::Geom3Curve> line = ss.Line(0);

    // Make a edge
    AMCAX::TopoShape intersection = AMCAX::MakeEdge(line);
}

Computing Extremal Values Between Geometric Objects

Extremal Values Between 2D Curves

The AMCAX::GeomAPIExtremaCurveCurve2class is used to compute minimum distance points between two 2D curves. For input curves, first use AMCAX::GeomAPIExtremaCurveCurve2::IsParallelto determine if the curves are parallel. If they are parallel, extremal points do not exist, NExtrema()returns 1, and attempting to get the minimum distance or nearest points will throw an OutOfRangeexception. If the curves are not parallel, information about extremal points can be obtained as shown below:

// Construct the first B spline curve
std::vector<AMCAX::Point2> pts1 = {
    AMCAX::Point2(0.0, 2.0),
    AMCAX::Point2(1.0, 3.0),
    AMCAX::Point2(2.0, 1.0),
    AMCAX::Point2(3.0, 3.0),
    AMCAX::Point2(4.0, 1.0),
    AMCAX::Point2(5.0, 3.0),
    AMCAX::Point2(6.0, 2.0)
};
std::vector<double> knots1 = { 0.0, 0.2, 0.4, 0.6, 0.8, 1.0 };
std::vector<int> mults1 = { 4, 1, 1, 1, 1, 4 };
int degree = 4;
auto bspline1 = std::make_shared< AMCAX::Geom2BSplineCurve>(pts1, knots1, mults1, degree);

// Construct the second B spline curve
std::vector<AMCAX::Point2> pts2;
for (const auto& pt : pts1) {
    pts2.push_back(AMCAX::Point2(pt.X(), -pt.Y()));
}
auto bspline2 = std::make_shared<AMCAX::Geom2BSplineCurve>(pts2, knots1, mults1, degree);

// Compute extremal points for two 2D curves
double u1min = bspline1->FirstParameter();// The first parameter of the first curve
double u1max = bspline1->LastParameter();// The last parameter of the first curve
double u2min = bspline2->FirstParameter();// The first parameter of the second curve
double u2max = bspline2->LastParameter();// The last parameter of the second curve
AMCAX::GeomAPIExtremaCurveCurve2 excc(bspline1, bspline2, u1min, u1max, u2min, u2max);

if (excc.IsParallel()) // parallel case, no extremal points, only extremal distance
{
    double dist = excc.LowerDistance(); // minimum distance
}
else
{
    if (excc.NExtrema() > 0)
    {
        // Get the nearest points
        AMCAX::Point2 p1;// The nearest point on the first curve
        AMCAX::Point2 p2;// The nearest point on the second curve
        excc.NearestPoints(p1, p2);
        std::cout << "p1:" << p1 << std::endl;// p1:2.07541 1.9023
        std::cout << "p2:" << p2 << std::endl;// p2:2.07541 -1.9023

        // Get the parameters of the nearest points
        double param1, param2;
        excc.LowerDistanceParameters(param1, param2);
        std::cout << "param1:" << param1 << std::endl;// param1:0.32501
        std::cout << "param2:" << param2 << std::endl;// param2:0.32501

        // Get the distance of the nearest points
        double nearestdist = excc.LowerDistance();
        std::cout << "nearestdist:" << nearestdist << std::endl;// nearestdist:3.8046
    }

    for (int i = 0; i < excc.NExtrema(); i++)
    {
        std::cout << "the" << " " << i << " " << "extremal point:" << std::endl;
        // Get the extremal points at a given index
        AMCAX::Point2 p1;// The extremal point on the first curve
        AMCAX::Point2 p2;// The extremal point on the second curve
        excc.Points(i, p1, p2);
        std::cout << "p1: " << p1 << std::endl;
        std::cout << "p2: " << p2 << std::endl;

        // Get the parameters of the extrema at a given index
        double param1;// The parameter of the extremal point on the first curve
        double param2;// The parameter of the extremal point on the second curve
        excc.Parameters(i, param1, param2);
        std::cout << "param1: " << param1 << std::endl;
        std::cout << "param2: " << param2 << std::endl;

        // Get the extremal distance at a given index
        double dist = excc.Distance(i);
        std::cout << "dist: " << dist << std::endl;
        std::cout << std::endl;
    }
}

Extremal Values Between 3D Curves

The AMCAX::GeomAPIExtremaCurveCurve3class is used to compute minimum distance points between two 3D curves. For input curves, first use AMCAX::GeomAPIExtremaCurveCurve3::IsParallelto determine if the curves are parallel. If they are parallel, extremal points do not exist, NExtrema()returns 1, and attempting to get the minimum distance or nearest points will throw an OutOfRangeexception. If the curves are not parallel, information about extremal points can be obtained as shown below:

// Construt a line
AMCAX::Point3 start{ 0.,4.,0. };
AMCAX::Point3 end{ 1.,4.,0. };
auto line = AMCAX::MakeGeom3Line(start, end).Value();

// Construct an ellipse
AMCAX::Point3 point{ 0.,0.,0. };
AMCAX::Direction3 dir_z{ 0.,0.,1. };
AMCAX::Direction3 dir_x{ 1.,0.,0. };
AMCAX::Frame3 frame(point, dir_z, dir_x);

double majorRadius = 4.;
double minorRadius = 3.;
auto ellipse = AMCAX::MakeGeom3Ellipse::MakeGeom3Ellipse(frame, majorRadius, minorRadius).Value();

// Compute extremal points for two 3D curves
double u1min = -5.;// The first parameter of the first curve
double u1max = 5.;// The last parameter of the first curve
double u2min = ellipse->FirstParameter();// The first parameter of the second curve
double u2max = ellipse->LastParameter();// The last parameter of the second curve
AMCAX::GeomAPIExtremaCurveCurve3 excc(line, ellipse, u1min, u1max, u2min, u2max);

if (excc.IsParallel()) // parallel case, no extremal points, only extremal distance
{
    double dist = excc.LowerDistance(); // minimum distance
}
else
{
    if (excc.NExtrema() > 0)
    {
        // Get the nearest points
        AMCAX::Point3 p1;// The nearest point on the first curve
        AMCAX::Point3 p2;// The nearest point on the second curve
        excc.NearestPoints(p1, p2);
        std::cout << "p1:" << p1 << std::endl;// p1:2.44929e-16 4 0
        std::cout << "p2:" << p2 << std::endl;// p2:2.44929e-16 3 0

        // Get the parameters of the nearest points
        double param1, param2;
        excc.LowerDistanceParameters(param1, param2);
        std::cout << "param1:" << param1 << std::endl;// param1: 2.44929e-16
        std::cout << "param2:" << param2 << std::endl;// param2: 1.5708

        // Get the distance of the nearest points
        double nearestdist = excc.LowerDistance();
        std::cout << "nearestdist:" << nearestdist << std::endl;// nearestdist:1
    }

    for (int i = 0; i < excc.NExtrema(); i++)
    {
        std::cout << "the" << " " << i << " " << "extremal point:" << std::endl;
        // Get the extremal points at a given index
        AMCAX::Point3 p1;// The extremal point on the first curve
        AMCAX::Point3 p2;// The extremal point on the second curve
        excc.Points(i, p1, p2);
        std::cout << "p1: " << p1 << std::endl;
        std::cout << "p2: " << p2 << std::endl;

        // Get the parameters of the extrema at a given index
        double param1;// The parameter of the extremal point on the first curve
        double param2;// The parameter of the extremal point on the second curve
        excc.Parameters(i, param1, param2);
        std::cout << "param1: " << param1 << std::endl;
        std::cout << "param2: " << param2 << std::endl;

        // Get the extremal distance at a given index
        double dist = excc.Distance(i);
        std::cout << "dist: " << dist << std::endl;
        std::cout << std::endl;
    }
}

Extremal Values Between Curves and Surfaces

The AMCAX::GeomAPIExtremaCurveSurfaceclass is used to compute minimum distance points between a curve and a surface. For input curves and surfaces, first use AMCAX::GeomAPIExtremaCurveSurface::IsParallelto determine if they are parallel. If they are parallel, extremal points do not exist, NExtrema()returns 1, and attempting to get the minimum distance or nearest points will throw an OutOfRangeexception. If they are not parallel, information about extremal points can be obtained as shown below:

// Construct an ellipse
AMCAX::Point3 point{ 0.,0.,0. };
AMCAX::Direction3 dir_z{ 0.,0.,1. };
AMCAX::Direction3 dir_x{ 1.,0.,0. };
AMCAX::Frame3 frame(point, dir_z, dir_x);

double majorRadius = 4.;
double minorRadius = 3.;
auto ellipse = AMCAX::MakeGeom3Ellipse::MakeGeom3Ellipse(frame, majorRadius, minorRadius).Value();

//  Construct a trimmed plane
AMCAX::Point3 p(2.0, 0.0, 0.0);
AMCAX::Direction3 dir2(1., 1., 1.);
AMCAX::MakeGeom3Plane mgp(p, dir2);
std::shared_ptr< AMCAX::Geom3Plane > plane = mgp.Value();

double u1 = 0., u2 = 5., v1 = 0., v2 = 5.;
auto trimplane = std::make_shared<AMCAX::Geom3TrimmedSurface>(plane, u1, u2, v1, v2);

// Compute extremal points for a curve and a surface
double tmin = ellipse->FirstParameter();// The first parameter of the curve
double tmax = ellipse->LastParameter();// The last parameter of the curve
double umin = trimplane->FirstUParameter();// The u first parameter of the surface
double umax = trimplane->LastUParameter();// The u last parameter of the surface
double vmin = trimplane->FirstVParameter();// The v first parameter of the surface
double vmax = trimplane->LastVParameter();// The v last parameter of the surface
AMCAX::GeomAPIExtremaCurveSurface excs(ellipse, trimplane, tmin, tmax, umin, umax, vmin, vmax);

if (excs.IsParallel()) // parallel case, no extremal points, only extremal distance
{
    double dist = excs.LowerDistance(); // minimum distance
}
else
{
    if (excs.NExtrema() > 0)
    {
        // Get the nearest points
        AMCAX::Point3 p1;// The extremal point on the curve
        AMCAX::Point3 p2;// The extremal point on the surface
        excs.NearestPoints(p1, p2);
        std::cout << "p1:" << p1 << std::endl;// p1:3.2 1.8 0
        std::cout << "p2:" << p2 << std::endl;// p2:2.2 0.8 -1

        // Get the parameters of the nearest points
        double t;// The parameter of the nearest point on the curve
        double u;// The u parameter of the nearest point on the surface
        double v;// The v parameter of the nearest point on the surface
        excs.LowerDistanceParameters(t, u, v);
        std::cout << "t: " << t << std::endl;// t: 0.643501
        std::cout << "u: " << u << std::endl;// u: 0.848528
        std::cout << "v: " << v << std::endl;// v: 0.979796

        // Get the distance of the nearest points
        double nearestdist = excs.LowerDistance();
        std::cout << "nearestdist:" << nearestdist << std::endl;// nearestdist:1.73205
    }

    for (int i = 0; i < excs.NExtrema(); i++)
    {
        std::cout << "the" << " " << i << " " << "extremal point:" << std::endl;
        // Get the extremal points at a given index
        AMCAX::Point3 p1;// The extremal point on the curve
        AMCAX::Point3 p2;// The extremal point on the surface
        excs.Points(i, p1, p2);
        std::cout << "p1: " << p1 << std::endl;
        std::cout << "p2: " << p2 << std::endl;

        // Get the parameters of the extrema at a given index
        double t;// The parameter of the extremal point on the curve
        double u;// The u parameter of the extremal point on the surface
        double v;// The v parameter of the extremal point on the surface
        excs.Parameters(i, t, u, v);
        std::cout << "t: " << t << std::endl;
        std::cout << "u: " << u << std::endl;
        std::cout << "v: " << v << std::endl;

        // Get the extremal distance at a given index
        double dist = excs.Distance(i);
        std::cout << "dist: " << dist << std::endl;
        std::cout << std::endl;
    }
}

Thin-Plate Spline Curve Interpolation

During interpolation, it is clear that the curves passing through the points are not unique.

Generally, the blue curve better aligns with CAD design intent than the green curve. To ensure curves are not excessively long or overly bent, we use thin-plate energy as a measure of curve quality:

​​E1​​ controls curve length, ​​E2​​ controls the rate of curvature change. Higher ​​alpha​​ results in shorter curves.
The AMCAX::NURBSAPIInterpolateclass provides thin-plate spline curve interpolation functionality.

// Date Points
std::vector<AMCAX::Point3> points;
points.push_back(AMCAX::Point3(0.0, 0.0, 0.0));
points.push_back(AMCAX::Point3(-0.1, 1.0, -0.2));
points.push_back(AMCAX::Point3(0.1, 2.0, -0.1));
points.push_back(AMCAX::Point3(0.2, 3.0, 0.1));
points.push_back(AMCAX::Point3(0.1, 4.0, 0.0));
points.push_back(AMCAX::Point3(0.0, 5.0, -0.1));

// Configure Parameterization
AMCAX::ApproxParameterizationType ptype = AMCAX::ApproxParameterizationType::ChordLength;// Parameterization type
bool isClosed = false;
double alpha = 1e-2;// The weight of D1 Thin Plate Energy
double beta = 1e-2;// The weight of D2 Thin Plate Energy
std::vector< double > parameterization = { 0.0,0.1,0.2,0.3,0.4,0.5 };// The parameterization of the points

// Interpolate points to make a curve
auto thinplate1 = AMCAX::NURBSAPIInterpolate::InterpolatePointsThinPlate(points, isClosed, ptype, alpha, beta);
auto thinplate2 = AMCAX::NURBSAPIInterpolate::InterpolatePointsThinPlate(points, parameterization, isClosed, alpha, beta);

// Data nodes
std::vector<AMCAX::InterpolationNode> nodes;
AMCAX::Point3 p1(0., 0., 0.);
AMCAX::Point3 p2(1., 1., 1.);
AMCAX::Vector3 v1(2., 0., 0.);
AMCAX::Vector3 v2(0., 0., 0.);
nodes.push_back({ p1,true,v1,false,v2 });
nodes.push_back({ p2,true,v1,false,v2 });
std::vector<double> parameterization1{ 0.0,0.5 };// The parameterization of the points

// Interpolate points to make a curve
auto thinplate3 = AMCAX::NURBSAPIInterpolate::InterpolateNodesThinPlate(nodes, isClosed, ptype, alpha, beta);
auto thinplate4 = AMCAX::NURBSAPIInterpolate::InterpolateNodesThinPlate(nodes, parameterization1, isClosed, alpha, beta);

Converting Law Curves to 3D Geometric Curves

The AMCAX::LawFunction::ToCurve()method converts a law curve into a 3D geometric curve.
For example, with a constant function: r​​ corresponds to the y-value, ​​pf​​ and ​​pl​​ are the start and end parameters in the x-direction.

AMCAX::LawConstant law;
double r = 5.0;
double pr = 1.0;
double pl = 10.0;

// Set the parameters
law.Set(r, pr, pl);

// Get the result curve
auto curve = law.ToCurve();
AMCAX::TopoShape edge = AMCAX::MakeEdge(curve);
