HyperBlock Example

Overview

This tutorial provides the basic usage of HyperBlock (block-structured meshing), including importing geometric files for generating structured meshes, initializing and editing mesh blocks based on geometric models, and finally discretizing the mesh to achieve structured mesh generation based on geometric models. The NMBlock API includes mesh block initialization, block editing, association constraints, projection transformations, movement operations, edge matching, node distribution control, mesh discretization, quality optimization, and data query.

Functional Categories

Initialization Operations

• Init - Initialize mesh blocks

Block Editing Operations

• SplitEdge - Edge splitting
• SplitEdgeByProject - Edge splitting by projection points
• SplitEdgeUniform - Uniform edge splitting
• OSplit - O-type splitting operation
• JoinHex - Connect hexahedrons
• DeleteHex - Delete hexahedrons

Association Operations

• AssociateVertex - Vertex association
• AssociateEdge - Edge association
• AssociateFace - Face association
• DisassociateVertex - Cancel vertex association
• DisassociateEdge - Cancel edge association
• DisassociateFace - Cancel face association

Projection Transformation Operations

• ProjectNode - Project nodes
• ProjectEdge - Project edges
• MoveNodes - Move nodes
• MoveEdges - Move edges
• MoveFaces - Move faces

Edge Matching Operations

• MatchEdgeToEdge - Edge-to-edge matching
• MatchEdgeToCurve - Edge-to-curve matching
• MatchEdgeToPoints - Edge-to-points matching

Distribution Control Operations

• SetEdgesDistribution - Set edge distribution
• RevertEdgesDistribution - Revert edge distribution

Discretization Operations

• DiscreteHyperFaces - Discretize all block faces
• DiscreteFace - Discretize block faces
• DiscreteHyperBlock - Discretize all blocks
• DiscreteBlock - Discretize blocks

Smoothing Operations

• SmoothFaces - Smooth faces
• SmoothBlocks - Smooth blocks

Data Query

• GetVertexCount - Get vertex count
• GetEdgeCount - Get edge count
• GetFaceCount - Get face count
• GetBlockCount - Get block count
• GetEdgeVertexs - Get edge vertices
• GetFaceVertexs - Get face vertices
• GetBlockVertexs - Get block vertices
• GetFaceEdges - Get face edges
• GetBlockEdges - Get block edges
• GetBlockFaces - Get block faces
• GetVertexRepresentation - Get vertex geometric representation
• GetEdgeRepresentation - Get edge geometric representation
• GetFaceRepresentation - Get face geometric representation
• GetAllMeshNodes - Get all mesh nodes
• GetEdgeMesh - Get edge mesh
• GetFaceMesh - Get face quadrilateral mesh
• GetBlockMesh - Get block hexahedral mesh

Namespace

For clear example code, use namespace.

using namespace AMCAX::NextMesh;
using namespace AMCAX;

Import Geometric Model

Import geometric file.

const std::string filedir = "./data/7.brep";
AMCAX::TopoShape shape;
OCCTIO::OCCTTool::Read(shape, filedir);
NMAPIModel nmapi;
nmapi.ImportModel({ shape });

std::vector<NMEntity> ents0, ents1, ents2;
nmapi.GetEntities(ents0, DimType::D0);
nmapi.GetEntities(ents1, DimType::D1);
nmapi.GetEntities(ents2, DimType::D2);

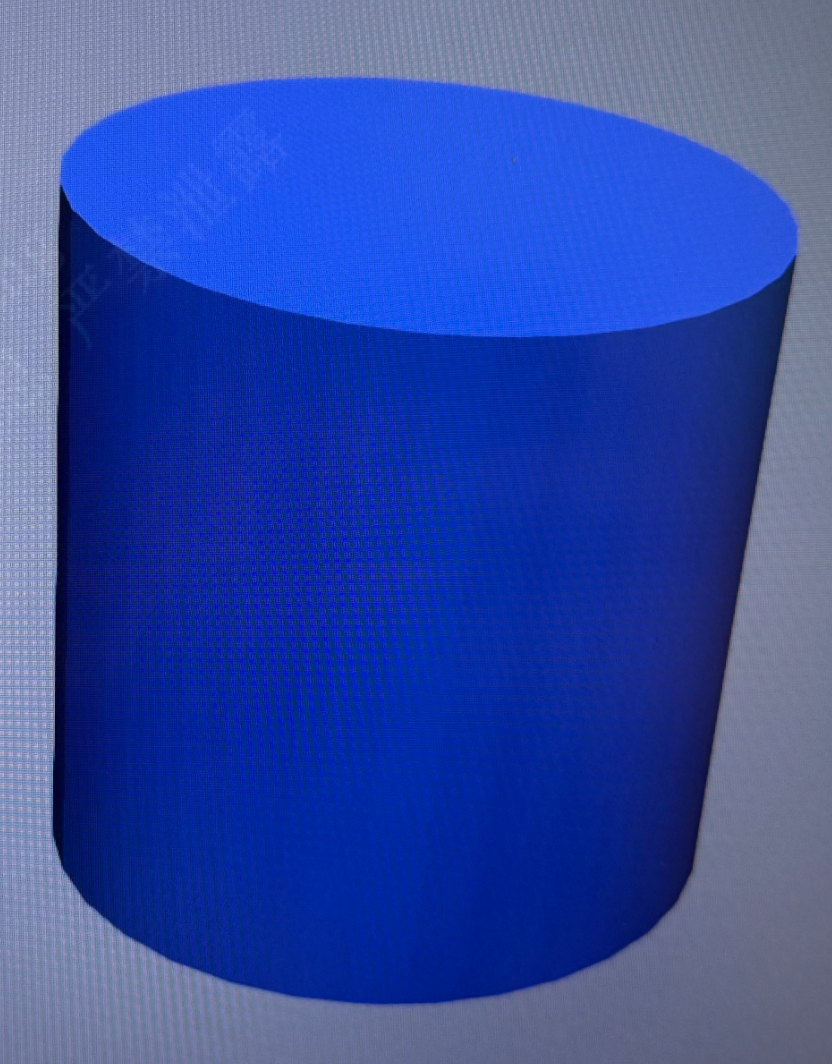

The geometric model is shown below:

Edit Mesh Blocks

Get mesh block operation object

NMBlock &blockapi = nmapi.GetNMBlock();

Initialize mesh blocks

blockapi.Init();

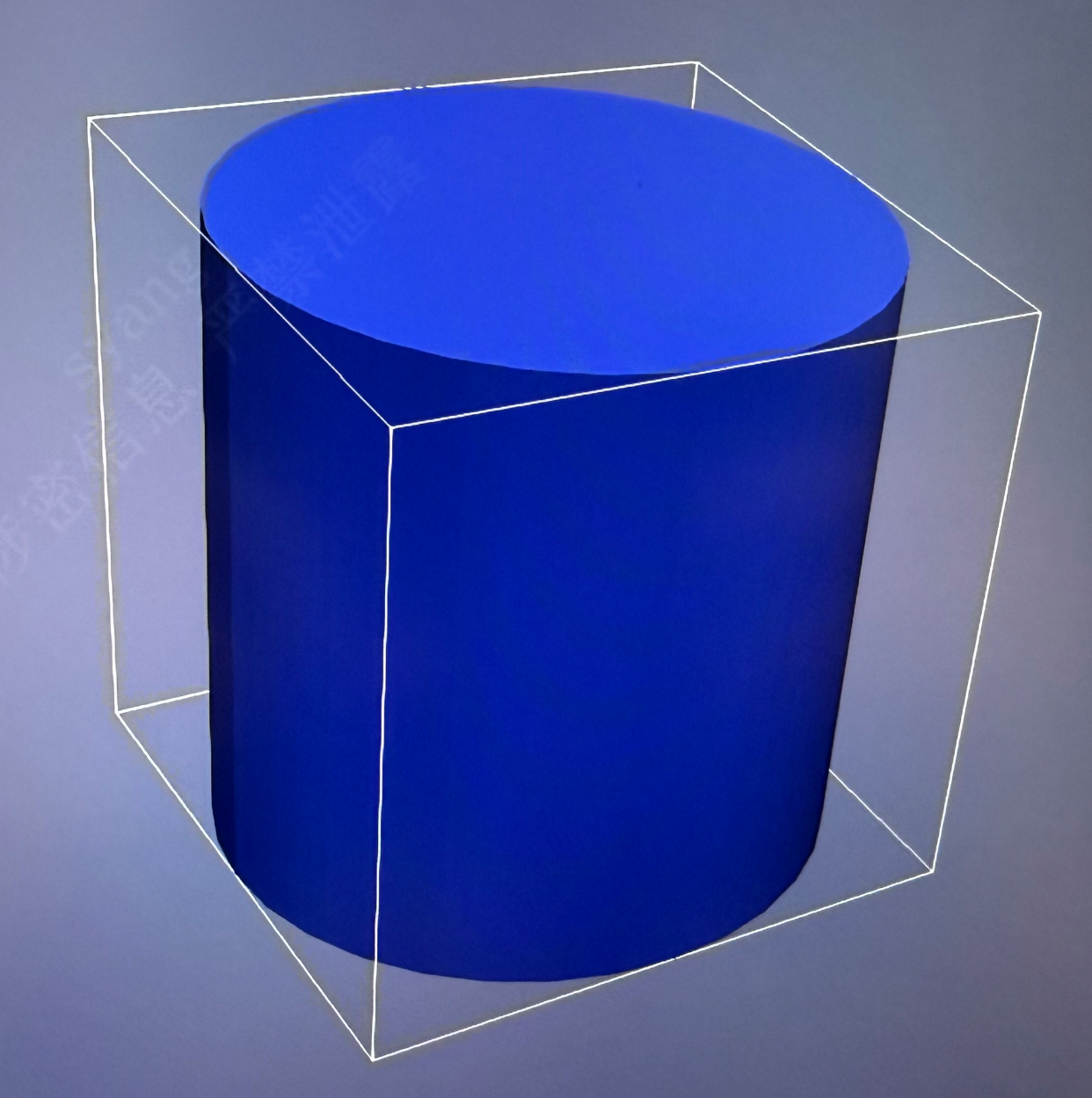

Mesh block initialization result:

Edge splitting

// Split edge with ID 0 at 30% and 70% positions, dividing into 3 segments
blockapi.SplitEdge(0, {0.3, 0.7});

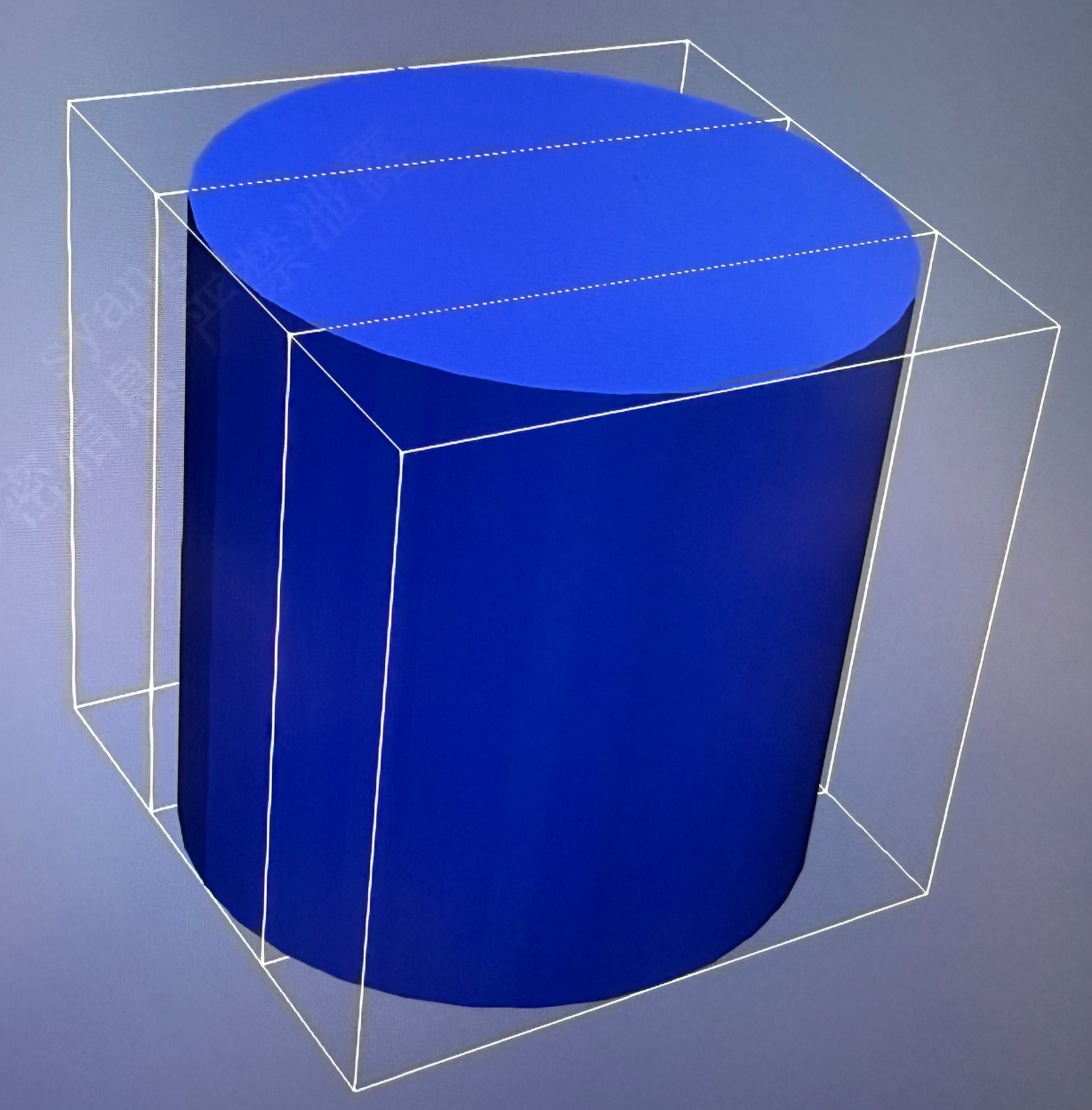

Based on mesh block initialization, edge splitting result:

Projection point edge splitting

// Split edge by projecting spatial point onto edge
NMPoint3 projectionPoint = {1.5, 2.0, 3.0};
blockapi.SplitEdgeByProject(1, projectionPoint);

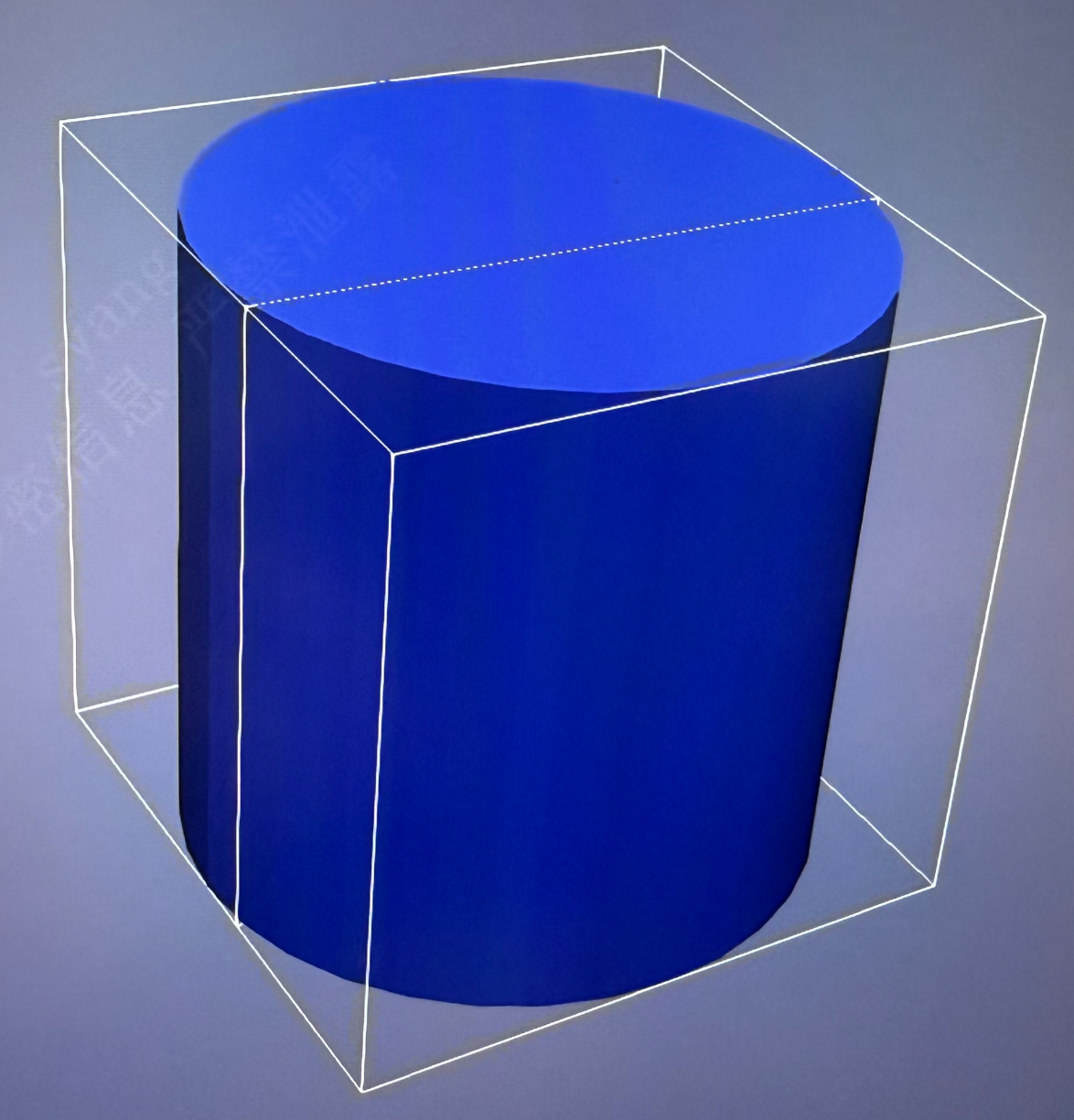

Based on mesh block initialization, projection point edge splitting result:

Uniform edge splitting

// Uniformly split edge into 5 segments
blockapi.SplitEdgeUniform(1, 5);

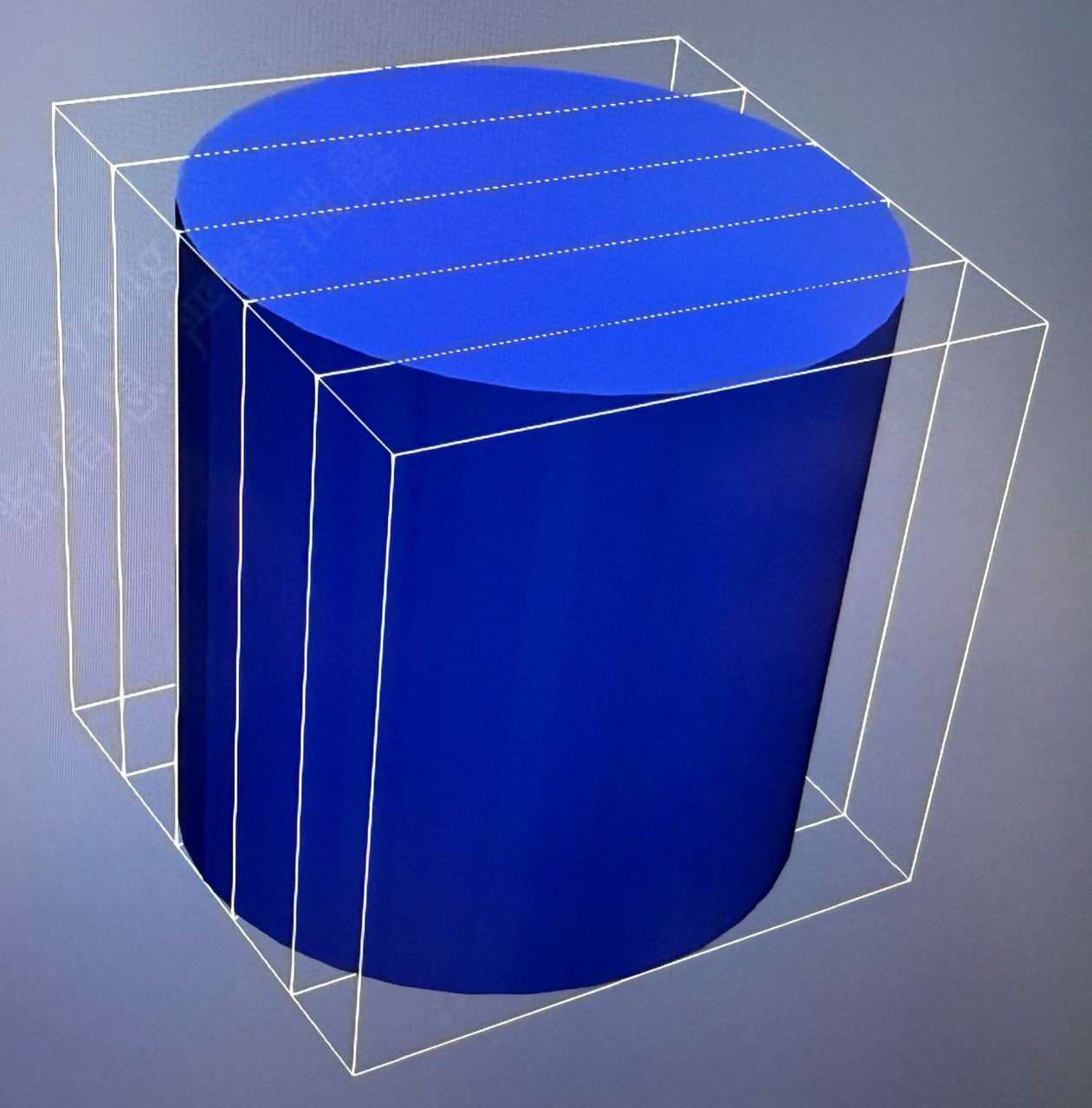

Based on mesh block initialization, uniform edge splitting result:

O-type splitting operation

// Perform O-type splitting on specified hexahedral blocks
std::vector<Indext> blockIds = {0};
std::vector<Indext> faceIds = {0, 5};
double offset = 0.5;
blockapi.OSplit(blockIds, faceIds, offset);

Based on mesh block initialization, O-type splitting result:

Connect hexahedrons

// Connect hexahedrons through specified faces
std::vector<Indext> connectFaces = {8, 9, 10};
bool success = blockapi.JoinHex(connectFaces);

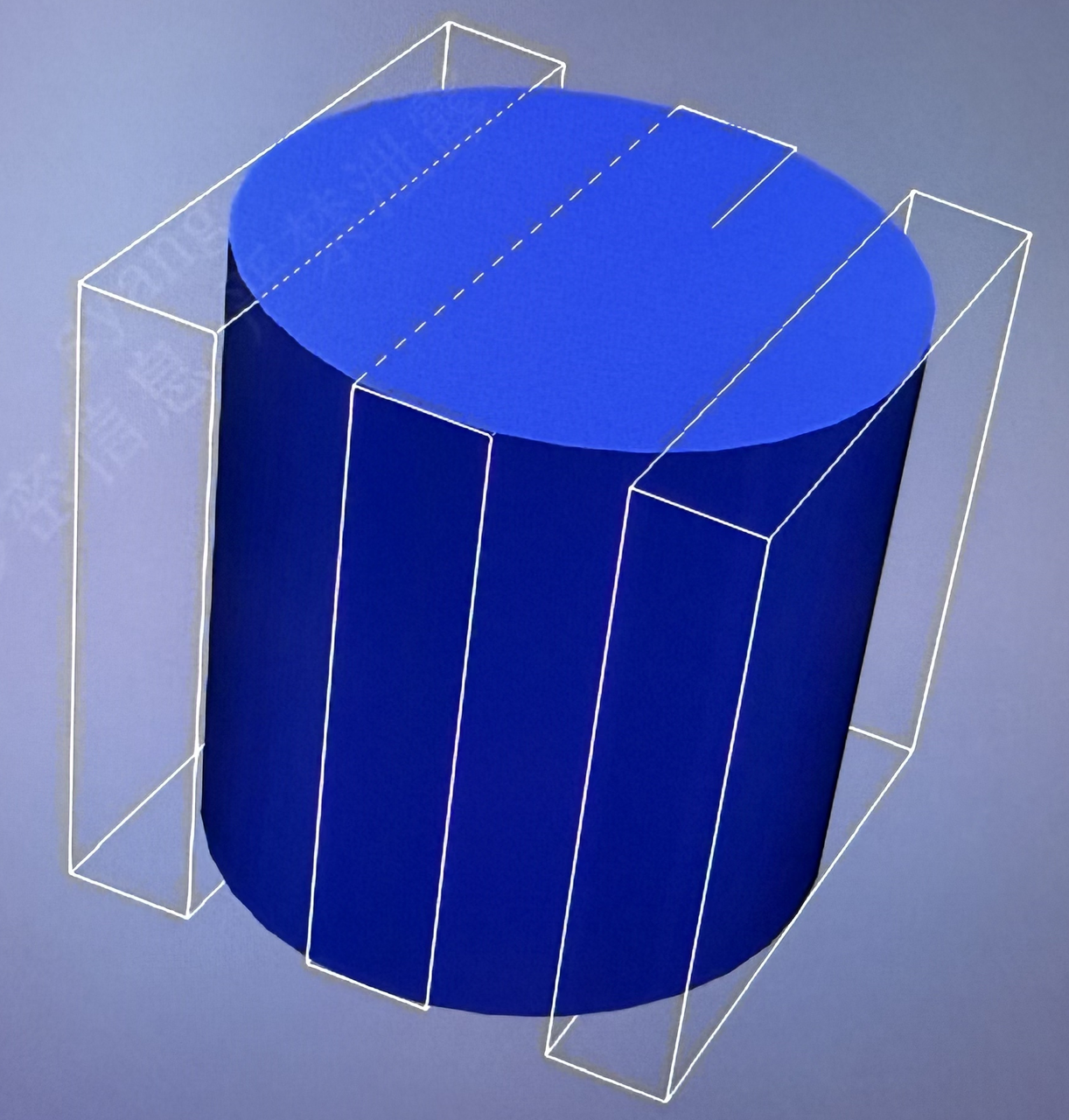

Based on projection point edge splitting, hexahedron connection result:

Delete hexahedrons

// Delete specified hexahedrons
std::vector<Indext> hexToDelete = {1, 3};
blockapi.DeleteHex(hexToDelete);

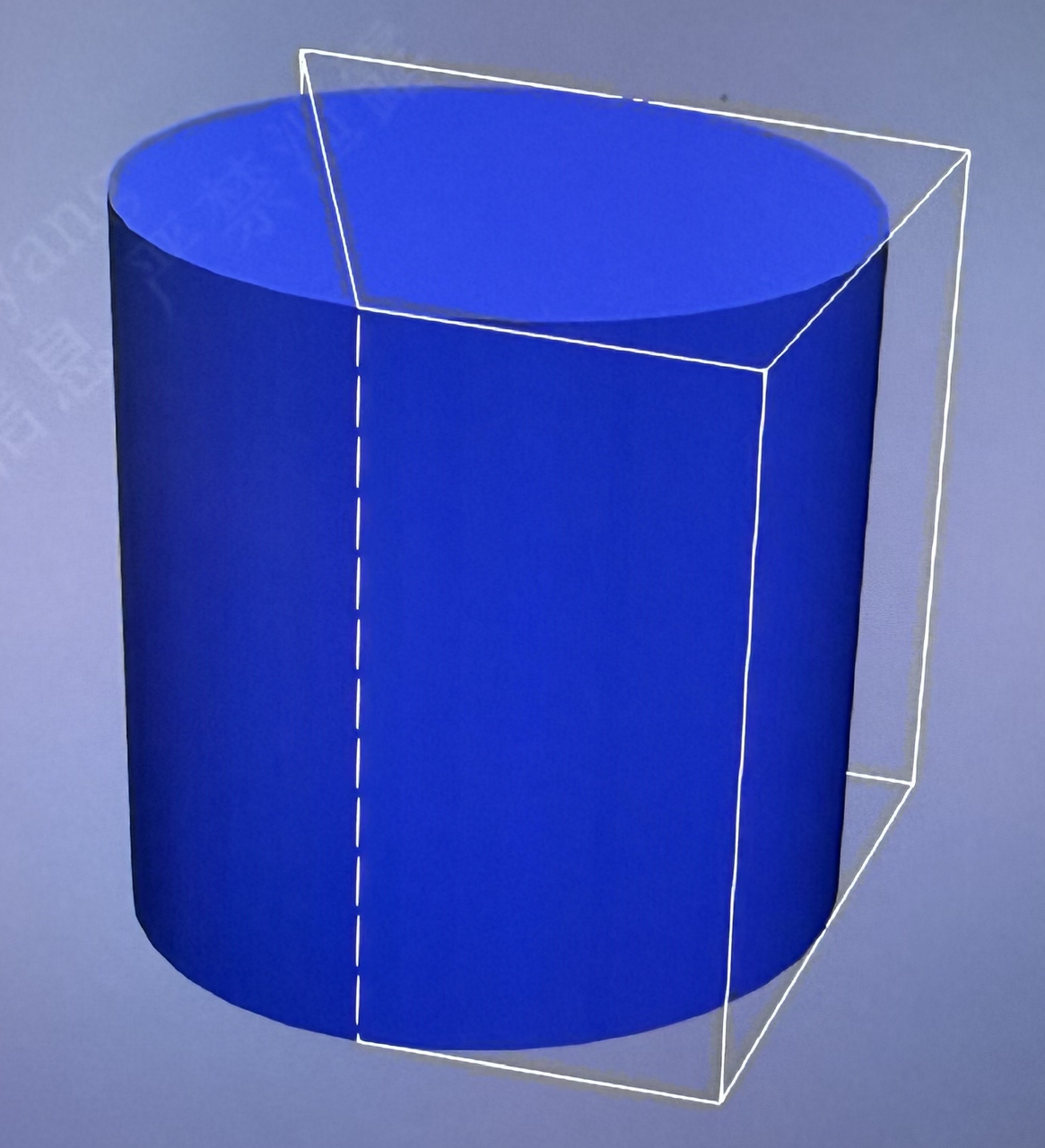

Based on uniform edge splitting, hexahedron deletion result:

Vertex association

// Associate vertices to geometric points
std::vector<Indext> vertexIds = { 5 };
std::vector<NMEntity> NMEnts = { ents0[0]};
bool success = blockapi.AssociateVertex(vertexIds, DimType::D0, NMEnts);

Based on mesh block initialization, vertex association to geometric points result:

vertexIds = { 1 };
NMEnts = { ents1[1] };
success = blockapi.AssociateVertex(vertexIds, DimType::D1, NMEnts);

Based on previous operation, vertex association to geometric edges result:

vertexIds = { 2 };
NMEnts = { ents2[0] };
success = blockapi.AssociateVertex(vertexIds, DimType::D2, NMEnts);

Based on previous operation, vertex association to geometric faces result:

Edge association

// Associate mesh edges to geometric edges
std::vector<Indext> edgeIds = { 8, 9, 10, 11 };
std::vector<NMEntity> NMEnts = { ents1[0] };
bool success = blockapi.AssociateEdge(edgeIds, DimType::D1, NMEnts);

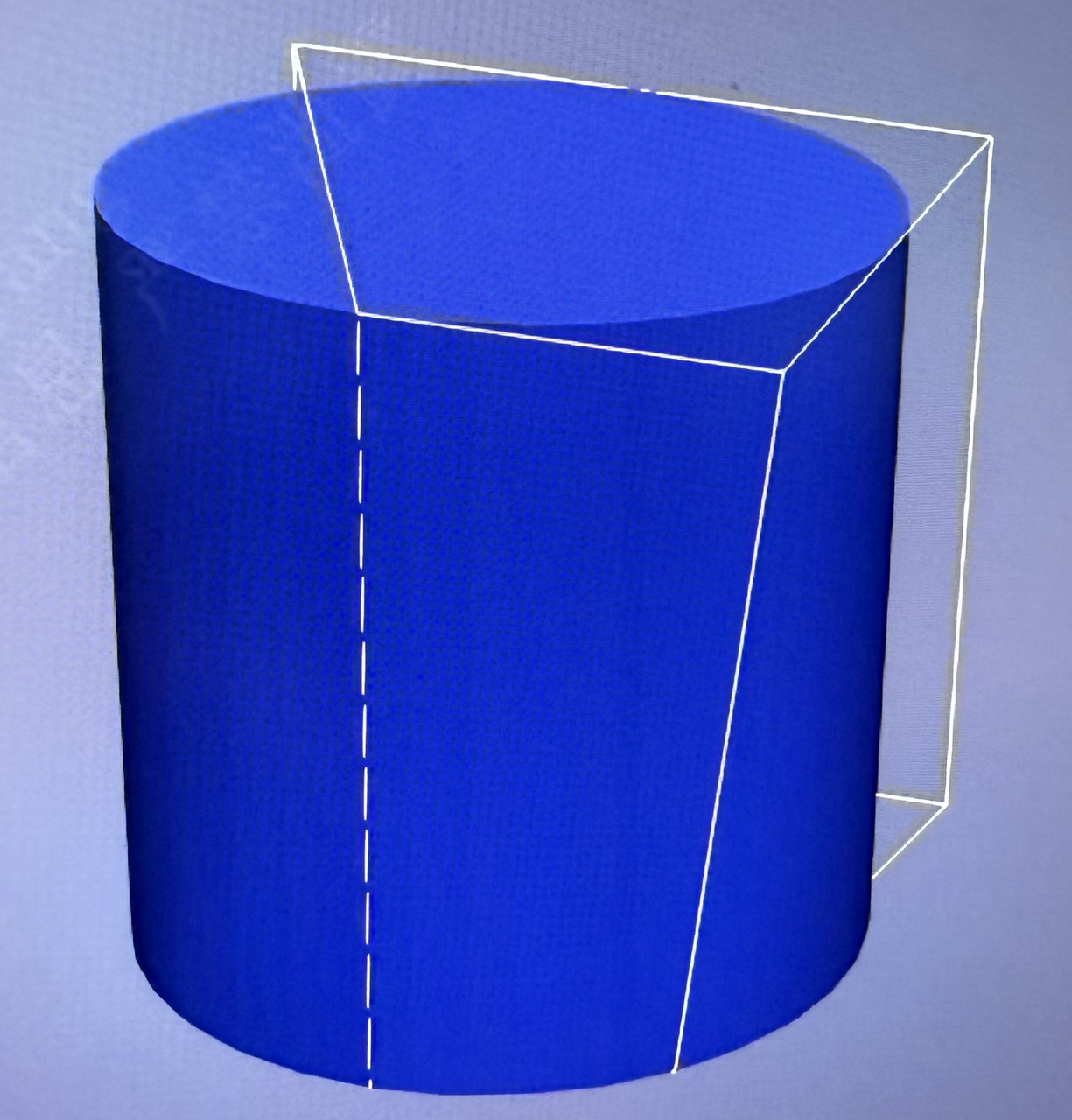

Based on mesh block initialization, block edge association to geometric edges result:

Face association

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {0, 2, 5, 8};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

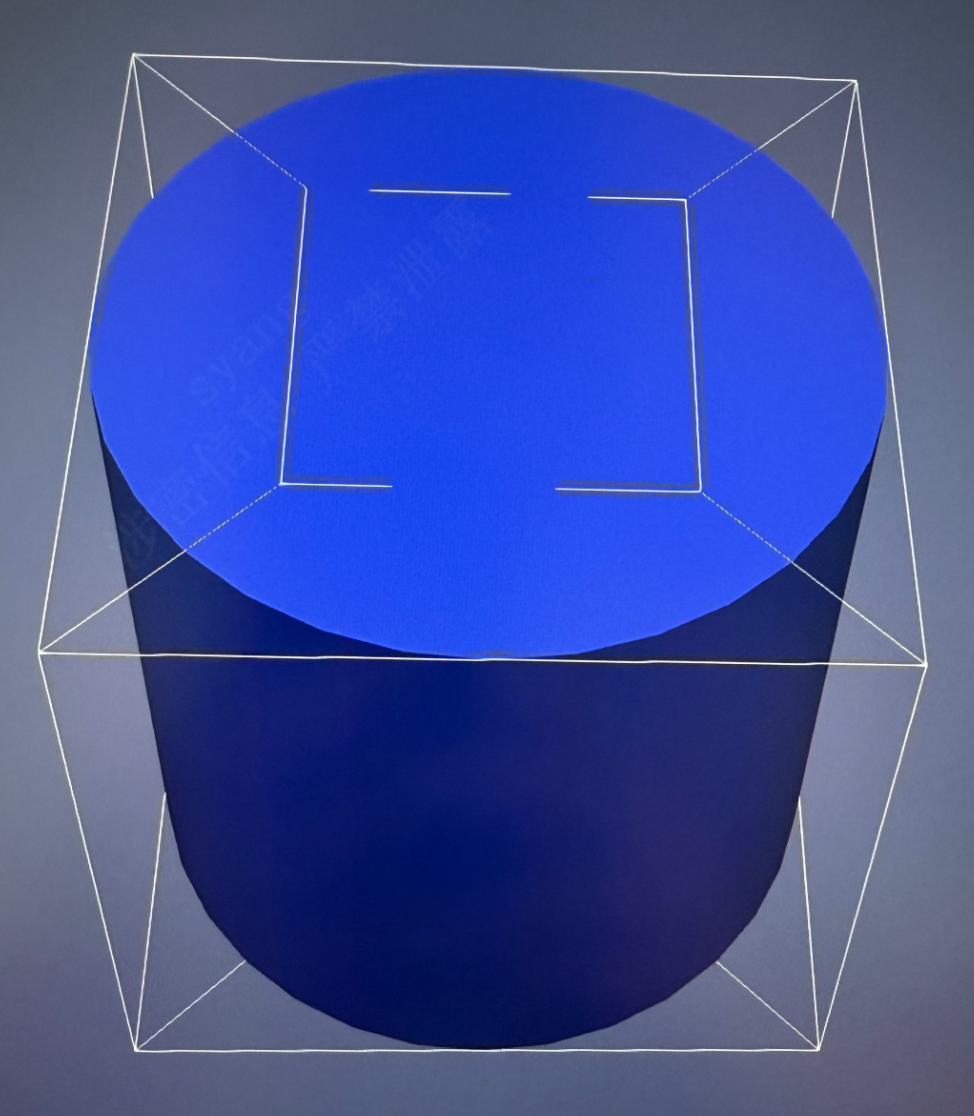

Based on O-type splitting, block face association to geometric faces result:

Cancel vertex association

// Cancel geometric association of specified vertices
std::vector<Indext> vertexIds = {1, 2, 3};
bool success = blockapi.DisassociateVertex(vertexIds);

Canceling block vertex association does not cause vertex position changes.

Cancel edge association

// Cancel geometric association of specified edges
std::vector<Indext> edgeIds = {5, 6};
bool success = blockapi.DisassociateEdge(edgeIds);

Canceling block edge association does not cause vertex position changes.

Cancel face association

// Cancel geometric association of specified faces
std::vector<Indext> faceIds = {3, 4};
bool success = blockapi.DisassociateFace(faceIds);

Canceling block face association does not cause vertex position changes.

Project nodes

// Project nodes to geometric faces
std::vector<Indext> vertexIds = { 5 };
std::vector<NMEntity> NMEnts = { ents0[0]};
bool success = blockapi.ProjectNode(vertexIds, NodeType::Vertex, DimType::D0, NMEnts);

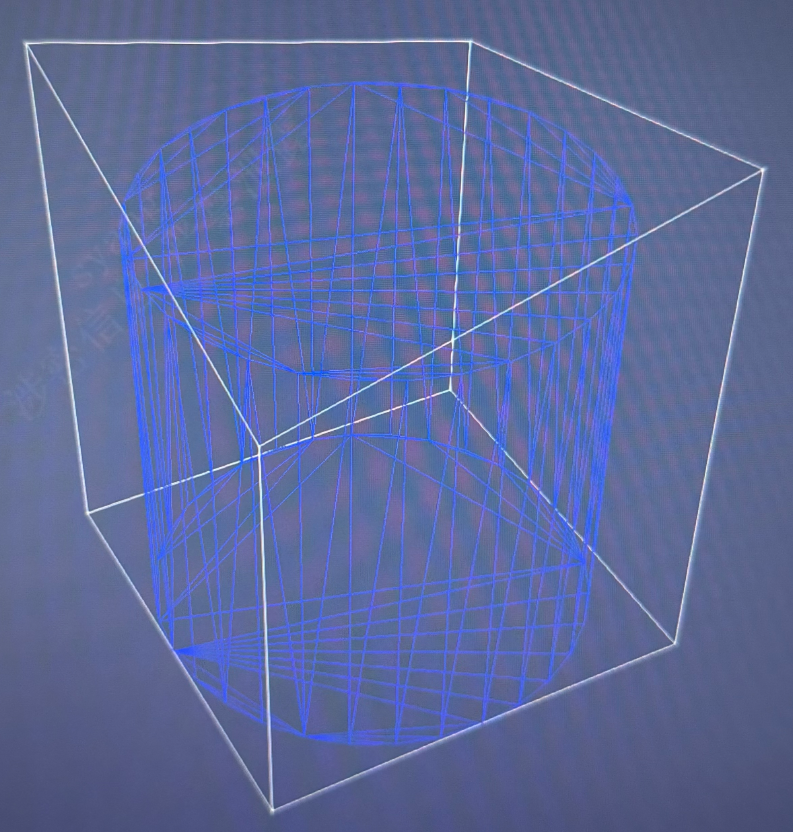

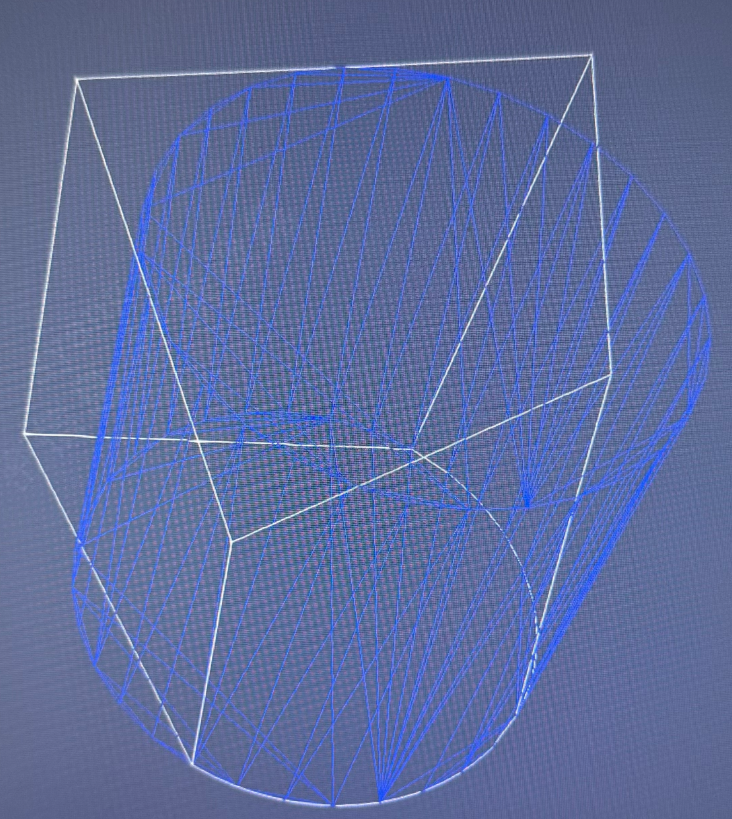

Based on mesh block initialization, node projection to geometric points result:

Project edges

// Project edges to geometric curves
std::vector<Indext> edgeIds = { 3, 5 };
std::vector<NMEntity> NMEnts = { ents1[2] };
bool success = blockapi.ProjectEdge(edgeIds, DimType::D1, NMEnts);

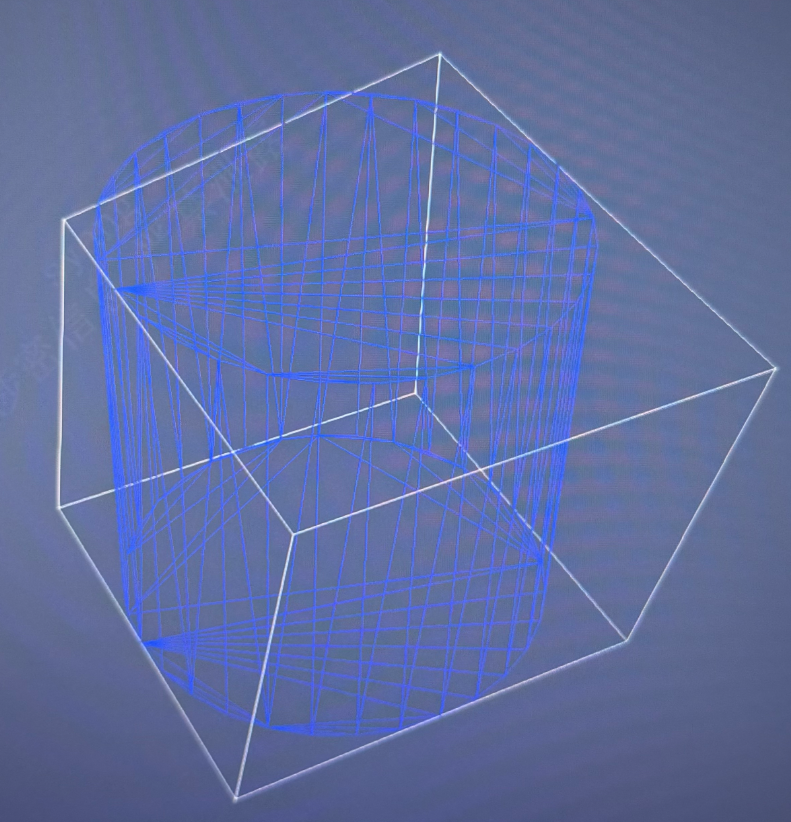

Based on mesh block initialization, edge projection to geometric curves result:

Move nodes

Currently only supports moving vertices

// Move nodes along specified direction
std::vector<Indext> nodeIds = { 5, 7 };
NMVector3 moveVector = { 0., 0.0, 5.0 };
bool success = blockapi.MoveNodes(nodeIds, NodeType::Vertex, moveVector);

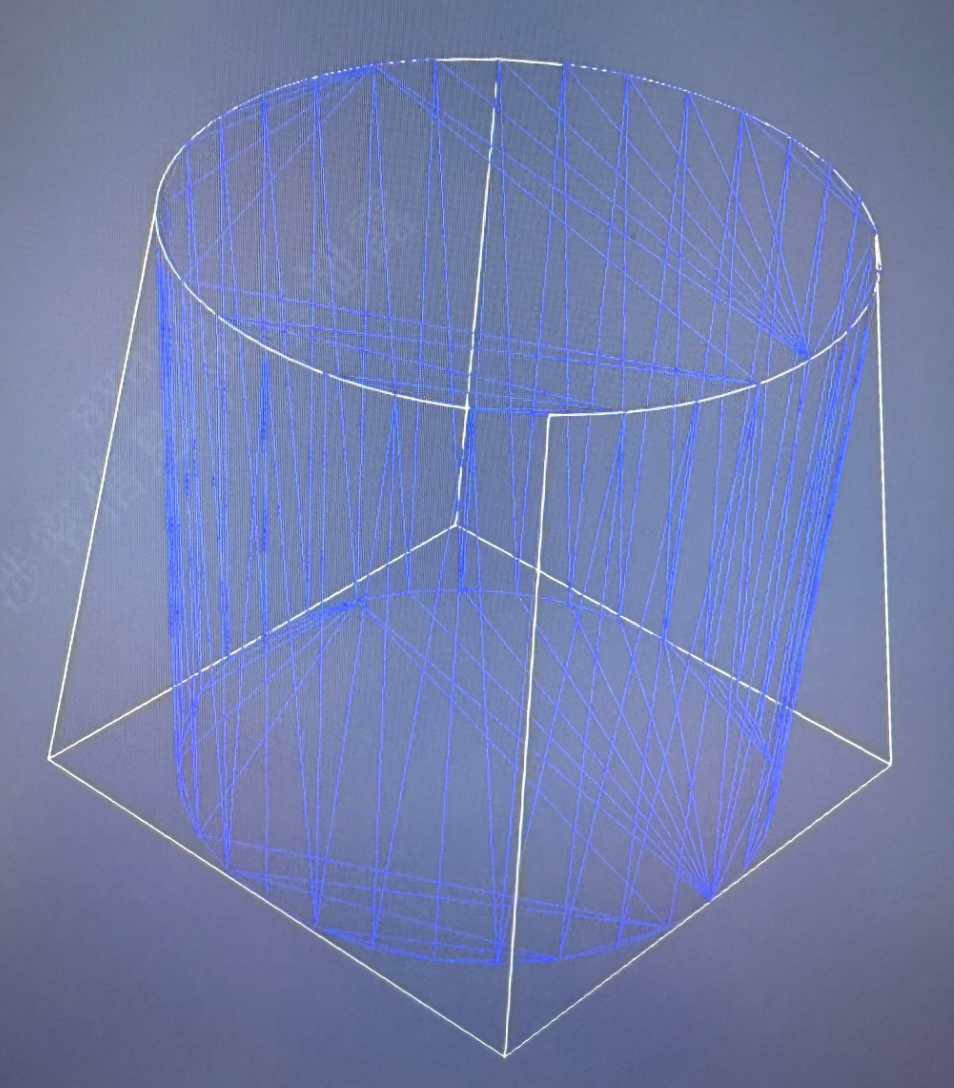

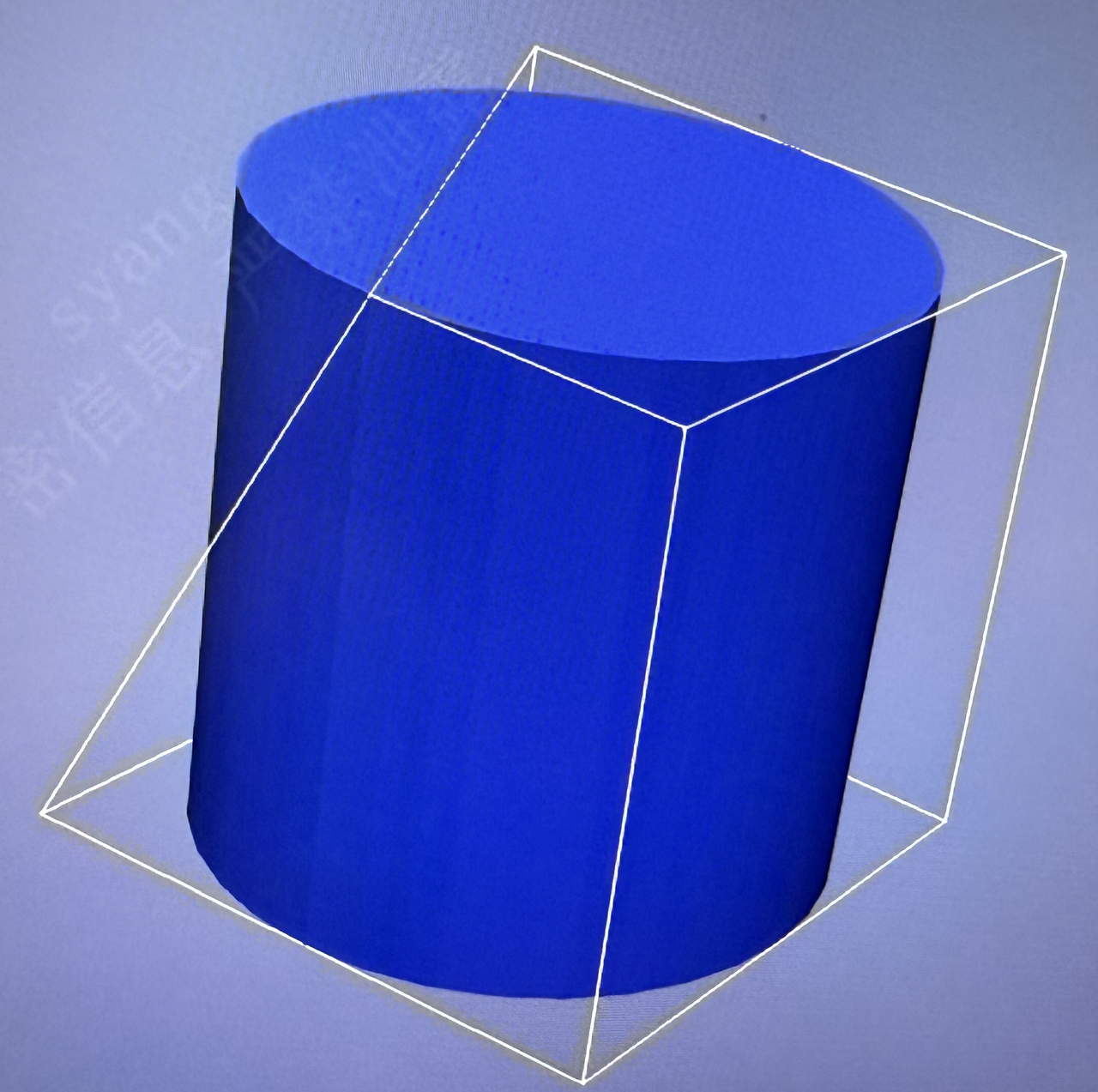

Based on mesh block initialization, node movement result:

Move edges

// Move edges along specified direction
std::vector<Indext> edgeIds = { 10, 11 };
NMVector3 moveVector = { 0.0, 5.0, 0.0 };
bool success = blockapi.MoveEdges(edgeIds, moveVector, true);

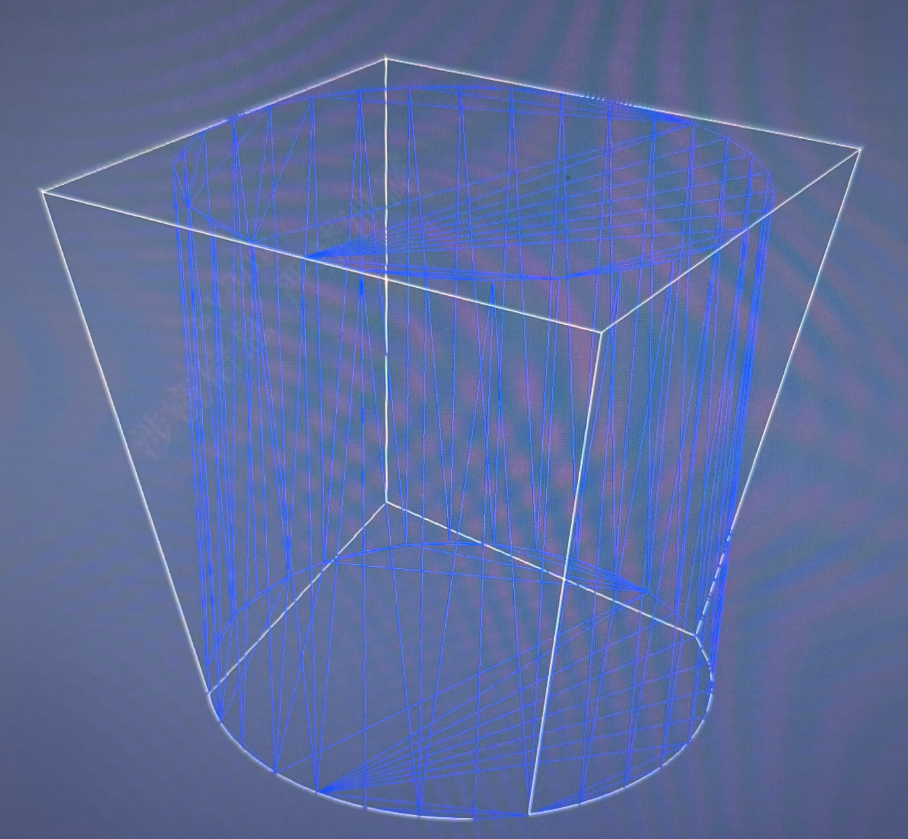

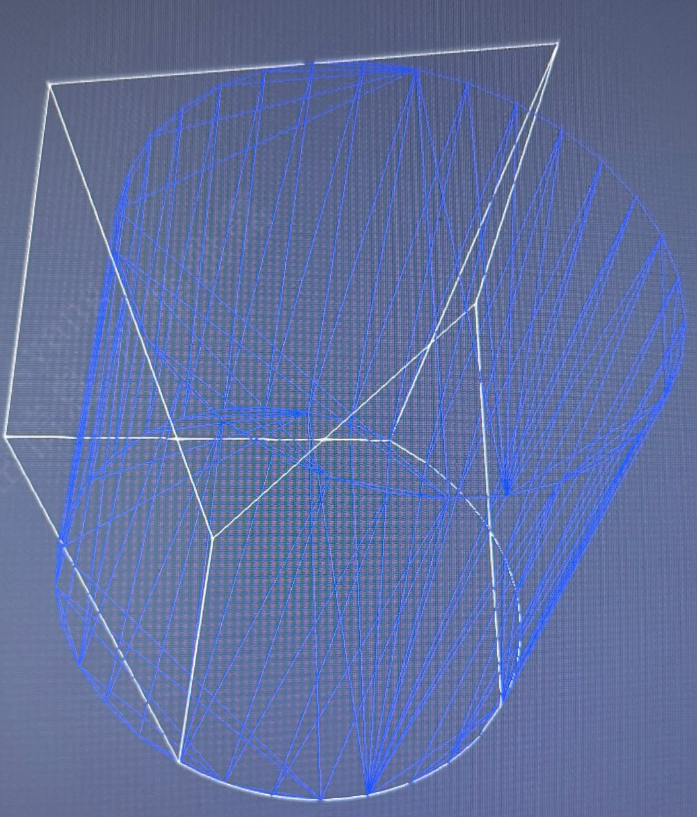

Based on mesh block initialization, edge movement result:

Move faces

// Move faces along specified direction
std::vector<Indext> faceIds = { 0, 4 };
NMVector3 moveVector = { 0.0, 5.0, 0.0 };
bool success = blockapi.MoveFaces(faceIds, moveVector);

Based on mesh block initialization, face movement result:

Edge-to-edge matching

// Match source edge shape to target edge's optimal shape
std::vector<Indext> sourceEdges = { 20 };
std::vector<Indext> targetEdges = { 0 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 23 };
targetEdges = { 4 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 25 };
targetEdges = { 7 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 21 };
targetEdges = { 1 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 28 };
targetEdges = { 12 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 30 };
targetEdges = { 15 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 31 };
targetEdges = { 17 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

sourceEdges = { 29 };
targetEdges = { 13 };
matchFactor = 0.5;
success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

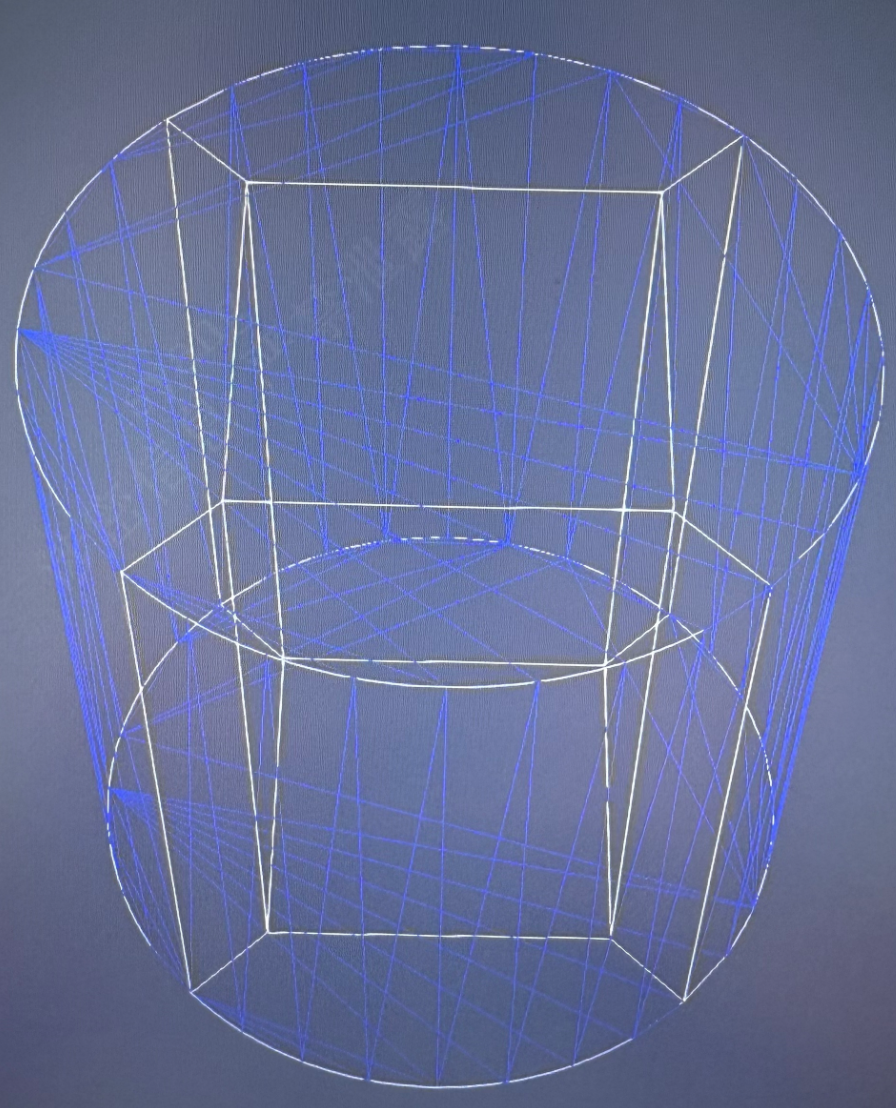

Based on face association, edge-to-edge matching result:

Edge-to-curve matching

// Adjust edge shape to match geometric curve
std::vector<Indext> edgeIds = { 10, 11 };
std::vector<NMEntity> NMEnts = { ents1[2] };
double matchFactor = 0.8;
bool success = blockapi.MatchEdgeToCurve(edgeIds, NMEnts, matchFactor, true);

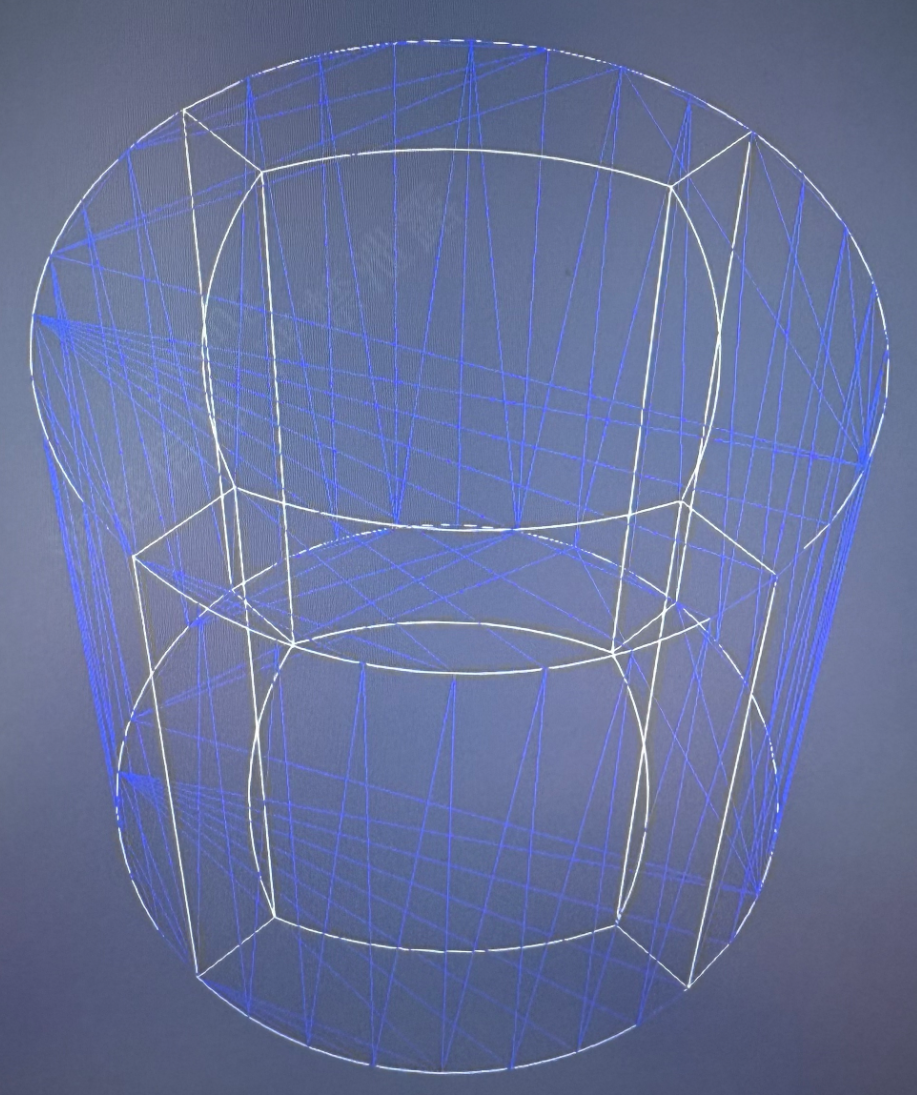

Based on edge projection, edge-to-curve matching result:

Edge-to-points matching

// Adjust edge shape to pass through specified geometric points
std::vector<Indext> edgeIds = { 10, 11 };
std::vector<NMEntity> NMEnts = { ents0[0], ents0[1]};
double matchFactor = 0.5;
bool success = blockapi.MatchEdgeToPoints(edgeIds, NMEnts, matchFactor);

Based on edge projection, edge-to-points matching result:

Set edge distribution

Uniform node count distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

SpacingParam param;
param._type = SpacingType::Number;
param._num = 10;
param._reverse = false;
param._parallel = false;
std::vector<Indext> edgeIds = { 0, 1 };;
bool success = blockapi.SetEdgesDistribution(edgeIds, param, true);

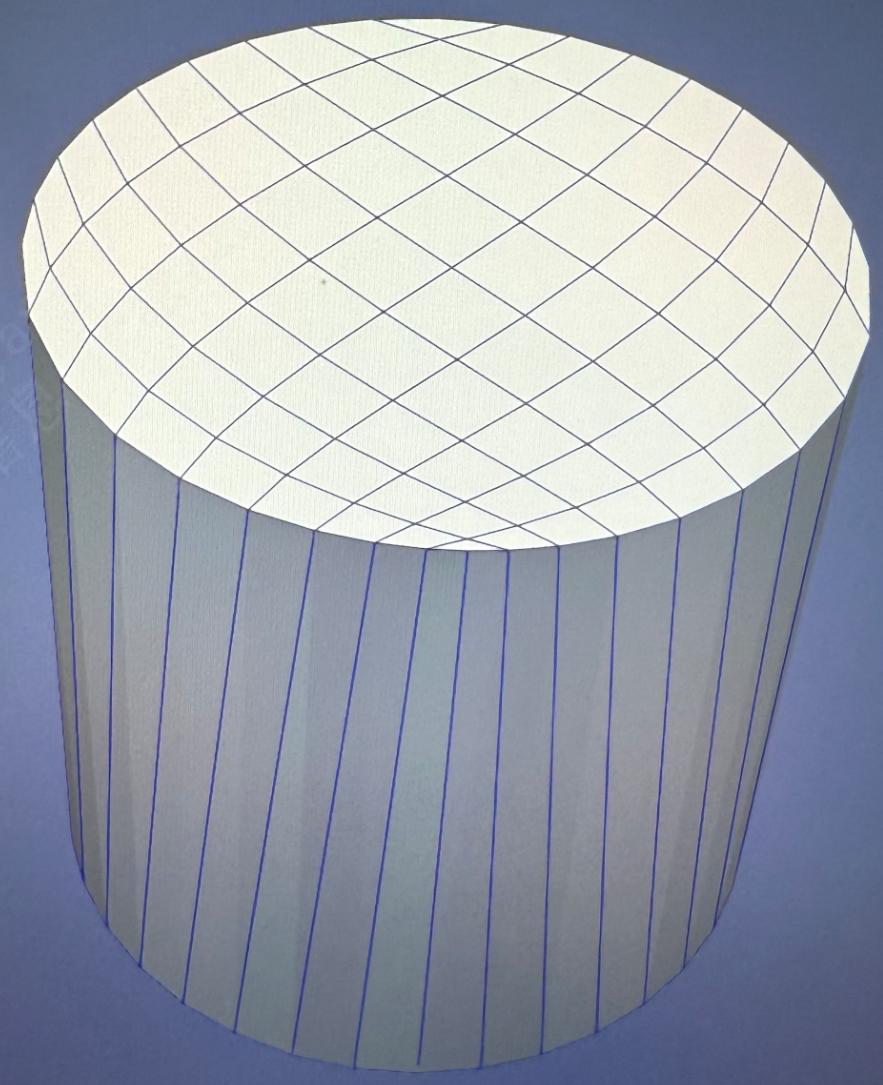

Based on block initialization, first associate faces, then set Number distribution result:

Fixed length distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

SpacingParam param;
param._type = SpacingType::Length;
param._startLen = 1.2;
param._reverse = false;
param._parallel = false;
std::vector<Indext> edgeIds = { 0, 1 };;
bool success = blockapi.SetEdgesDistribution(edgeIds, param, true);

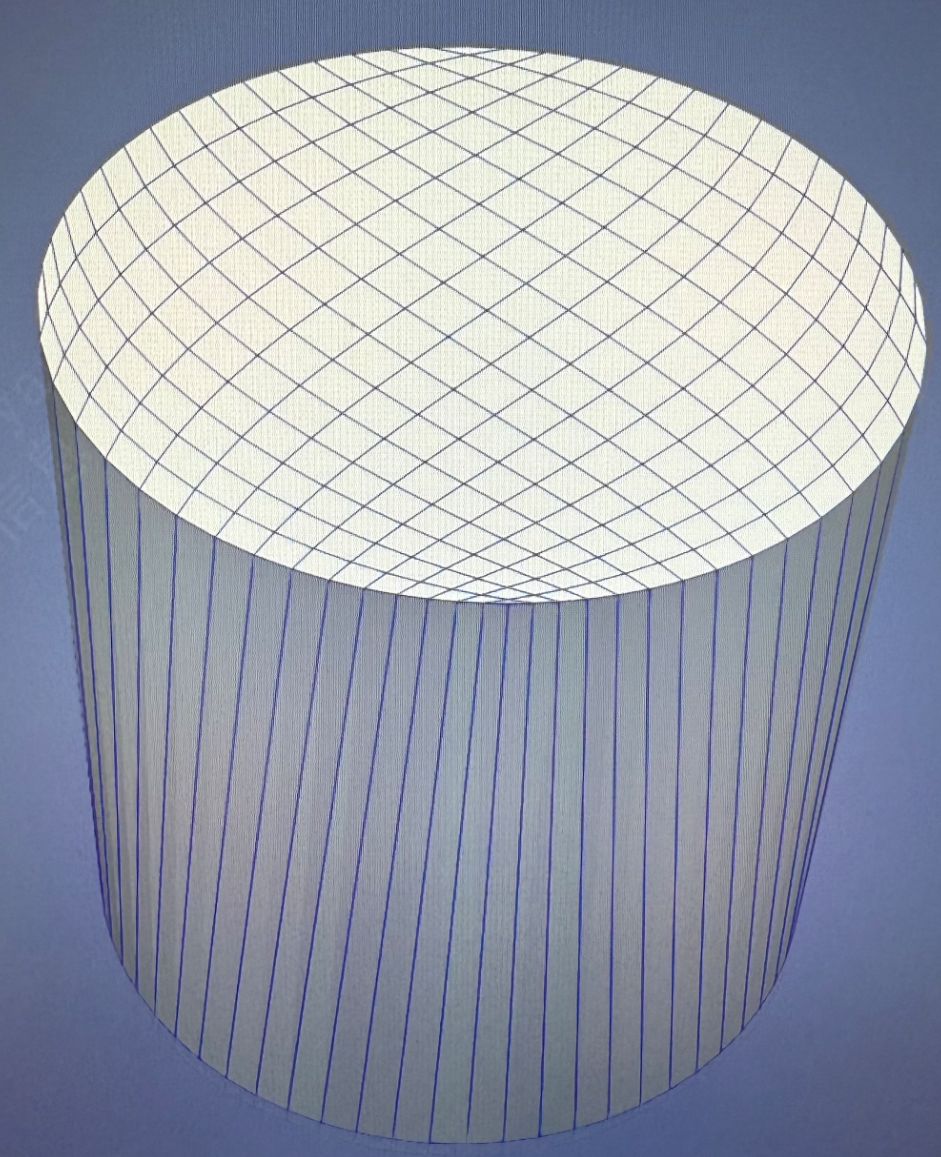

Based on block initialization, first associate faces, then set Length distribution result:

Linear distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

SpacingParam param;
param._type = SpacingType::Linear;
param._mode = 0;
param._factor = 3;
param._num = 10;
param._reverse = false;
param._parallel = false;
std::vector<Indext> edgeIds = { 8, 9 };
bool success = blockapi.SetEdgesDistribution(edgeIds, param, true);

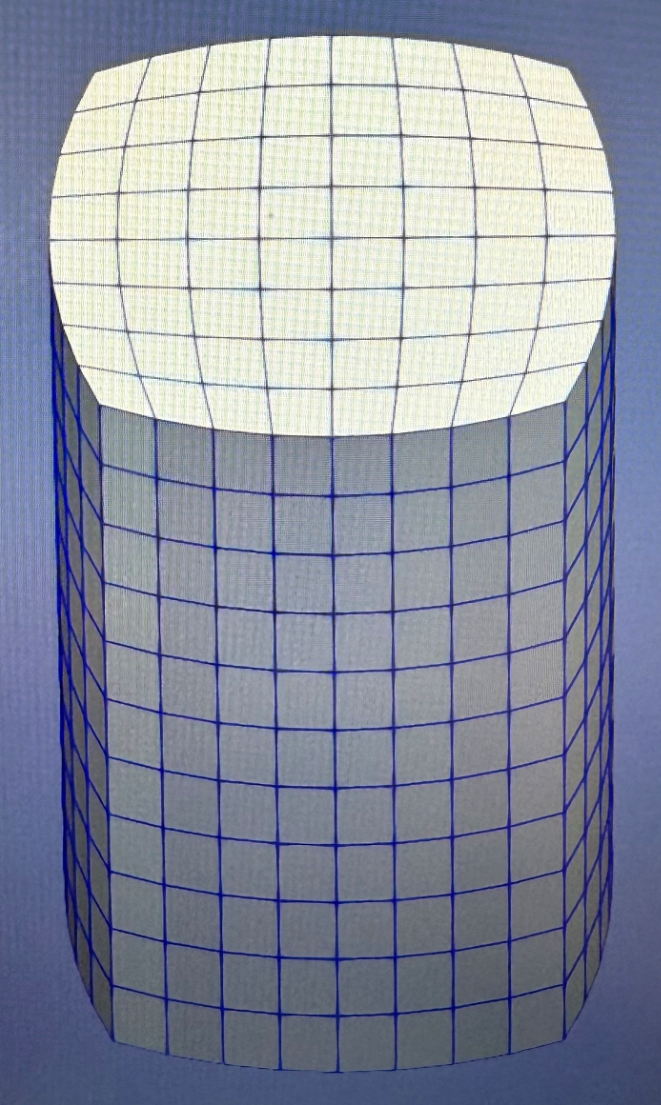

Based on block initialization, first associate faces, then set Linear distribution result:

Geometric progression distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

SpacingParam param;
param._type = SpacingType::Geometric;
param._mode = 1;
param._startLen = 1.5;
param._endLen = 7.5;
param._reverse = false;
param._parallel = false;
std::vector<Indext> edgeIds = { 8, 9 };
bool success = blockapi.SetEdgesDistribution(edgeIds, param, true);

Based on block initialization, first associate faces, then set Geometric distribution result:

Bell curve distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

SpacingParam param;
param._type = SpacingType::BellCurve;
param._mode = 0;
param._num = 10;
param._factor = 5.0;
param._reverse = false;
param._parallel = false;
std::vector<Indext> edgeIds = { 8, 9 };
bool success = blockapi.SetEdgesDistribution(edgeIds, param, true);

Based on block initialization, first associate faces, then set BellCurve distribution result:

Auto CFD distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

param._type = SpacingType::AutoCFD;
param._growthRate = 1.5;
param._maxLength = 5.0;
param._minLength = 1.0;
param._distortionAngle = 15.0;
param._reverse = false;
param._parallel = false;
std::vector<Indext> edgeIds = { 8, 9 };
bool success = blockapi.SetEdgesDistribution(edgeIds, param, true);

Based on block initialization, first associate faces, then set AutoCFD distribution result (for curves):

Note: For edges with no significant curvature change, uniform distribution is used.

Revert edge distribution

// Associate mesh faces to geometric faces
std::vector<Indext> faceIds  = {1, 2, 3, 4};
std::vector<NMEntity> geoFaces = { ents2[0] };
bool success = blockapi.AssociateFace(faceIds, geoFaces);

SpacingParam param;
// Number
param._type = SpacingType::Number;
param._num = 10;
param._reverse = false;
param._parallel = false;
edgeIds = { 0, 1 };
blockapi.SetEdgesDistribution(edgeIds, param);

// Length
param._type = SpacingType::Length;
param._startLen = 1.2;
param._reverse = false;
param._parallel = false;
edgeIds = { 0, 1 };
blockapi.SetEdgesDistribution(edgeIds, param);
// Revert distribution settings for specified edges
blockapi.RevertEdgesDistribution(edgeIds);

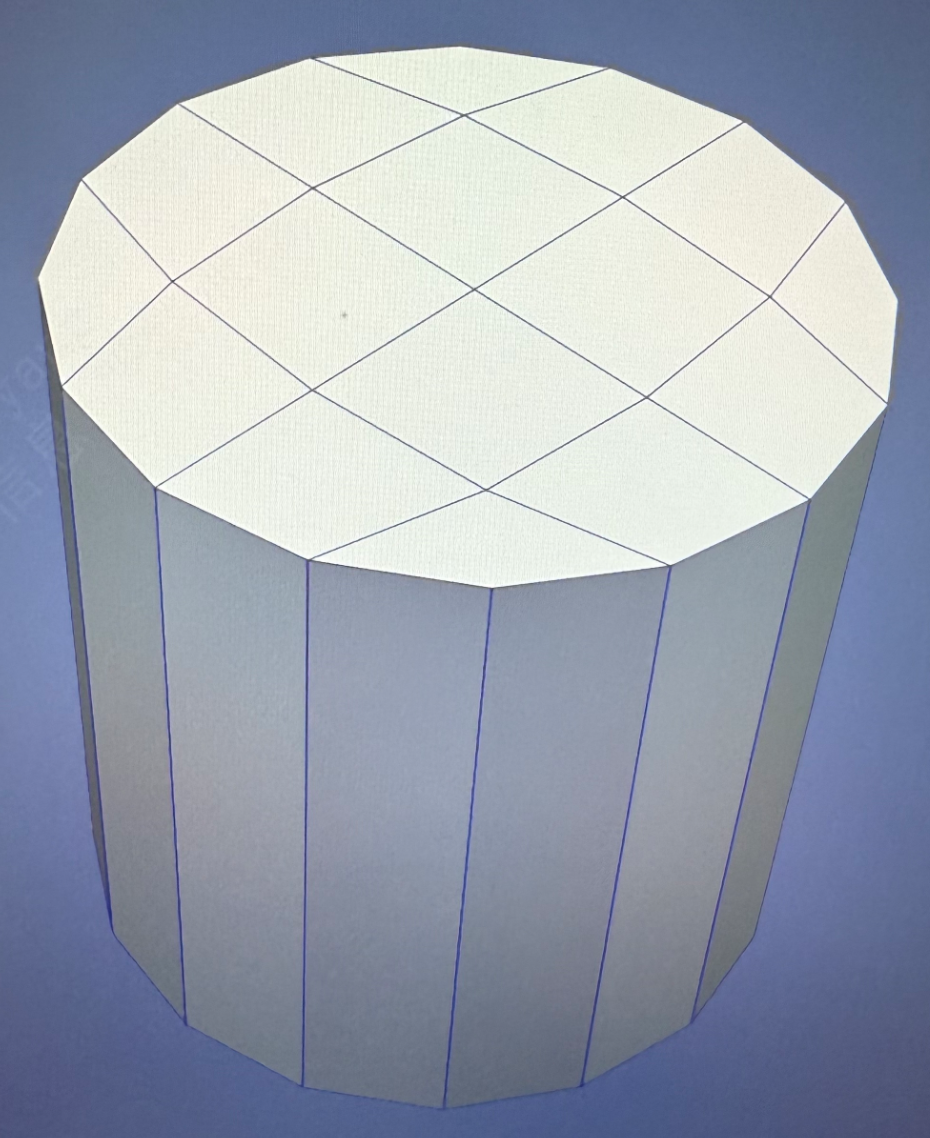

Based on block initialization, first associate faces, then set Number distribution, then set Length distribution, finally revert edge distribution result:

Discretize all block faces

// Set edge distribution
param._type = SpacingType::Length;
param._startLen = 2;
param._reverse = false;
param._parallel = false;
edgeIds = {0, 1, 2, 3};
// Discretize all faces
if(blockapi.DiscreteHyperFaces())
{
    std::cout << "Discrete all faces." << std::endl;
}

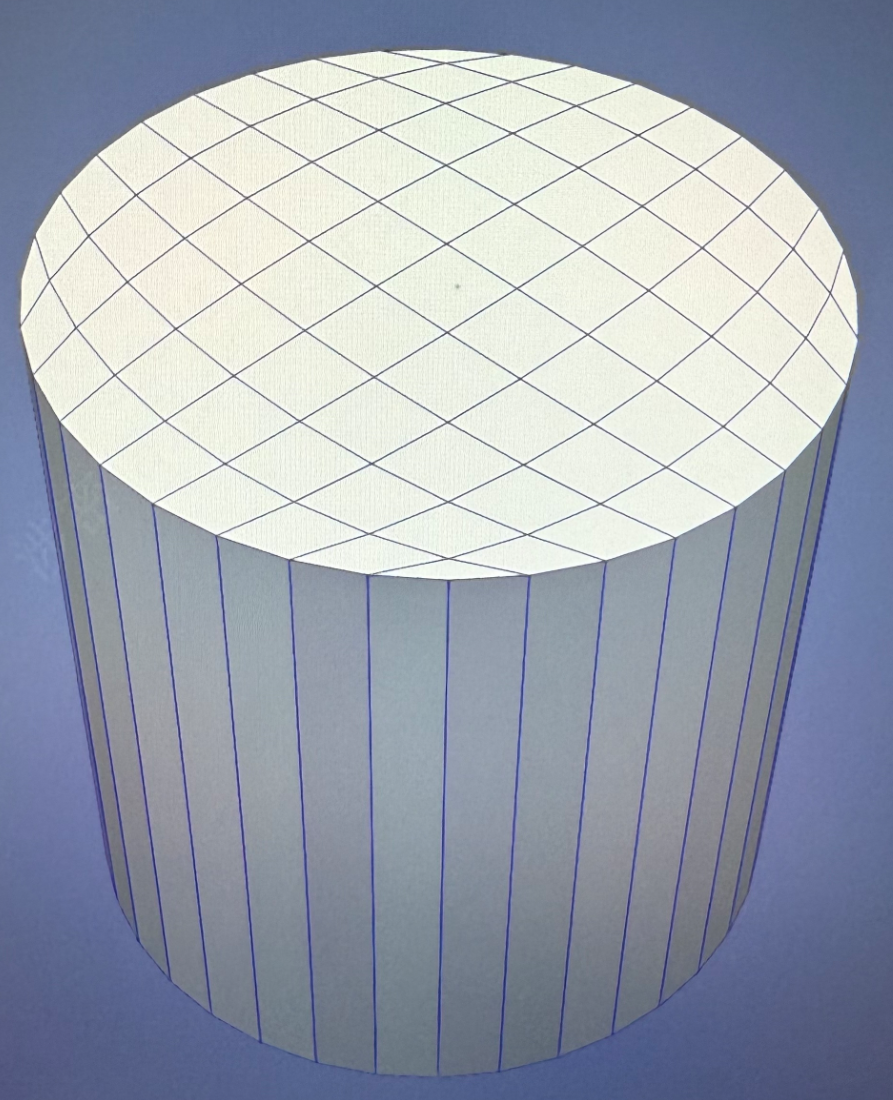

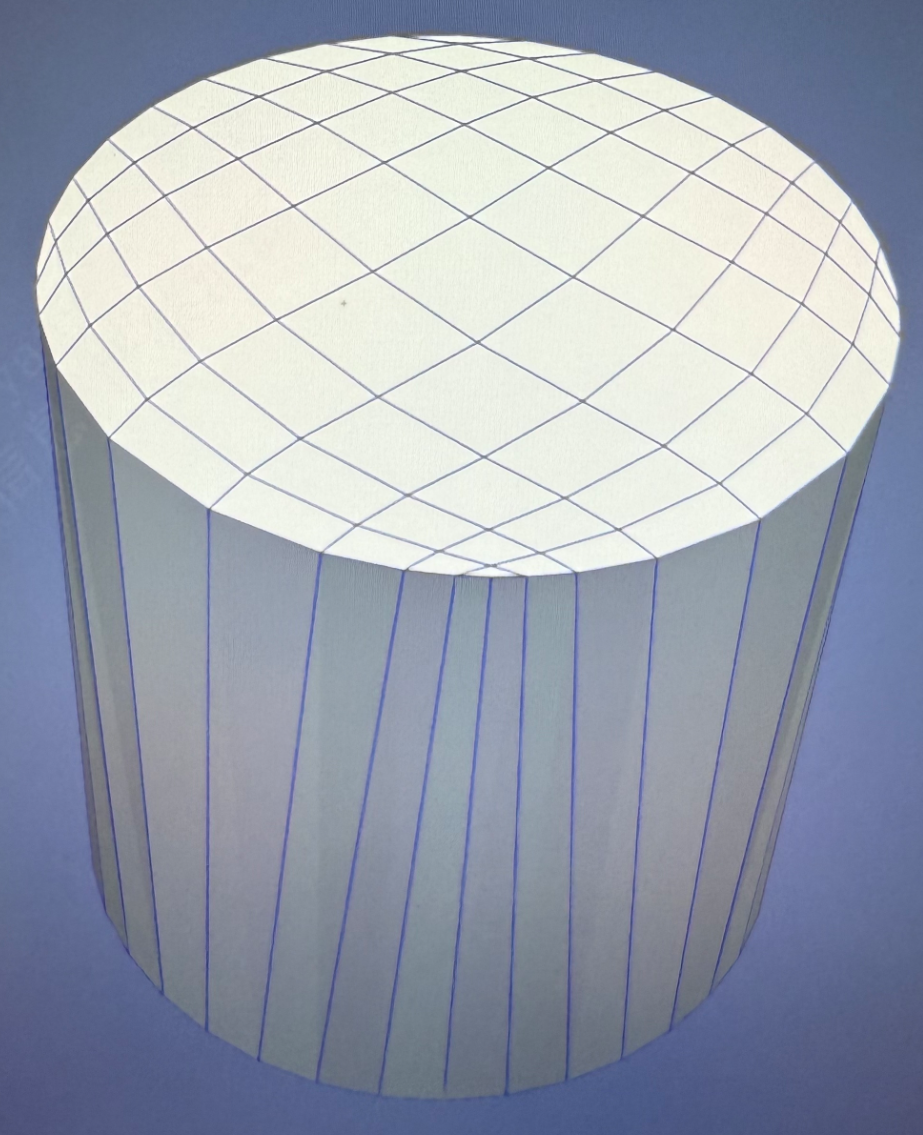

Based on edge-to-edge matching, first set edge distribution, then discretize all block faces result:

Discretize block faces

// Set edge distribution
param._type = SpacingType::Length;
param._startLen = 2;
param._reverse = false;
param._parallel = false;
edgeIds = {0, 1, 2, 3};
// Discretize specified faces
faceIds = { 21 };
if(blockapi.DiscreteFace(faceIds))
{
    std::cout << "Discrete face : " ;
    for(auto id : faceIds)
    {
        std::cout << id << " ";
    }
    std::cout << std::endl;
}

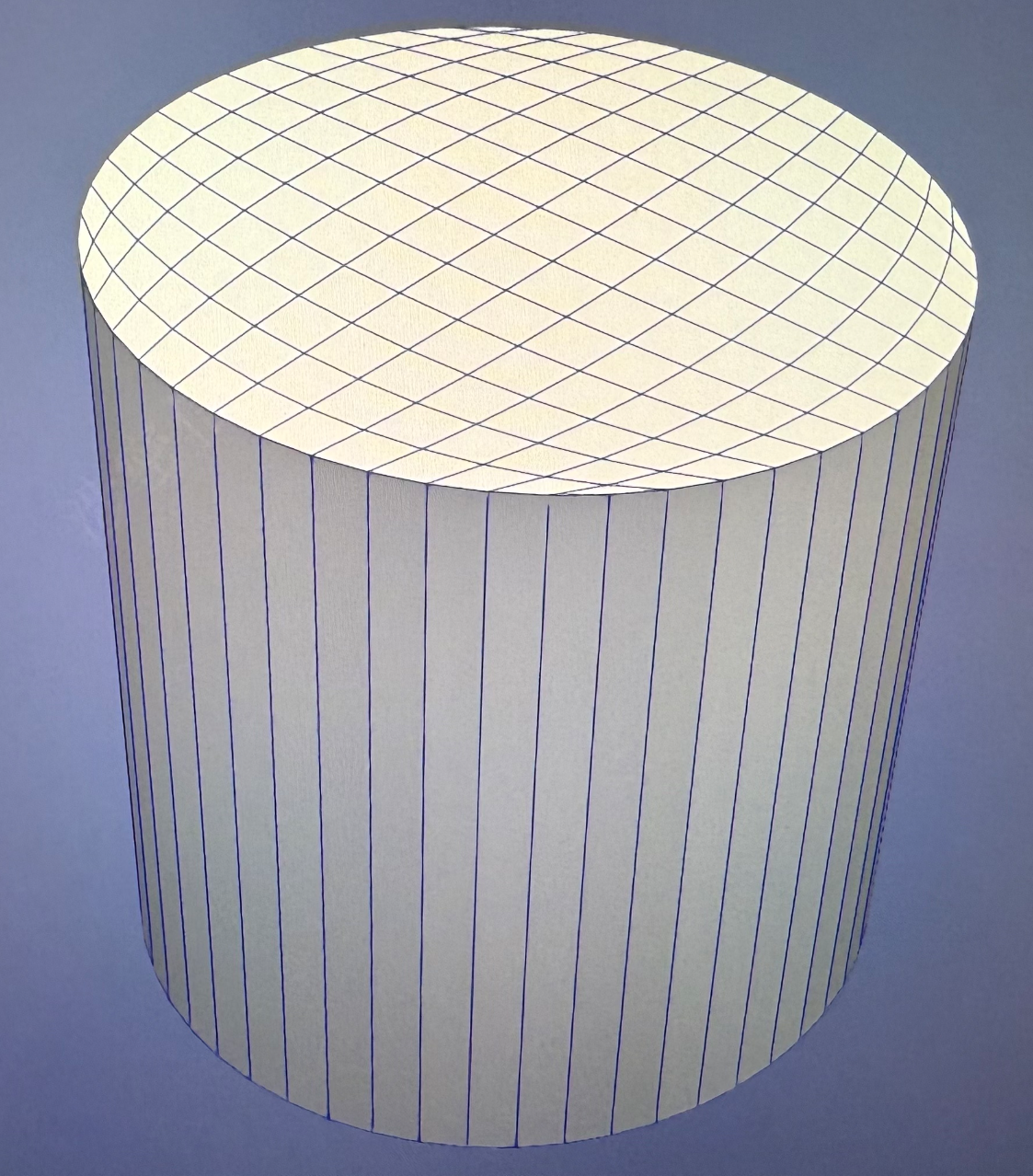

Based on edge-to-edge matching, first set edge distribution, then discretize block faces result:

Discretize all blocks

// Set edge distribution
param._type = SpacingType::Length;
param._startLen = 2;
param._reverse = false;
param._parallel = false;
edgeIds = {0, 1, 2, 3};
// Discretize all blocks to generate 3D mesh
if(blockapi.DiscreteHyperBlocks())
{
    std::cout << "Discrete all blocks." << std::endl;
}

Based on edge-to-edge matching, first set edge distribution, then discretize all blocks result:

Discretize blocks

// Set edge distribution
param._type = SpacingType::Length;
param._startLen = 2;
param._reverse = false;
param._parallel = false;
edgeIds = {0, 1, 2, 3};
// Discretize specified blocks
blockIds = { 0 };
if(blockapi.DiscreteBlock(blockIds))
{
    std::cout << "Discrete block : " ;
    for(auto id : blockIds)
    {
        std::cout << id << " ";
    }
    std::cout << std::endl;
}

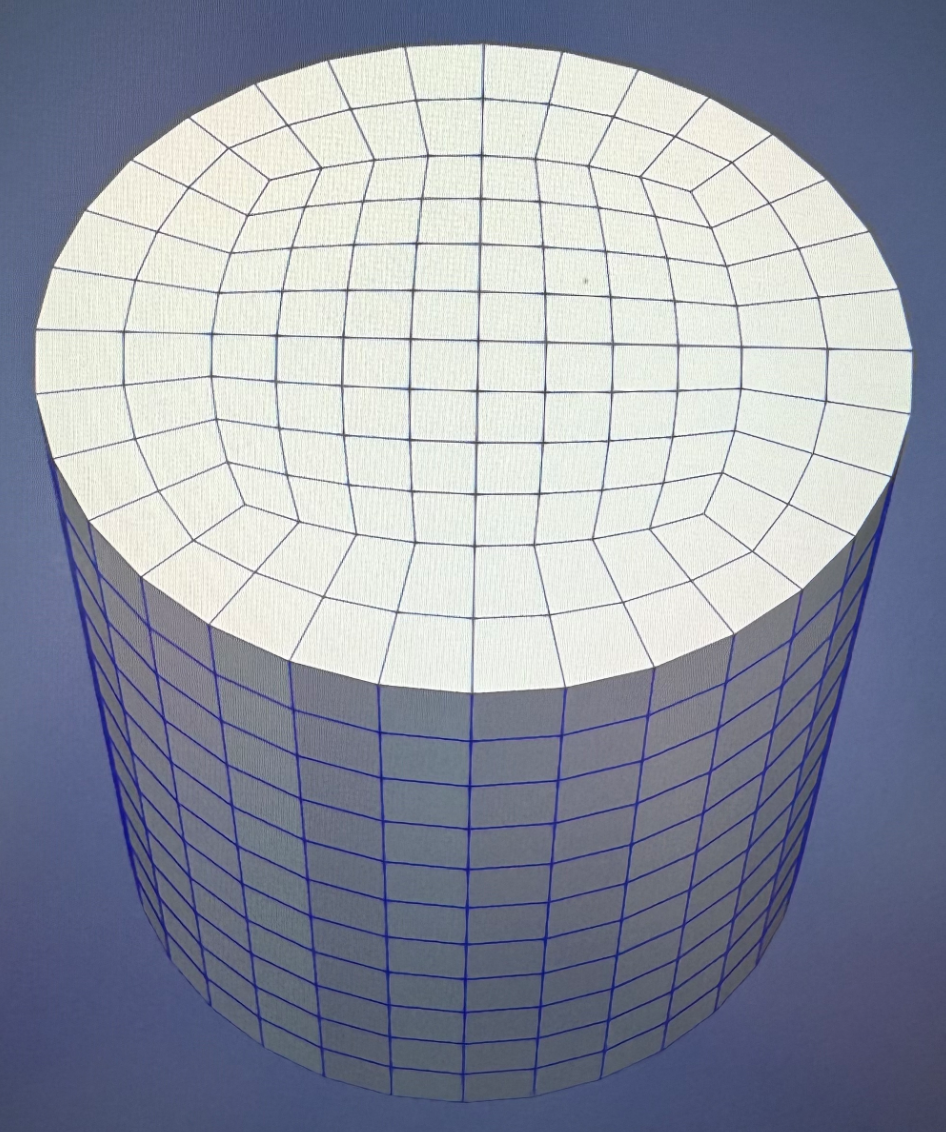

Based on edge-to-edge matching, first set edge distribution, then discretize blocks result:

Smooth faces

// Smooth face mesh
SmoothParam smoothParam;
smoothParam.faceIds = {21};
smoothParam._optimizerType = SmoothType::LAPLACIAN;
smoothParam._maxIteration = 20;
smoothParam._relaxationFactor = 0.3;
blockapi.SmoothFaces(smoothParam);

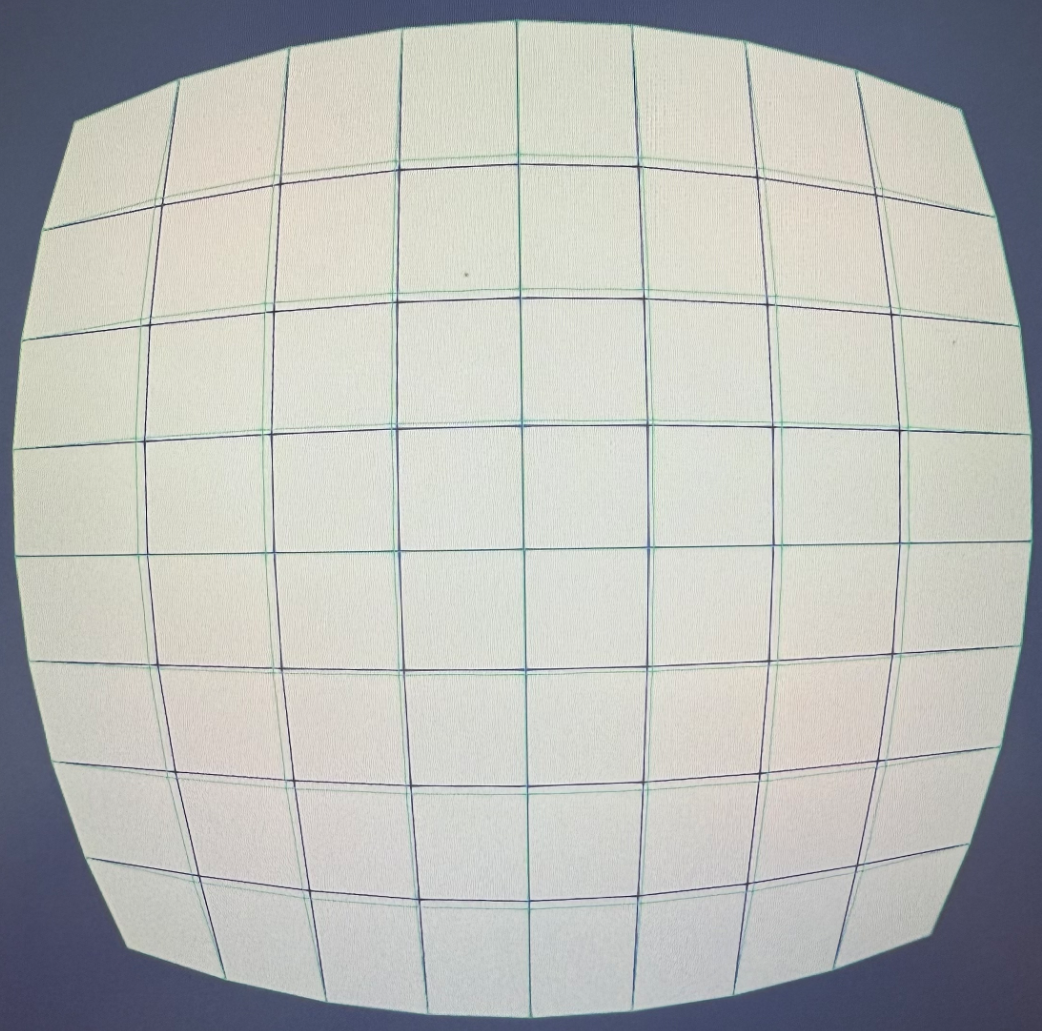

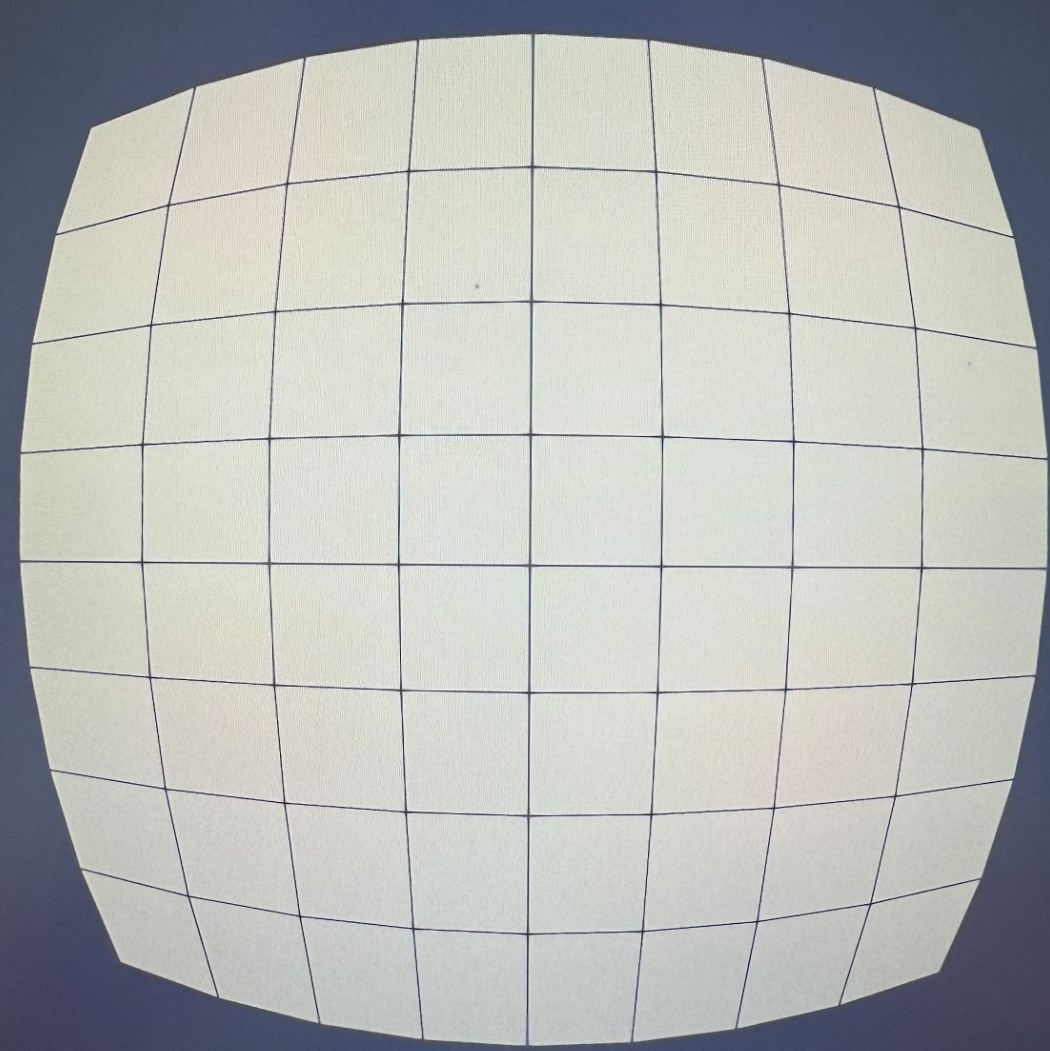

Based on discretized block faces, face smoothing result (green lines: before smoothing, blue lines: after smoothing):

Note: Since block face boundaries need constraints, smoothing only optimizes discrete points inside the mesh face, so boundary discrete points don't change.

Smooth blocks

// Smooth 3D block mesh
SmoothParam smoothParam;
smoothParam._blockIds = {0, 1, 2};  // Block IDs to smooth
smoothParam._optimizerType = SoothType::ENERGY_BASED;
smoothParam._maxIteration = 15;
smoothParam._relaxationFactor = 0.3f;
bool success = blockapi.SmoothBlocks(smoothParam);

Based on discretized all blocks, block smoothing result:

Note: Since block boundaries need constraints, smoothing only optimizes discrete points inside the mesh block, so boundary discrete points don't change.

Get vertex count

// Get vertex count in mesh
Indext vertexCount = blockapi.GetVertexCount();
std::cout << "Mesh vertex count: " << vertexCount << std::endl;

Get edge count

// Get edge count in mesh
Indext edgeCount = blockapi.GetEdgeCount();
std::cout << "Mesh edge count: " << edgeCount << std::endl;

Get face count

// Get face count in mesh
Indext faceCount = blockapi.GetFaceCount();
std::cout << "Mesh face count: " << faceCount << std::endl;

Get block count

// Get block count in mesh
Indext blockCount = blockapi.GetBlockCount();
std::cout << "Mesh block count: " << blockCount << std::endl;

Get edge vertices

// Get edge vertices
std::vector<Indext> vertexIds;
blockapi.GetEdgeVertexs(10, vertexIds);
std::cout << "Edge " << 10 << " connected vertices: ";
for (auto vid : vertexIds)
{
    std::cout << vid << " ";
}
std::cout << std::endl;

Get face vertices

// Get face vertices
std::vector<Indext> vertexIds;
blockapi.GetFaceVertexs(5, vertexIds);
std::cout << "Face " << 5 << " contains " << vertexIds.size() << " vertices" << std::endl;

Get block vertices

// Get block vertices
std::vector<Indext> vertexIds;
blockapi.GetBlockVertexs(3, vertexIds);
std::cout << "Block " << 3 << " contains " << vertexIds.size() << " vertices" << std::endl;

Get face edges

// Get face edges
std::vector<Indext> edgeIds;
blockapi.GetFaceEdges(8, edgeIds);
std::cout << "Face " << 8 << " consists of " << edgeIds.size() << " edges" << std::endl;

Get block edges

// Get block edges
std::vector<Indext> edgeIds;
blockapi.GetBlockEdges(2, edgeIds);
std::cout << "Block " << 2 " contains " << edgeIds.size() << " edges" << std::endl;

Get block faces

// Get block faces
std::vector<Indext> faceIds;
blockapi.GetBlockFaces(1, faceIds);
std::cout << "Block " << 1 << " contains " << faceIds.size() << " faces" << std::endl;

Get vertex geometric representation

// Get vertex geometric representation
NMPoint3 vertexPos;
blockapi.GetVertexRepresentation(15, vertexPos);
std::cout << "Vertex position: (" << vertexPos.x() << ", " << vertexPos.y() << ", " << vertexPos.z() << ")" << std::endl;

Get edge geometric representation

// Get edge geometric representation
std::vector<NMPoint3> edgePoints;
blockapi.GetEdgeRepresentation(20, edgePoints);
std::cout << "Edge contains " << edgePoints.size() << " geometric points" << std::endl;

Get face geometric representation

// Get face geometric representation
std::vector<NMPoint3> meshPoints;
std::vector<std::array<Indext, 3>> triangles;
blockapi.GetFaceRepresentation(12, meshPoints, triangles);
std::cout << "Face contains " << meshPoints.size() << " points and " << triangles.size() << " triangles" << std::endl;

Get all mesh nodes

// Get all mesh nodes
std::vector<NMPoint3> allNodes;
blockapi.GetAllMeshNodes(allNodes);
std::cout << "Mesh contains " << allNodes.size() << " nodes in total" << std::endl;

Get edge mesh

// Get edge mesh connections
std::vector<std::array<Indext, 2>> lineElements;
blockapi.GetEdgeMesh(25, lineElements);
std::cout << "Edge contains " << lineElements.size() << " line elements" << std::endl;

Get face quadrilateral mesh

// Get face mesh connections
std::vector<std::array<Indext, 4>> quadElements;
blockapi.GetFaceMesh(18, quadElements);
std::cout << "Face contains " << quadElements.size() << " quadrilateral elements" << std::endl;

Get block hexahedral mesh

// Get block mesh connections
std::vector<std::array<Indext, 8>> hexElements;
blockapi.GetBlockMesh(7, hexElements);
std::cout << "Block contains " << hexElements.size() << " hexahedral elements" << std::endl;

Complete Example

The following is a complete example demonstrating how to import a geometric model, initialize mesh blocks, edit mesh blocks, associate geometry, discretize mesh blocks, and smooth the mesh. The specific code is as follows:

#include <nextmesh/NMAPIModel.hpp>
#include<occtio/OCCTTool.hpp>

using namespace AMCAX::NextMesh;
using namespace AMCAX;

int main()
{
    // import geometry and get instance of NMBlock
    const std::string filedir = "./data/7.brep";
    AMCAX::TopoShape shape;
    OCCTIO::OCCTTool::Read(shape, filedir);
    NMAPIModel nmapi;
    nmapi.ImportModel({ shape });

    std::vector<NMEntity> ents0, ents1, ents2;
    nmapi.GetEntities(ents0, DimType::D0);
    nmapi.GetEntities(ents1, DimType::D1);
    nmapi.GetEntities(ents2, DimType::D2);

    NMBlock& blockapi = nmapi.GetNMBlock();

    std::vector<Indext> vertexIds;
    std::vector<Indext> edgeIds;
    std::vector<Indext> faceIds;
    std::vector<Indext> blockIds;
    std::vector<Indext> sourceEdges;
    std::vector<Indext> targetEdges;
    std::vector<NMEntity> NMEnts;
    bool success;
    double matchFactor = 0.0;
    NMVector3 moveVector = { 0., .0, .0 };

    // init
    blockapi.Init();

    // edit
    blockIds = { 0 };
    faceIds = { 0, 5 };
    double offset = 0.5;
    blockapi.OSplit(blockIds, faceIds, offset);

    // associate
    faceIds = { 0, 2, 5, 8 };
    NMEnts = { ents2[0] };
    success = blockapi.AssociateFace(faceIds, NMEnts);

    // match
    sourceEdges = { 20 };
    targetEdges = { 0 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 23 };
    targetEdges = { 4 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 25 };
    targetEdges = { 7 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 21 };
    targetEdges = { 1 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 28 };
    targetEdges = { 12 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 30 };
    targetEdges = { 15 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 31 };
    targetEdges = { 17 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    sourceEdges = { 29 };
    targetEdges = { 13 };
    matchFactor = 0.5;
    success = blockapi.MatchEdgeToEdge(sourceEdges, targetEdges, matchFactor);

    // distribution
    SpacingParam param;
    param._type = SpacingType::Length;
    param._startLen = 2;
    param._reverse = false;
    param._parallel = false;
    edgeIds = { 0, 1, 2, 3 };

    blockapi.SetEdgesDistribution(edgeIds, param);

    // Discrete block
    if (blockapi.DiscreteHyperBlock())
    {
        std::cout << "Discrete all blocks." << std::endl;
    }

    SmoothParam smoothParam;
    smoothParam._blockIds = { 0 };
    smoothParam._optimizerType = SmoothType::ENERGY_BASED;
    smoothParam._maxIteration = 5;
    smoothParam._relaxationFactor = 0.3;
    blockapi.SmoothBlocks(smoothParam);

    return 0;
}

Click here example06 to get the full source code of the complete example. Everyone can download it as needed.
