Building Simple Models from the Bottom Up

Overview

This tutorial demonstrates bottom-up modeling techniques using a cube construction example.

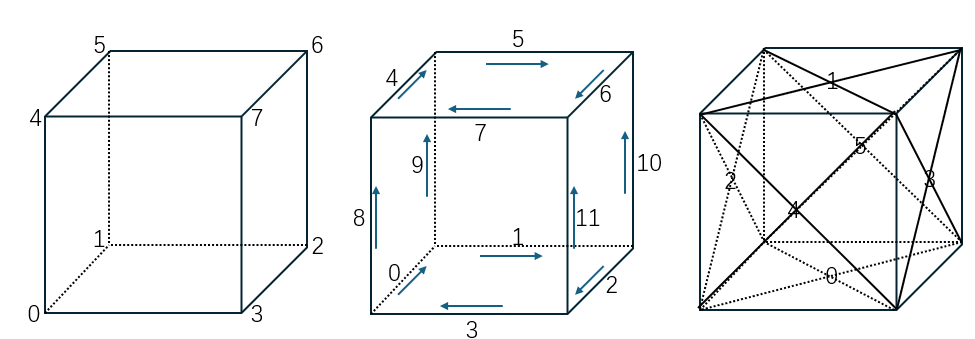

The proper way to construct a cube is: first create 8 Vertices, then use these 8 Vertices to build 12 Edges, and finally use the Edges to construct Wires and Faces. Below are the numbering of the cube's Vertices, Edges, and Faces for your reference.

Note: The arrows in the image indicate the direction of the edges.

Build Cube

Build Vertex

std::vector<AMCAX::TopoShape> BuildBoxVertices()
{
    AMCAX::TopoBuilder builder;
    // Define the 8 corner points of a box
    std::vector<AMCAX::Point3> points;
    points.push_back(AMCAX::Point3(0.5, -0.5, -0.5));
    points.push_back(AMCAX::Point3(-0.5, -0.5, -0.5));
    points.push_back(AMCAX::Point3(-0.5, 0.5, -0.5));
    points.push_back(AMCAX::Point3(0.5, 0.5, -0.5));
    points.push_back(AMCAX::Point3(0.5, -0.5, 0.5));
    points.push_back(AMCAX::Point3(-0.5, -0.5, 0.5));
    points.push_back(AMCAX::Point3(-0.5, 0.5, 0.5));
    points.push_back(AMCAX::Point3(0.5, 0.5, 0.5));

    std::vector<AMCAX::TopoShape> vertices;
    for (const AMCAX::Point3& p : points)
    {
        AMCAX::TopoVertex v;
        builder.MakeVertex(v, p, AMCAX::Precision::Confusion());
        vertices.push_back(v);
    }
    return vertices;
}

Build Edge

std::vector<AMCAX::TopoShape> BuildBoxEdges(const std::vector<AMCAX::TopoShape>& vertices)
{
    AMCAX::TopoBuilder builder;
    // Vertex index pairs defining all box edges
    std::vector<std::pair<int, int>> edgeVerticesID = { {0,1},{1,2},{2,3},{3,0},{4,5},{5,6},{6,7},{7,4},{0,4},{1,5},{2,6},{3,7} };

    std::vector<AMCAX::TopoShape> edges;
    for (const auto& [beginVID, endVID] : edgeVerticesID)
    {
        // Get oriented vertices (forward/reversed)
        AMCAX::TopoVertex v1 = AMCAX::TopoCast::Vertex(vertices[beginVID].Oriented(AMCAX::OrientationType::Forward));
        AMCAX::TopoVertex v2 = AMCAX::TopoCast::Vertex(vertices[endVID].Oriented(AMCAX::OrientationType::Reversed));
        // Create 3D curve
        AMCAX::Point3 p1 = AMCAX::TopoTool::Point(v1);
        AMCAX::Point3 p2 = AMCAX::TopoTool::Point(v2);
        AMCAX::Direction3 dir(p2.Coord() - p1.Coord());
        std::shared_ptr<AMCAX::Geom3Curve> gline = std::make_shared<AMCAX::Geom3Line>(p1, dir);
        // Build edge
        AMCAX::TopoEdge edge;
        builder.MakeEdge(edge, gline, AMCAX::Precision::Confusion());
        builder.Add(edge, v1);
        builder.UpdateVertex(v1, 0.0, edge, AMCAX::Precision::Confusion());
        builder.Add(edge, v2);
        builder.UpdateVertex(v2, p1.Distance(p2), edge, AMCAX::Precision::Confusion());
        edges.push_back(edge);
    }
    return edges;
}

Important Note for Edge Construction:​ ​When adding vertices to an edge, you must explicitly set their orientation beforehand. The starting vertex of an edge should be assigned Forward orientation, while the ending vertex must use Reversed orientation.

Build Wire

std::vector<AMCAX::TopoShape> BuildBoxWires(const std::vector<AMCAX::TopoShape>& edges)
{
    AMCAX::TopoBuilder builder;
    // Edge connectivity for each face wire: {edge index, orientation} pairs (true=forward, false=reversed)
    std::vector<std::vector<std::pair<int, bool>>> wireEdgesVec =
    {
            { {0,true},{1,true},{2,true},{3,true} },
            { {4,false},{7,false},{6,false},{5,false} },
            { {4,true},{9,false},{0,false},{8,true} },
            { {6,true},{11,false},{2,false},{10,true} },
            { {3,false},{11,true},{7,true},{8,false} },
            { {5,true},{10,false},{1,false},{9,true} }
    };

    std::vector<AMCAX::TopoShape> wires;
    for (const auto& wireEdges : wireEdgesVec)
    {
        AMCAX::TopoWire wire;
        builder.MakeWire(wire);
        for (const auto& [edgeID, isForward] : wireEdges)
        {
            // Add edge with proper orientation
            AMCAX::TopoEdge edge;
            AMCAX::TopoShape crshape = edges[edgeID];
            if (isForward)
            {
                edge = AMCAX::TopoCast::Edge(crshape.Oriented(AMCAX::OrientationType::Forward));
            }
            else
            {
                edge = AMCAX::TopoCast::Edge(crshape.Oriented(AMCAX::OrientationType::Reversed));
            }
            builder.Add(wire, edge);
        }
        // Ensure wire closure
        bool isClosedWire = AMCAX::TopoTool::IsClosed(wire);
        wire.Closed(isClosedWire);
        wires.push_back(wire);
    }
    return wires;
}

When constructing wires, please note: All wires must follow a counter-clockwise (CCW) direction when viewed from the opposite direction of the face normal (i.e., looking from outside the solid toward the interior).

Build Face

std::vector<AMCAX::TopoShape> BuildBoxFaces(const std::vector<AMCAX::TopoShape>& wires)
{
    // Create reference frames for each face plane
    AMCAX::Direction3 x = AMCAX::CartesianCoordinateSystem::DX();
    AMCAX::Direction3 y = AMCAX::CartesianCoordinateSystem::DY();
    AMCAX::Direction3 z = AMCAX::CartesianCoordinateSystem::DZ();
    AMCAX::Frame3 frameBottom(AMCAX::Point3(0.0, 0.0, -0.5), -z, -x);
    AMCAX::Frame3 frameTop(AMCAX::Point3(0.0, 0.0, 0.5), z, x);
    AMCAX::Frame3 frameLeft(AMCAX::Point3(0.0, -0.5, 0.0), -y, -x);
    AMCAX::Frame3 frameRight(AMCAX::Point3(0.0, 0.5, 0.0), y, x);
    AMCAX::Frame3 frameFront(AMCAX::Point3(0.5, 0.0, 0.0), x, -z);
    AMCAX::Frame3 frameBack(AMCAX::Point3(-0.5, 0.0, 0.0), -x, z);
    std::vector<AMCAX::Frame3> planeFrames = { frameBottom,frameTop,frameLeft,frameRight,frameFront,frameBack };
    // Create 3D plane
    std::vector<std::shared_ptr<AMCAX::Geom3Plane>> planes;
    for (const AMCAX::Frame3& frame : planeFrames)
    {
        planes.push_back(std::make_shared<AMCAX::Geom3Plane>(frame));
    }

    AMCAX::TopoBuilder builder;
    std::vector<AMCAX::TopoShape> faces;
    for (int i = 0; i < static_cast<int>(wires.size()); i++)
    {
        //Make a face with a surface
        AMCAX::TopoFace face;
        builder.MakeFace(face, planes[i], AMCAX::Precision::Confusion());
        builder.Add(face, wires[i]);
        faces.push_back(face);
    }
    return faces;
}

Build Shell

std::vector<AMCAX::TopoShape> vertices = BuildBoxVertices();
std::vector<AMCAX::TopoShape> edges = BuildBoxEdges(vertices);
std::vector<AMCAX::TopoShape> wires = BuildBoxWires(edges);
std::vector<AMCAX::TopoShape> faces = BuildBoxFaces(wires);
//Make a shell and add all faces in the shell
AMCAX::TopoShell shell;
AMCAX::TopoBuilder builder;
builder.MakeShell(shell);
for (const auto& face : faces)
{
    builder.Add(shell, face);
}
