Geometry edit example one

Overview

This tutorial provides the basic usage of geometry editing, including importing brep format files and performing geometric editing operations on the model using the GeomE API for model repair. The tutorial also utilizes the API from the AMCAX kernel.

Namespace

To keep the example code clear, namespaces are used.

using namespace AMCAX;

using namespace AMCAX::GeomE;

AMCAX::GeomE

Namespace of all interface in the AMCAX GeomE module.

Definition: misc.docu:21

AMCAX

Namespace of all interface in the AMCAX kernel.

Definition: misc.docu:8

CAD Model Preview

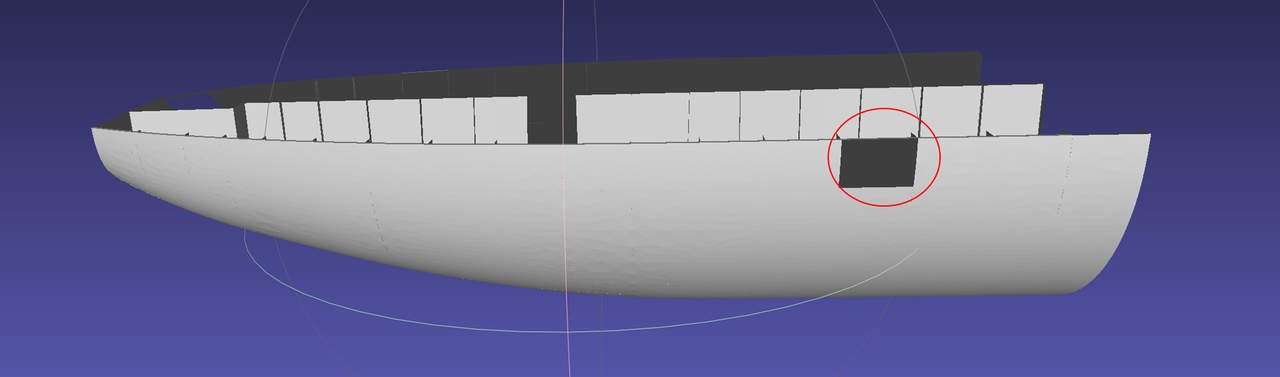

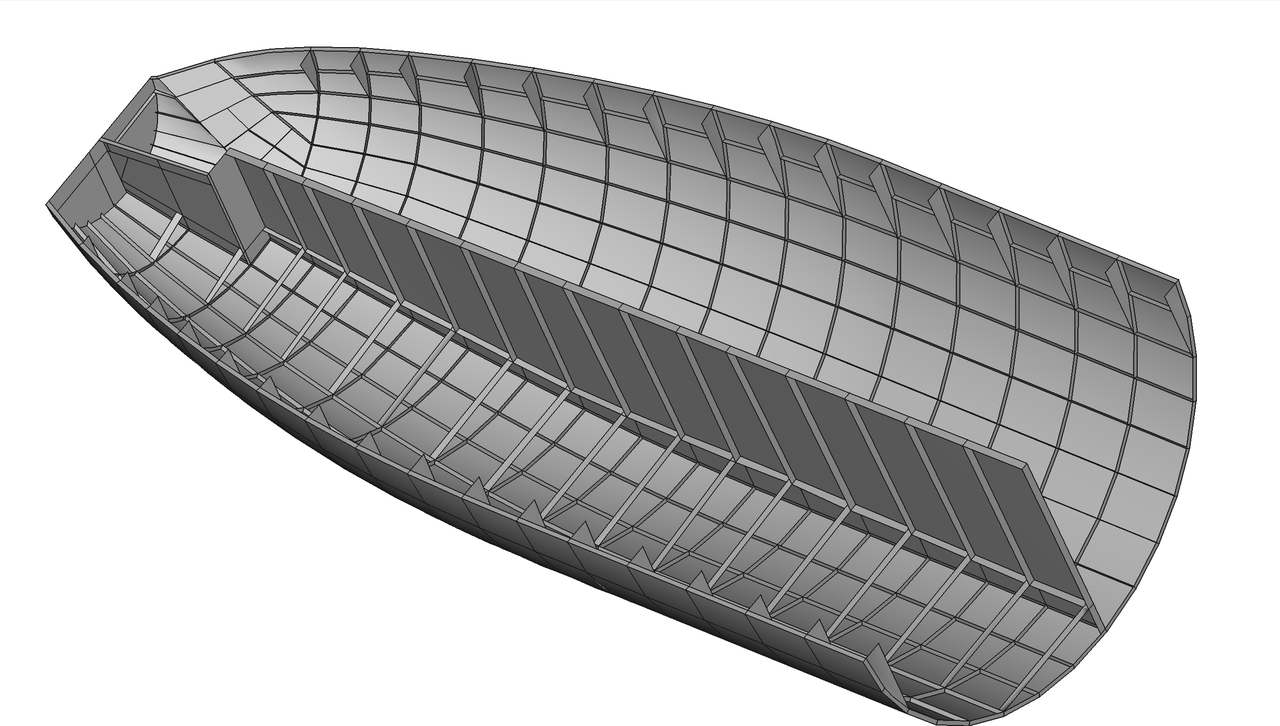

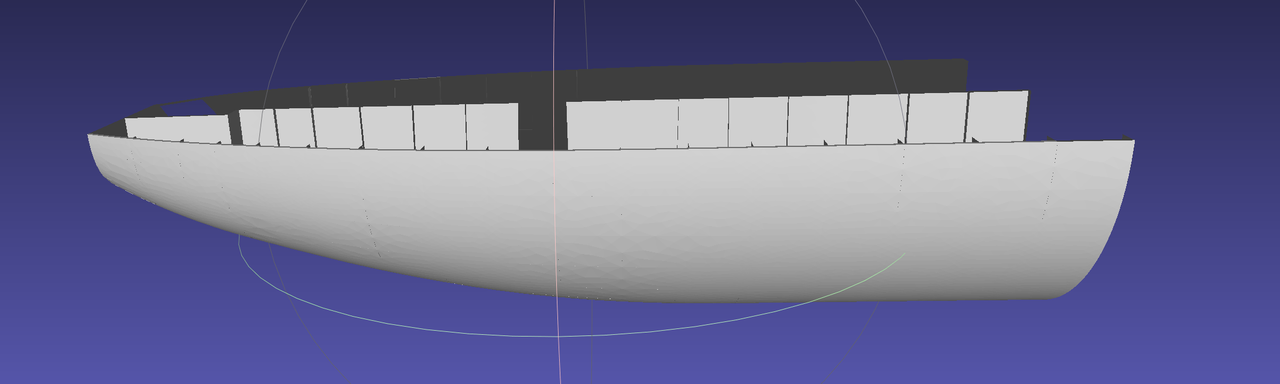

Import a brep format CAD model, as shown in the figure below:

Preparation

This tutorial example will first read in a brep model, then perform geometric editing operations on the input model, and finally write the model into a BREP file. Red edges represent free edges,yellow edges represent manifold edges, and blue edges represent non-manifold edges.

Header Files

#include <occtio/OCCTTool.hpp>
#include <shapeEdit/VertexEditor.hpp>
#include <shapeEdit/EdgeEditor.hpp>
#include <shapeEdit/FaceEditor.hpp>
#include <topology/TopoCast.hpp>
#include <topology/TopoExplorerTool.hpp>
#include <topology/TopoFace.hpp>
#include <topology/TopoEdge.hpp>
#include <topology/TopoVertex.hpp>
#include <topology/TopoTool.hpp>

Import Model

Import the CAD file and construct the model.

AMCAX::TopoShape shape;

OCCTIO::OCCTTool::Read(shape, "./data/FEA.brep");

AMCAX::TopoShape

Base class of shape, containing an underlying shape with a location and an orientation.

Definition: TopoShape.hpp:15

Output Result

Write to brep file.

success = AMCAX::OCCTIO::OCCTTool::Write(shape, "./result/shape.brep");

AMCAX::OCCTIO::OCCTTool::Write

static AMCAX_API bool Write(const TopoShape &s, std::ostream &os, int format=3)

Write a shape to a stream.

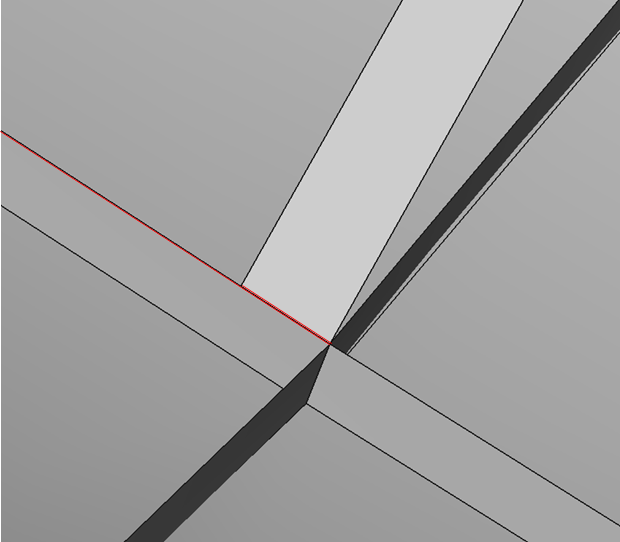

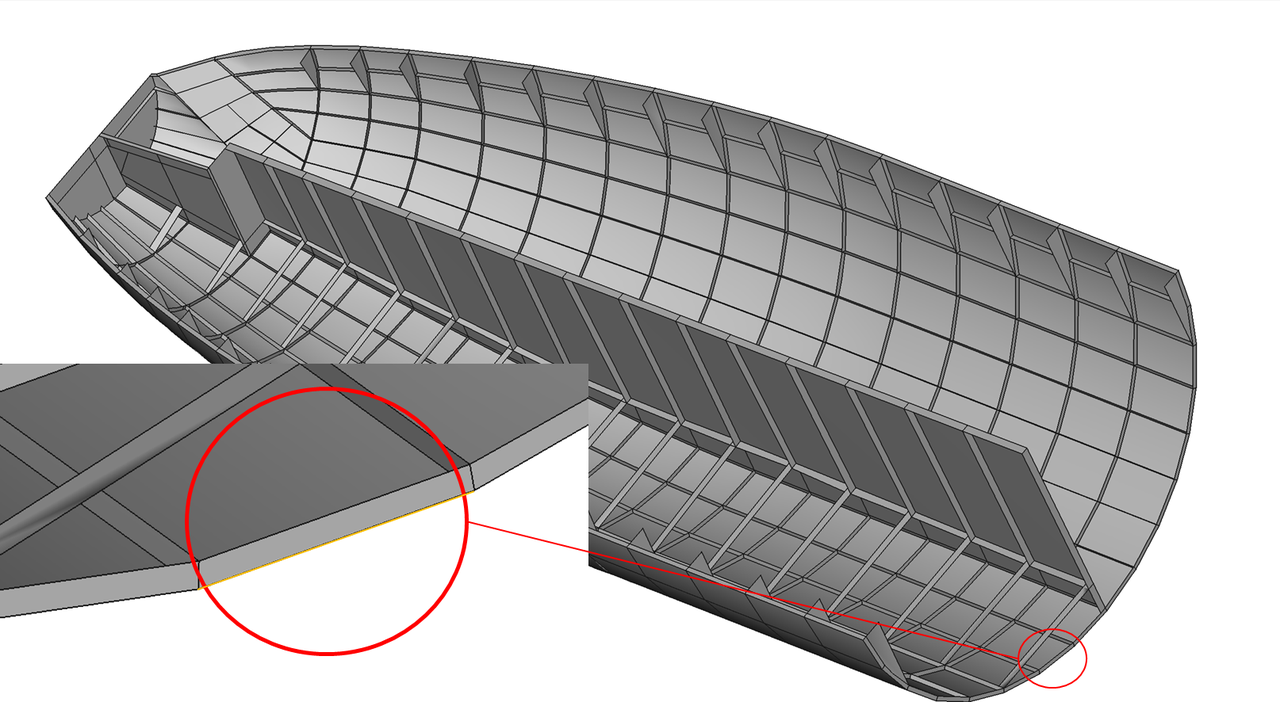

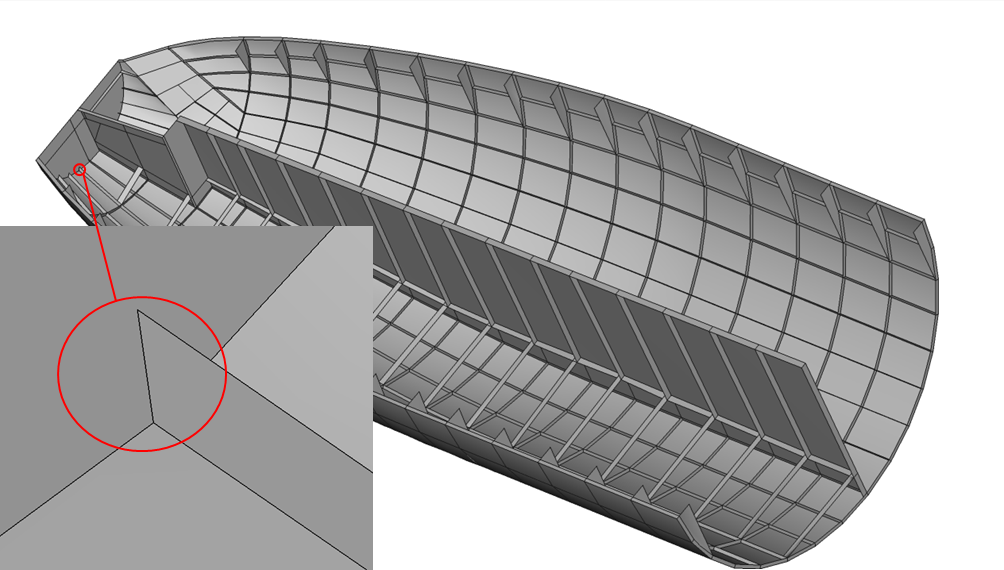

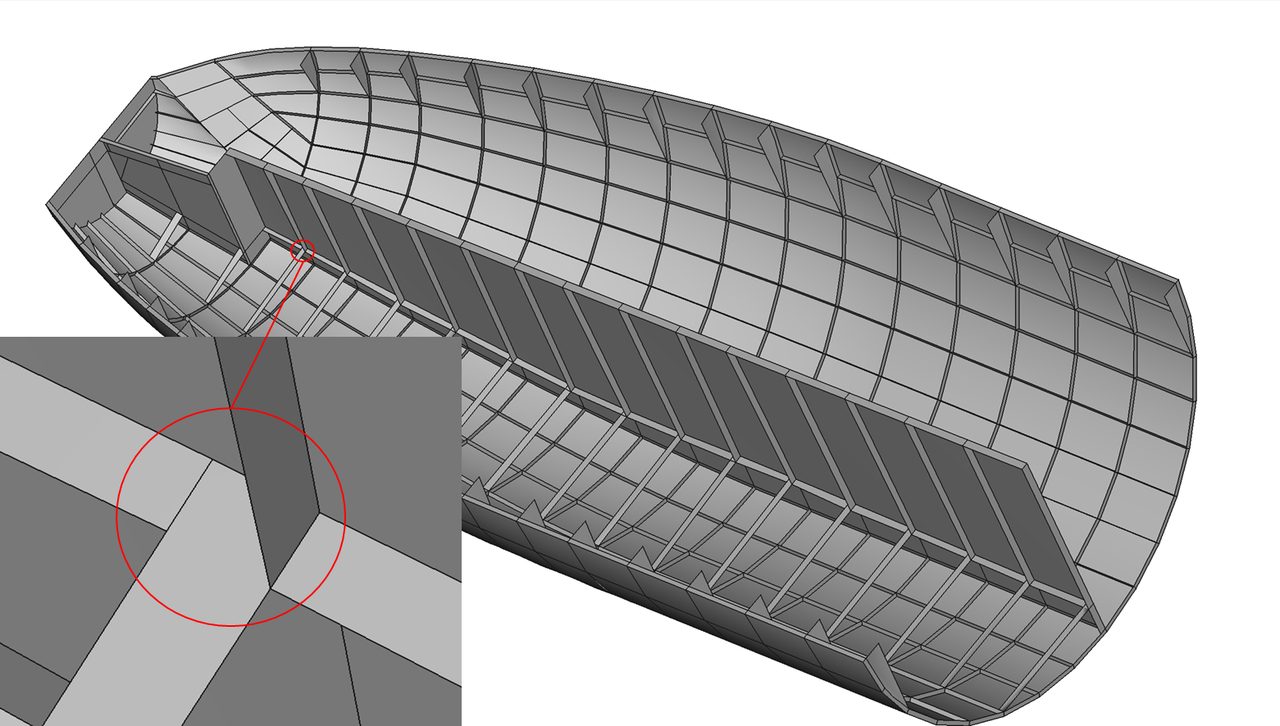

As shown in the figure, the area marked with a red circle has a gap between the short edge of one face and the long edge of another face. Both edges are free edges.

Point insertion into edge

//Get the point of the inserted vertex.
IndexSet<TopoShape> vertices;
TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
TopoVertex vertex = TopoCast::Vertex(vertices[799]);
Point3     point = TopoTool::Point(vertex);

//Get the inserted edge.
IndexSet<TopoShape> edges;
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
TopoEdge edge = TopoCast::Edge(edges[1528]);

//Insert the point into the Edge.
EdgeEditor::TrimEdgeWithPoint(shape, edge, { point });

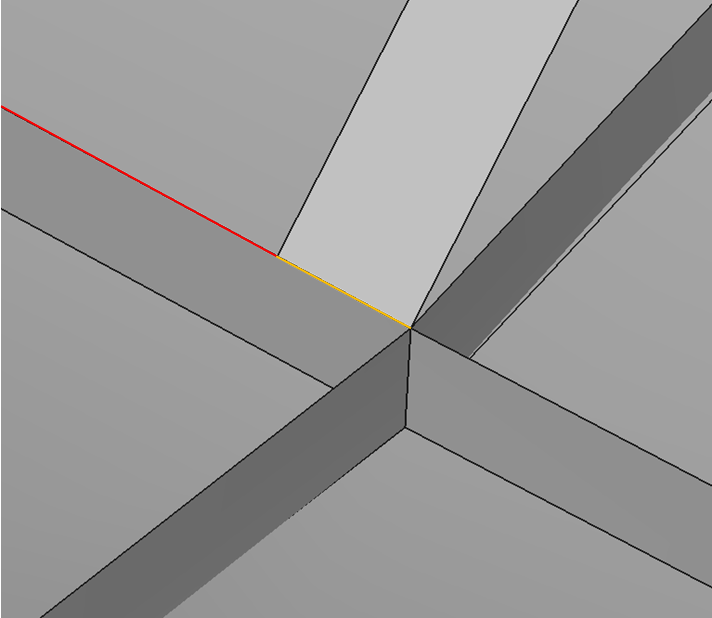

As shown in the figure, the point has been inserted into the corresponding edge, and the long edge has been split into two edges.

Sew one edge onto another edge

//Get the two edges to be sewn
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
TopoEdge edge1 = TopoCast::Edge(edges[1528]);
TopoEdge edge2 = TopoCast::Edge(edges[1759]);

//Sew edge2 onto edge1.
EdgeEditor::SewEdges(shape, edge2, edge1, 0.1);

As shown in the figure, the gap between the two faces has been eliminated.

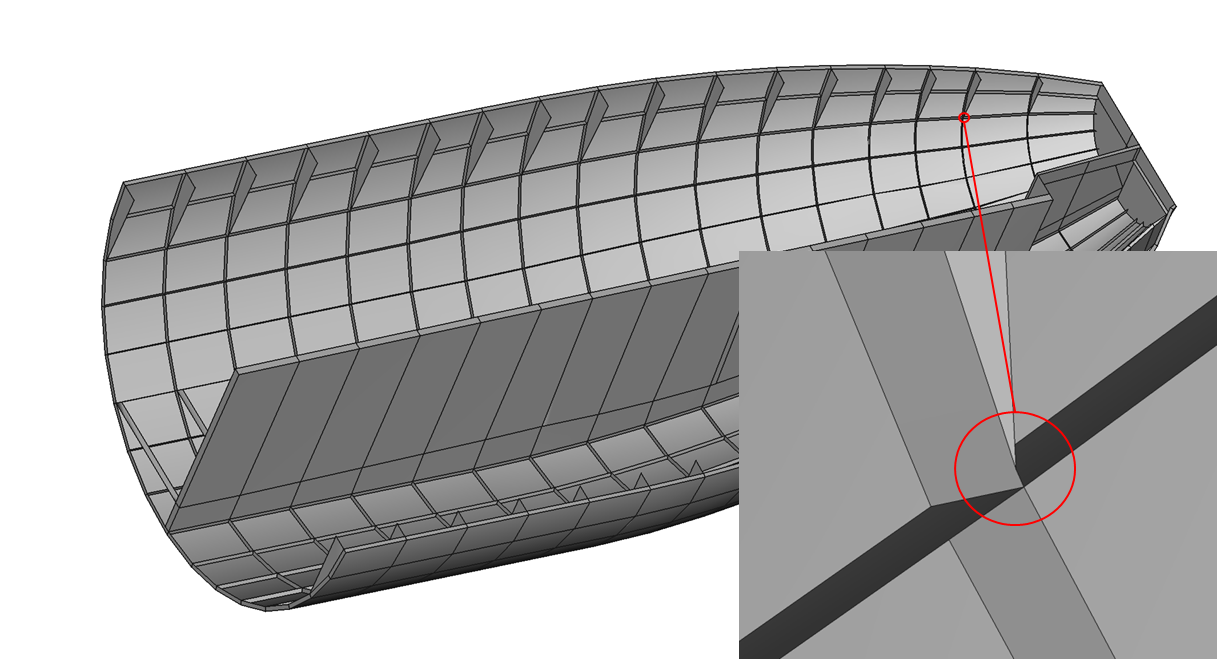

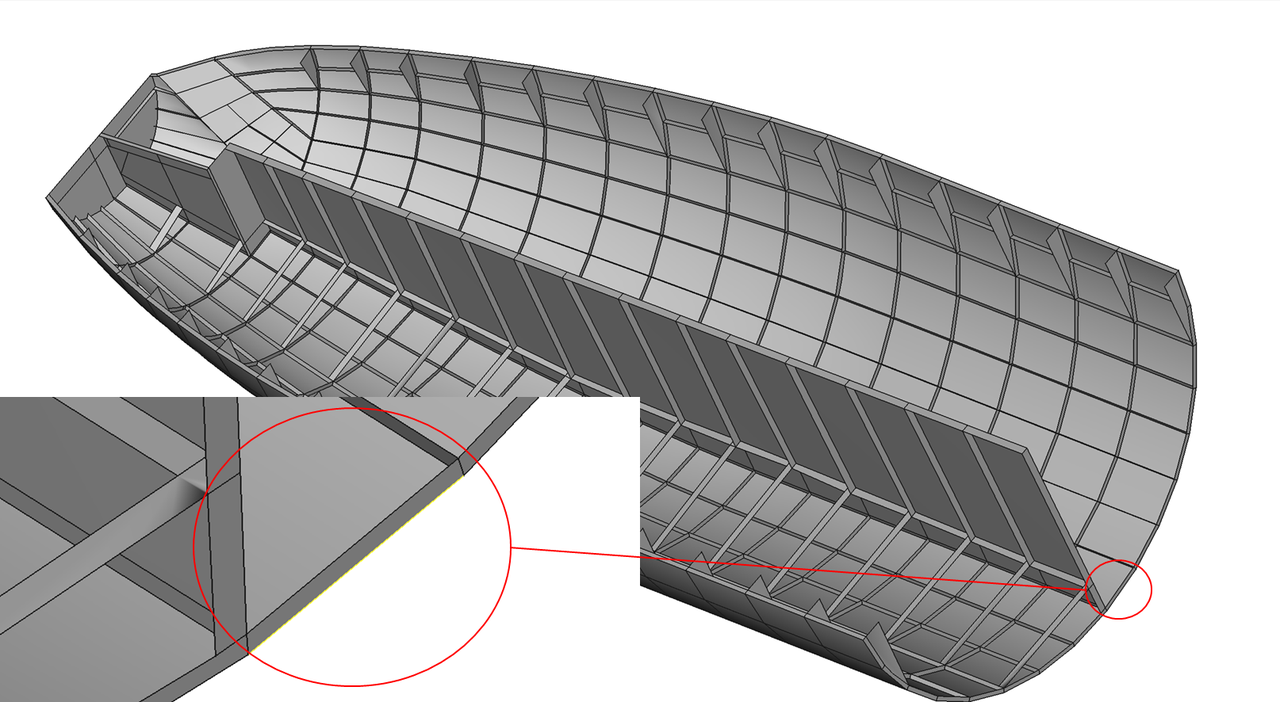

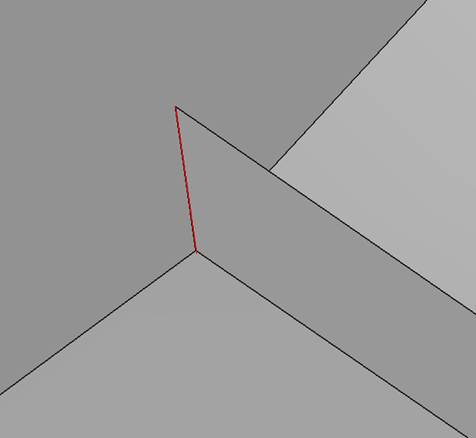

As shown in the figure, the area marked with a red circle has a gap between the edge of one face and another face.

Project the edge onto the face

//Get the edge to be projected.
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge = TopoCast::Edge(edges[1736]);

//Get the face to which the edge will be projected.
IndexSet<TopoShape> faces;
TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
TopoFace face = TopoCast::Face(faces[30]);

//Project the edge onto the face.
TopoShape           replaceshape;
IndexSet<TopoShape> projectedges;
projectedges.insert(edge);
FaceEditor::EdgesProjectFace(shape, projectedges, face, replaceshape);

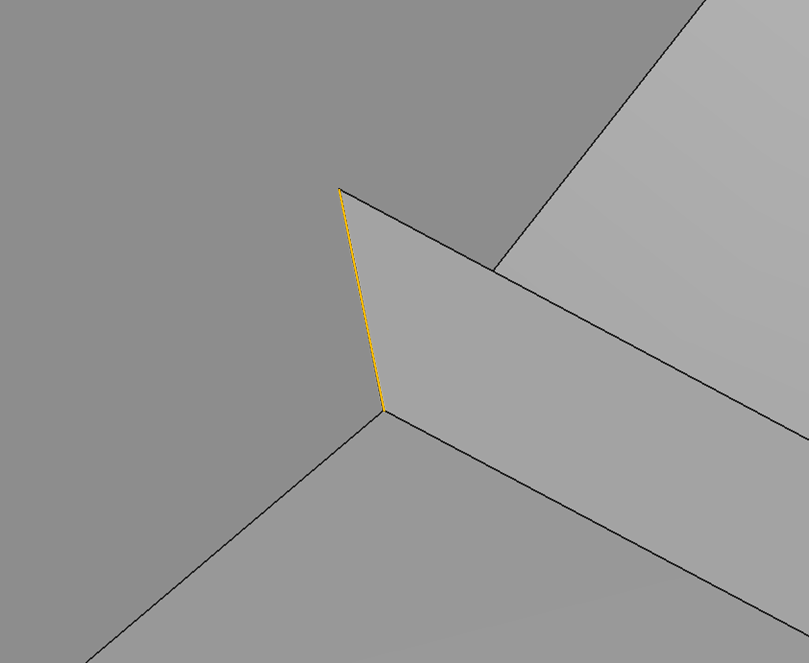

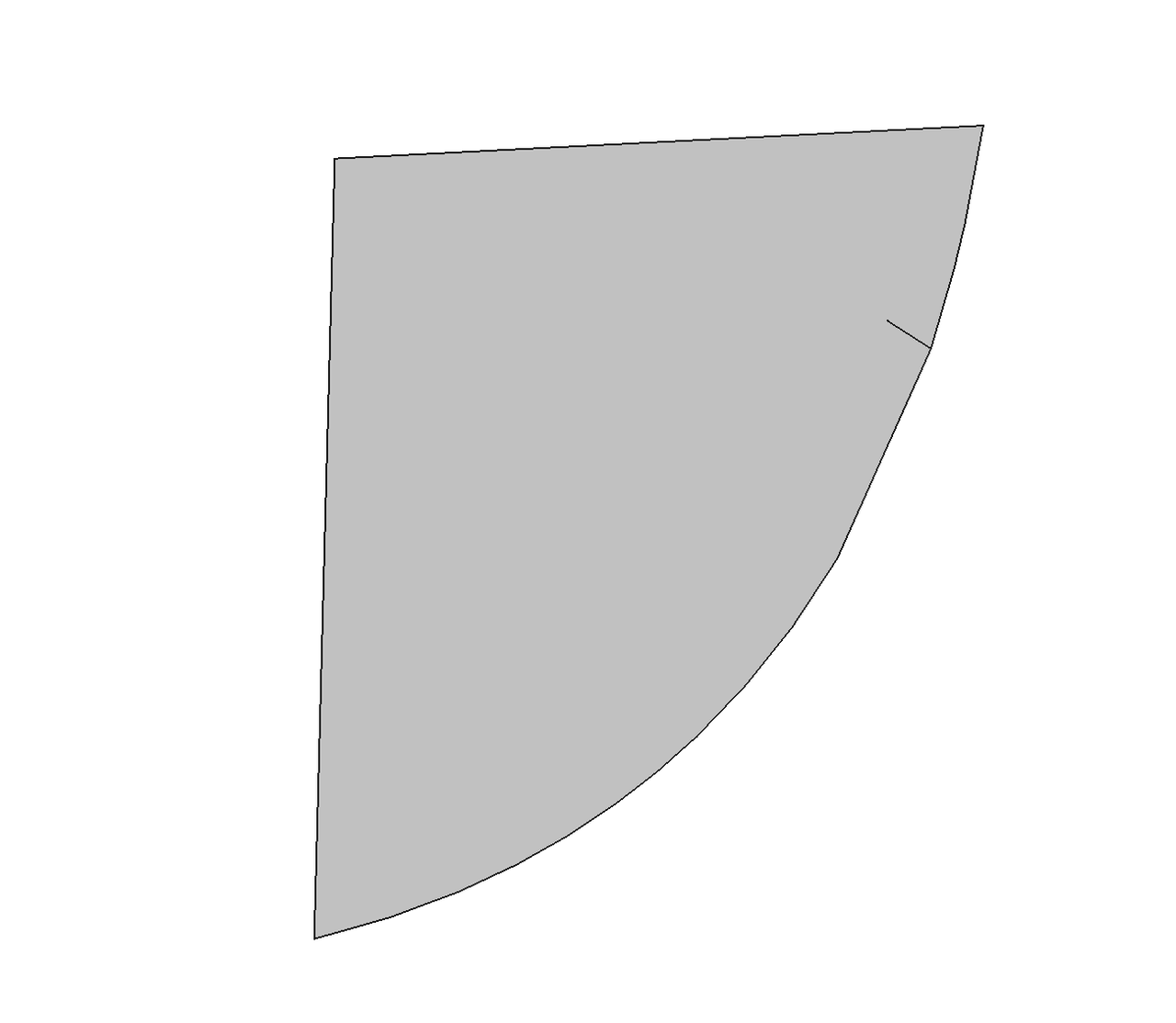

As shown in the figure, the specified edge has been projected onto the interior of the face.

Sew one edge to another edge

// Get the two edges to be sewn.
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge1 = TopoCast::Edge(edges[1737]);
edge2 = TopoCast::Edge(edges[102]);

// Sew edge2 onto edge1.
EdgeEditor::SewEdges(shape, edge2, edge1, 0.1);

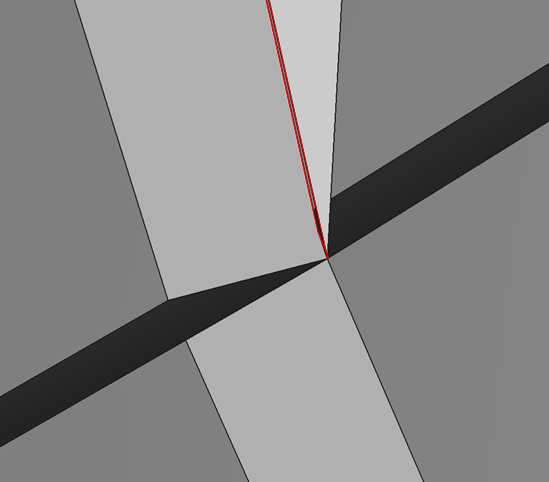

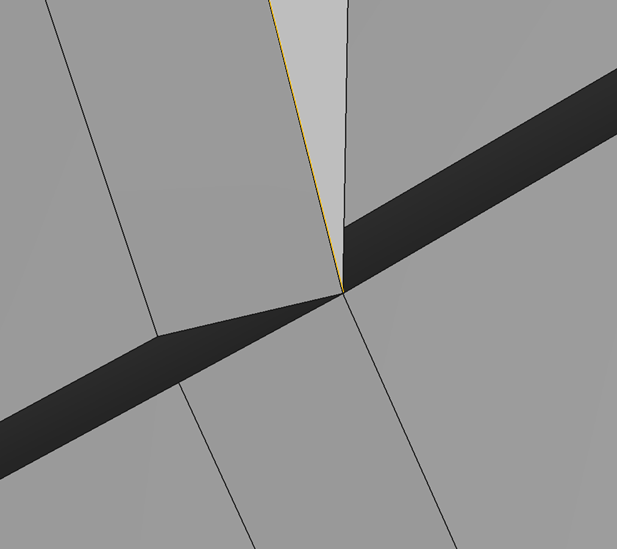

As shown in the figure, in the area marked with a red circle, a very short edge has appeared.

Release the Vertex

// Get the vertex to be released.
vertices.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
vertex = TopoCast::Vertex(vertices[845]);

// Release the vertex.
VertexEditor::ReleaseVertex(shape, vertex);

As shown in the figure, the vertex has been released onto the respective faces.

Delete the Vertex

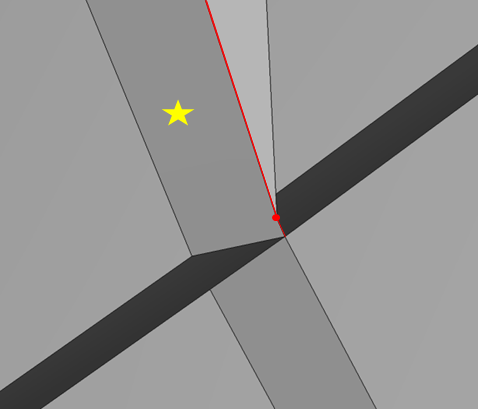

Delete the red vertex of the star-shaped marked face.

// Get the vertex to be deleted.
vertices.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
vertex = TopoCast::Vertex(vertices[845]);

// Delete the vertex.
VertexEditor::RemoveVertex(shape, vertex);

As shown in the figure, the red vertex of the star-shaped marked face has been deleted, and the long edge and short edge are now connected as a single edge.

Sew the Vertex

As shown in the figure, the vertex of the face on the right needs to be sewn to the vertex of the face on the left.

// Get the vertices to be sewn.
vertices.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
TopoVertex vertex1 = TopoCast::Vertex(vertices[417]);
TopoVertex vertex2 = TopoCast::Vertex(vertices[847]);

// Sew vertex2 to vertex1.
VertexEditor::SewVertices(shape, vertex2, vertex1);

As shown in the figure, the two vertices have been sewn together.

Sew one edge to another edge.

// Get the two edges to be sewn.
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge1 = TopoCast::Edge(edges[1887]);
edge2 = TopoCast::Edge(edges[1880]);

// Sew edge2 onto edge1.
EdgeEditor::SewEdges(shape, edge2, edge1, 0.1);

As shown in the figure, the edge of the left face is stitched to the edge of the right face.

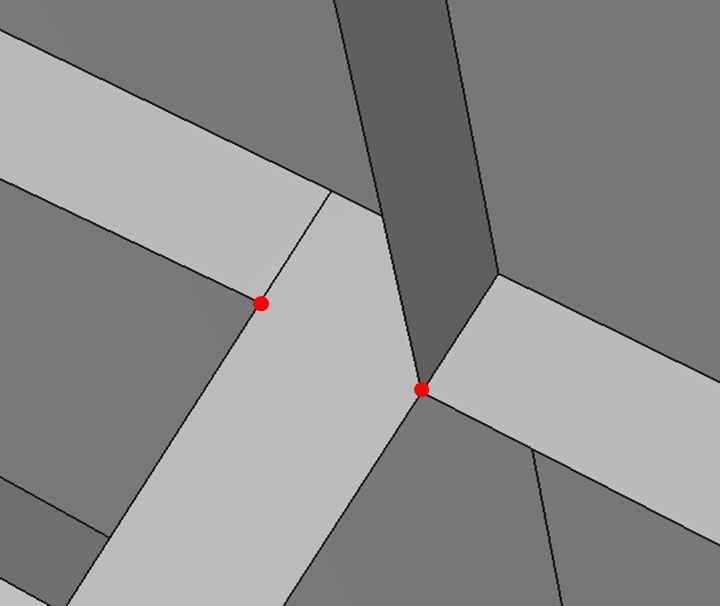

As shown in the figure, select the two vertices to perform parameter cut on the face.

Parameter Cut

// Get the cutting vertices.
vertices.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
vertex1 = TopoCast::Vertex(vertices[578]);
vertex2 = TopoCast::Vertex(vertices[821]);

// Get the cut face.
faces.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
face = TopoCast::Face(faces[903]);

// Perform parameter cut.
FaceEditor::ParameterFaceCut(shape, face, vertex1, vertex2);

As shown in the figure, the parameter cut was successful.

Rebuild the edge

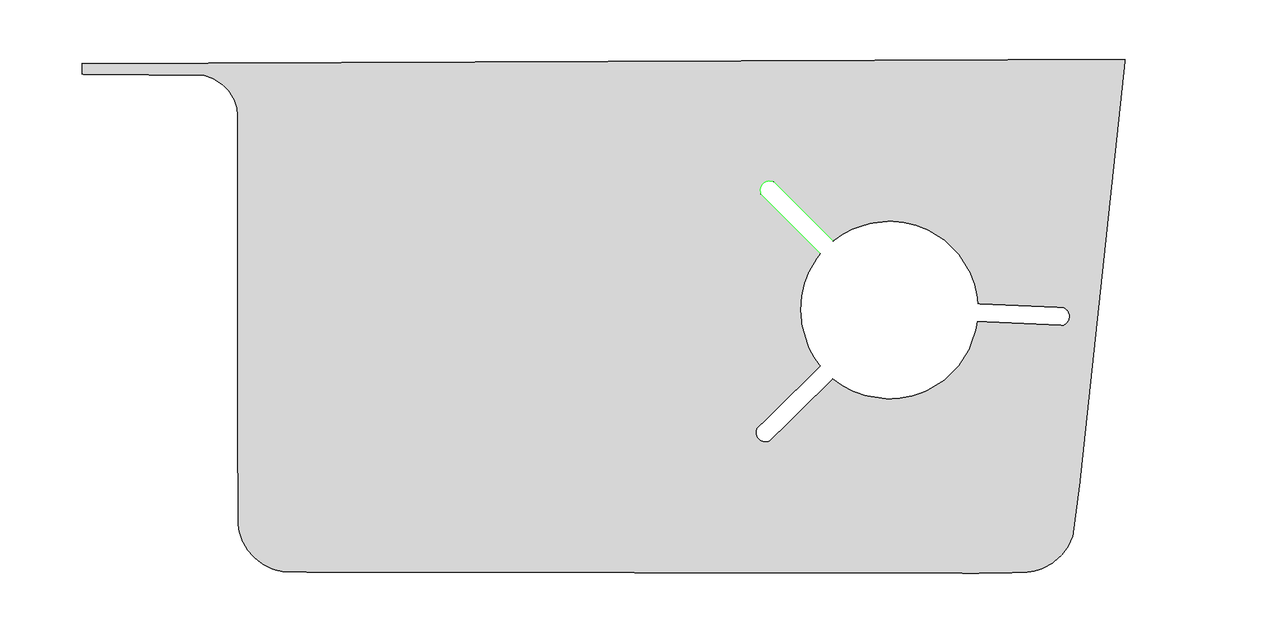

As shown in the figure, you can select an edge (yellow) for rebuilding.

//Get the edge to be rebuilt.
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge = TopoCast::Edge(edges[452]);

//Rebuild and update the edge.
EdgeEditor::RebuildAndUpdateEdge(shape, edge);

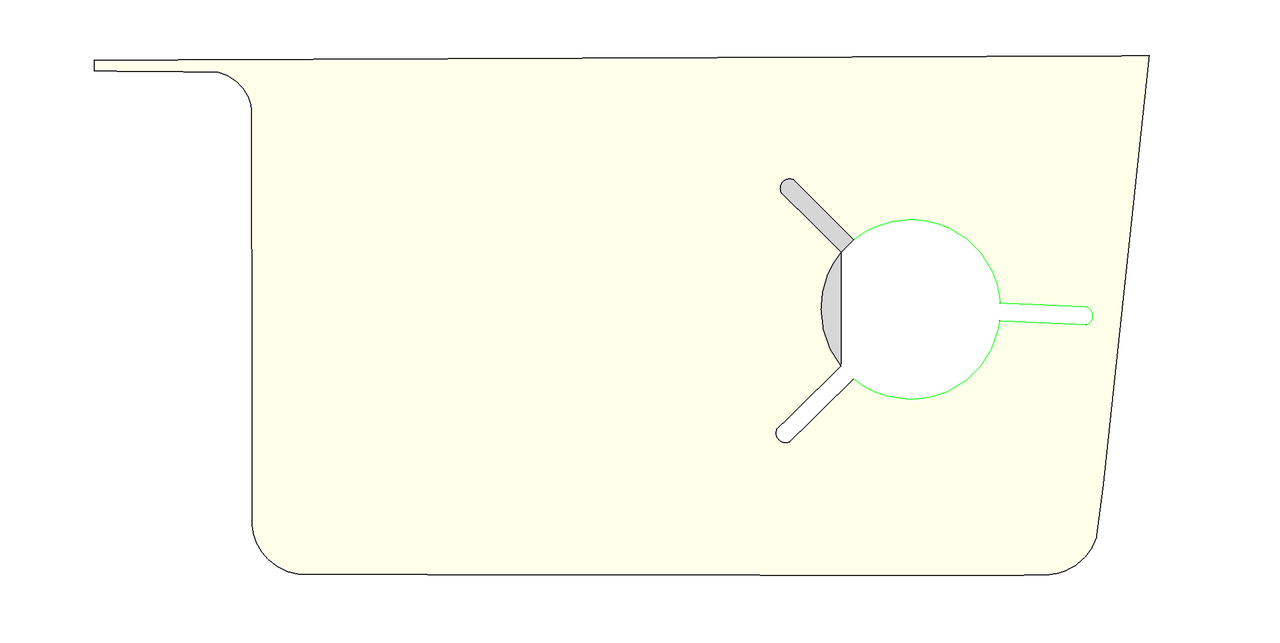

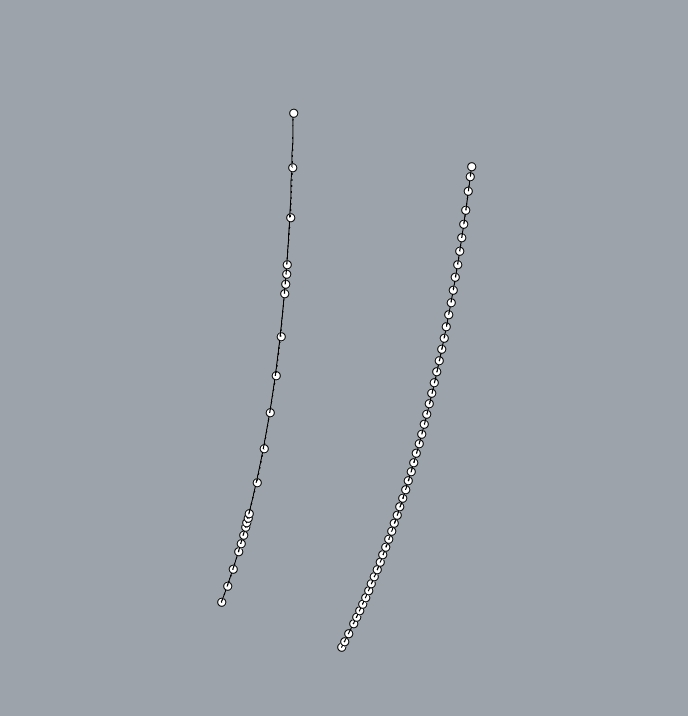

The following are the edge before rebuilding and the edge after rebuilding.

Insert a vertex on the edge based on the ratio.

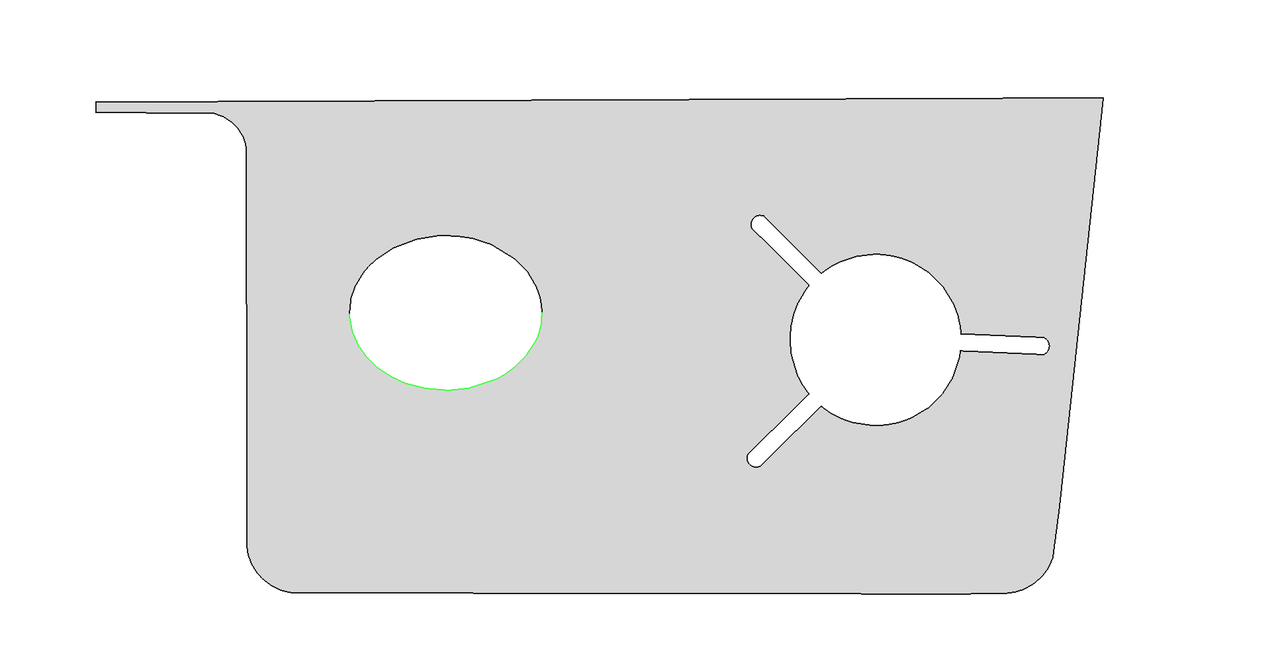

As shown in the figure, insert a vertex at a ratio of 0.3 on the selected edge (yellow).

// Get the inserted edge
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge = TopoCast::Edge(edges[446]);

// Insert a vertex on the edge based on the ratio.
EdgeEditor::TrimEdgeWithRatio(shape, edge, { 0.3 });

As shown in the figure, a vertex has been inserted at 0.3 of the selected edge.

Release the edge

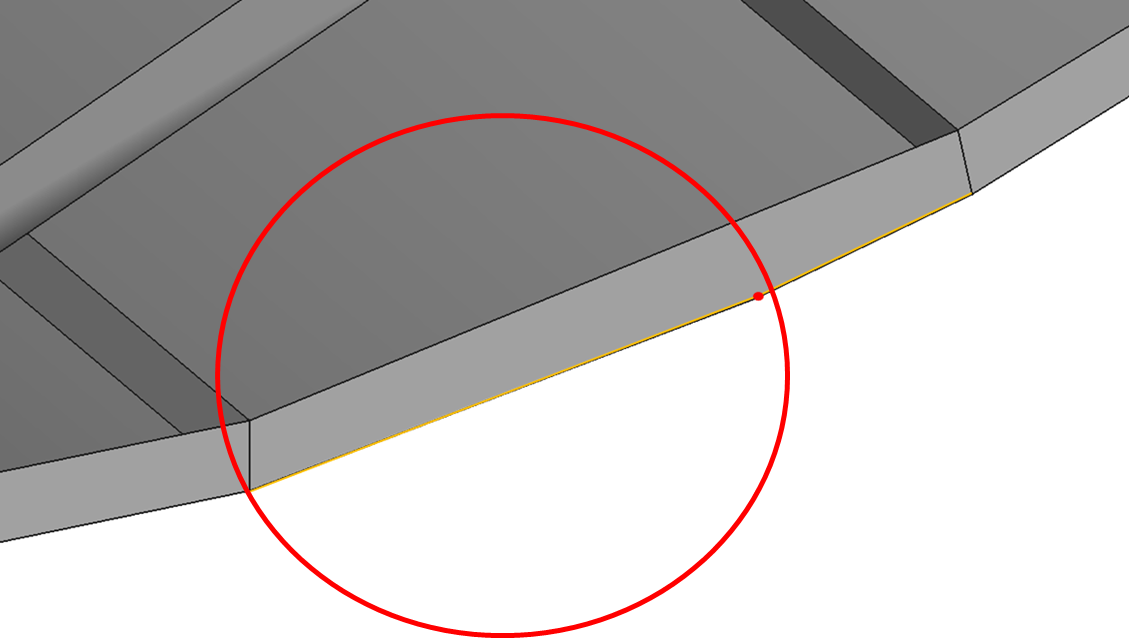

As shown in the figure, release the edge circled in red.

// Get the released edge.
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge = TopoCast::Edge(edges[447]);

// Release the edge.
EdgeEditor::ReleaseEdge(shape, edge);

As shown in the figure, the selected edge has been released onto two faces, becoming free edges.

Delete the face

As shown in the figure, the star-marked face needs to be deleted.

// Get the face to be deleted.
faces.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
face = TopoCast::Face(faces[832]);

// Delete the face.
FaceEditor::DeleteFace(shape, face);

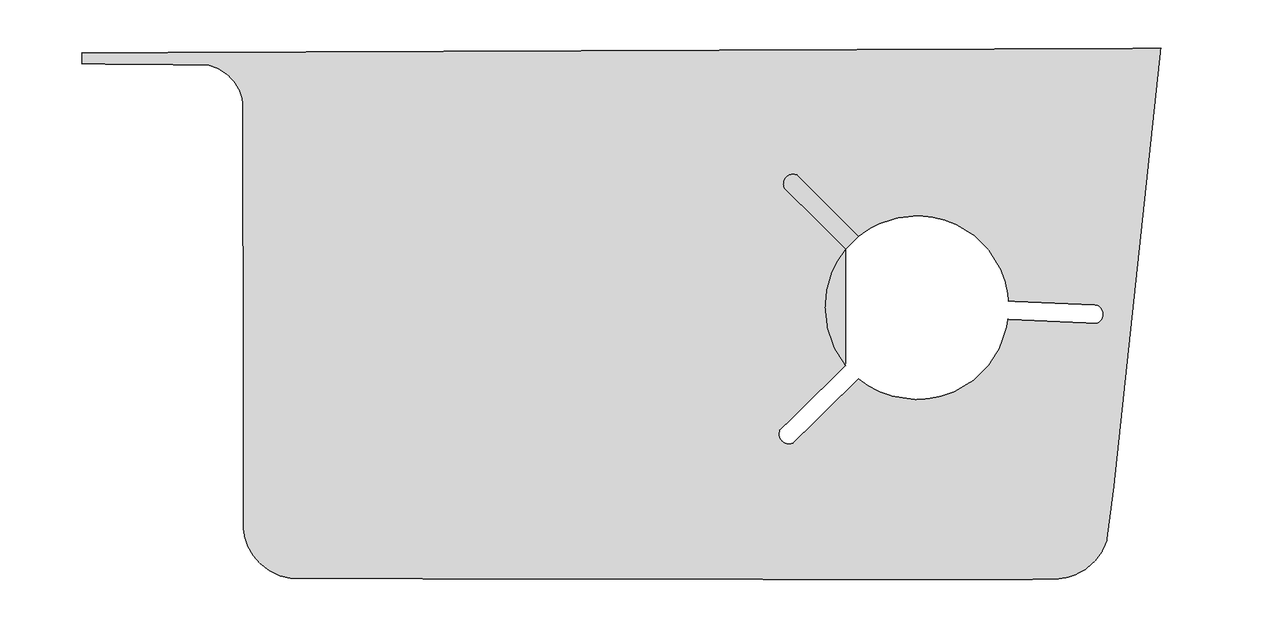

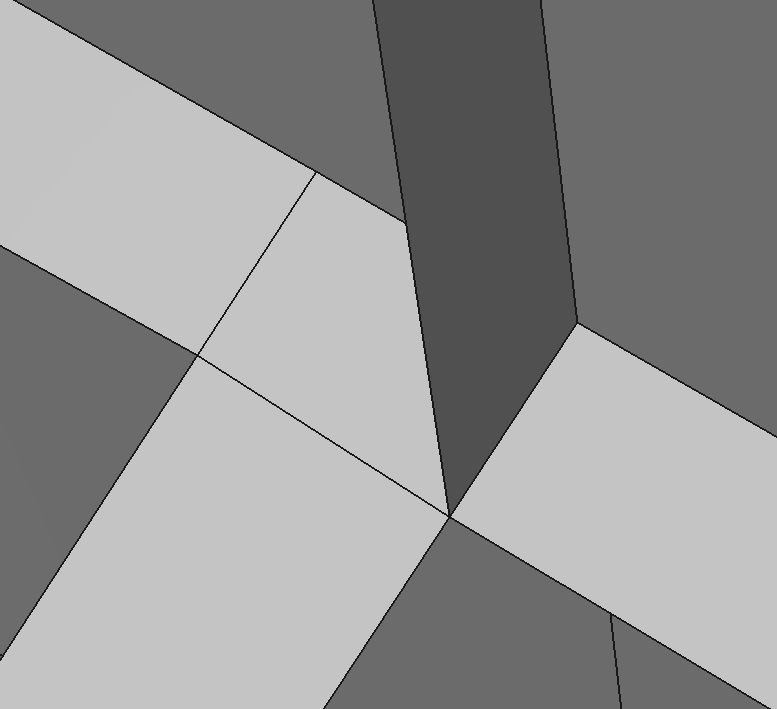

As shown in the figure, the selected face has been deleted.

Join two edges into one edge

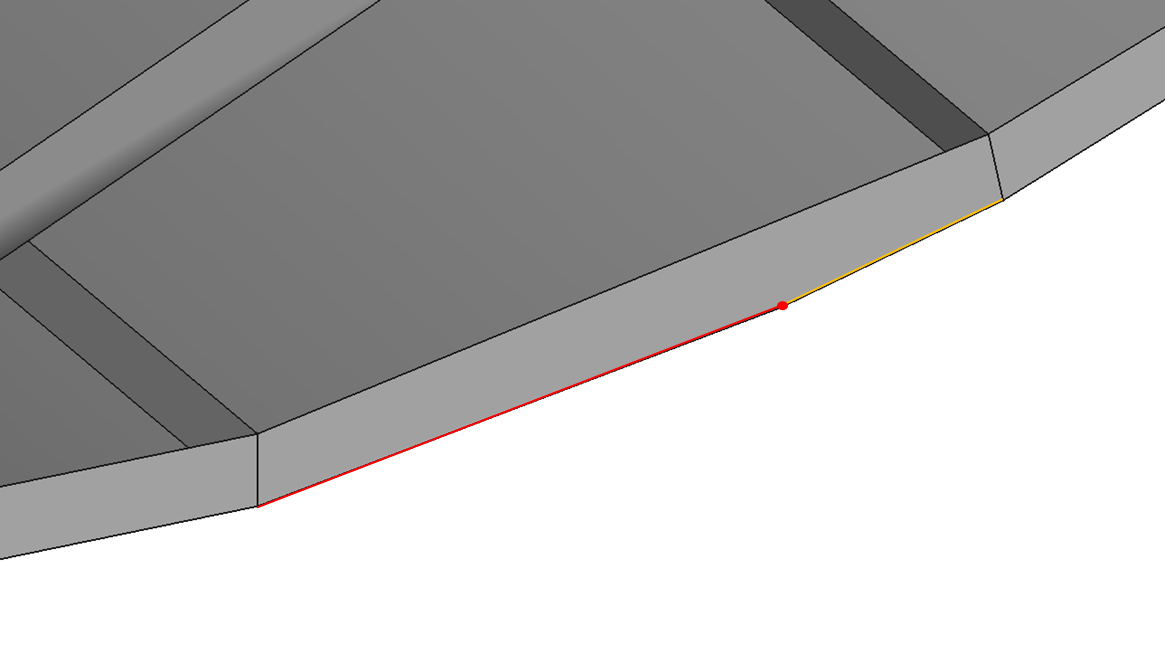

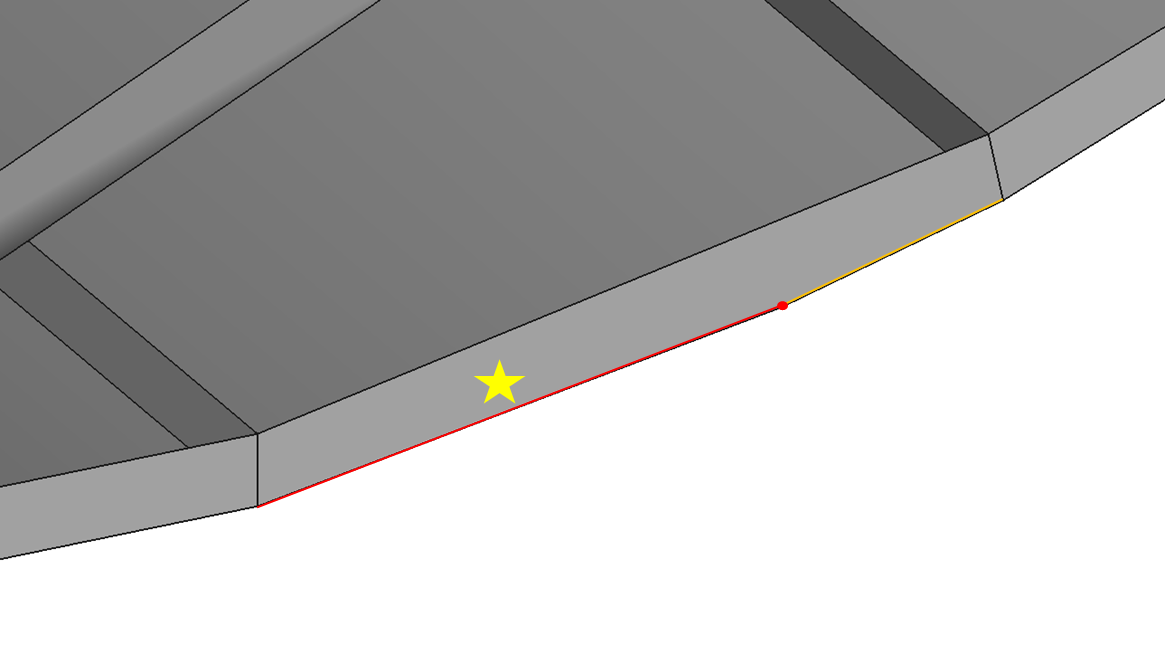

As shown in the figure, join the two red edges.

// Get the two edges to be joined.
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge1 = TopoCast::Edge(edges[446]);
edge2 = TopoCast::Edge(edges[447]);

// Join two edges into a single edge.
IndexSet<TopoShape> joinedges;
joinedges.insert(edge1);
joinedges.insert(edge2);
TopoEdge newedge = EdgeEditor::JoinEdgesAndUpdate(shape, joinedges);

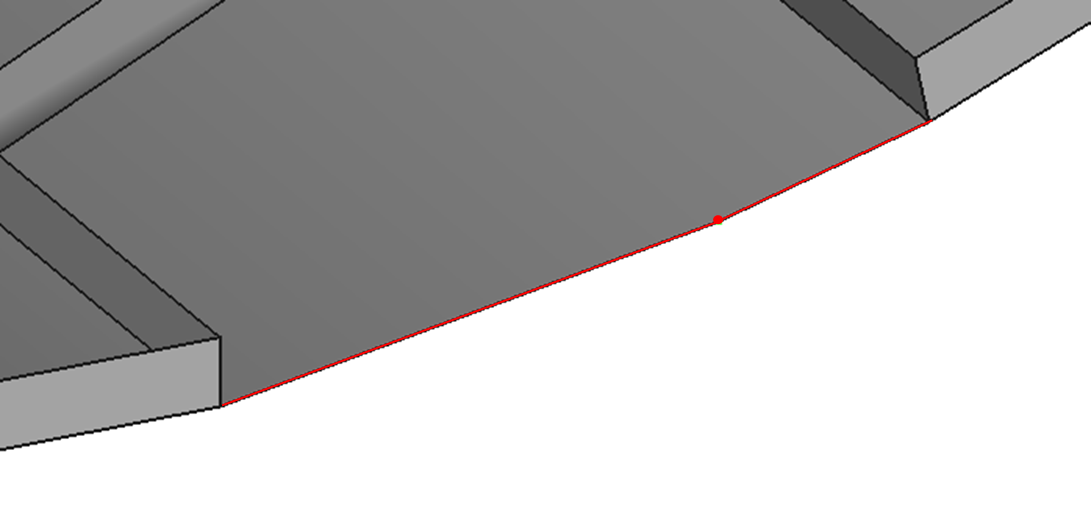

As shown in the figure, after the joint, the two edges become one edge, and the vertex disappears.

Reverse the orientation of the face

// Get the face whose orientation is to be reversed.
faces.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
face = TopoCast::Face(faces[139]);

// Reverse the orientation of the face.
FaceEditor::ReverseOrientation(shape, face);

Click here example01 to get the full source code of the geometry edit example one. Everyone can download it as needed.

Appendix

The complete code for this example is listed below:

#include <occtio/OCCTTool.hpp>
#include <shapeEdit/VertexEditor.hpp>
#include <shapeEdit/EdgeEditor.hpp>
#include <shapeEdit/FaceEditor.hpp>
#include <topology/TopoCast.hpp>
#include <topology/TopoExplorerTool.hpp>
#include <topology/TopoFace.hpp>
#include <topology/TopoEdge.hpp>
#include <topology/TopoVertex.hpp>
#include <topology/TopoTool.hpp>

void GeomEdit()
{
    using namespace AMCAX;
    using namespace AMCAX::GeomE;

    AMCAX::TopoShape shape;
    OCCTIO::OCCTTool::Read(shape, "./data/FEA.brep");

    // Get the coordinates of the insertion point
    IndexSet<TopoShape> vertices;
    TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
    TopoVertex vertex = TopoCast::Vertex(vertices[799]);
    Point3 point = TopoTool::Point(vertex);

    // Get the inserted edge
    IndexSet<TopoShape> edges;
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    TopoEdge edge = TopoCast::Edge(edges[1528]);

    // Insert the point onto the edge
    EdgeEditor::TrimEdgeWithPoint(shape, edge, { point });

    // Get two edges to be sewn together
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    TopoEdge edge1 = TopoCast::Edge(edges[1528]);
    TopoEdge edge2 = TopoCast::Edge(edges[1759]);

    // Sew edge2 to edge1
    EdgeEditor::SewEdges(shape, edge2, edge1, 0.1);

    // Get the edge to be projected
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge = TopoCast::Edge(edges[1736]);

    // Get the face to which the edge will be projected
    IndexSet<TopoShape> faces;
    TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
    TopoFace face = TopoCast::Face(faces[30]);

    // Project the edge onto the face
    TopoShape replaceshape;
    IndexSet<TopoShape> projectedges;
    projectedges.insert(edge);
    FaceEditor::EdgesProjectFace(shape, projectedges, face, replaceshape);

    // Get two edges to be sewn together
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge1 = TopoCast::Edge(edges[1737]);
    edge2 = TopoCast::Edge(edges[102]);

    // Sew edge2 to edge1
    EdgeEditor::SewEdges(shape, edge2, edge1, 0.1);

    // Get the vertex to be released
    vertices.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
    vertex = TopoCast::Vertex(vertices[845]);

    // Release the vertex
    VertexEditor::ReleaseVertex(shape, vertex);

    // Get the vertex to be deleted
    vertices.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
    vertex = TopoCast::Vertex(vertices[845]);

    // Delete the vertex
    VertexEditor::RemoveVertex(shape, vertex);

    // Get the vertices to be sewn together
    vertices.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
    TopoVertex vertex1 = TopoCast::Vertex(vertices[417]);
    TopoVertex vertex2 = TopoCast::Vertex(vertices[847]);

    // Sew vertex2 to vertex1
    VertexEditor::SewVertices(shape, vertex2, vertex1);

    // Get two edges to be sewn together
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge1 = TopoCast::Edge(edges[1887]);
    edge2 = TopoCast::Edge(edges[1880]);

    // Sew edge2 to edge1
    EdgeEditor::SewEdges(shape, edge2, edge1, 0.1);

    // Get the split vertices
    vertices.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Vertex, vertices);
    vertex1 = TopoCast::Vertex(vertices[578]);
    vertex2 = TopoCast::Vertex(vertices[821]);

    // Get the face to be split
    faces.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
    face = TopoCast::Face(faces[903]);

    // Perform parametric split
    FaceEditor::ParameterFaceCut(shape, face, vertex1, vertex2);

    // Get the rebuilt edge
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge = TopoCast::Edge(edges[452]);

    // Rebuild and update the edge
    EdgeEditor::RebuildAndUpdateEdge(shape, edge);

    // Get the inserted edge
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge = TopoCast::Edge(edges[446]);

    // Insert a vertex on the edge based on ratio
    EdgeEditor::TrimEdgeWithRatio(shape, edge, { 0.3 });

    // Get the edge to be released
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge = TopoCast::Edge(edges[447]);

    // Release the edge
    EdgeEditor::ReleaseEdge(shape, edge);

    // Get the face to be deleted
    faces.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
    face = TopoCast::Face(faces[832]);

    // Delete the face
    FaceEditor::DeleteFace(shape, face);

    // Get two edges to be connected
    edges.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
    edge1 = TopoCast::Edge(edges[446]);
    edge2 = TopoCast::Edge(edges[447]);

    // Connect the two edges into one edge
    IndexSet<TopoShape> joinedges;
    joinedges.insert(edge1);
    joinedges.insert(edge2);
    TopoEdge newedge = EdgeEditor::JoinEdgesAndUpdate(shape, joinedges);

    // Get the face to reverse orientation
    faces.clear();
    TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
    face = TopoCast::Face(faces[139]);

    // Reverse the orientation of the face
    FaceEditor::ReverseOrientation(shape, face);

    AMCAX::OCCTIO::OCCTTool::Write(shape, "./shape.brep");
}

Geometry Edit example two

CAD Model Preview

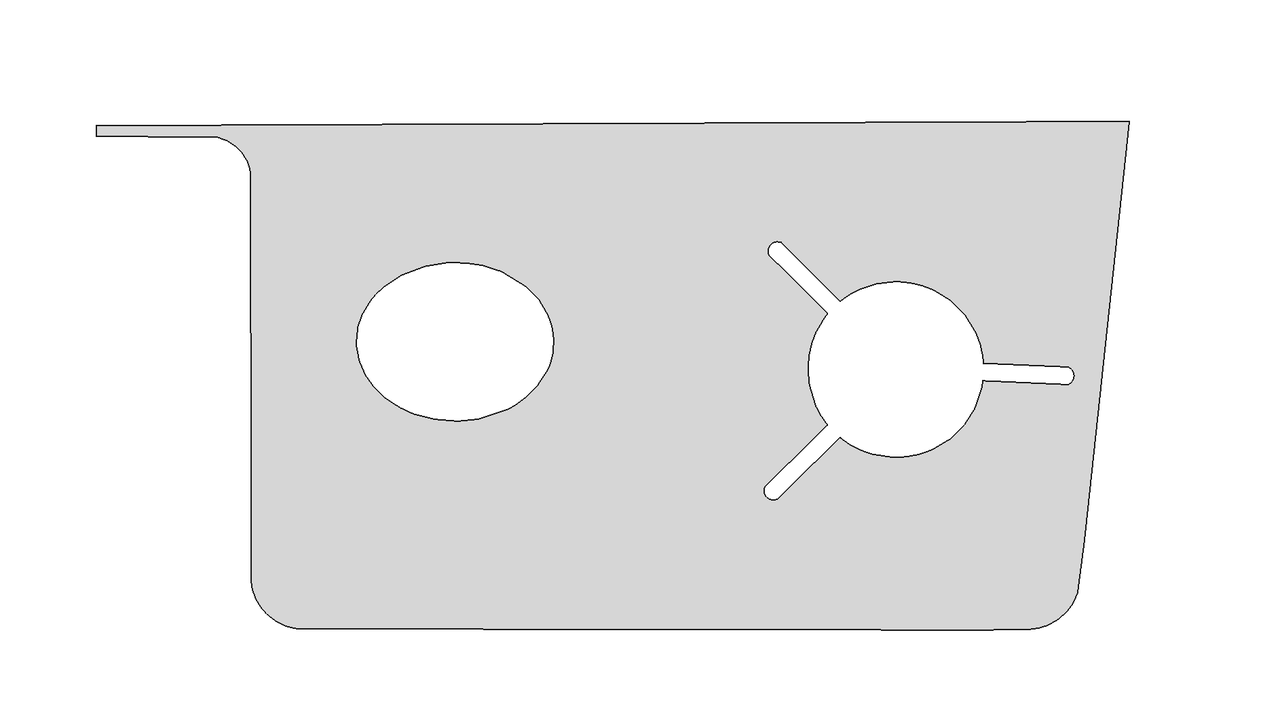

Import a STEP format CAD model, as shown in the figure below:

Preparation

In this tutorial example, the STEP model will first be read in, followed by geometric editing operations on the input model, and finally, the model will be written to a BREP file.

Relevant Header Files

#include <occtio/OCCTTool.hpp>
#include <shapeEdit/DetectTool.hpp>
#include <shapeEdit/EdgeEditor.hpp>
#include <shapeEdit/FaceEditor.hpp>
#include <shapeEdit/GeomEMacros.hpp>
#include <shapeEdit/VertexEditor.hpp>
#include <step/StepDataTool.hpp>
#include <topology/TopoCast.hpp>
#include <topology/TopoExplorerTool.hpp>
#include <topology/TopoFace.hpp>
#include <topology/TopoEdge.hpp>
#include <topology/TopoVertex.hpp>
#include <topology/TopoTool.hpp>
#include <modeling/MakeVertex.hpp>

Import Model

Import the CAD file and build the model.

AMCAX::TopoShape shape;

bool success = AMCAX::STEP::StepDataTool::Read(shape, "./data/skin.step");

AMCAX::STEP::StepDataTool::Read

static AMCAX_API bool Read(AMCAX::TopoShape &s, std::istream &is)

Read a TopoShape from a stream, in STEP format.

Output Result

Write the model to a BREP file.

success = AMCAX::OCCTIO::OCCTTool::Write(shape, "./result/shape.brep");

Detect Edge Type

// Get the edge to be checked
IndexSet<TopoShape> edges;
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
TopoEdge edge = TopoCast::Edge(edges[15]);

// Detect the type of the edge
EdgeType edgetype = DetectTool::GetEdgeType(shape, edge);

As shown in the figure, the green edge is selected for detection. The returned EdgeType for this edge is FreeEdge, indicating that this edge is a free edge.

Detect Free Boundaries of the Edge

// Detect the free boundaries of the edge
IndexSet<TopoShape> freeboundaries =
DetectTool::DetectFreeBoundaries(shape, edge);

As shown in the figure, the free boundary containing the edge is detected.

Fill Holes in the Free Boundary

// Fill holes using the free boundary

FaceEditor::FillHole(shape, freeboundaries);

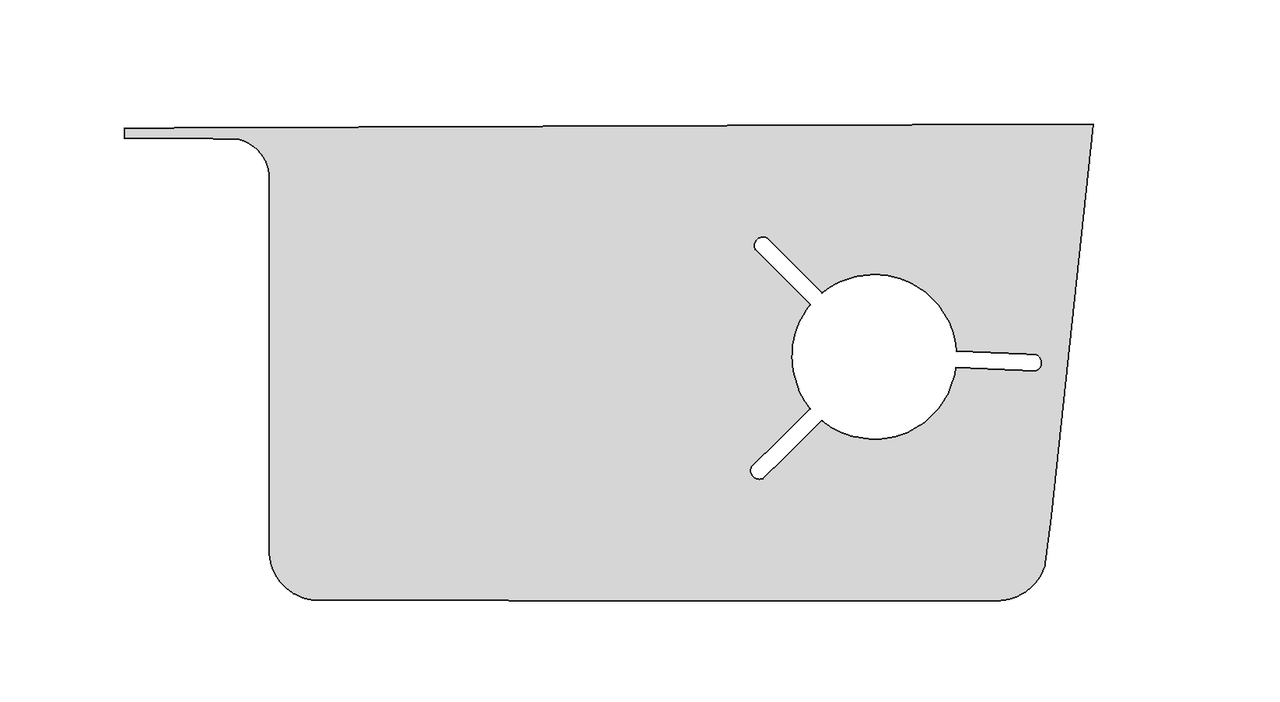

As shown in the figure, the hole bounded by the free boundary has been filled.

Create a New Coons Surface from the Selected Boundary

As shown in the figure, the green edges are selected as a set to construct a new plane.

// Get edge set
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
TopoEdge            edge1 = TopoCast::Edge(edges[9]);
TopoEdge            edge2 = TopoCast::Edge(edges[10]);
TopoEdge            edge3 = TopoCast::Edge(edges[11]);
IndexSet<TopoShape> edgeset;
edgeset.insert(edge1);
edgeset.insert(edge2);
edgeset.insert(edge3);

// Build a coons surface using the edge set
TopoFace face = FaceEditor::BuildCoons(shape, edgeset);

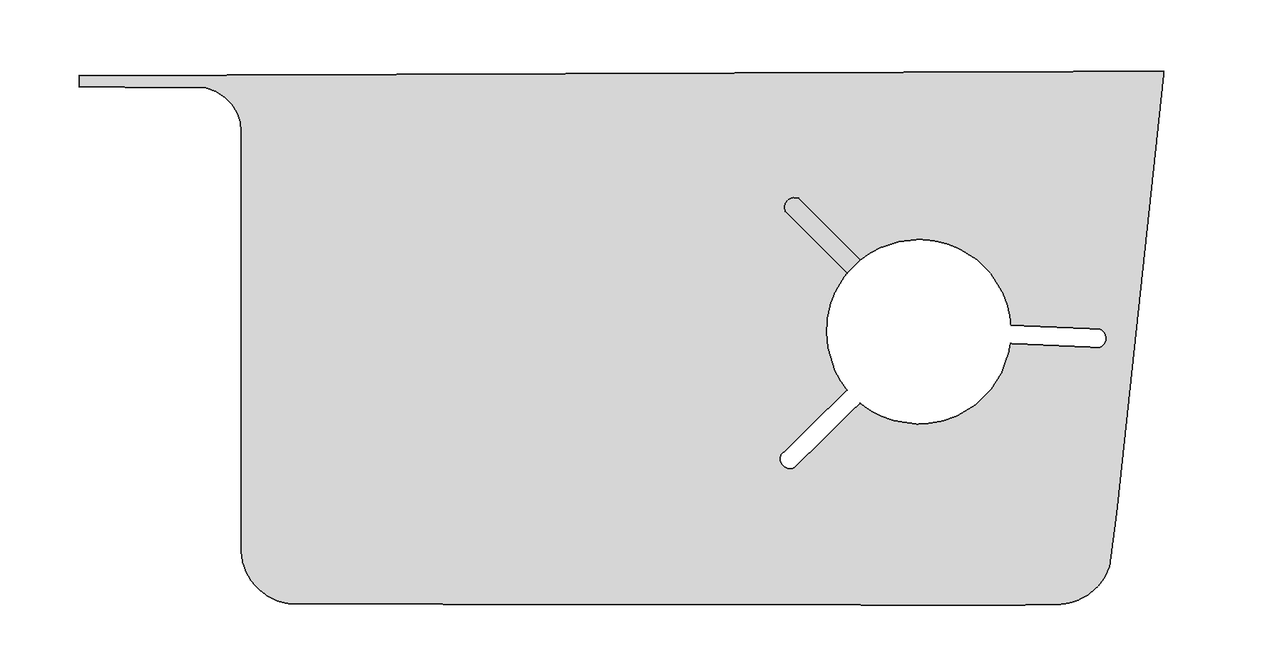

As shown in the figure, the Coons Surface has been successfully constructed.

Create a New Plane from the Selected Boundary

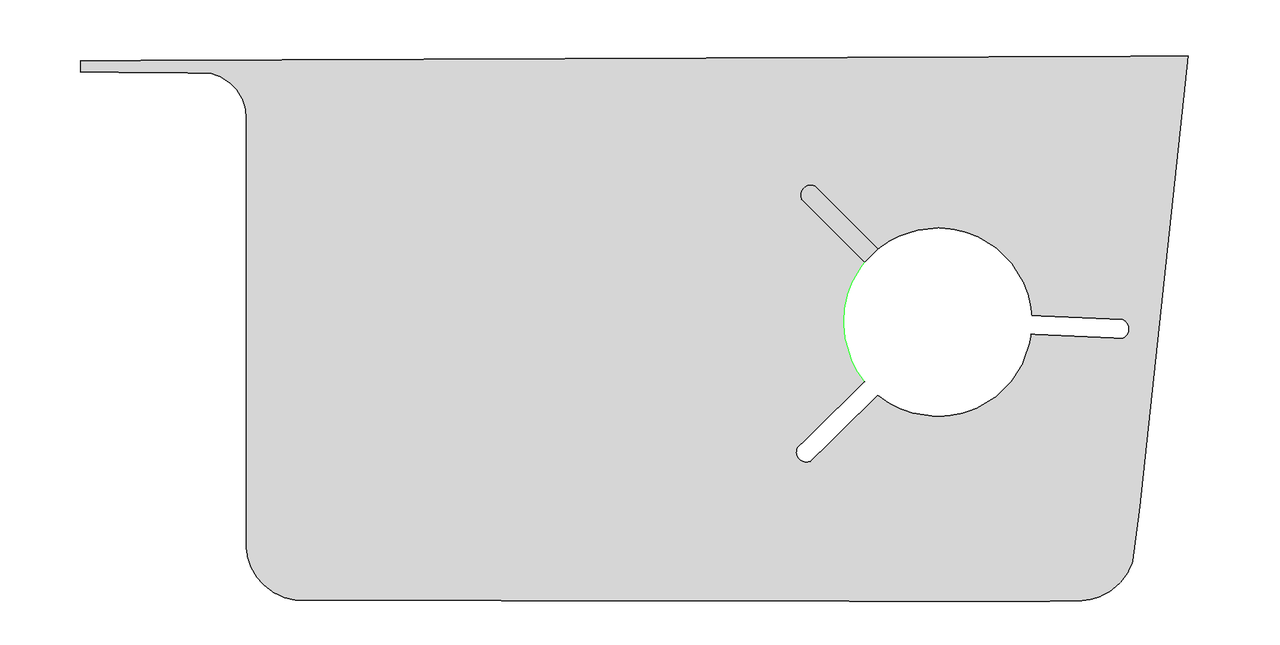

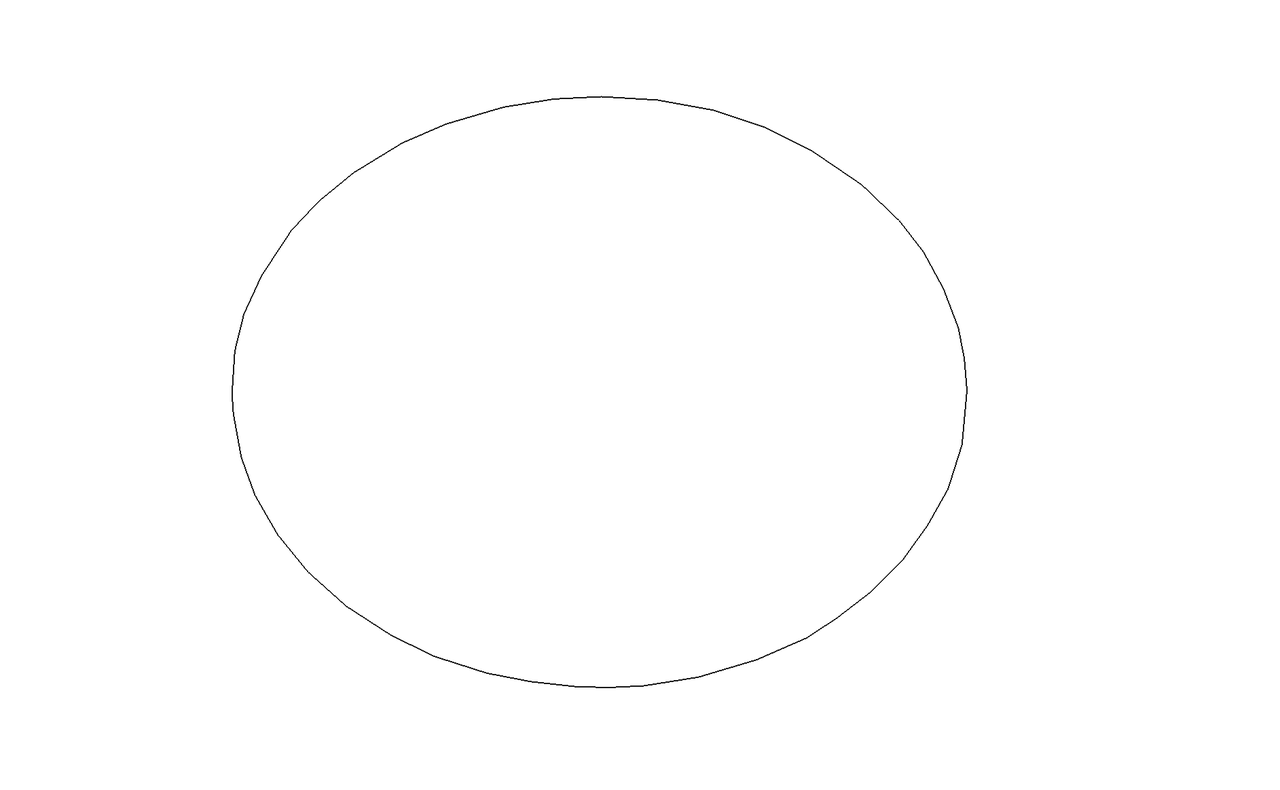

As shown in the figure, the green edges are selected as a set to construct a new plane.

// Get edge set
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge = TopoCast::Edge(edges[8]);
edgeset.clear();
edgeset.insert(edge);

// Build a Plane using the edge set
face = FaceEditor::BuildPlane(shape, edgeset);

As shown in the figure, the plane has been successfully constructed.

Create a New Face Based on an Existing Surface

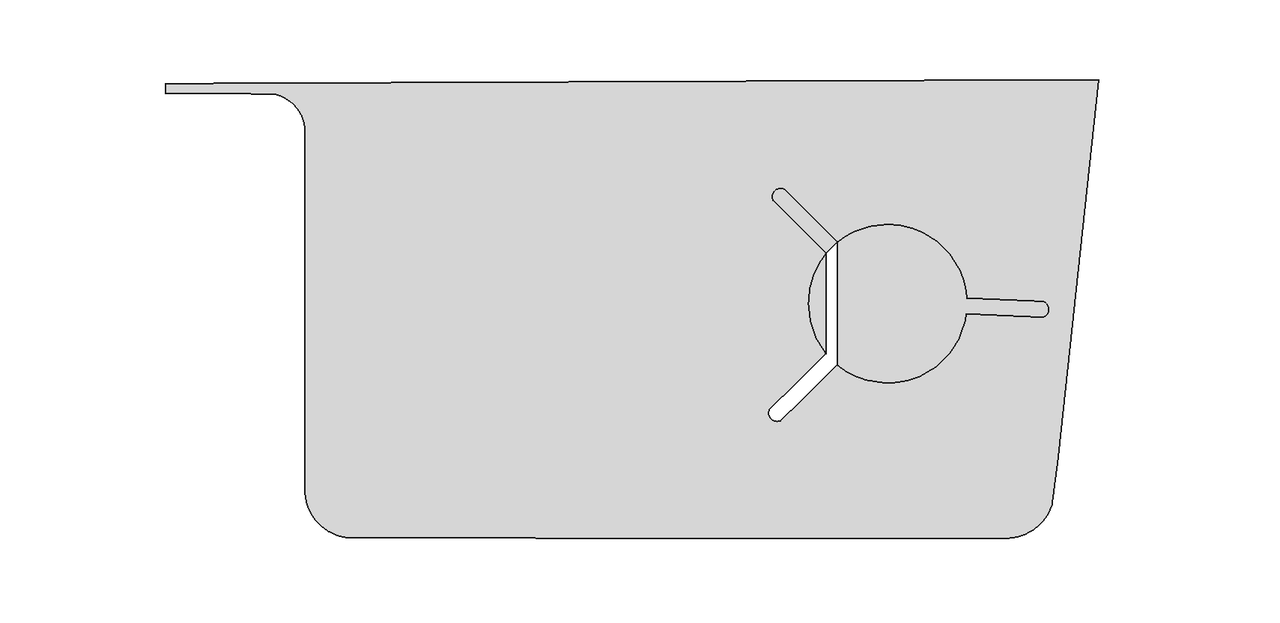

As shown in the figure, the green edges are selected as a set to create a new face based on the surface of the yellow face.

// Get edge set
edges.clear();
TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
edge  = TopoCast::Edge(edges[3]);
edge1 = TopoCast::Edge(edges[4]);
edge2 = TopoCast::Edge(edges[13]);
edge3 = TopoCast::Edge(edges[14]);
edgeset.clear();
edgeset.insert(edge);
edgeset.insert(edge1);
edgeset.insert(edge2);
edgeset.insert(edge3);

// Get the existing face
IndexSet<TopoShape> faces;
TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
TopoFace existface = TopoCast::Face(faces[0]);

// Create a new face based on the existing surface
face = FaceEditor::BuildFaceFromSurface(shape, edgeset, existface);

As shown in the figure, the new face has been successfully created.

Project a Point onto a Face

// Create a vertex
Point3 p(350., -7., 380.);
TopoVertex vertex = MakeVertex(p);
IndexSet<TopoShape> vertices;
vertices.insert(vertex);

// Project the point onto the face
TopoShape replaceshape;
FaceEditor::VerticesProjectFace(shape, vertices, existface, replaceshape);

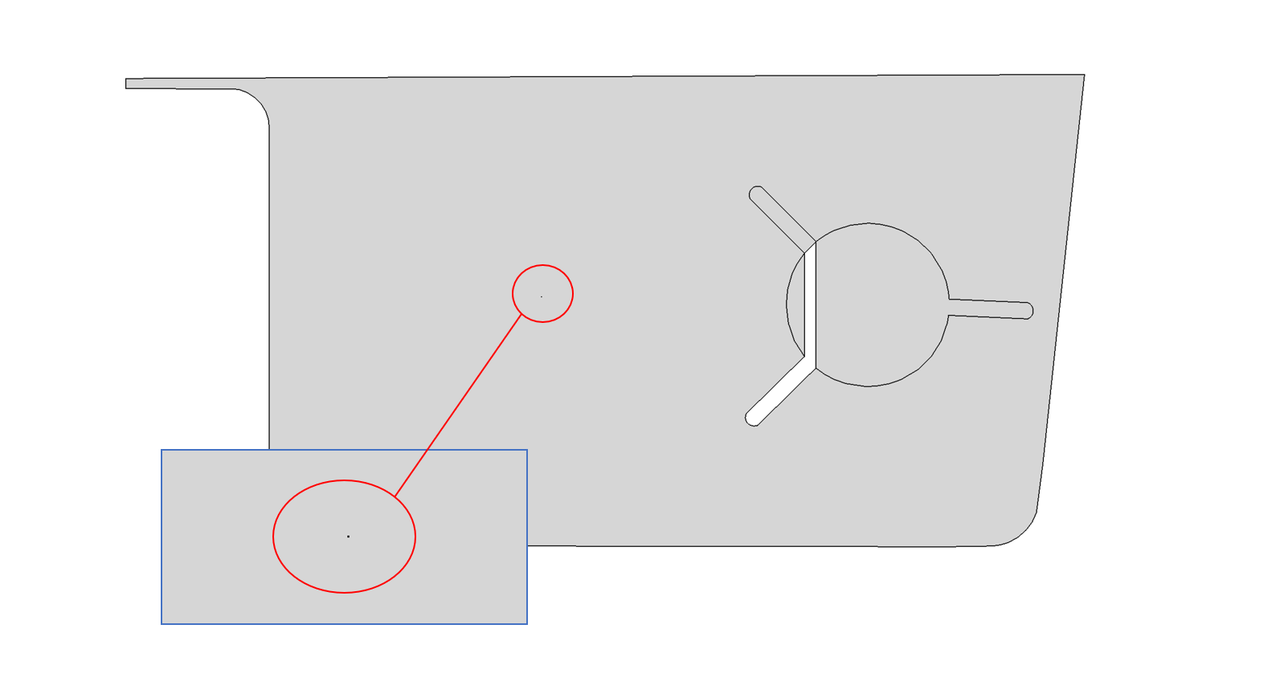

As shown in the figure, the point has been successfully projected onto the face.

Click here example02 to get the full source code of the geometry edit example two. Everyone can download it as needed.

Appendix

#include <occtio/OCCTTool.hpp>
#include <shapeEdit/DetectTool.hpp>
#include <shapeEdit/EdgeEditor.hpp>
#include <shapeEdit/FaceEditor.hpp>
#include <shapeEdit/GeomEMacros.hpp>
#include <shapeEdit/VertexEditor.hpp>
#include <step/StepDataTool.hpp>
#include <topology/TopoCast.hpp>
#include <topology/TopoExplorerTool.hpp>
#include <topology/TopoFace.hpp>
#include <topology/TopoEdge.hpp>
#include <topology/TopoVertex.hpp>
#include <modeling/MakeVertex.hpp>

void GeomEdit()
{
        using namespace AMCAX;
        using namespace AMCAX::GeomE;

        TopoShape shape;
        bool      success = STEP::StepDataTool::Read(
    shape, "./data/skin.step");

        // Get the detected edges
        IndexSet<TopoShape> edges;
        TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
        TopoEdge edge = TopoCast::Edge(edges[15]);

        // Detect the type of this edge
        EdgeType edgetype = DetectTool::GetEdgeType(shape, edge);

        // Detect the free boundary to which this edge belongs
        IndexSet<TopoShape> freeboundaries =
          DetectTool::DetectFreeBoundaries(shape, edge);

        // Select the free boundary for hole filling
        FaceEditor::FillHole(shape, freeboundaries);

        // Get the edge set
        edges.clear();
        TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
        TopoEdge            edge1 = TopoCast::Edge(edges[9]);
        TopoEdge            edge2 = TopoCast::Edge(edges[10]);
        TopoEdge            edge3 = TopoCast::Edge(edges[11]);
        IndexSet<TopoShape> edgeset;
        edgeset.insert(edge1);
        edgeset.insert(edge2);
        edgeset.insert(edge3);

        // Build a Coons surface from the edge set
        TopoFace face = FaceEditor::BuildCoons(shape, edgeset);

        // Get the edge set
        edges.clear();
        TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
        edge = TopoCast::Edge(edges[8]);
        edgeset.clear();
        edgeset.insert(edge);

        // Build a plane from the edge set
        face = FaceEditor::BuildPlane(shape, edgeset);

        // Get the edge set
        edges.clear();
        TopoExplorerTool::MapShapes(shape, ShapeType::Edge, edges);
        edge  = TopoCast::Edge(edges[3]);
        edge1 = TopoCast::Edge(edges[4]);
        edge2 = TopoCast::Edge(edges[13]);
        edge3 = TopoCast::Edge(edges[14]);
        edgeset.clear();
        edgeset.insert(edge);
        edgeset.insert(edge1);
        edgeset.insert(edge2);
        edgeset.insert(edge3);

        // Get the existing face
        IndexSet<TopoShape> faces;
        TopoExplorerTool::MapShapes(shape, ShapeType::Face, faces);
        TopoFace existface = TopoCast::Face(faces[0]);

        // Build a new face based on the existing surface using the edge set
        face = FaceEditor::BuildFaceFromSurface(shape, edgeset, existface);

        // Create a vertex
        Point3              p(350., -7., 380.);
        TopoVertex          vertex = MakeVertex(p);
        IndexSet<TopoShape> vertices;
        vertices.insert(vertex);

        // Project the point onto the face
        TopoShape replaceshape;
        FaceEditor::VerticesProjectFace(shape, vertices, existface, replaceshape);

        OCCTIO::OCCTTool::Write(shape, "./shape.brep");
}
